Removal And Installation: Removal

  1. Remove the door mirror rear finisher. Refer to REMOVAL AND INSTALLATION .

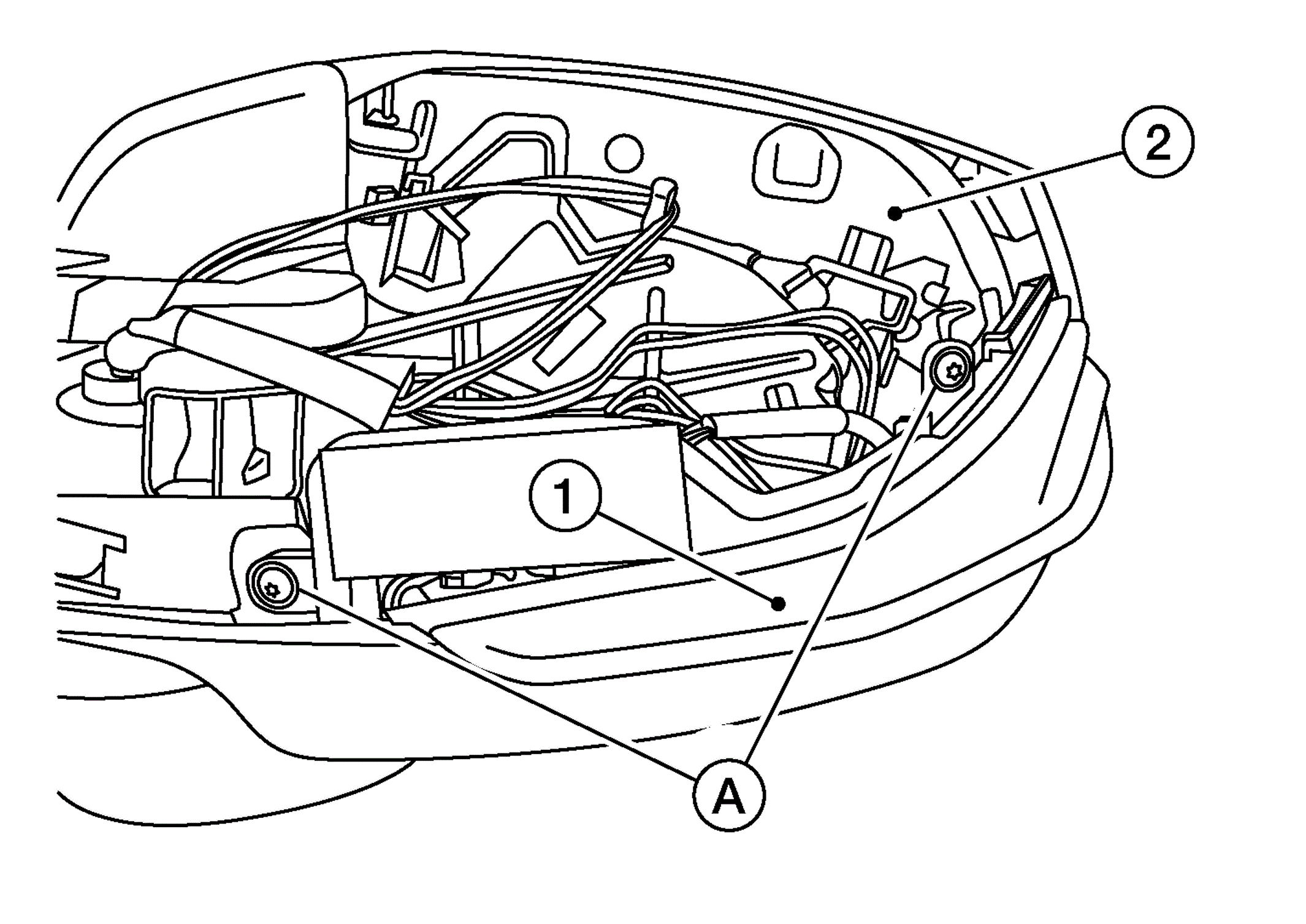

  2. Remove the screws (A) and remove the turn signal lamp (1) from the door mirror (2).
    GNSALLIA2013ZZ-013Courtesy of NISSAN NORTH AMERICA, INC.

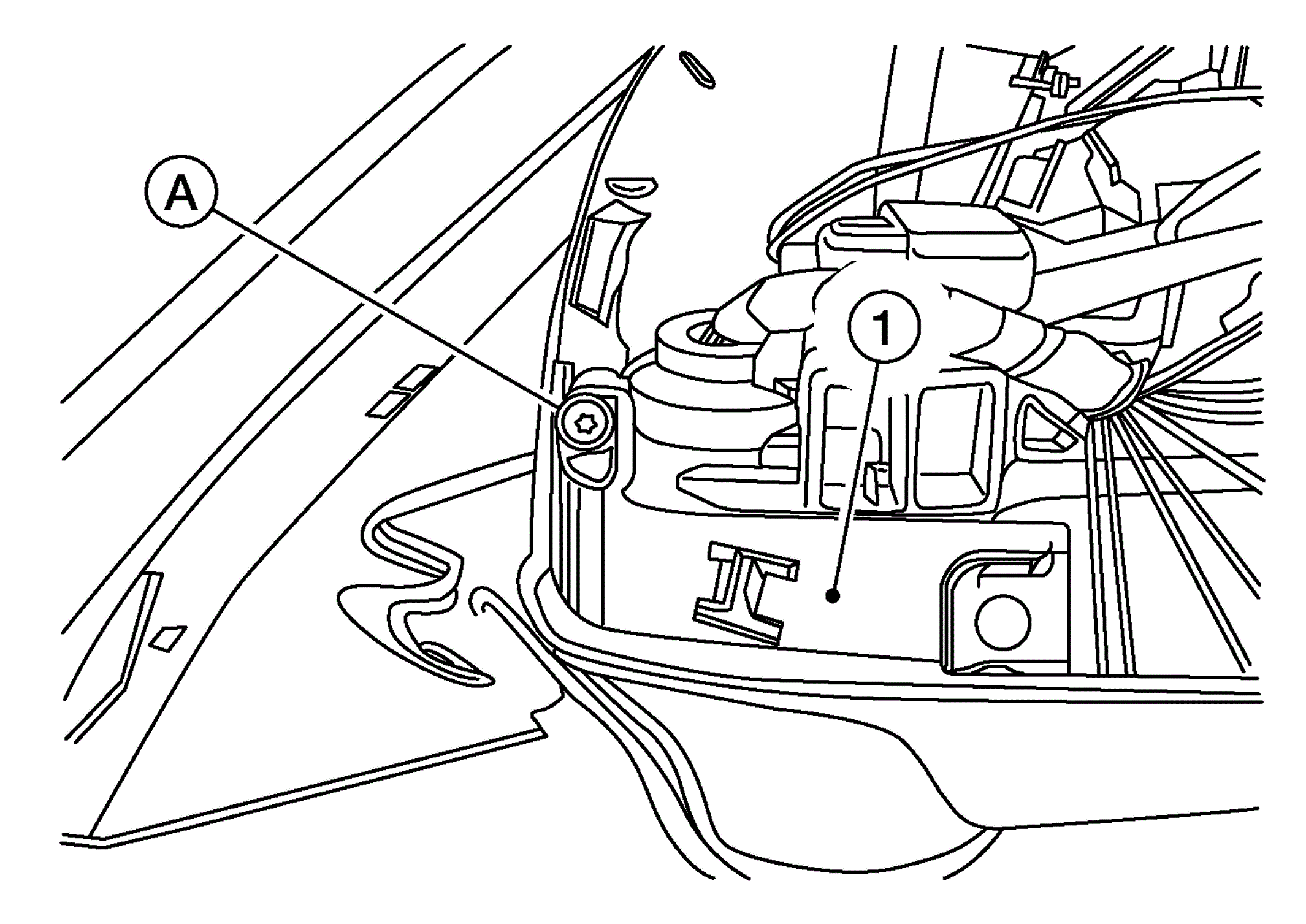

  3. Remove the screw (A) from camera finisher (1).
    GNSALLIA2017ZZ-017Courtesy of NISSAN NORTH AMERICA, INC.

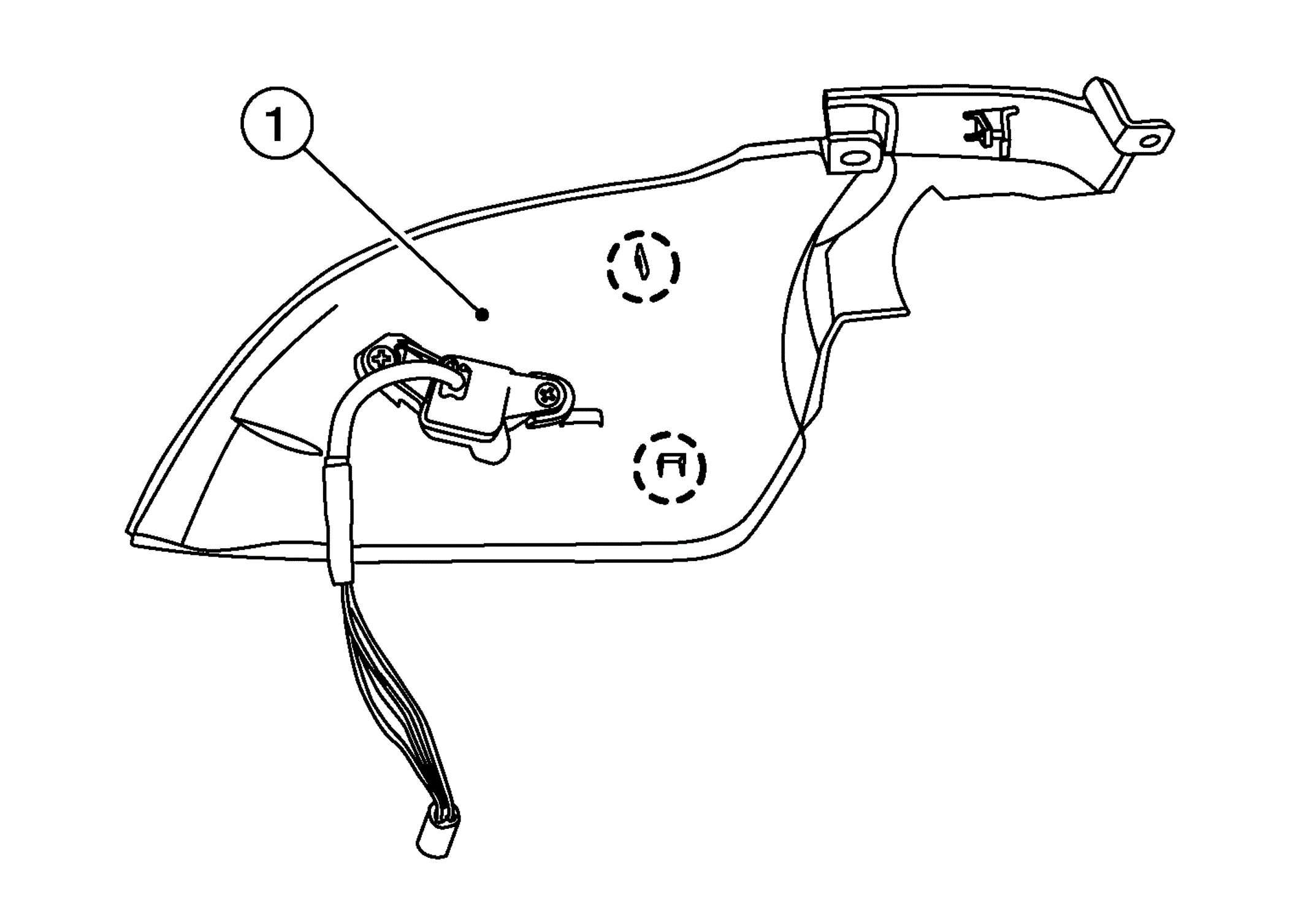

  4. Using a suitable tool release pawls and remove camera finisher (1).
    GNSALLIA2018ZZ-018Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

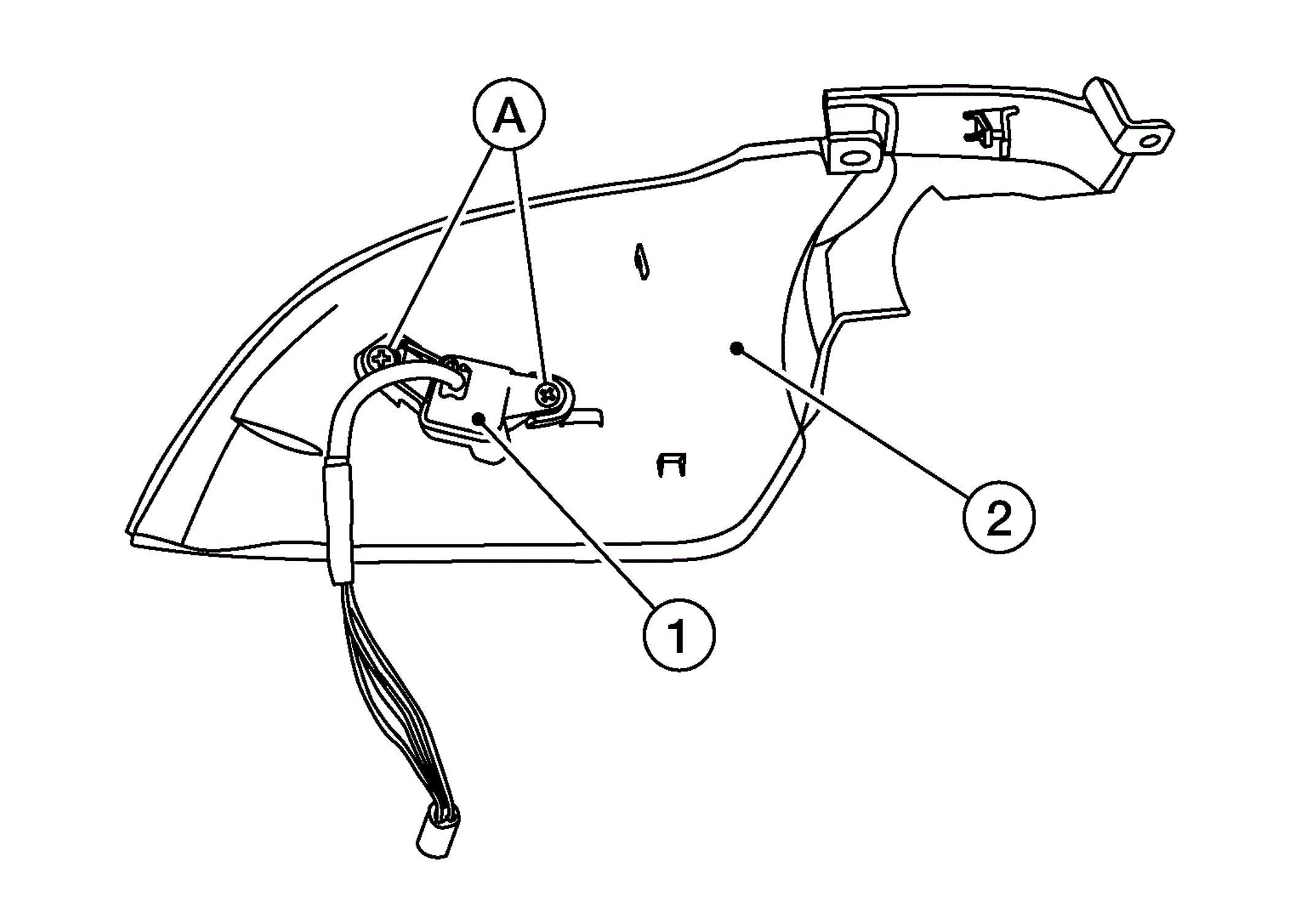

  5. Remove the screws (A) and remove side camera (1) from camera finisher (2).
    GNSALLIA2019ZZ-019Courtesy of NISSAN NORTH AMERICA, INC.
