Removal And Installation: Removal

  1. Remove back pillar finisher. Refer to REMOVAL AND INSTALLATION .

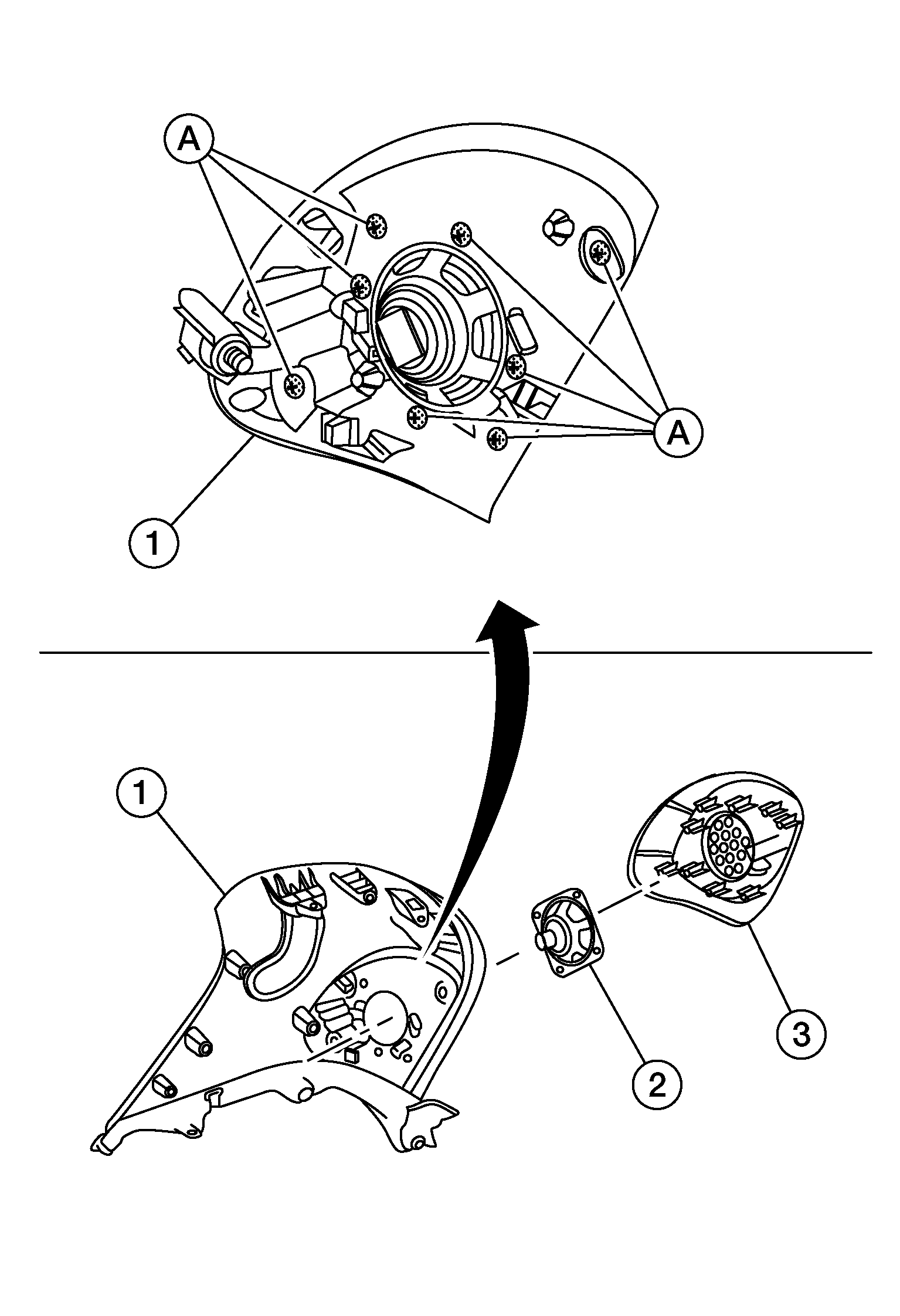

  2. Remove rear speaker screws (A) from back pillar finisher (1).
    G09514509Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the rear speaker (2) and grille (3).
