Disassembly And Assembly: Disassembly

  1. Remove center console assembly. Refer to REMOVAL AND INSTALLATION .
  2. Release center console bin cover using a suitable tool and remove.
  3. Remove center console bin screws (A)
    G08945941Courtesy of NISSAN NORTH AMERICA, INC.

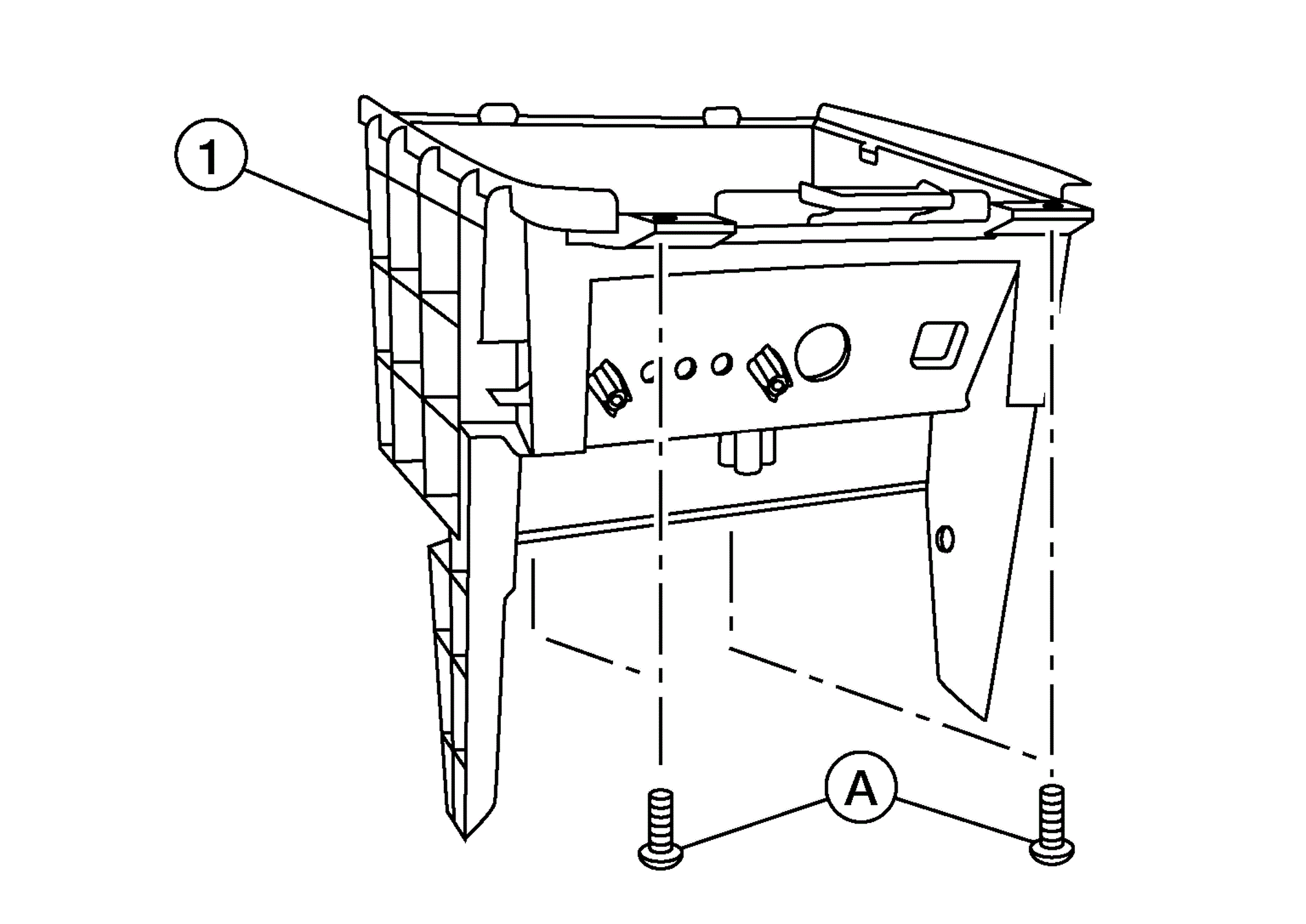

  4. Remove remaining center console bin screws (A), disconnect the harness connectors, then remove the center console bin (1).
    GNSALJIA1891ZZ-891Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove power socket from the center console bin (if necessary). Refer to REMOVAL AND INSTALLATION .
  6. Remove USB connector from the center console bin (if necessary). Refer to REMOVAL AND INSTALLATION (BASE AUDIO), REMOVAL AND INSTALLATION (BOSE AUDIO WITHOUT NAVIGATION), REMOVAL AND INSTALLATION (BOSE AUDIO W/NAVI W/O SURROUND) or REMOVAL AND INSTALLATION (BOSE AUDIO W/NAVI W/SURROUND).
  7. Remove front auxiliary input jack from the center console bin (if necessary). Refer to REMOVAL AND INSTALLATION (BASE AUDIO), REMOVAL AND INSTALLATION (BOSE AUDIO WITHOUT NAVIGATION), REMOVAL AND INSTALLATION (BOSE AUDIO W/NAVI W/O SURROUND) or REMOVAL AND INSTALLATION (BOSE AUDIO W/NAVI W/SURROUND).
