Removal And Installation: Removal

  1. Remove cluster lid C lower. Refer to REMOVAL AND INSTALLATION .
  2. Remove cluster lid C. Refer to REMOVAL AND INSTALLATION .
  3. Remove preset switch lower screws.
  4. Release pawls and detach preset switch from instrument panel assembly using suitable tool.

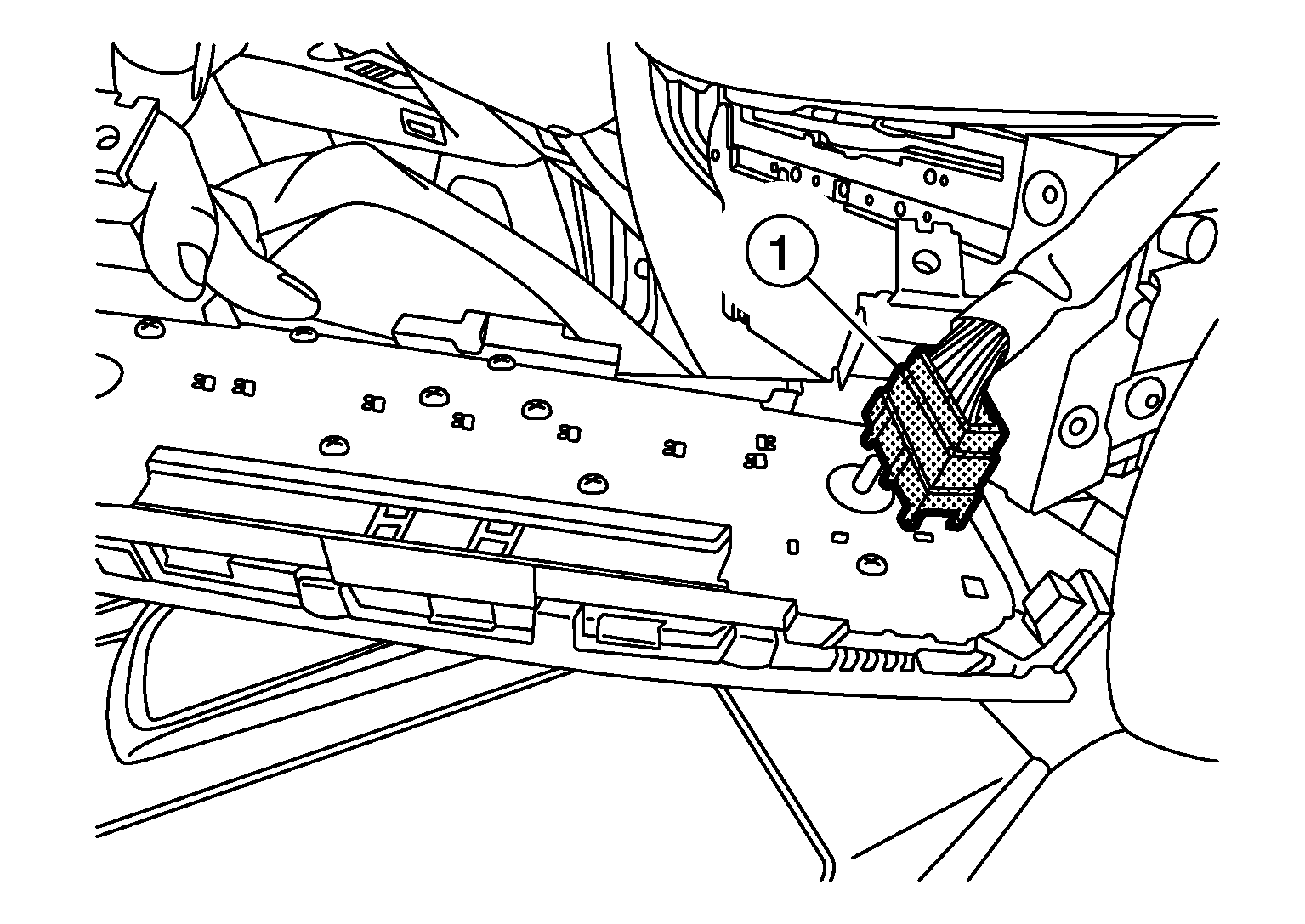

  5. Disconnect harness connector (1) from preset switch.
    GNSALIIA1147ZZ-147Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove preset switch from instrument panel assembly.
