Removal And Installation: Removal

  1. Remove shift selector finisher. Refer to EXPLODED VIEW .

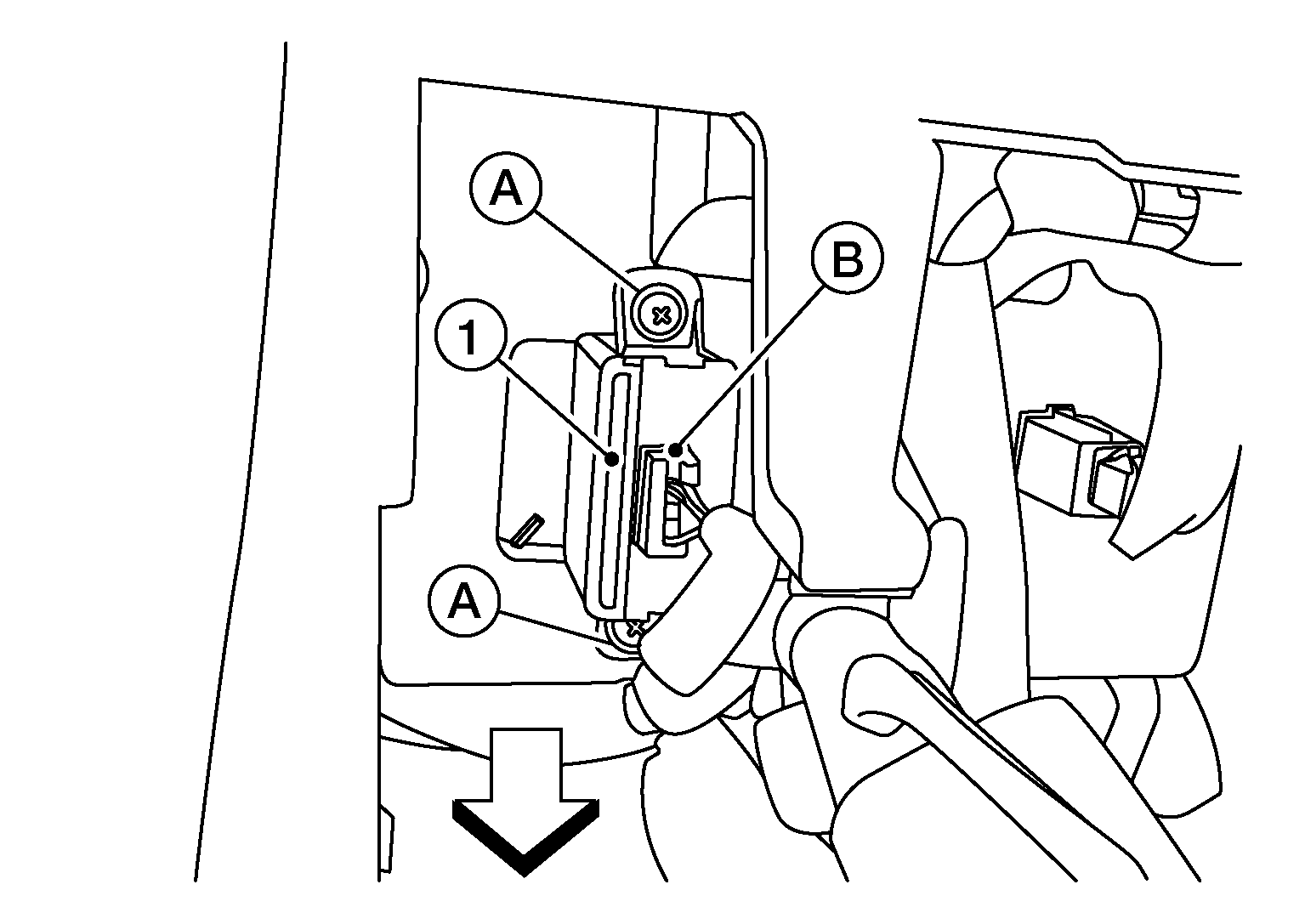

  2. Disconnect harness connector (B) from the front auxiliary input jack (1).
    G09515429Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove front auxiliary input jack screws (A) and front auxiliary input jack (1).

    ARROW : Front
