Component Location

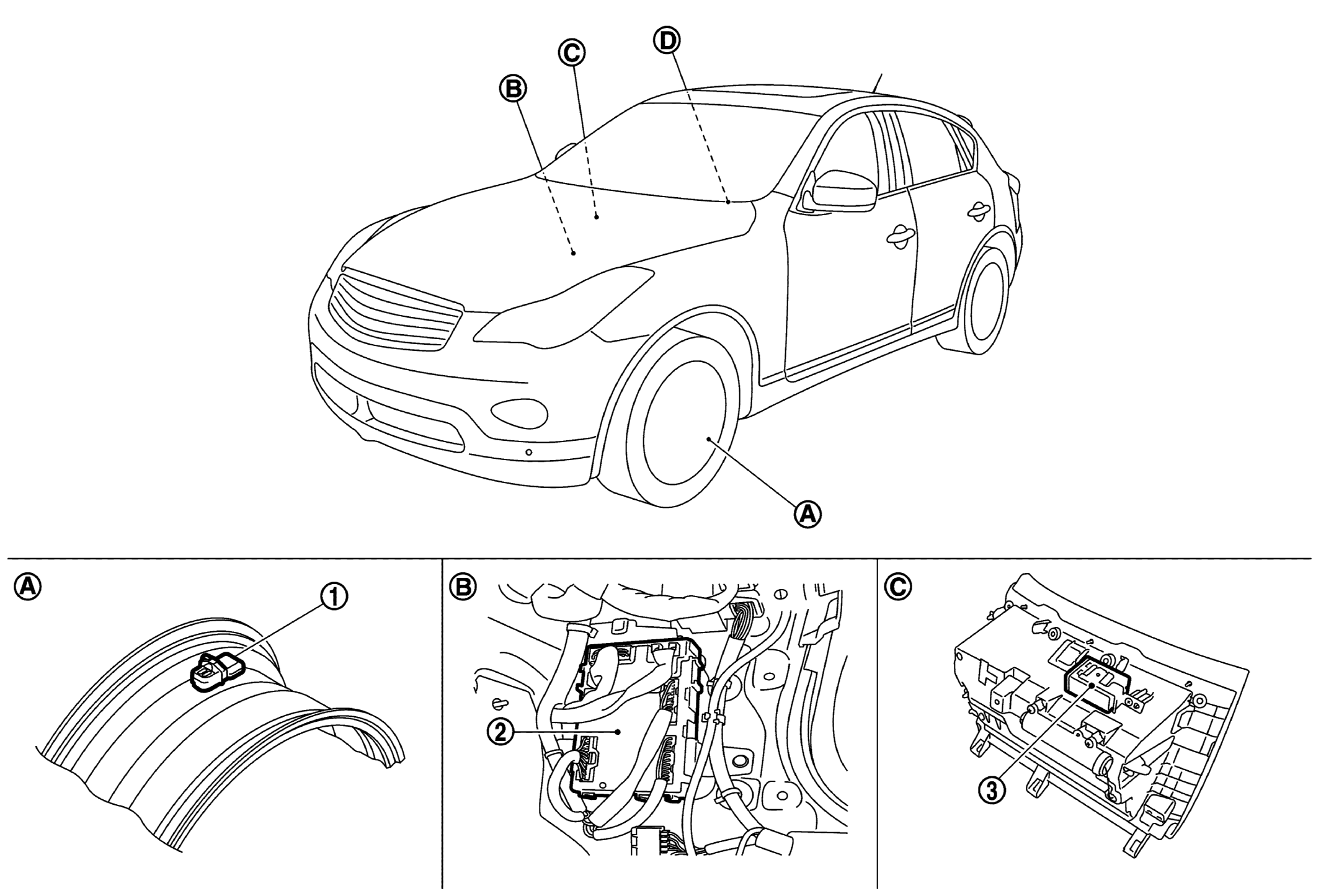

GNSJSEIA0328ZZ-328Courtesy of NISSAN NORTH AMERICA, INC.
1. Tire pressure sensor 2. BCM 3. Tire pressure receiver
A. Wheel B. Dash side lower (passenger side) C. Instrument lower panel RH
D. Low tire pressure warning lamp, information display (In combination meter)
