Home >> Infiniti >> 2016 >> QX50 RWD >> Repair and Diagnosis >> Suspension >> Front Suspension (2WD) >> Removal And Installation >> Front Coil Spring And Shock Absorber >> Exploded View With Torque Specifications

Exploded View With Torque Specifications

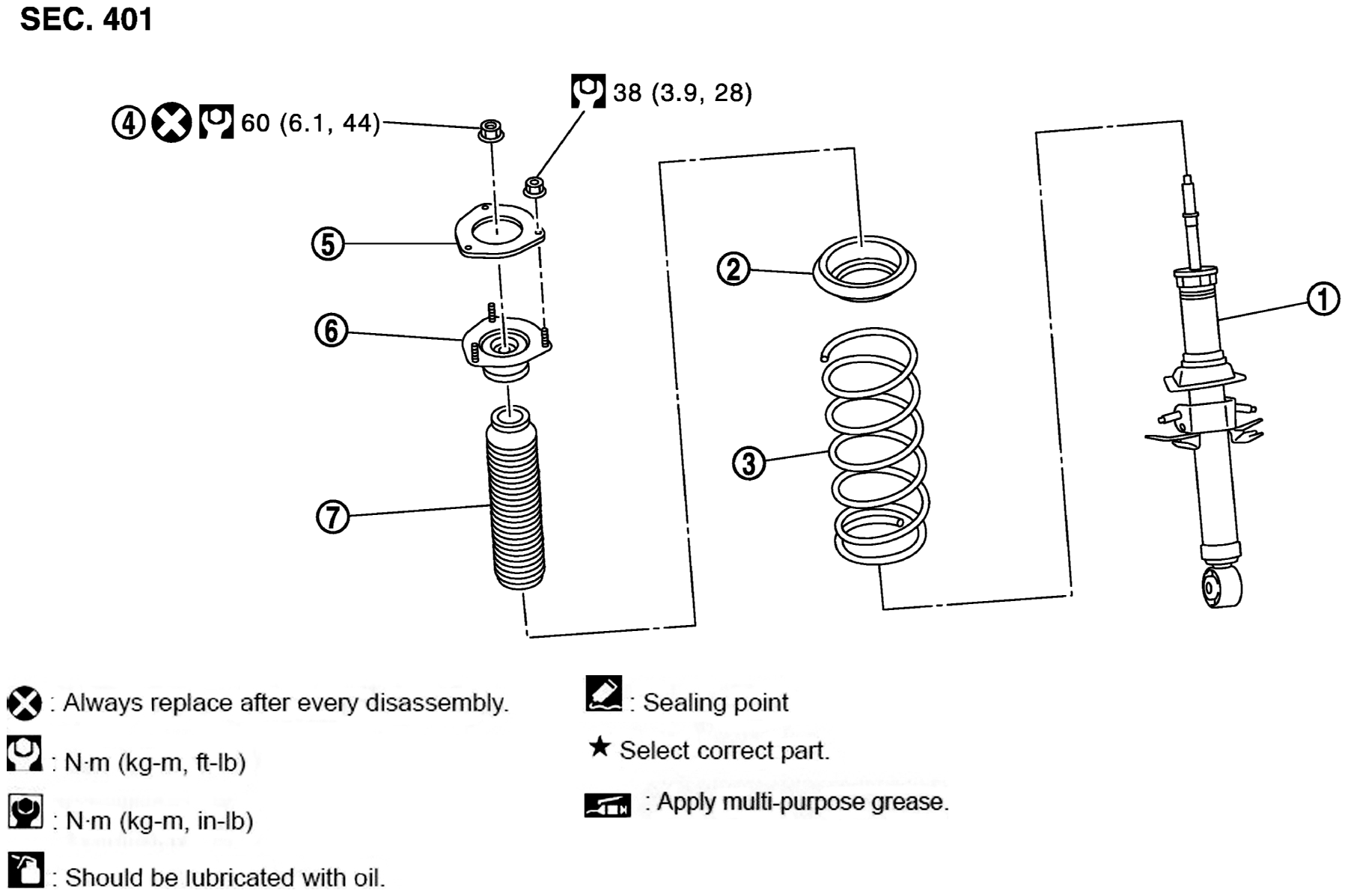

GNSJPEIA0151GB-151Courtesy of NISSAN NORTH AMERICA, INC.
1. Shock absorber 2. Rubber seat 3. Coil spring
4. Piston rod lock nut 5. Mounting seal 6. Shock absorber mounting bracket
7. Bound bumper
Refer to COMPONENTS for symbols in the figure.
