Ball Joint Axial End Play

WARNING: This page is about a different variant/trim than selected.
  1. Set front wheels in a straight-ahead position.

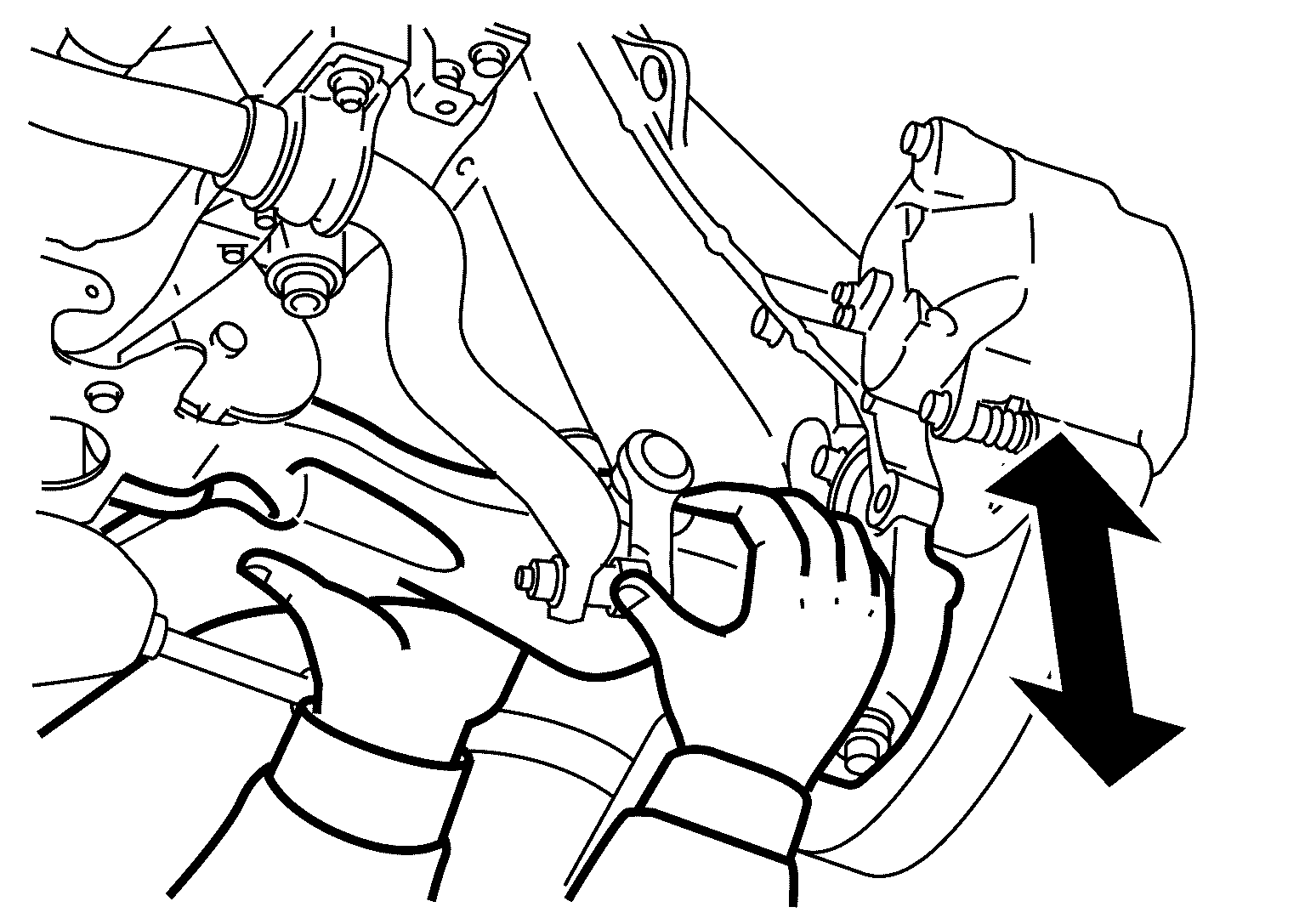

  2. Move axle side of transverse link and upper link in the axial direction by hand. Check there is no end play.
    G07131909Courtesy of NISSAN NORTH AMERICA, INC.
    Axial end play : Refer to BALL JOINT .
    CAUTION:
    • Never depress brake pedal when measuring.
    • Never perform with tires on level ground.
    • Be careful not to damage ball joint boot. Never damage the installation position by applying excessive force.
