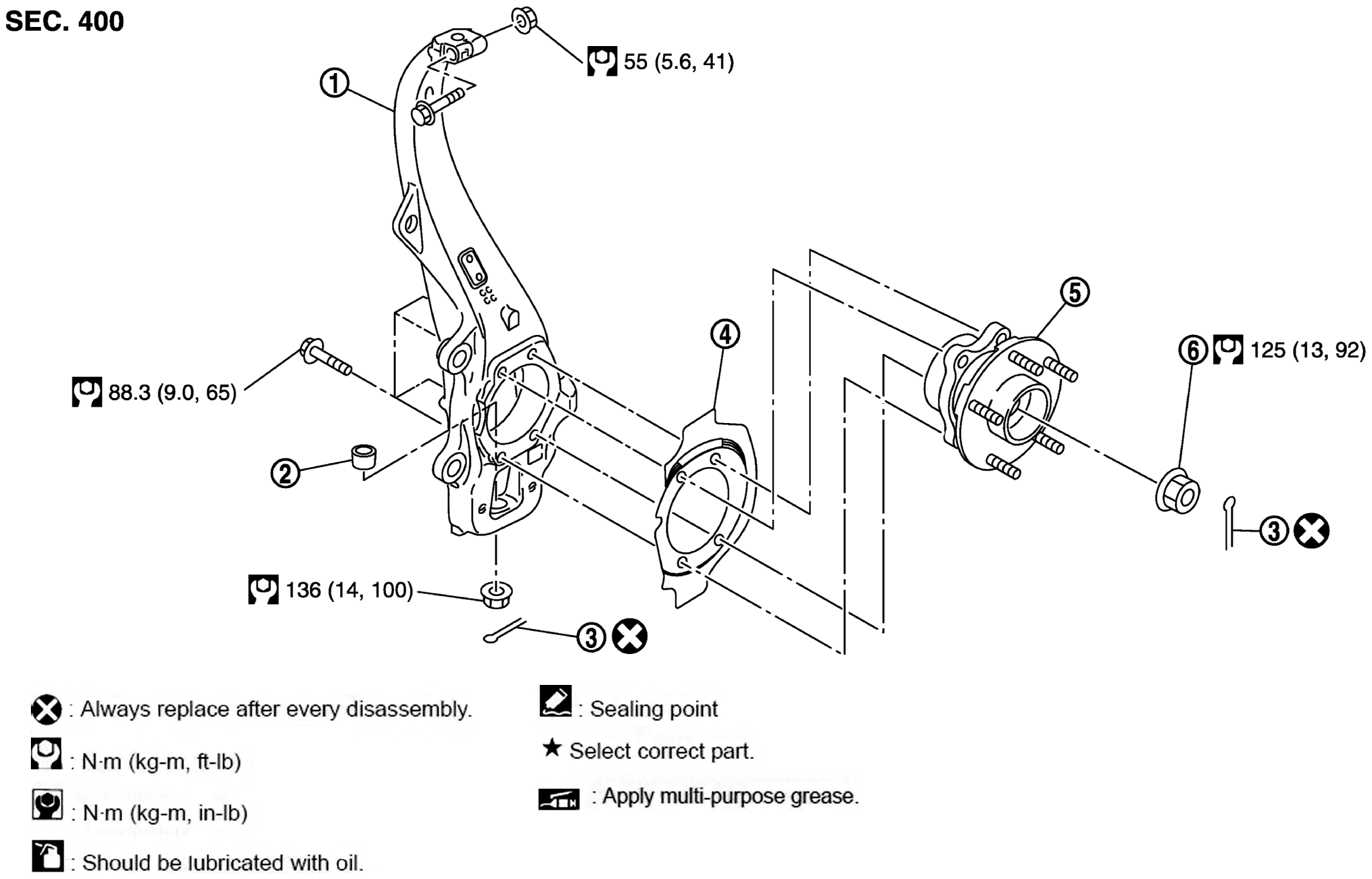

Exploded View With Torque Specifications
WARNING: This page is about a different variant/trim than selected.
| 1. | Steering knuckle | 2. | Ball seat | 3. | Cotter pin |
| 4. | Splash guard | 5. | Wheel hub and bearing assembly | 6. | Wheel hub lock nut |
| Refer to COMPONENTS for symbols in the illustration. | |||||
