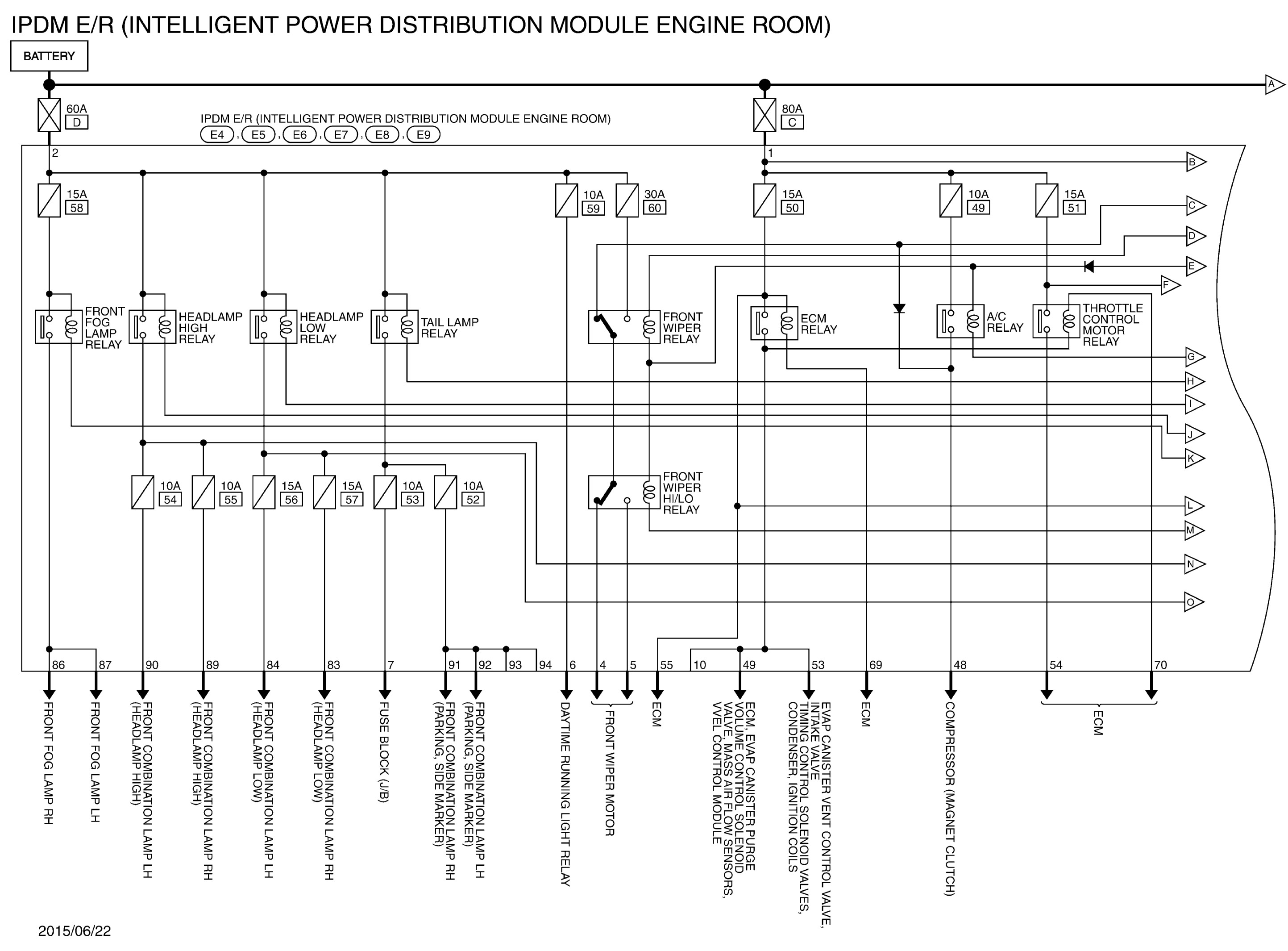

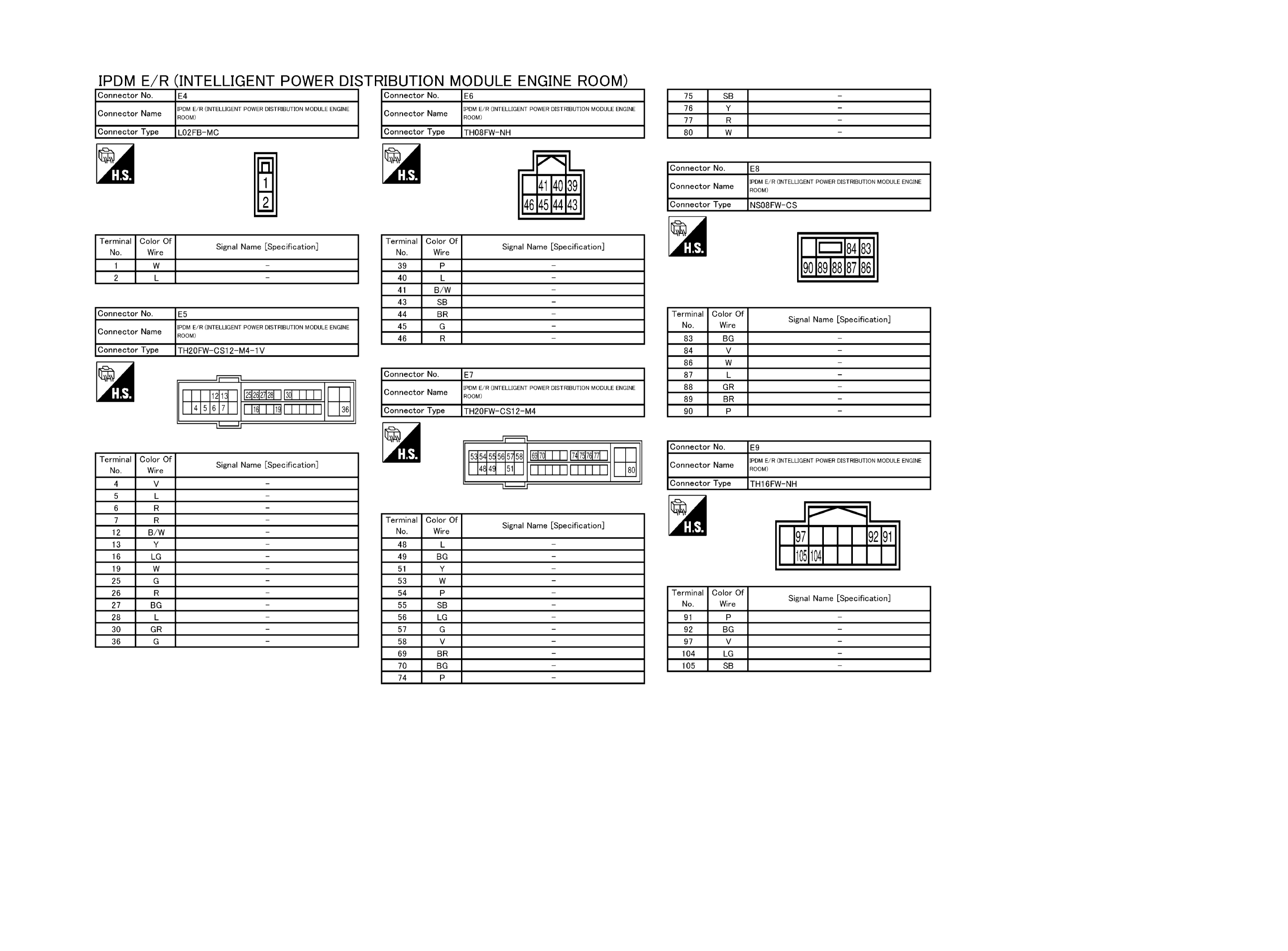

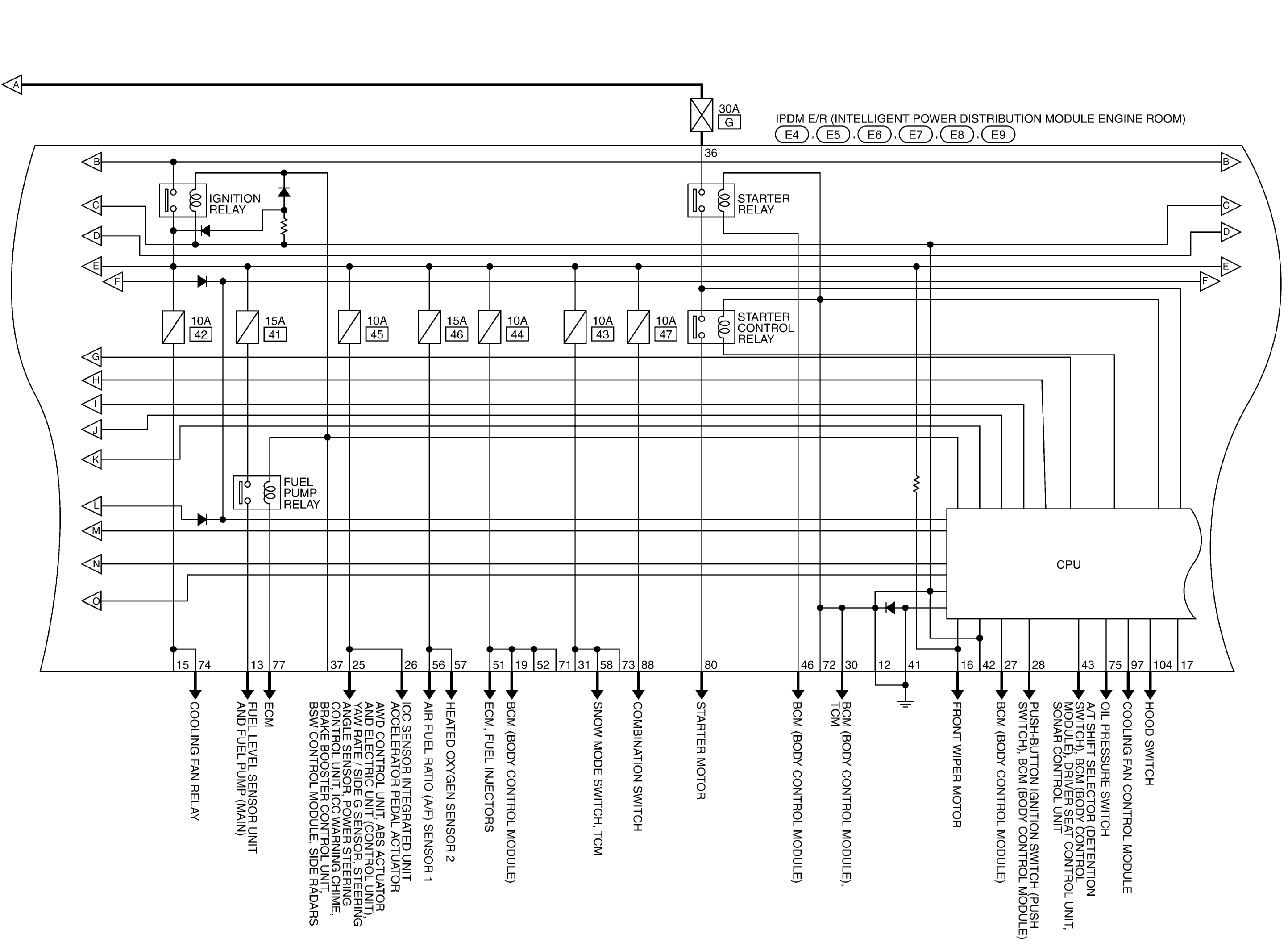

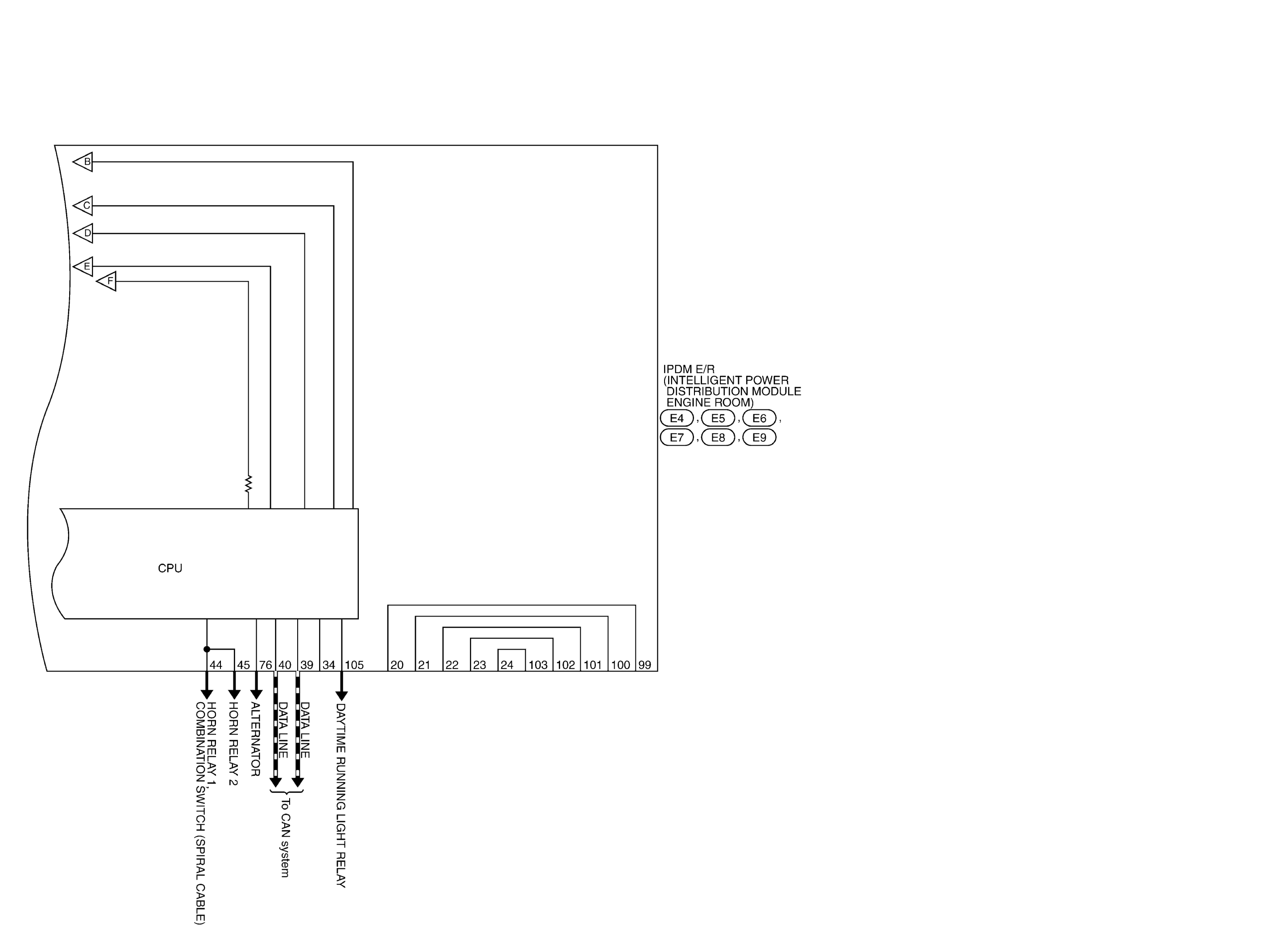

Home >> Infiniti >> 2016 >> QX50 RWD >> Repair and Diagnosis >> Electrical >> Gauges >> Meter, Warning Lamp & Indicator (Symptom Diagnosis & Removal And Installation) >> Ecu Diagnosis Information >> IPDM E/R (Intelligent Power Distribution Module Engine Room) >> Wiring Diagram - IPDM E/R -
