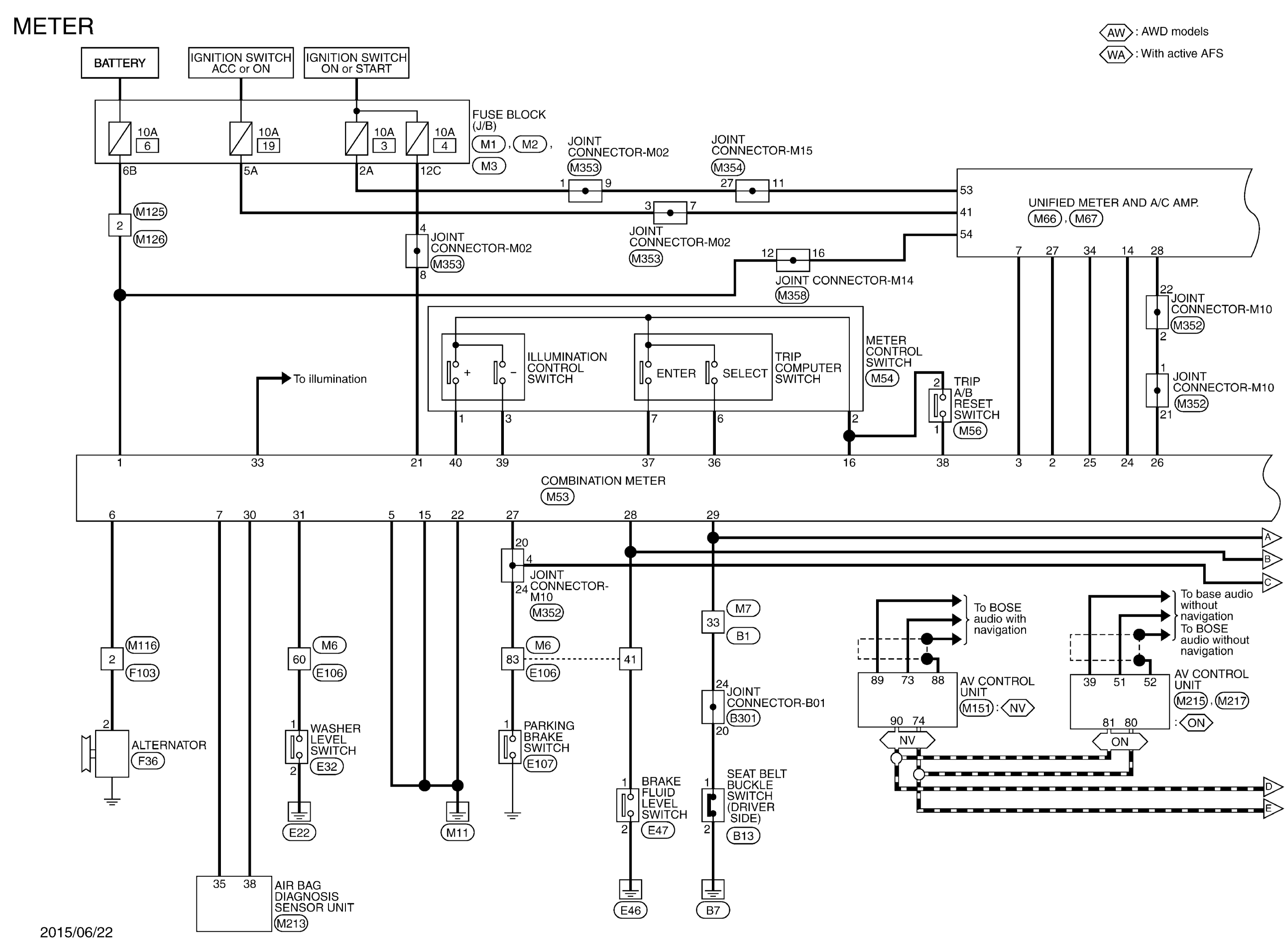

Wiring Diagram - Meter -

GNSJRNWE9971GB-971

Courtesy of NISSAN NORTH AMERICA, INC.

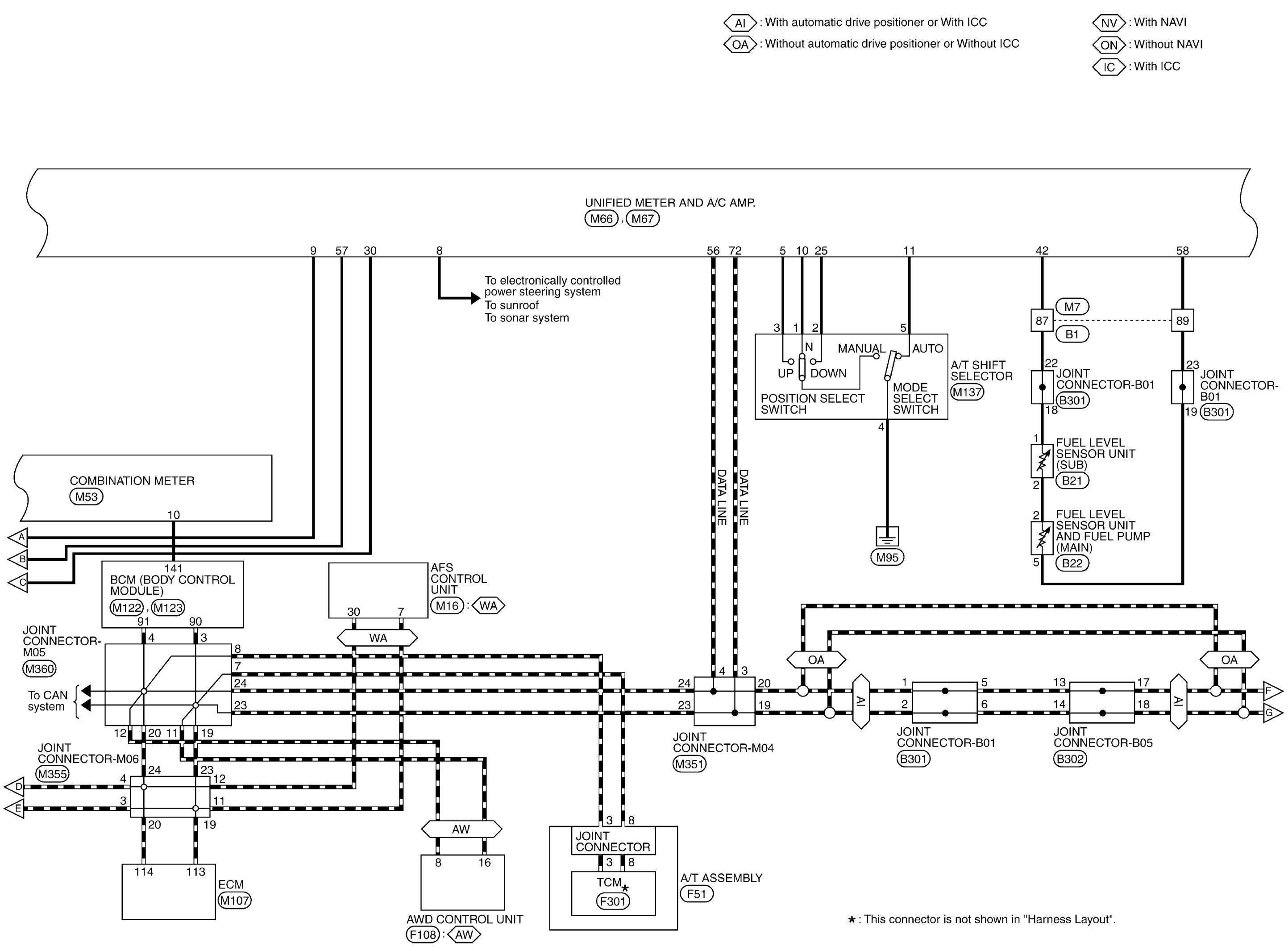

GNSJRNWE9972GB-972

Courtesy of NISSAN NORTH AMERICA, INC.

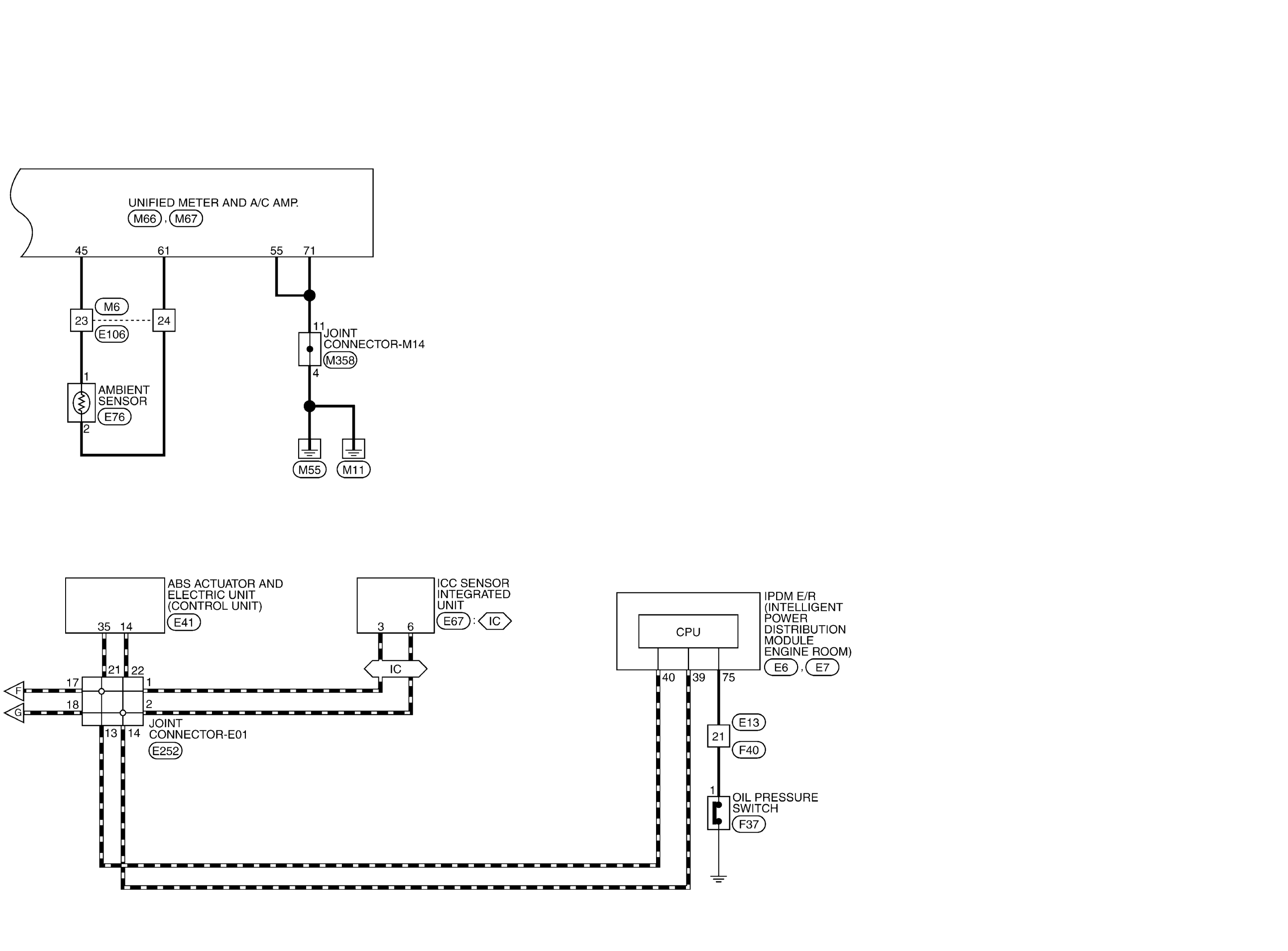

GNSJRNWE9973GB-973

Courtesy of NISSAN NORTH AMERICA, INC.

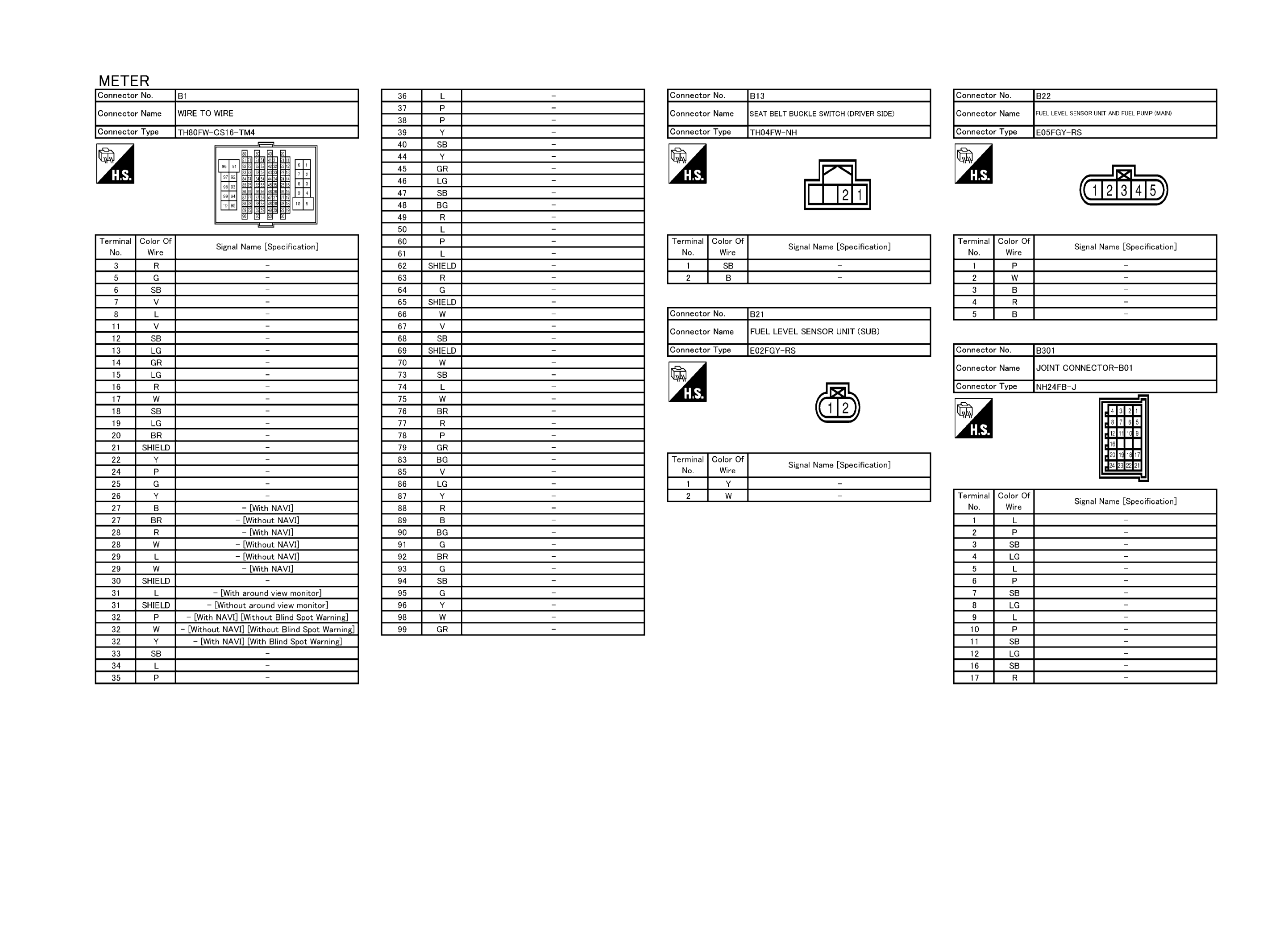

GNSJRNWE9974GB-974

Courtesy of NISSAN NORTH AMERICA, INC.

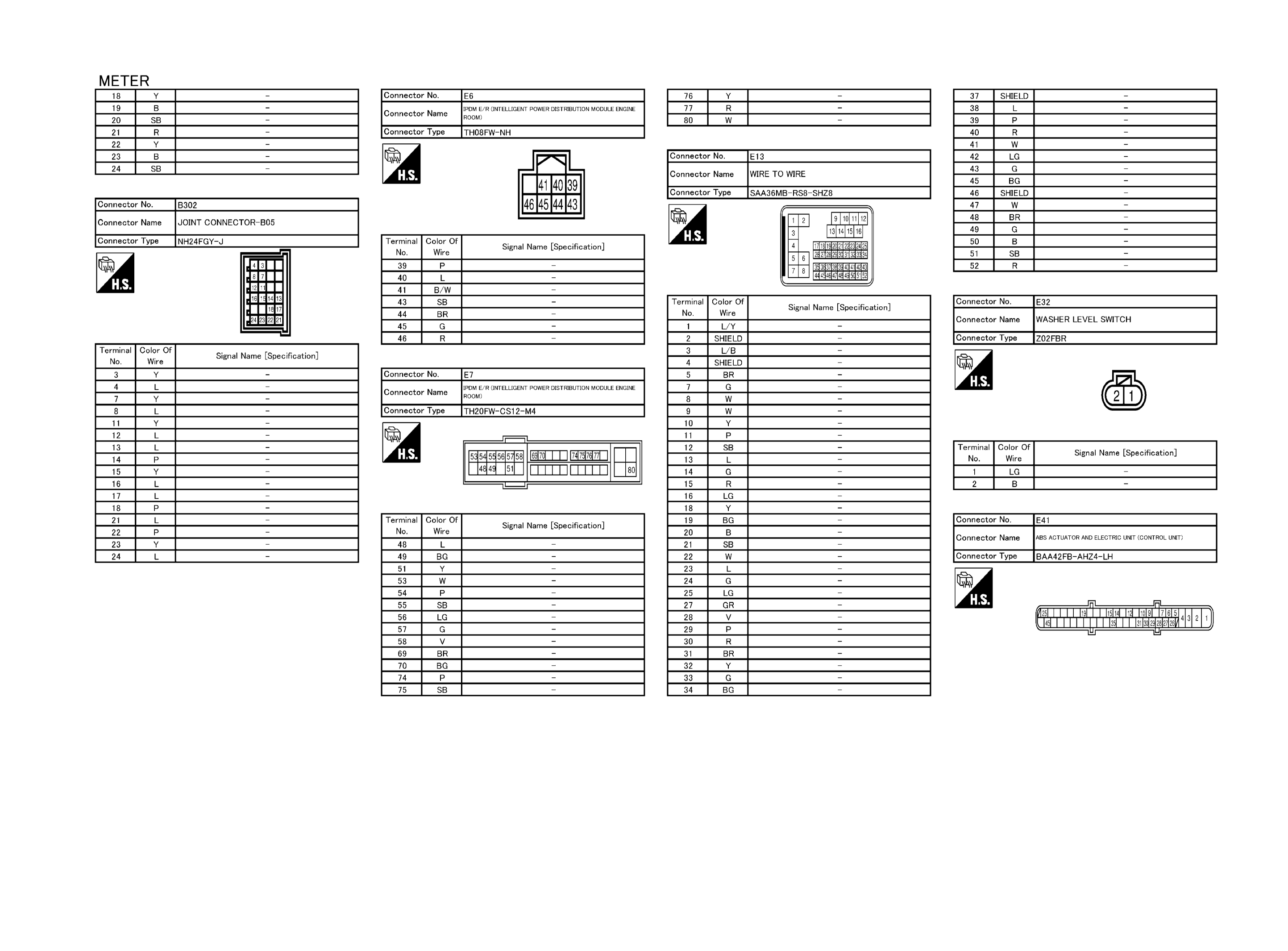

GNSJRNWE9975GB-975

Courtesy of NISSAN NORTH AMERICA, INC.

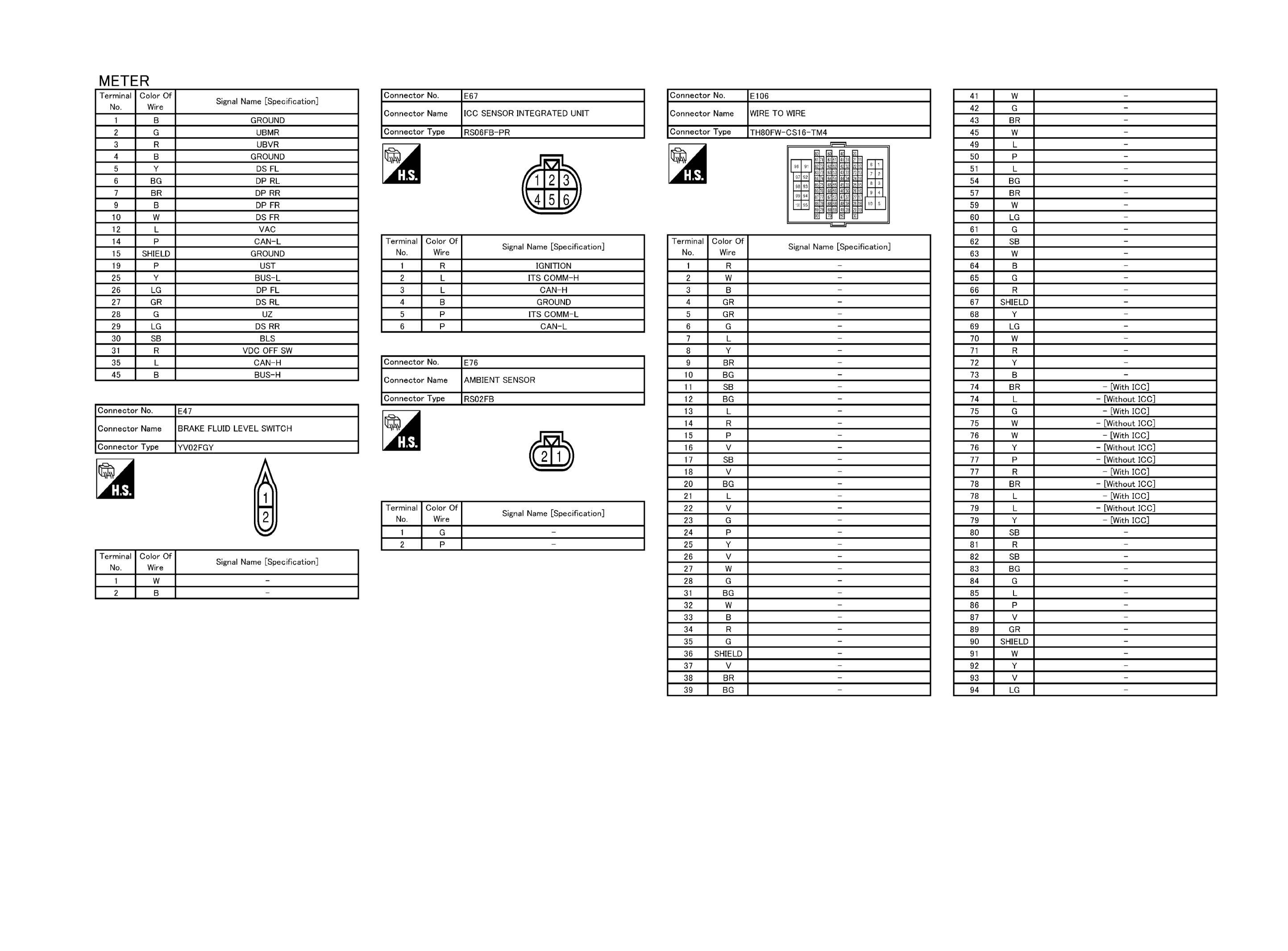

GNSJRNWE9976GB-976

Courtesy of NISSAN NORTH AMERICA, INC.

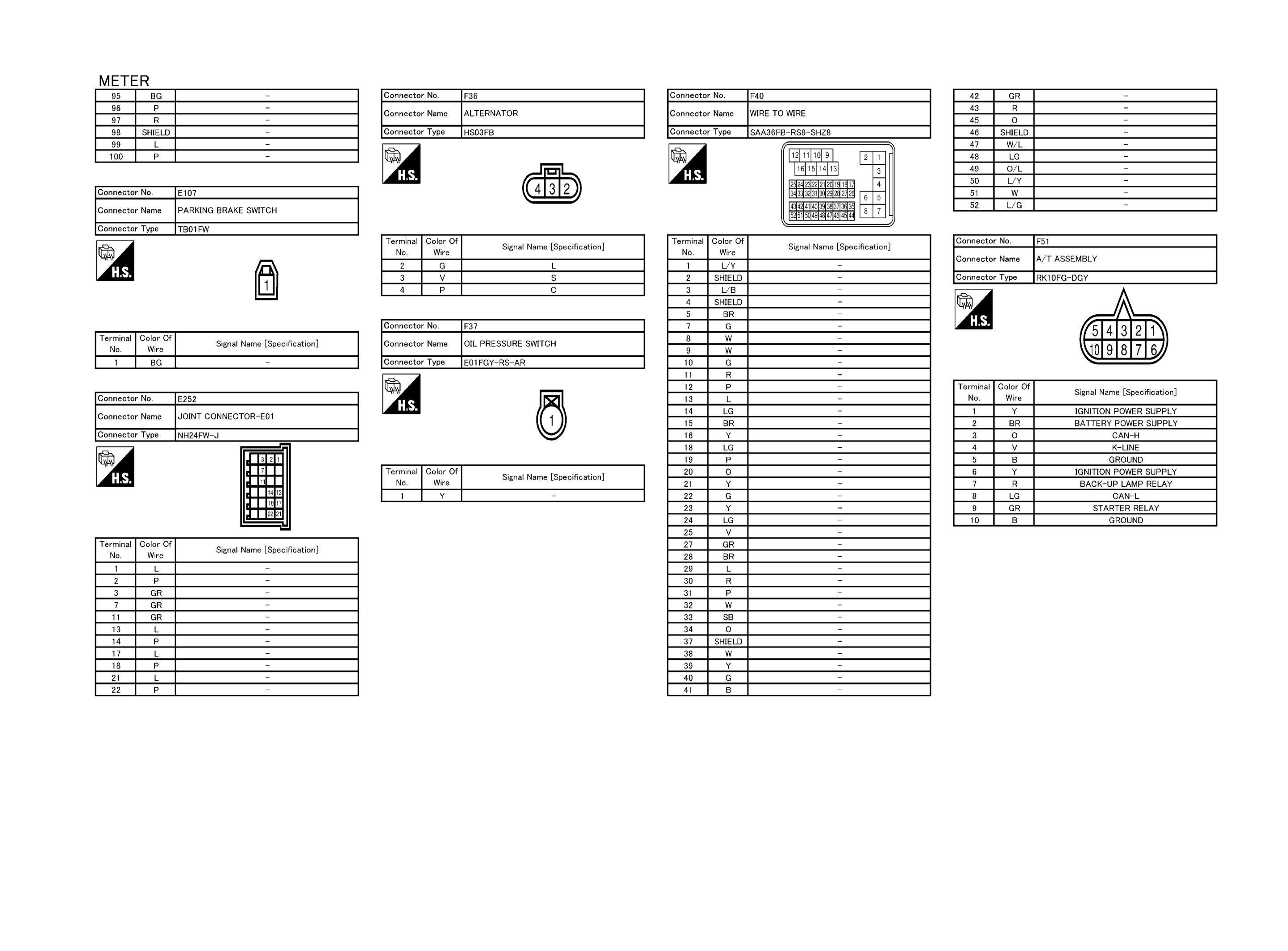

GNSJRNWE9977GB-977

Courtesy of NISSAN NORTH AMERICA, INC.

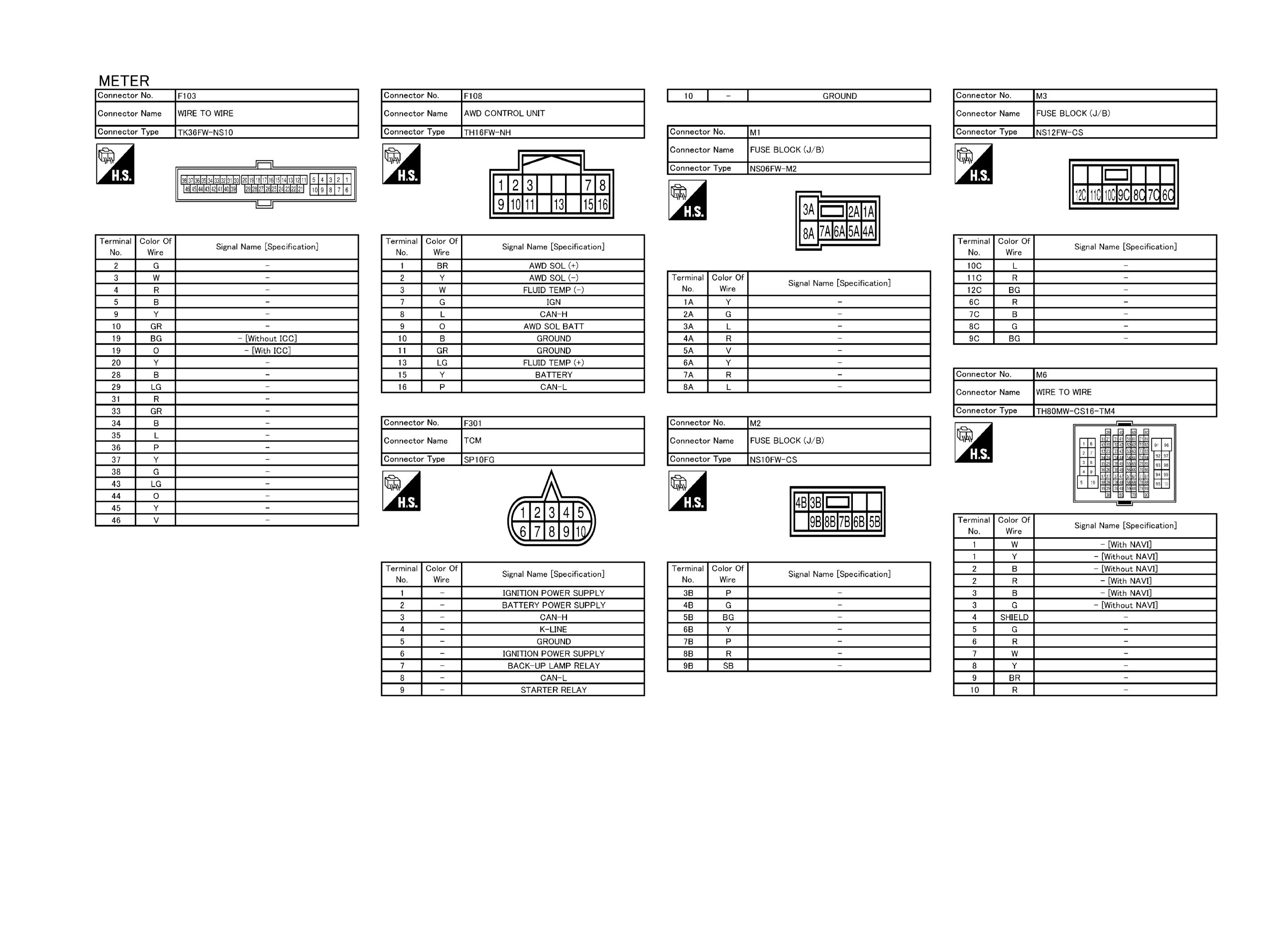

GNSJRNWE9978GB-978

Courtesy of NISSAN NORTH AMERICA, INC.

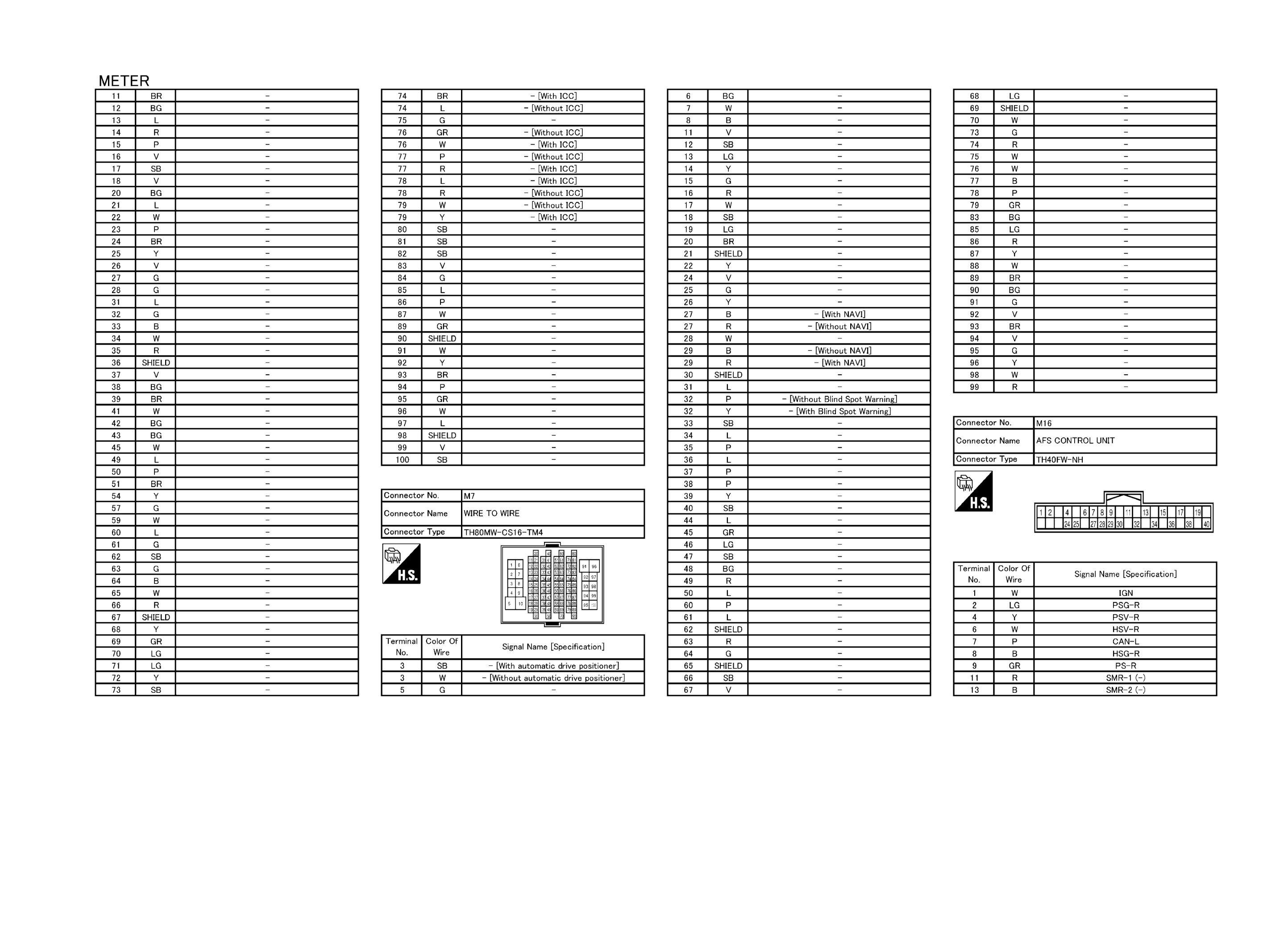

GNSJRNWE9979GB-979

Courtesy of NISSAN NORTH AMERICA, INC.

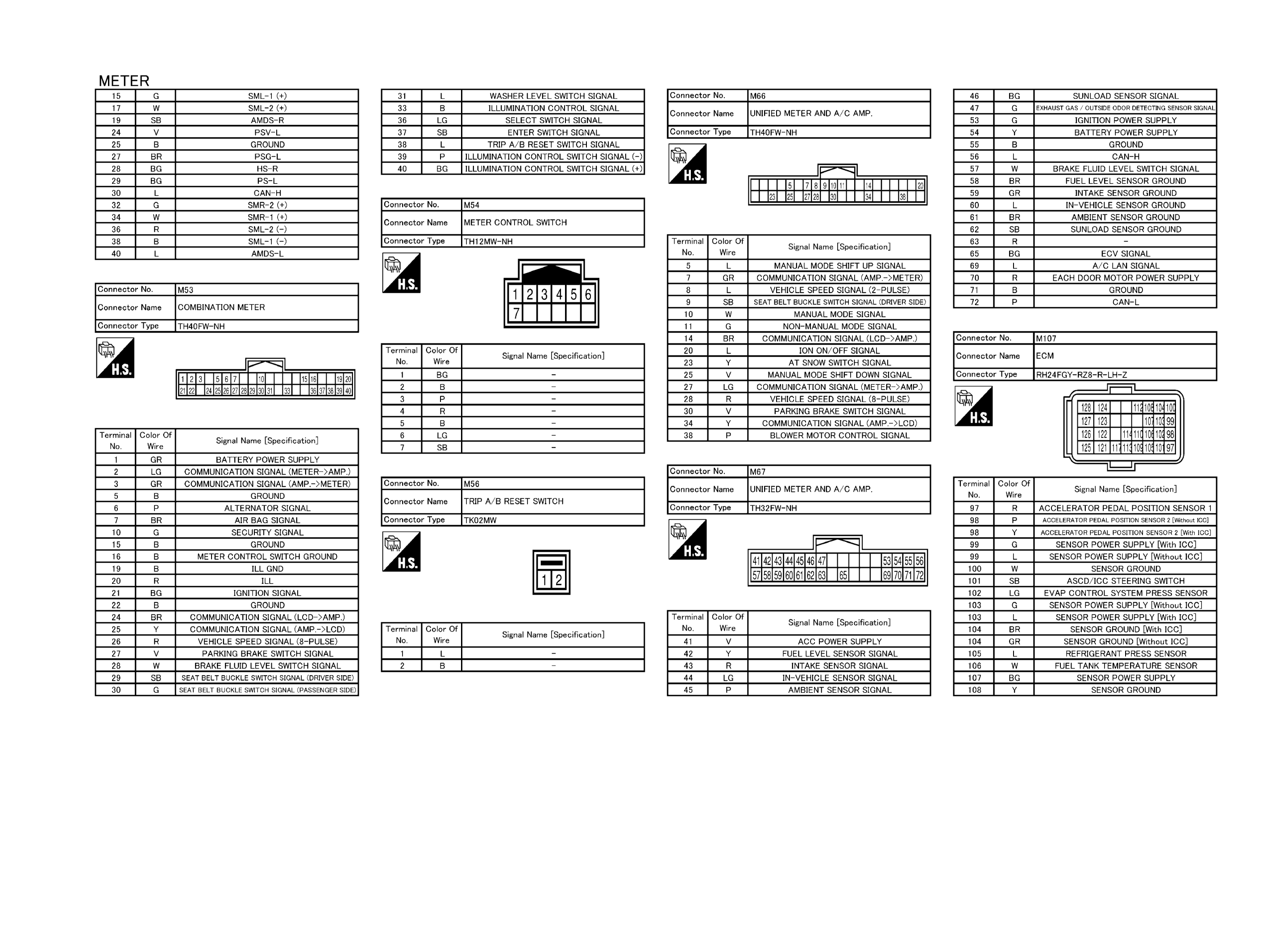

GNSJRNWE9980GB-980

Courtesy of NISSAN NORTH AMERICA, INC.

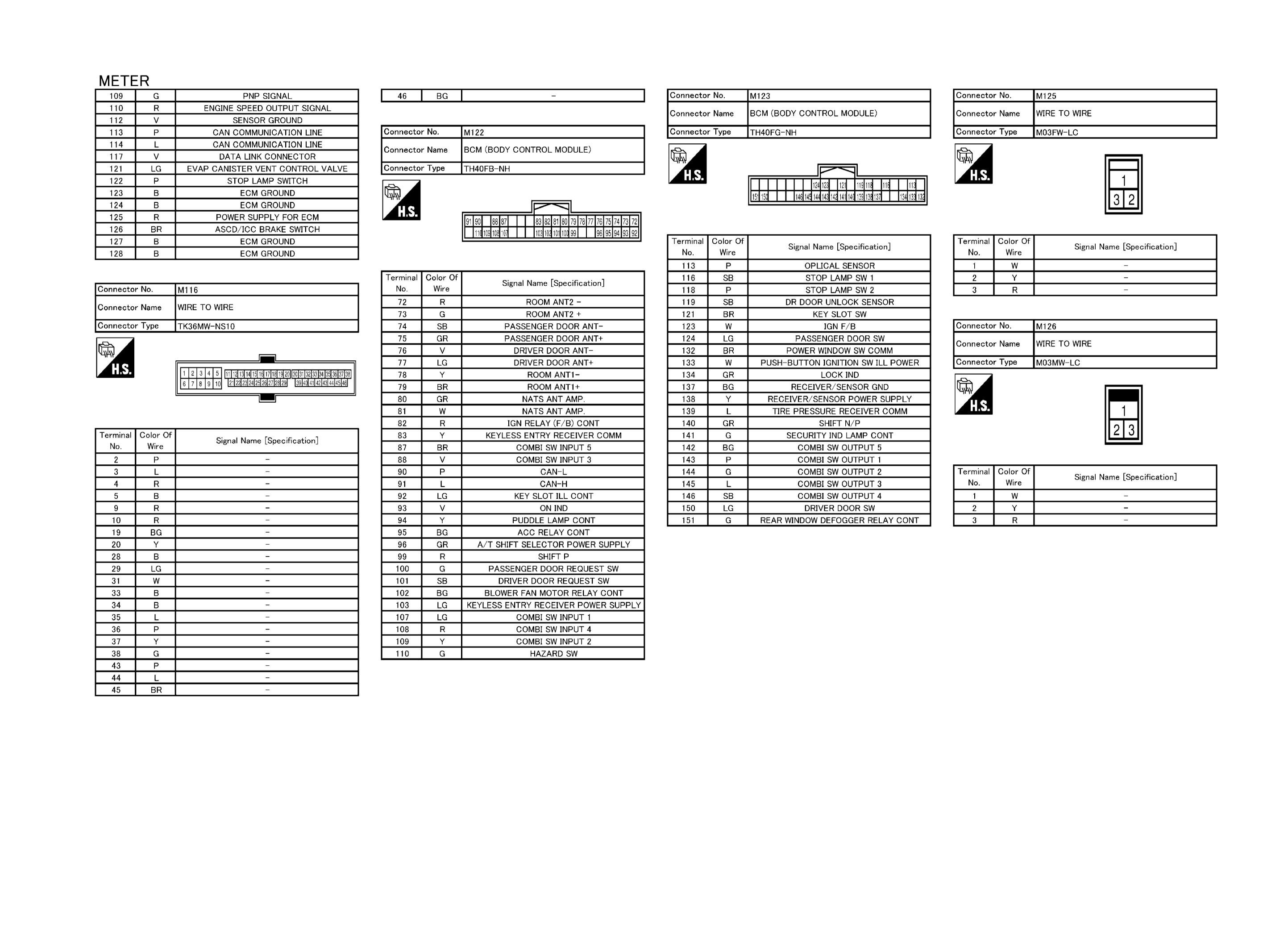

GNSJRNWE9981GB-981

Courtesy of NISSAN NORTH AMERICA, INC.

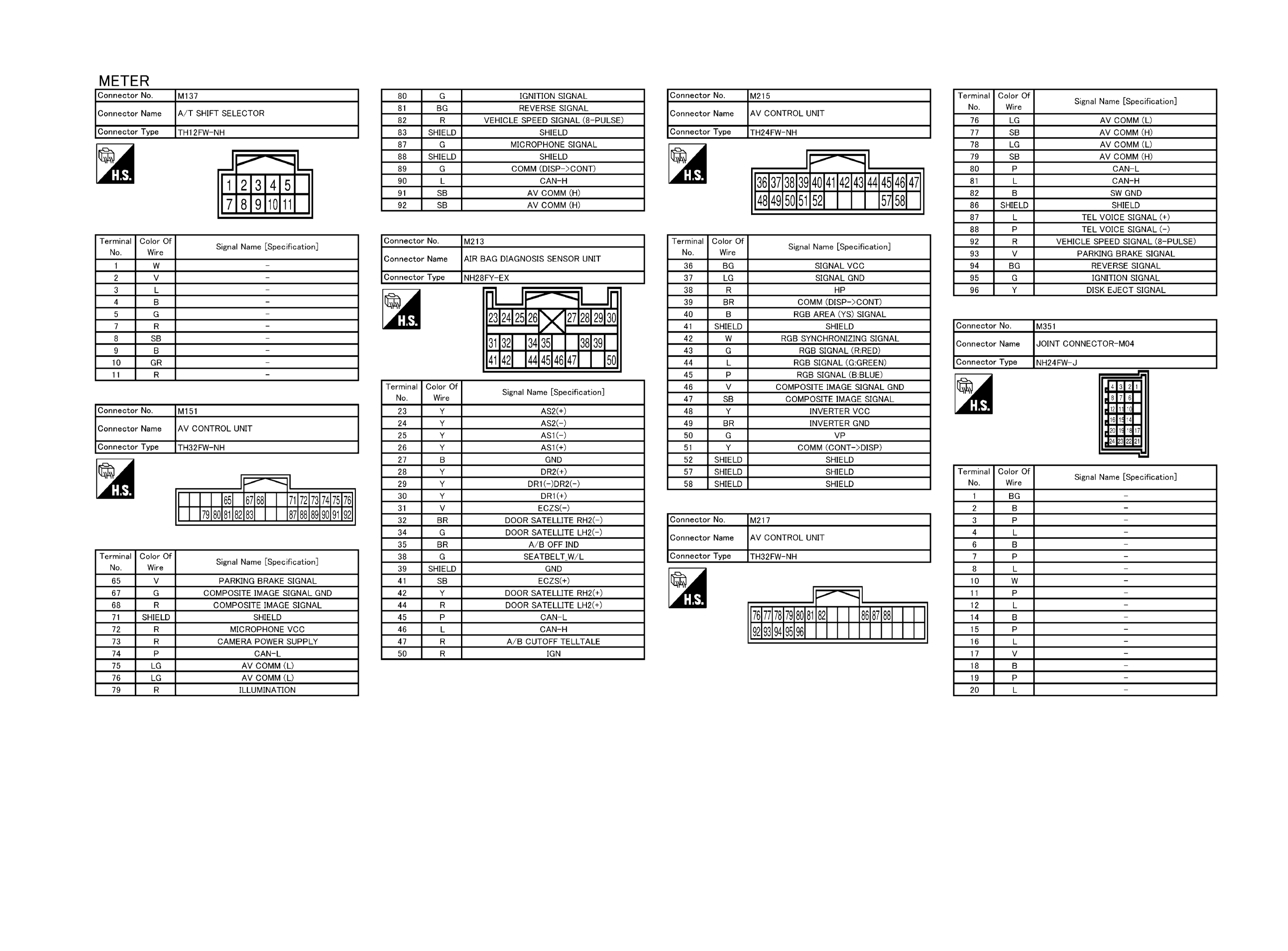

GNSJRNWE9982GB-982

Courtesy of NISSAN NORTH AMERICA, INC.

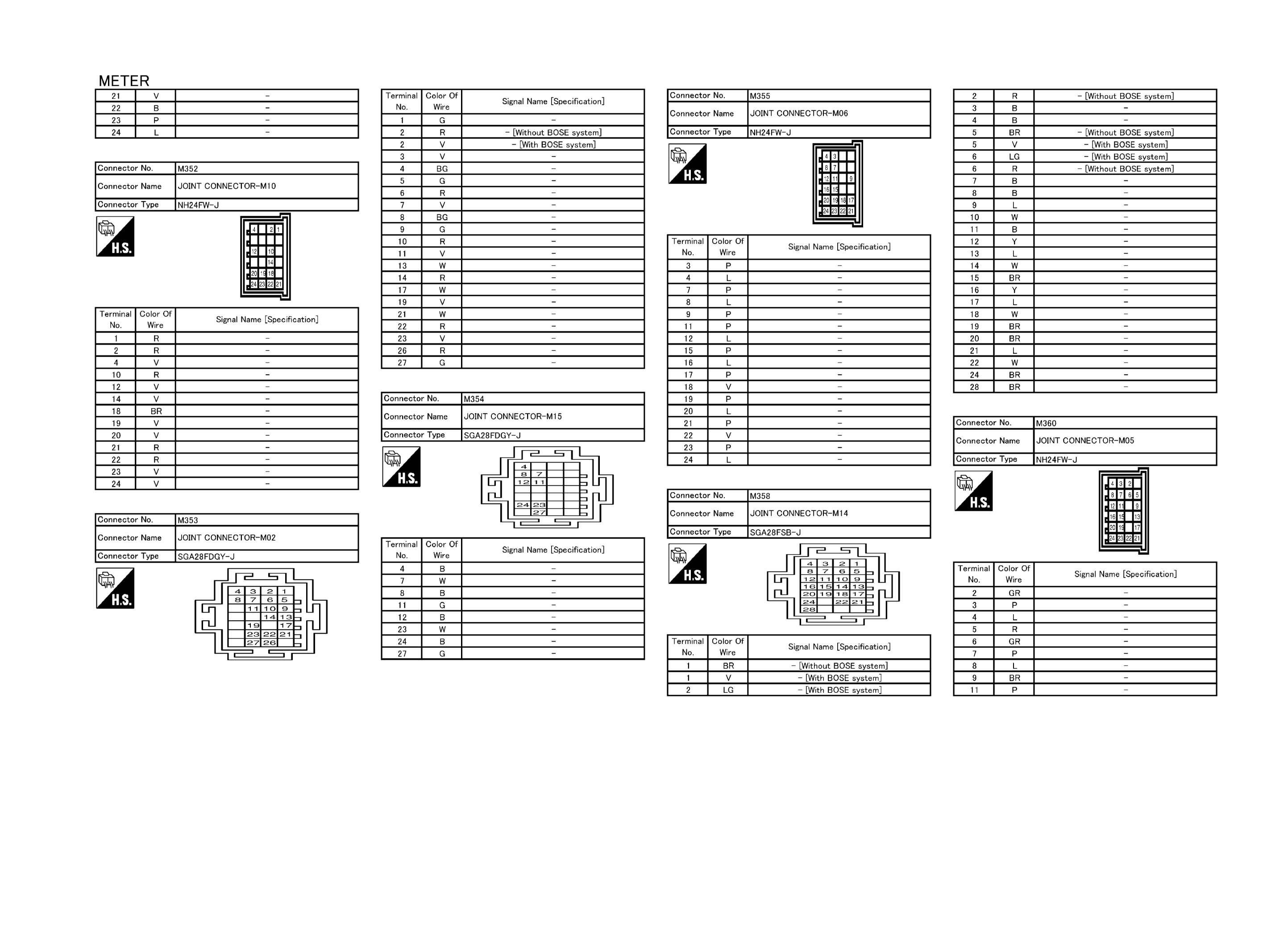

GNSJRNWE9983GB-983

Courtesy of NISSAN NORTH AMERICA, INC.

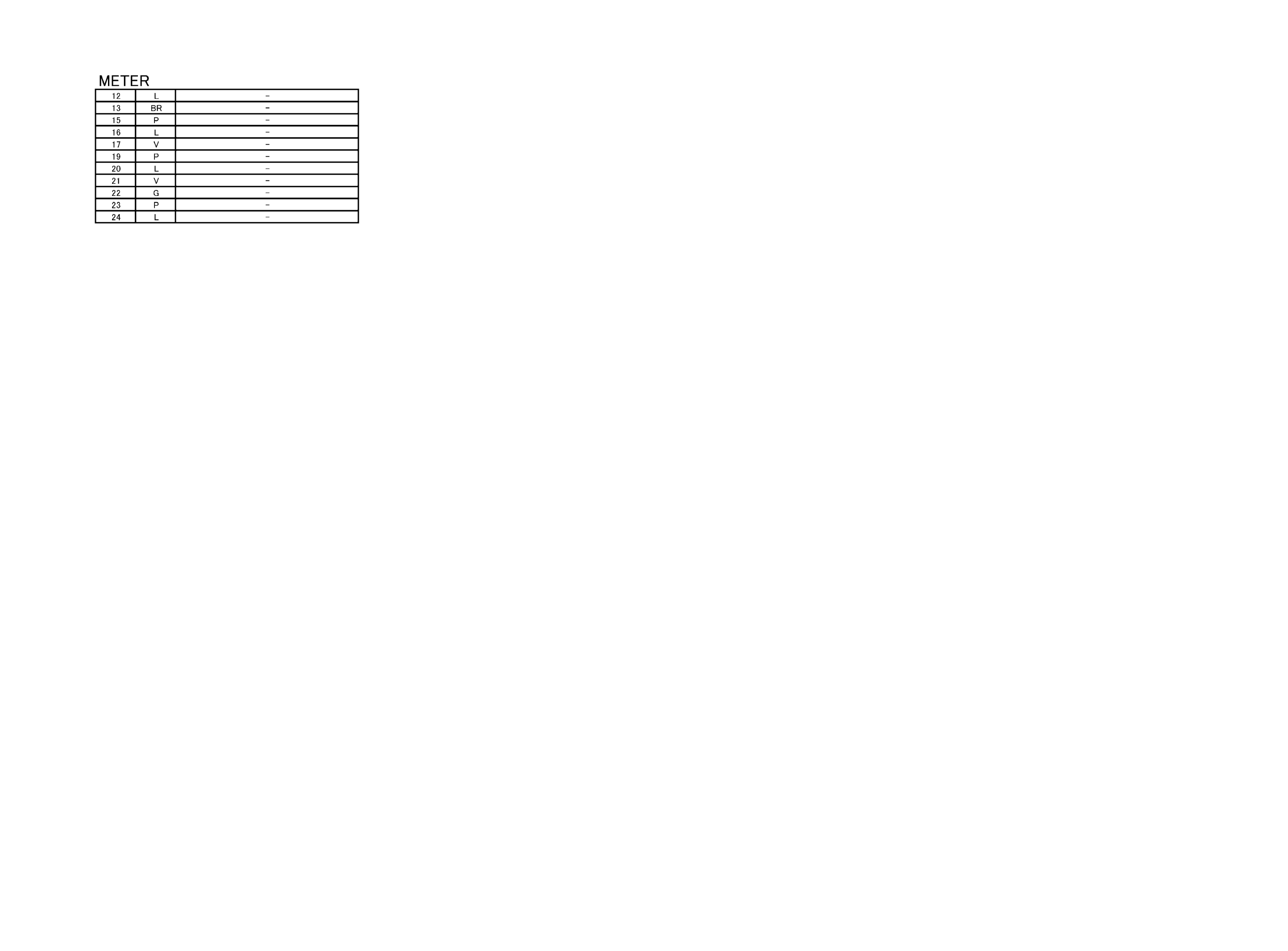

GNSJRNWE9984GB-984

Courtesy of NISSAN NORTH AMERICA, INC.
