Removal And Installation: Removal

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

  1. Remove the driver seat (1). Refer to REMOVAL AND INSTALLATION .

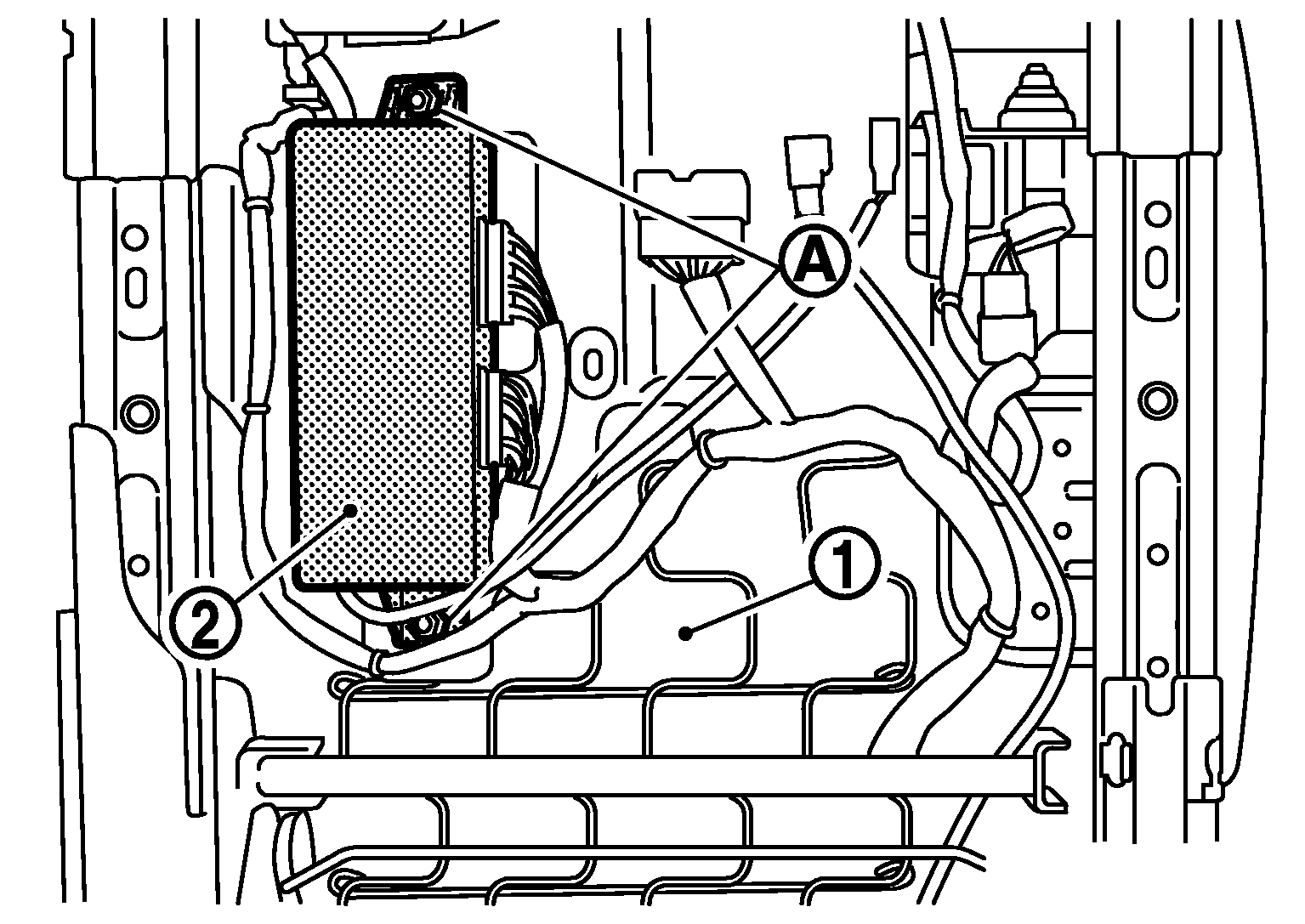

    G05728108Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove the mounting bolts (A).
  3. Remove driver seat control unit (2).
