Wiring Diagram - Automatic Drive Positioner Control System -

GNSJRJWD2752GB-752

Courtesy of NISSAN NORTH AMERICA, INC.

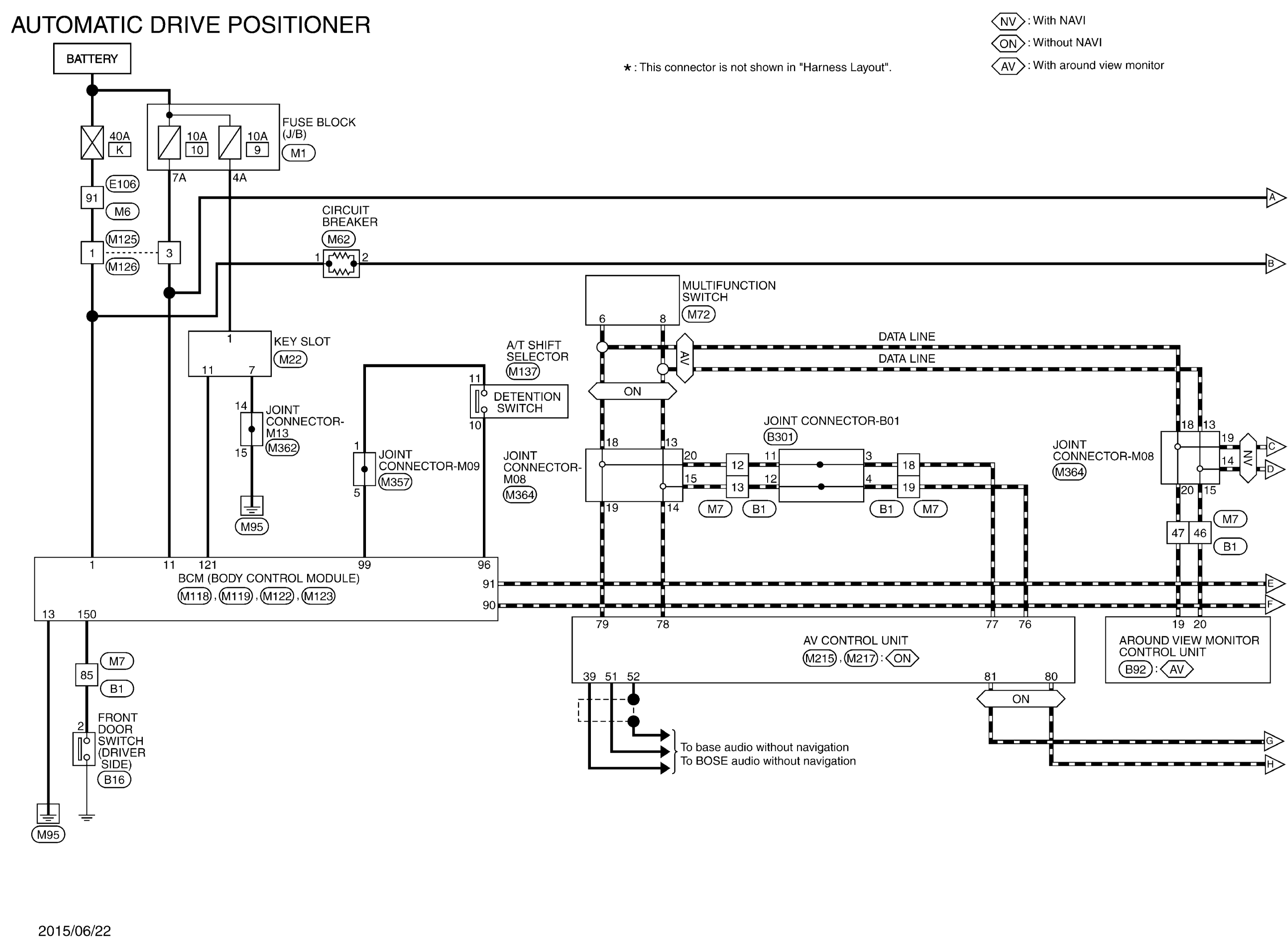

GNSJRJWD2753GB-753

Courtesy of NISSAN NORTH AMERICA, INC.

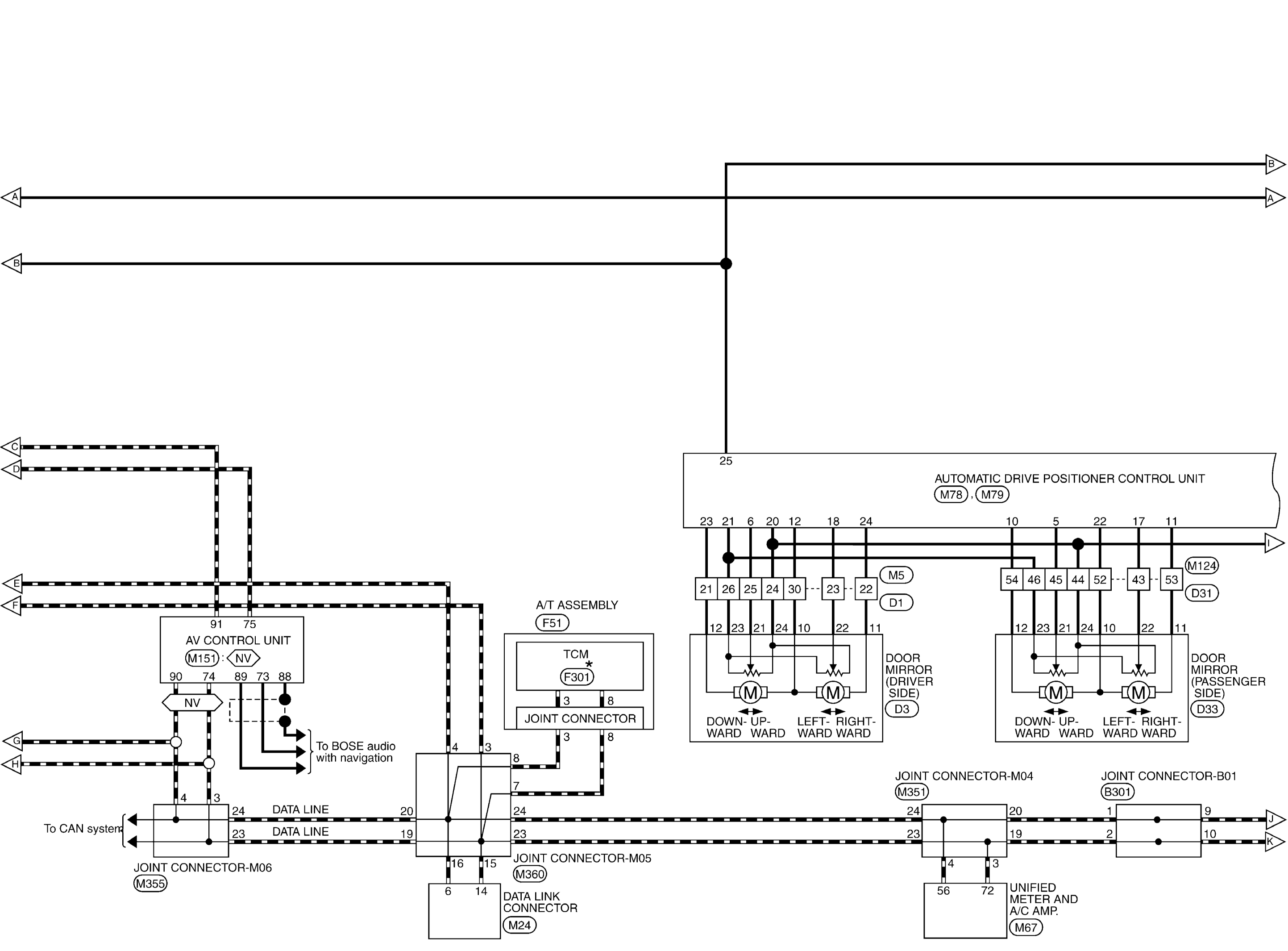

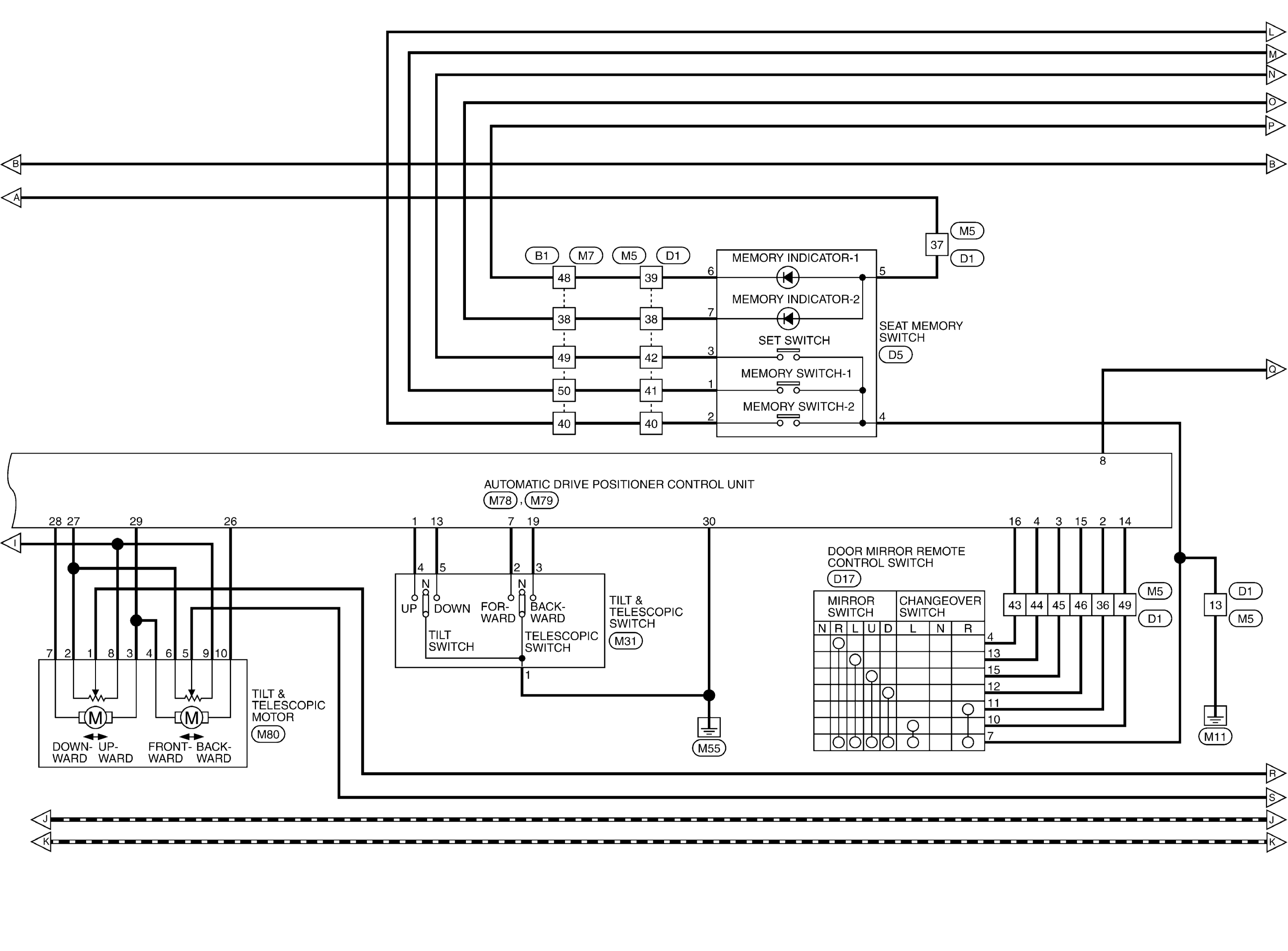

GNSJRJWD2754GB-754

Courtesy of NISSAN NORTH AMERICA, INC.

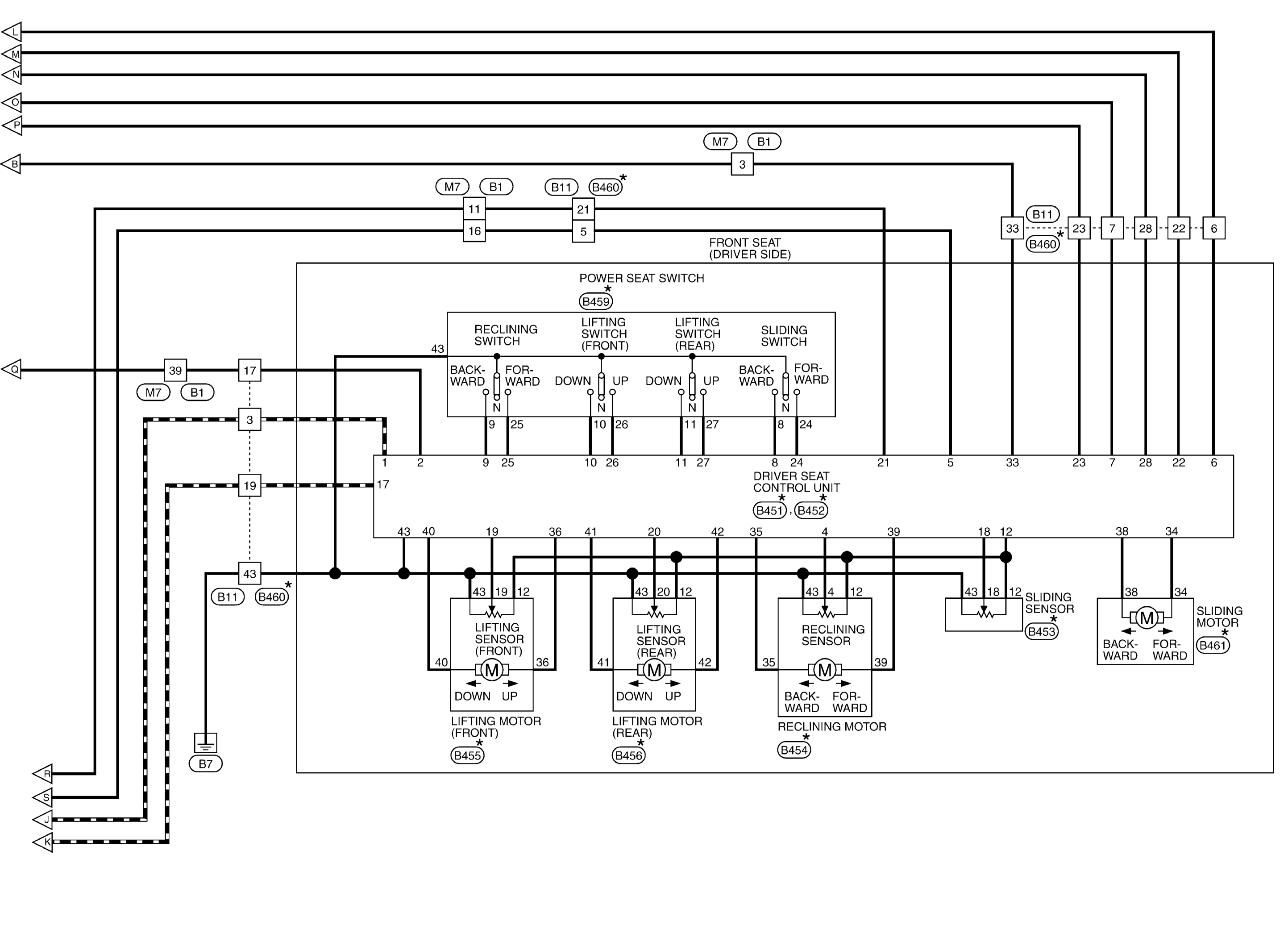

GNSJRJWD2755GB-755

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRJWD2756GB-756

Courtesy of NISSAN NORTH AMERICA, INC.

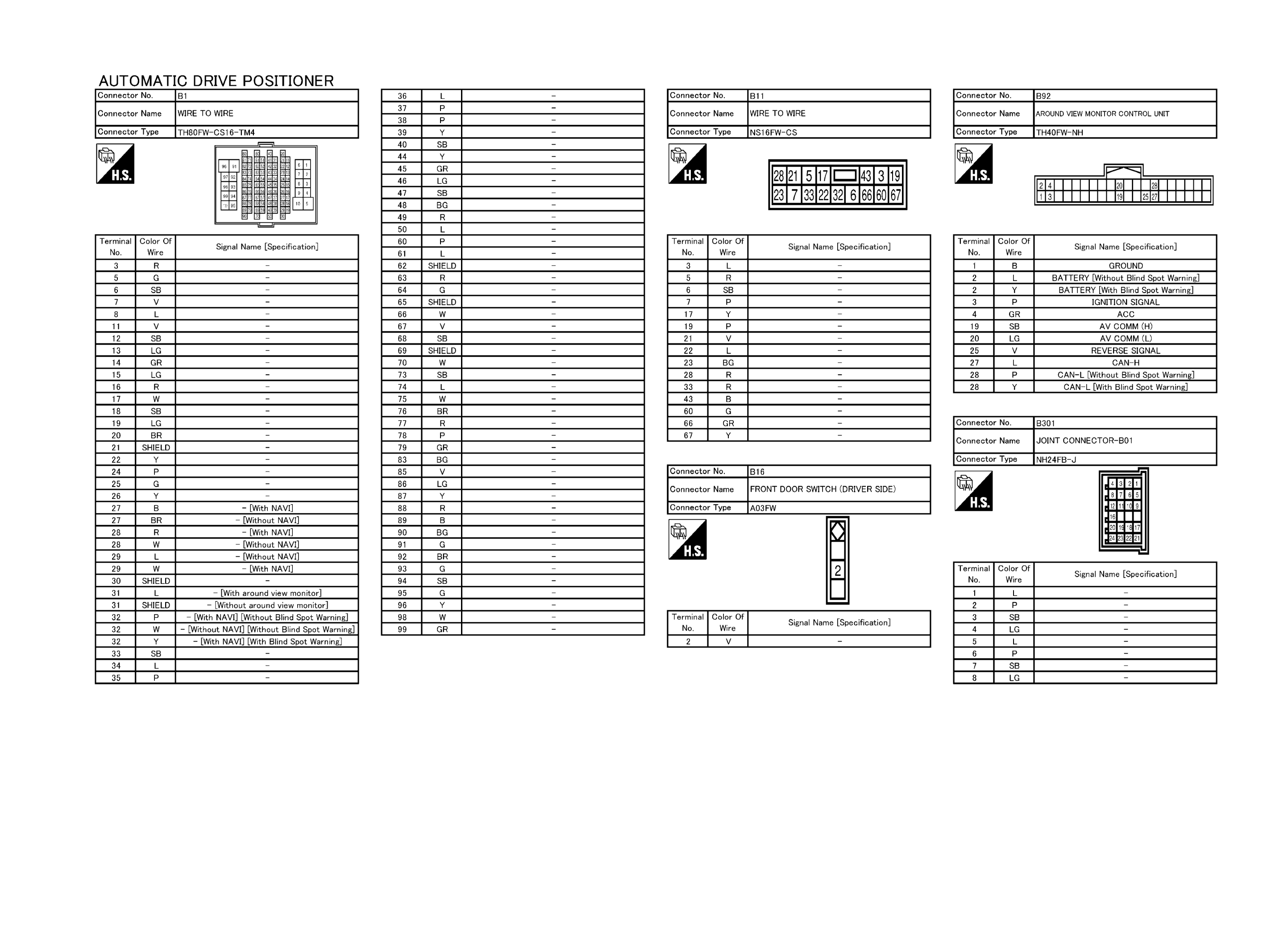

GNSJRJWD2757GB-757

Courtesy of NISSAN NORTH AMERICA, INC.

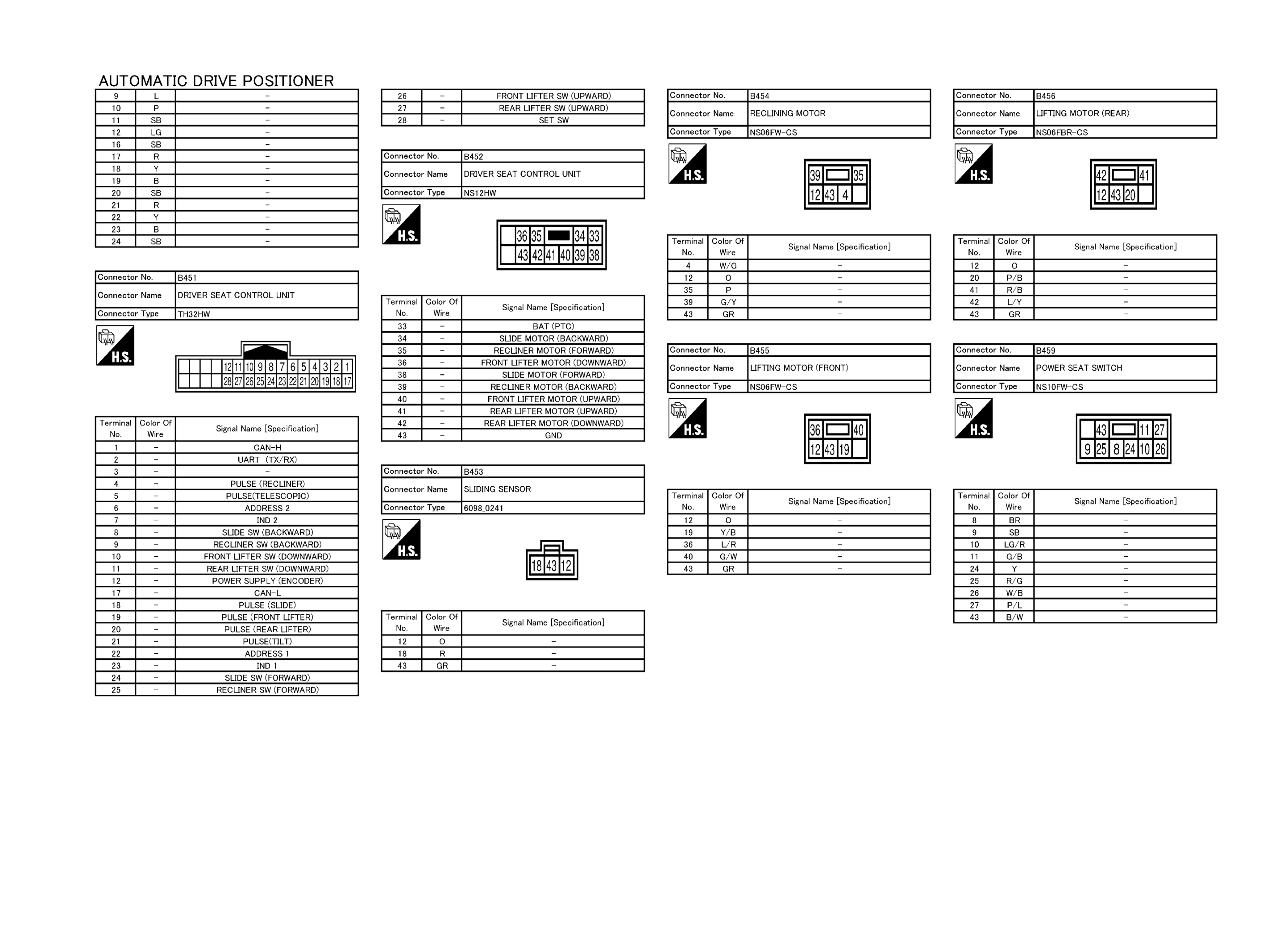

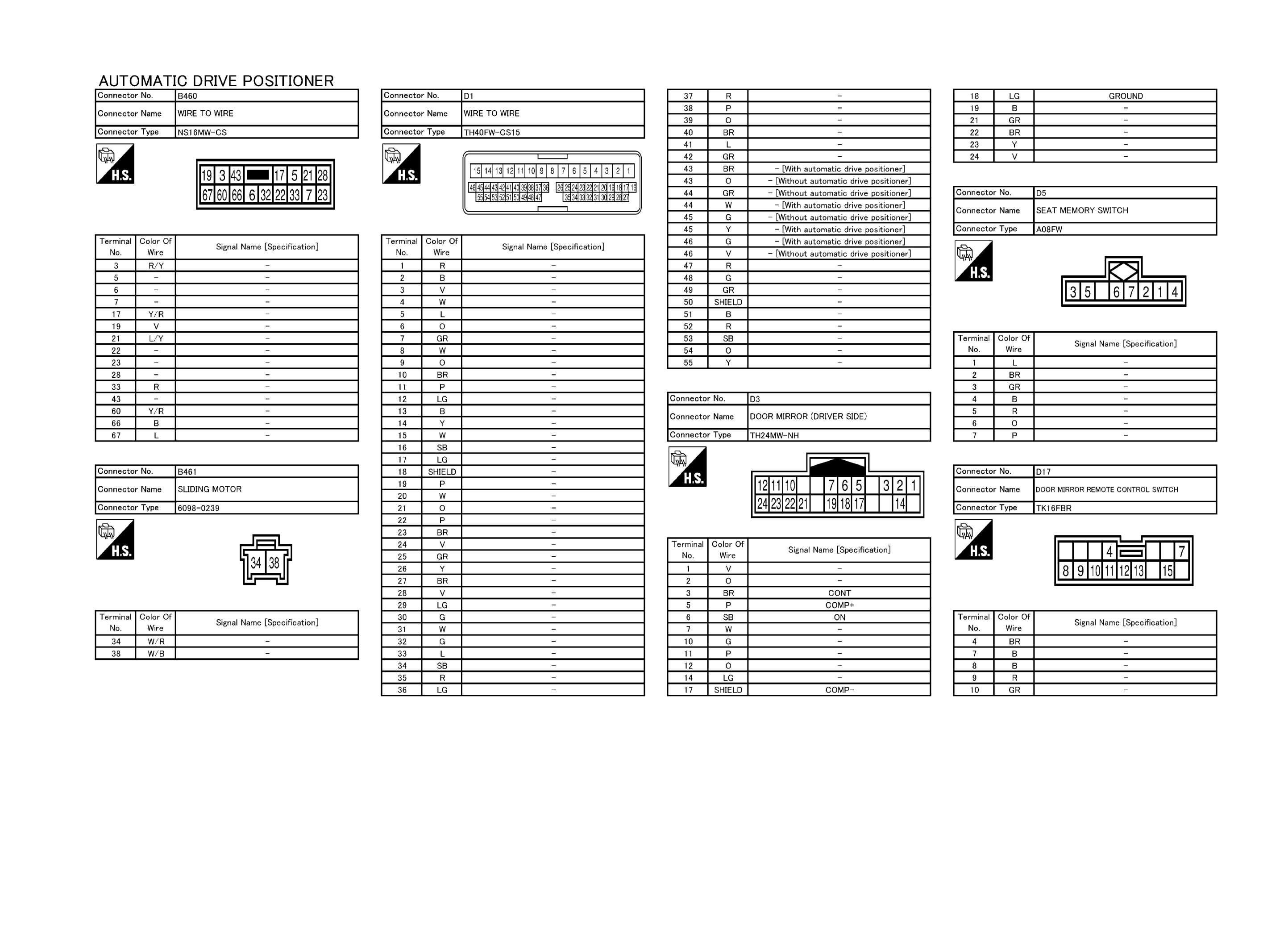

GNSJRJWD2758GB-758

Courtesy of NISSAN NORTH AMERICA, INC.

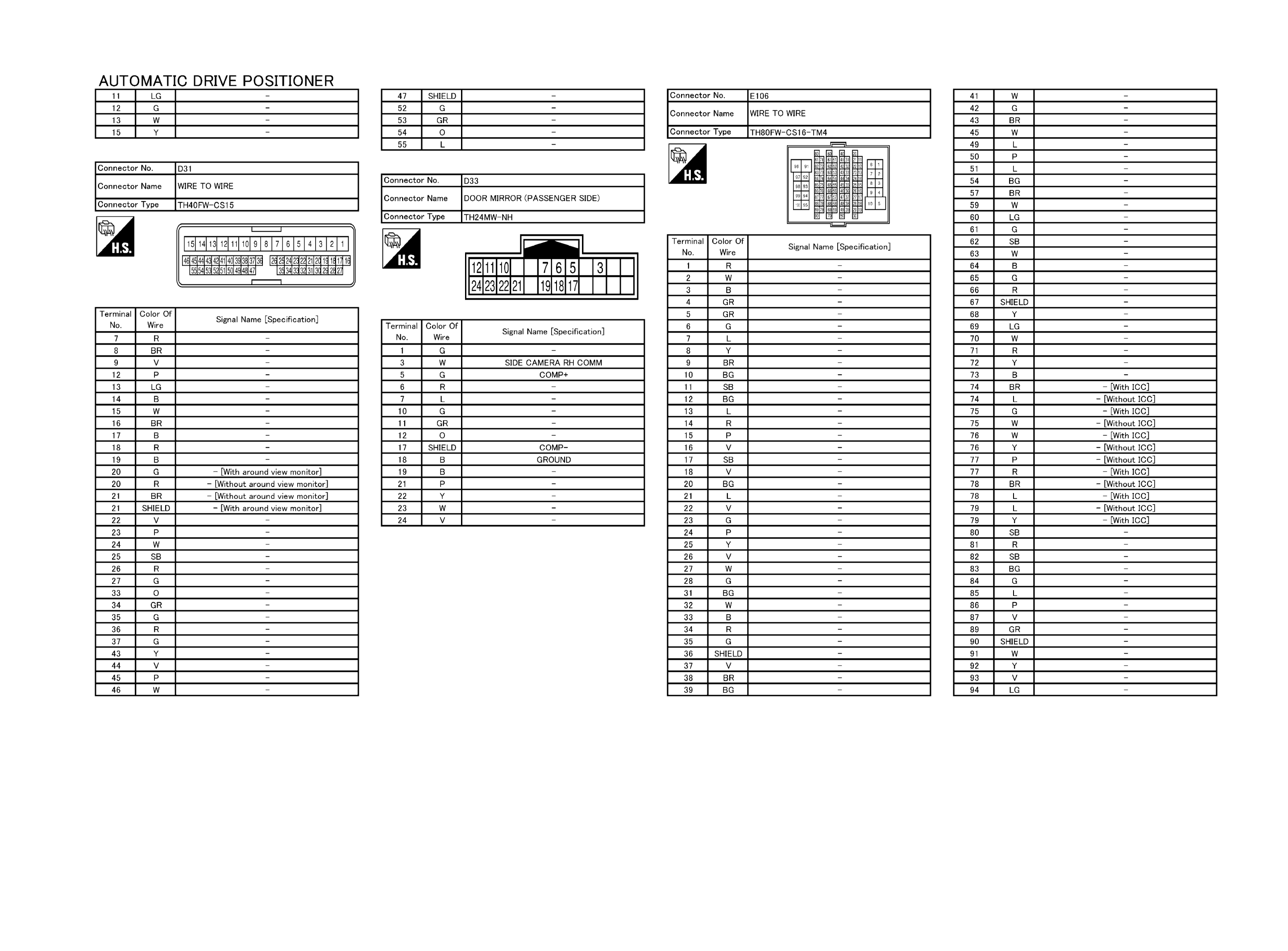

GNSJRJWD2759GB-759

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRJWD2760GB-760

Courtesy of NISSAN NORTH AMERICA, INC.

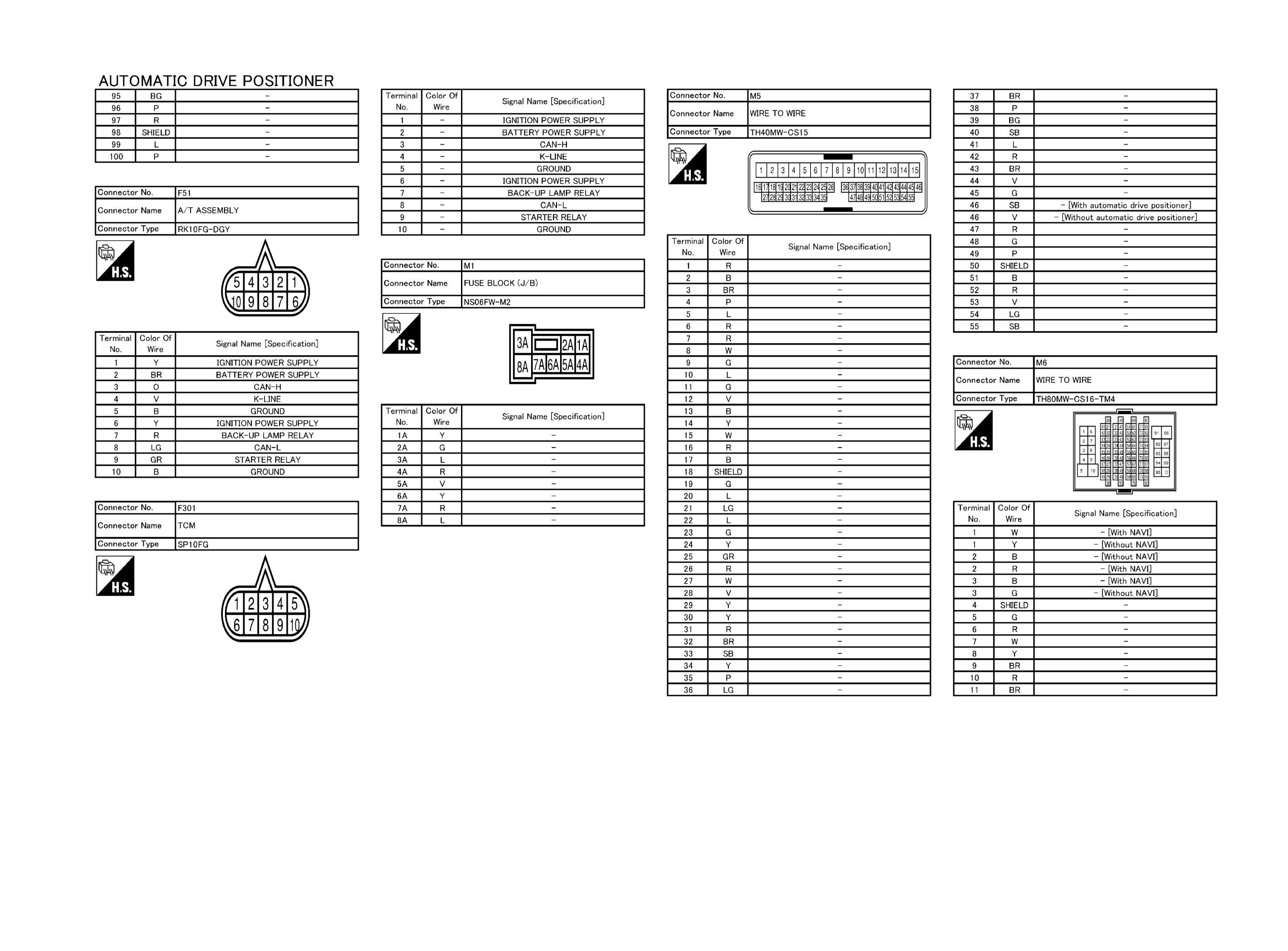

GNSJRJWD2761GB-761

Courtesy of NISSAN NORTH AMERICA, INC.

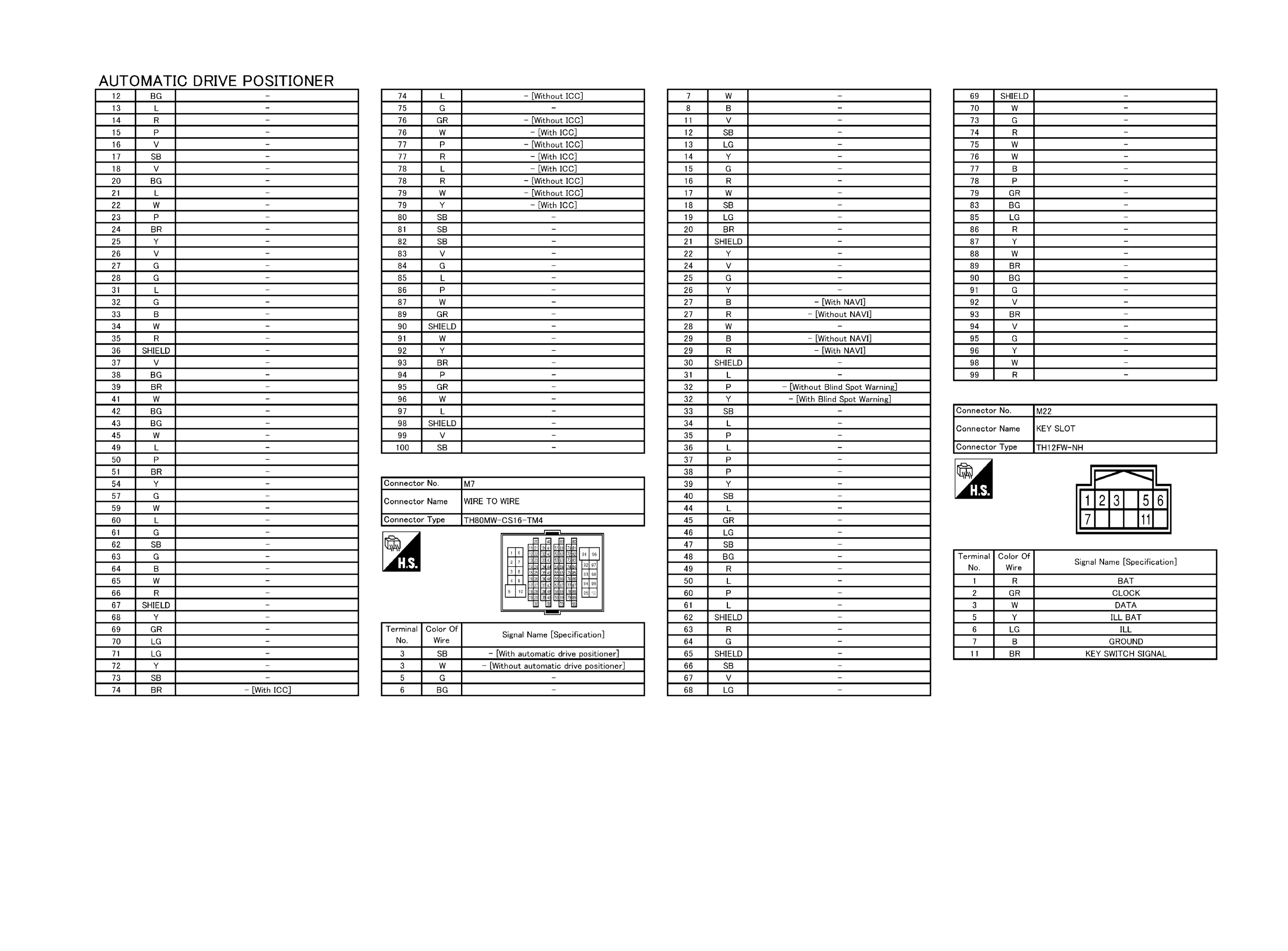

GNSJRJWD2762GB-762

Courtesy of NISSAN NORTH AMERICA, INC.

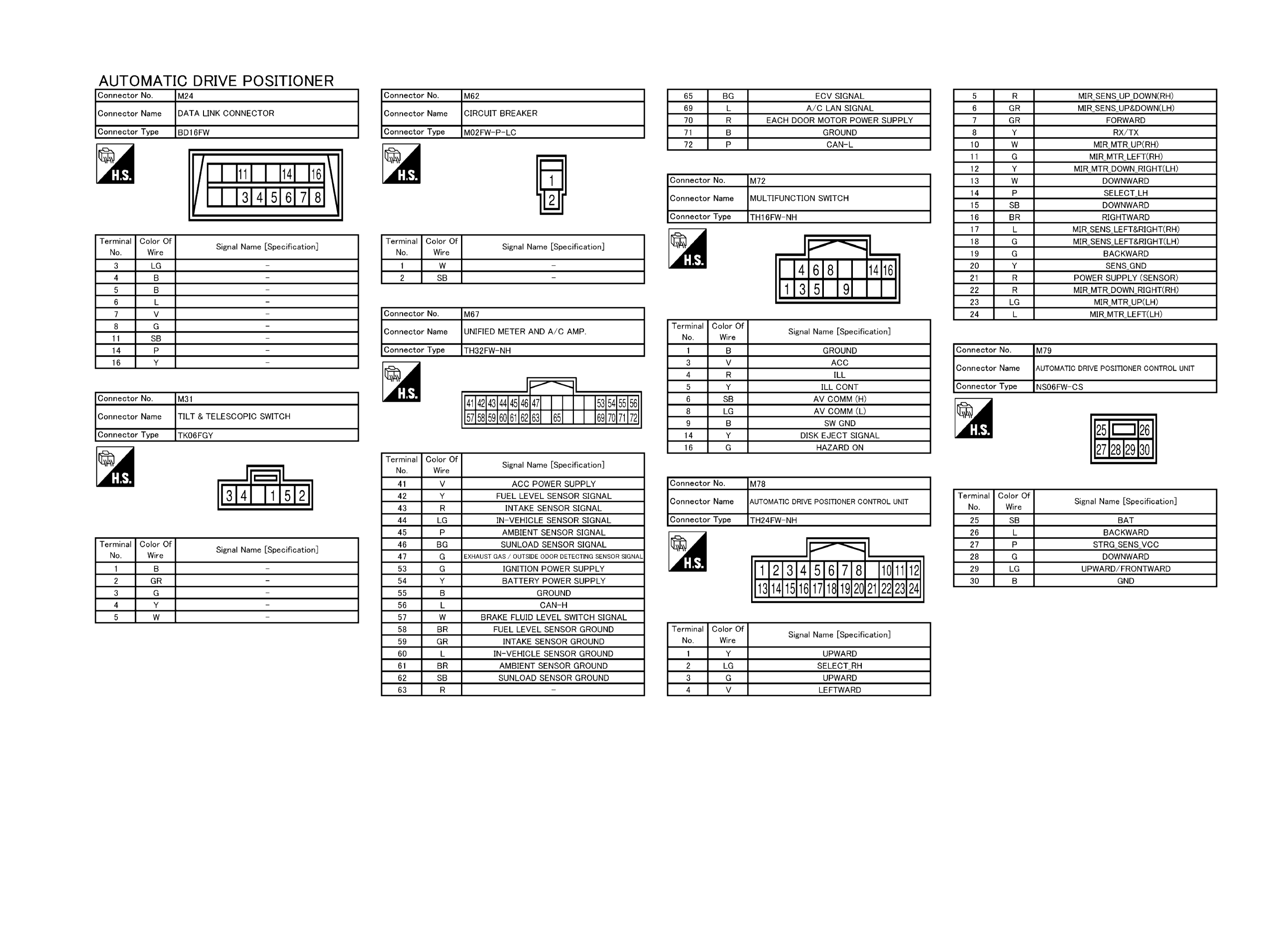

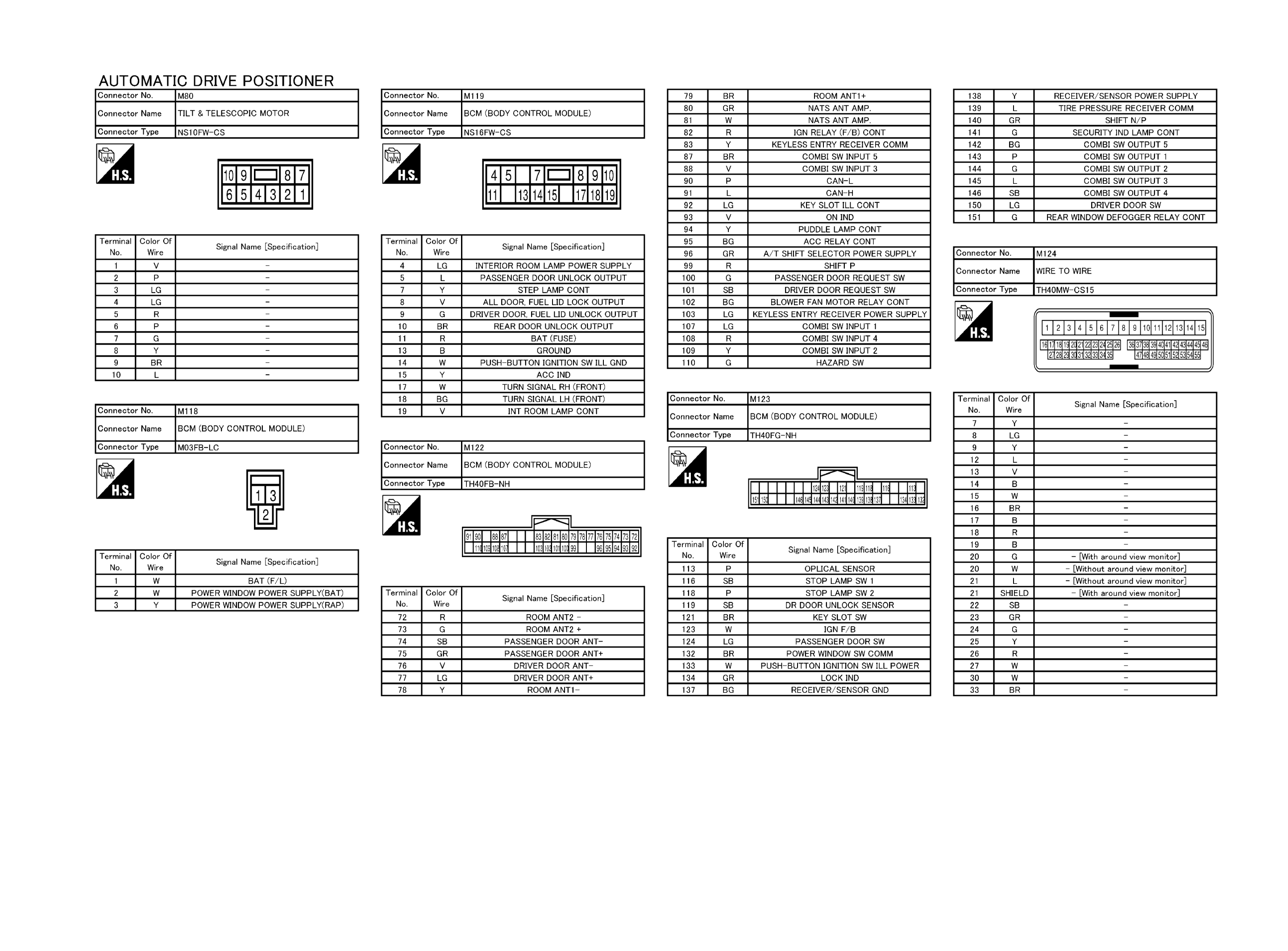

GNSJRJWD2763GB-763

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRJWD2764GB-764

Courtesy of NISSAN NORTH AMERICA, INC.

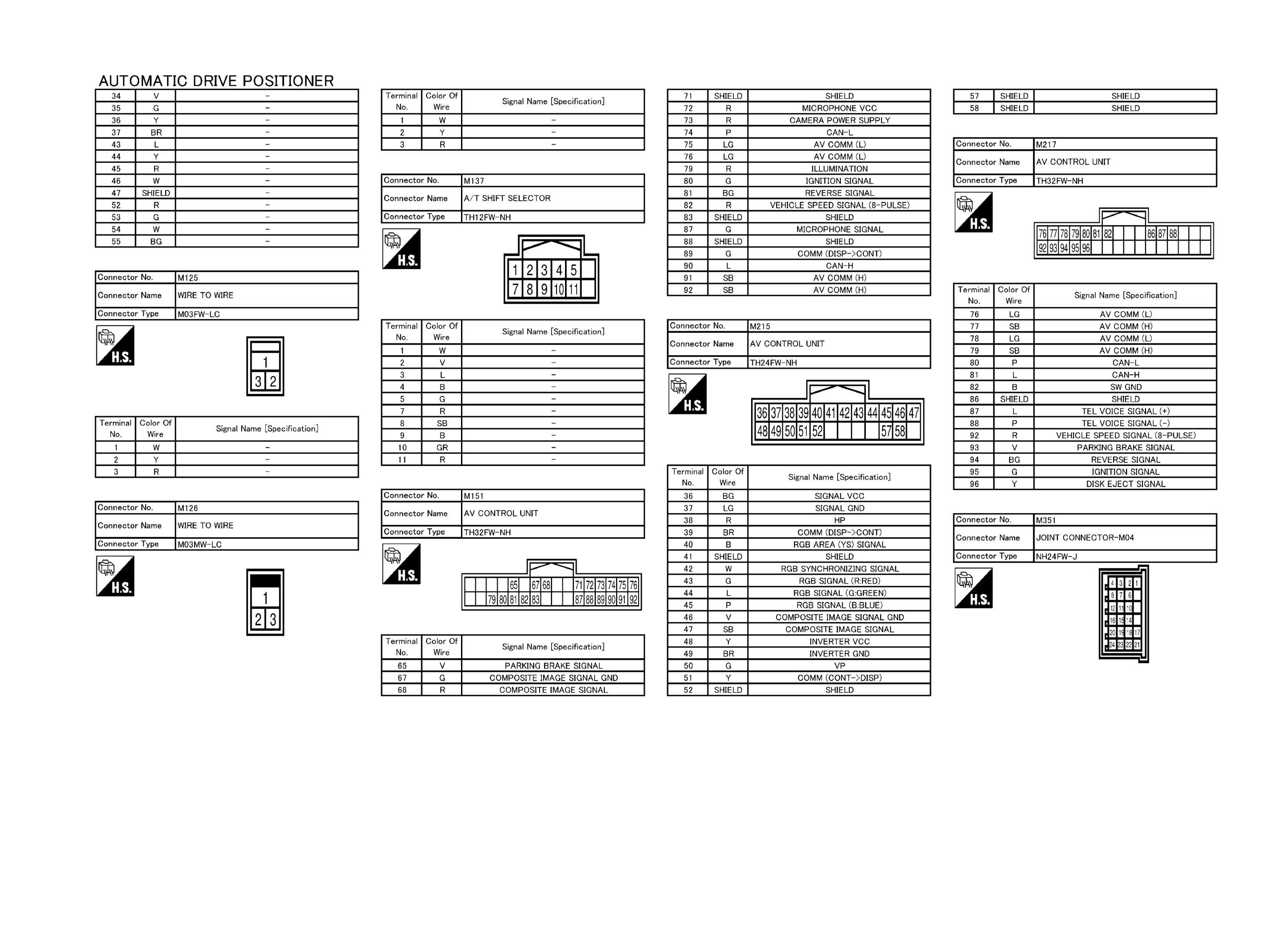

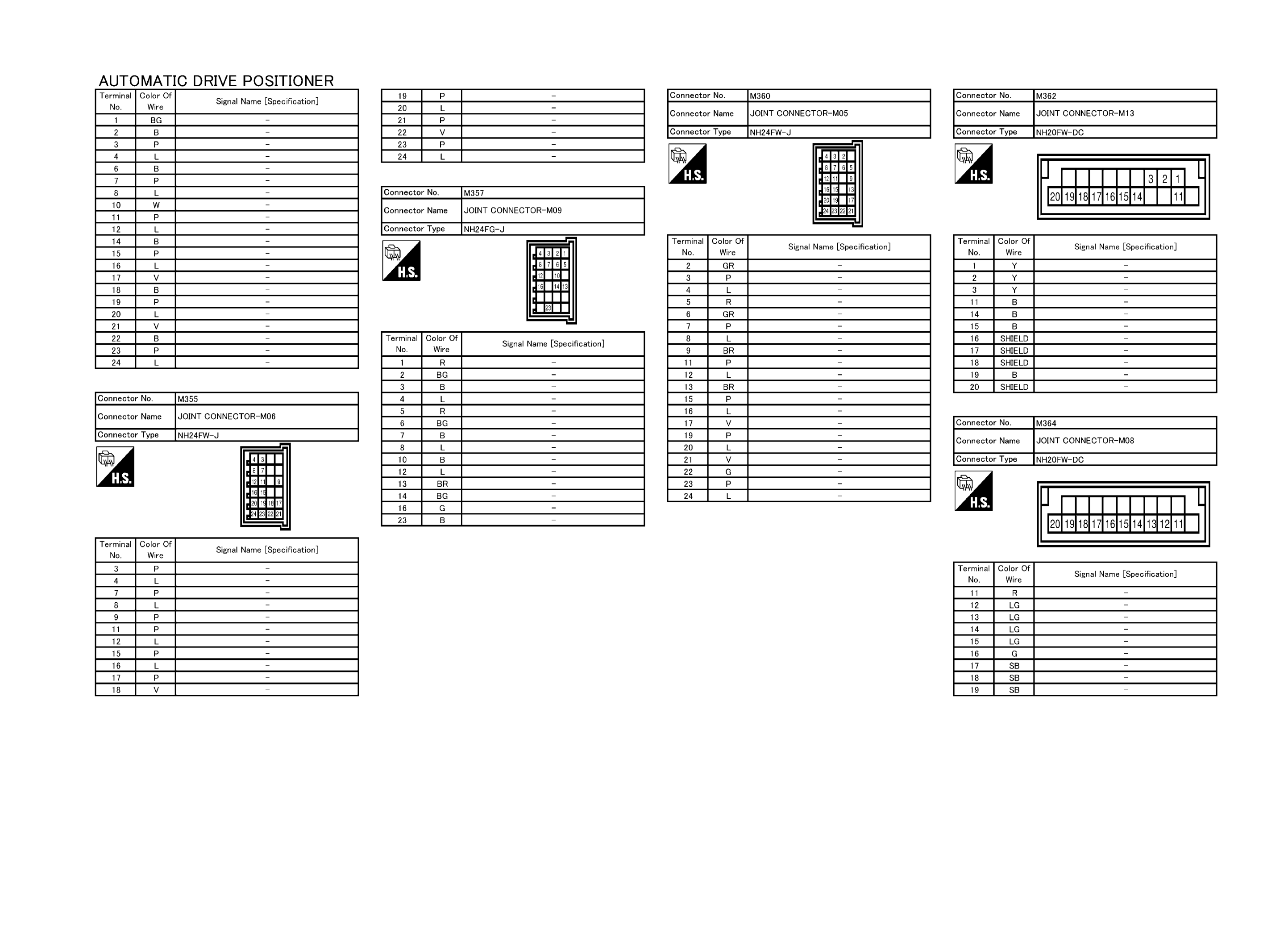

GNSJRJWD2765GB-765

Courtesy of NISSAN NORTH AMERICA, INC.

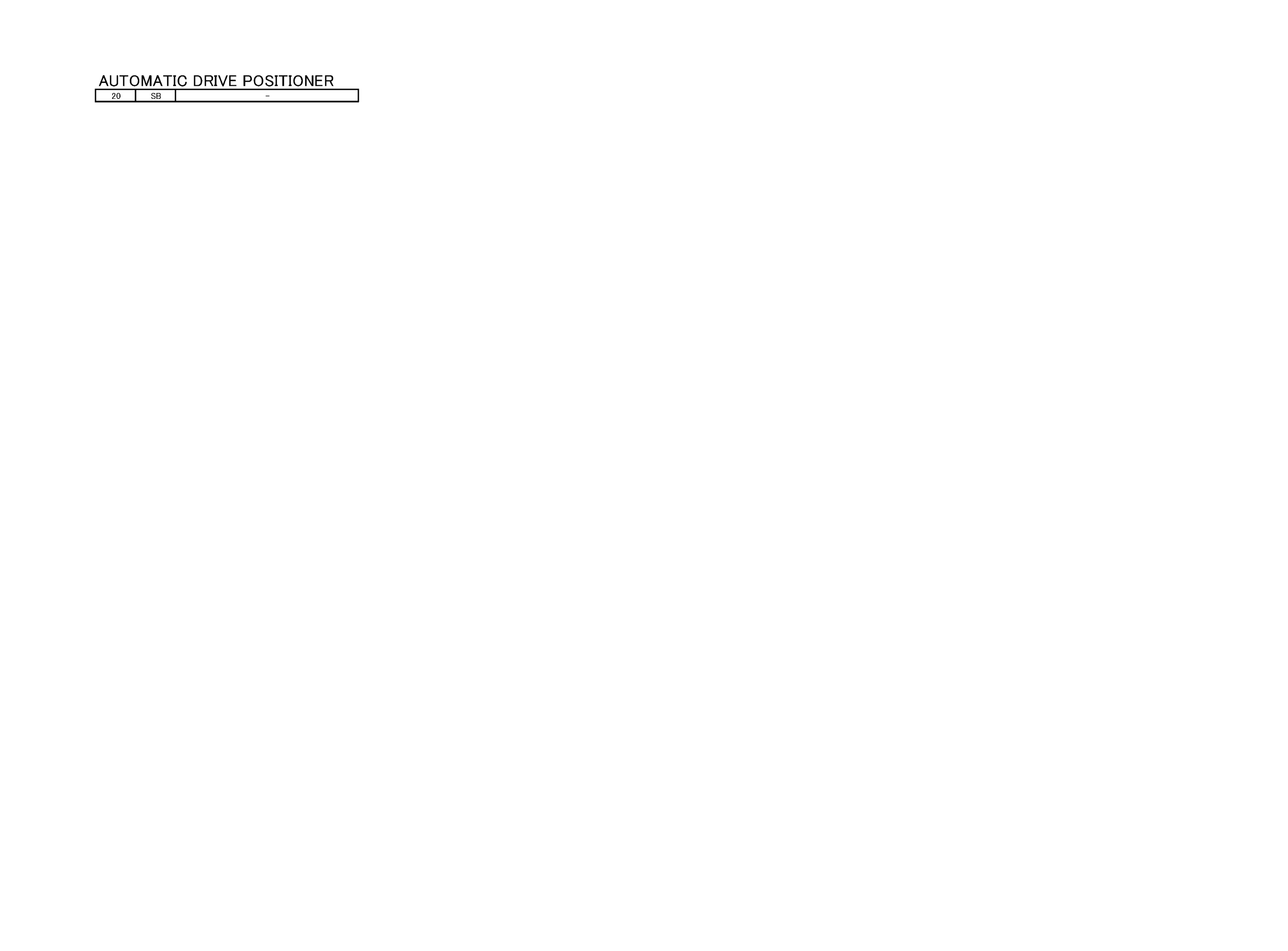

GNSJRJWD2766GB-766

Courtesy of NISSAN NORTH AMERICA, INC.
