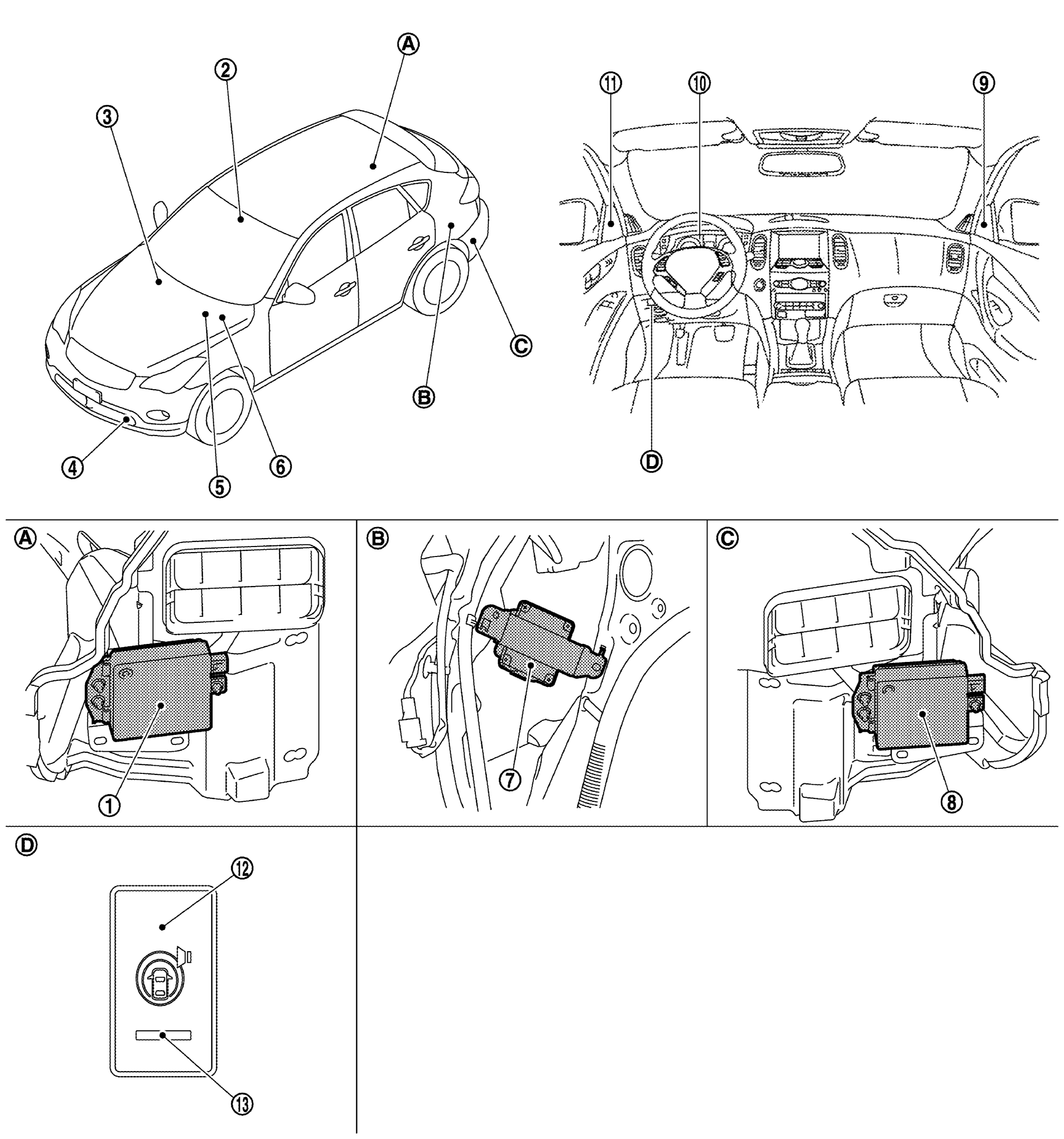

Component Parts Location
| 1. | Side radar RH | 2. | Lane camera unit Refer to COMPONENT PARTS LOCATION |
3. | BCM Refer to COMPONENT PARTS LOCATION |
| 4. | ICC sensor integrated unit Refer to COMPONENT PARTS LOCATION |
5. | TCM Refer to COMPONENT PARTS LOCATION |
6. | ABS actuator and electric unit (control unit) Refer to COMPONENT PARTS LOCATION |
| 7. | BSW control module | 8. | Side radar LH | 9. | BSW indicator RH |
| 10. | BSW warning lamp, buzzer (On the combination meter) |
11. | BSW indicator LH | 12. | Warning systems switch |
| 13. | Warning systems ON indicator | ||||
| A. | Rear bumper removed condition | B. | Behind of Luggage side finisher lower (LH) | C. | Rear bumper removed condition |
| D. | Instrument lower panel (LH) |
