Exploded View With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

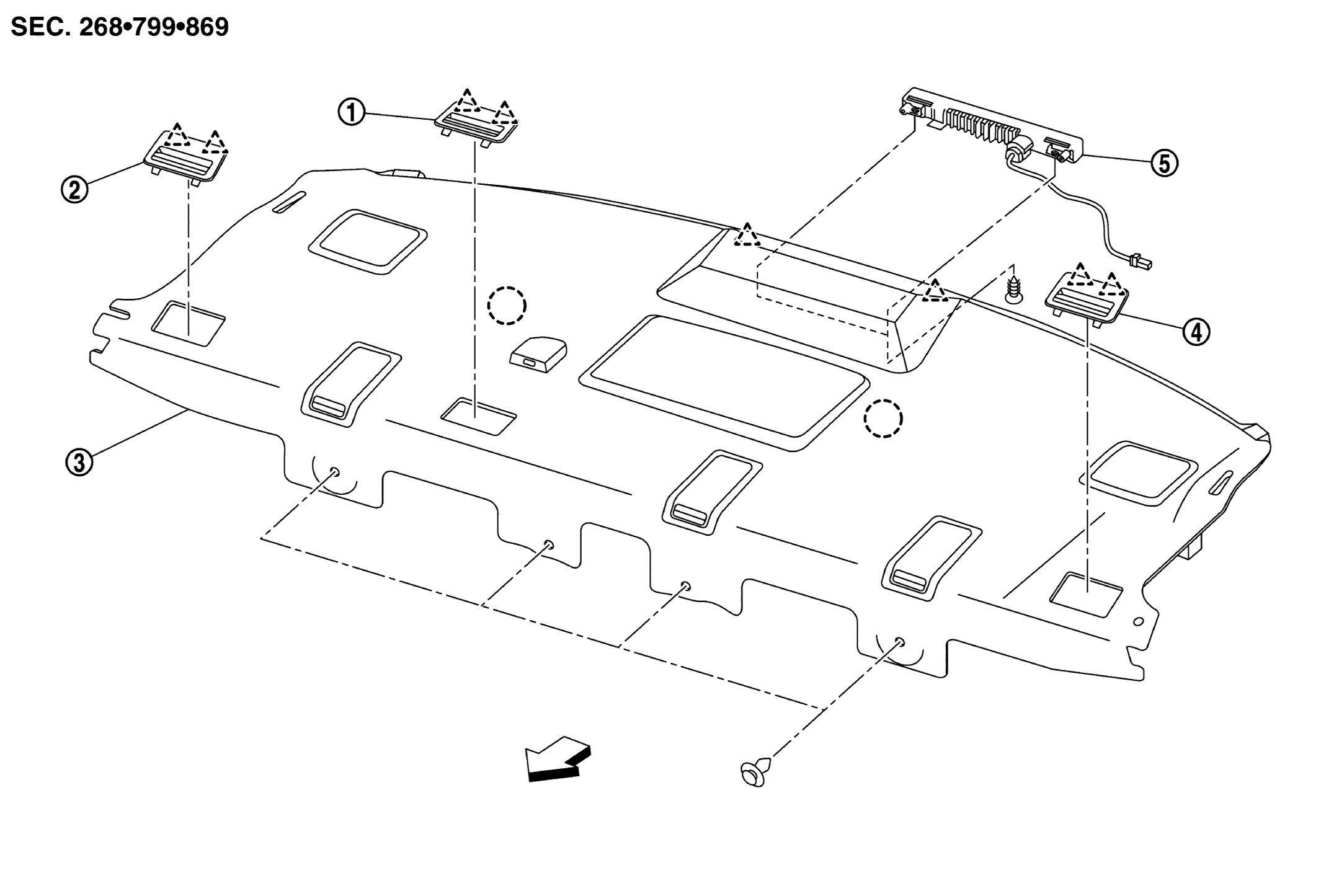

GNSJMJIA9083ZZ-083Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Seat belt finisher center WHITE-2 Seat belt finisher RH WHITE-3 Rear parcel shelf finisher
WHITE-4 Seat belt finisher LH WHITE-5 High-mounted stop lamp assembly
MARU-H : Clip
SANKAKU-H : Pawl
ARROW : Vehicle front
