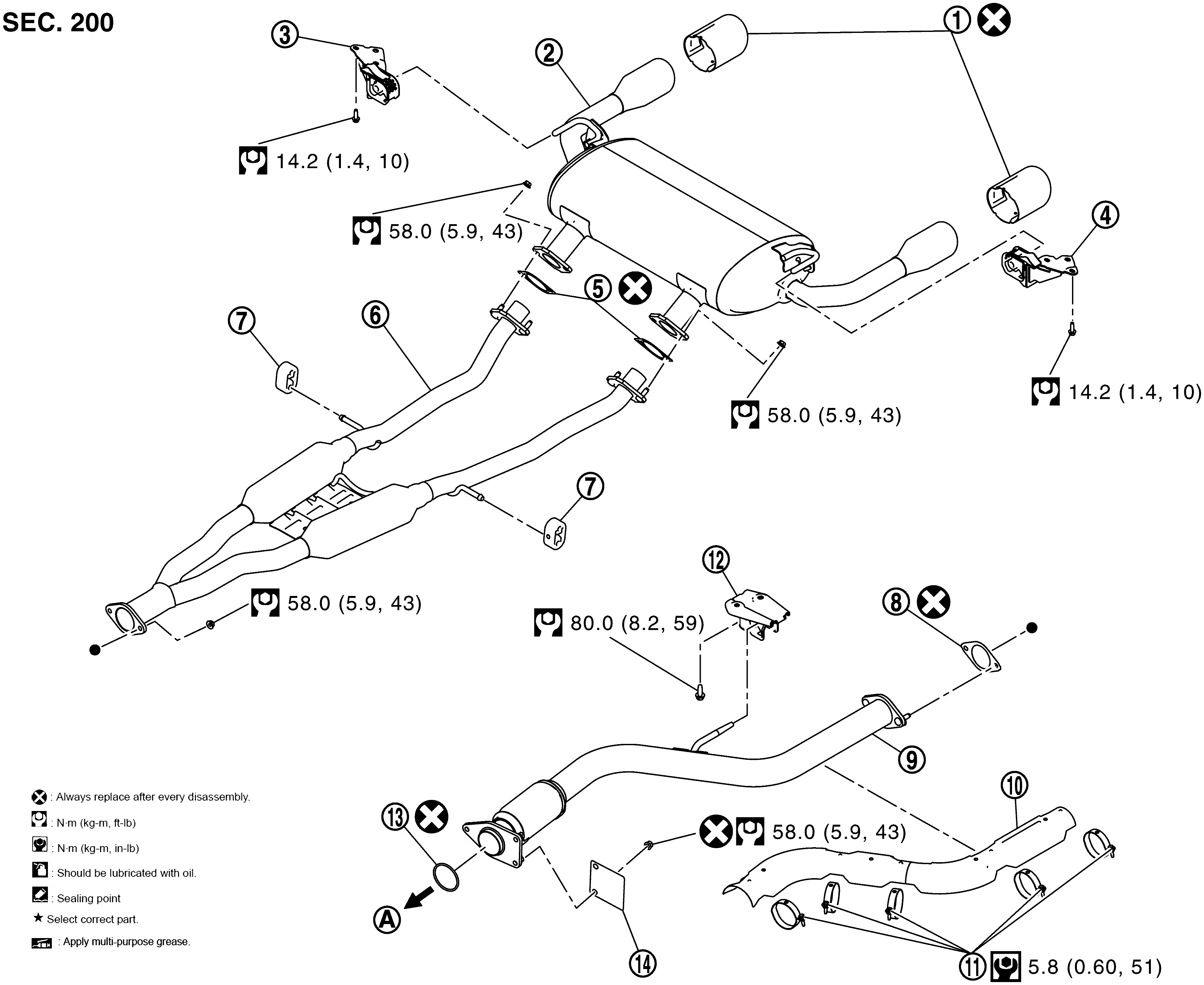

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Diffuser |
|
Main muffler |
|
Mounting rubber (RH) |
|
|
Mounting rubber (LH) |
|
Gasket |
|
Center muffler |
|
|
Mounting rubber |
|
Gasket |
|
Exhaust front tube |
|
|
Heat insulator |
|
Clamp |
|
Mounting rubber |
|
|
Ring gasket |
|
Not applicable |
||
|
|
To Three way catalyst |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: Indicates that the part is connected at points with same symbol in actual vehicle. |
||||
