Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Type 1

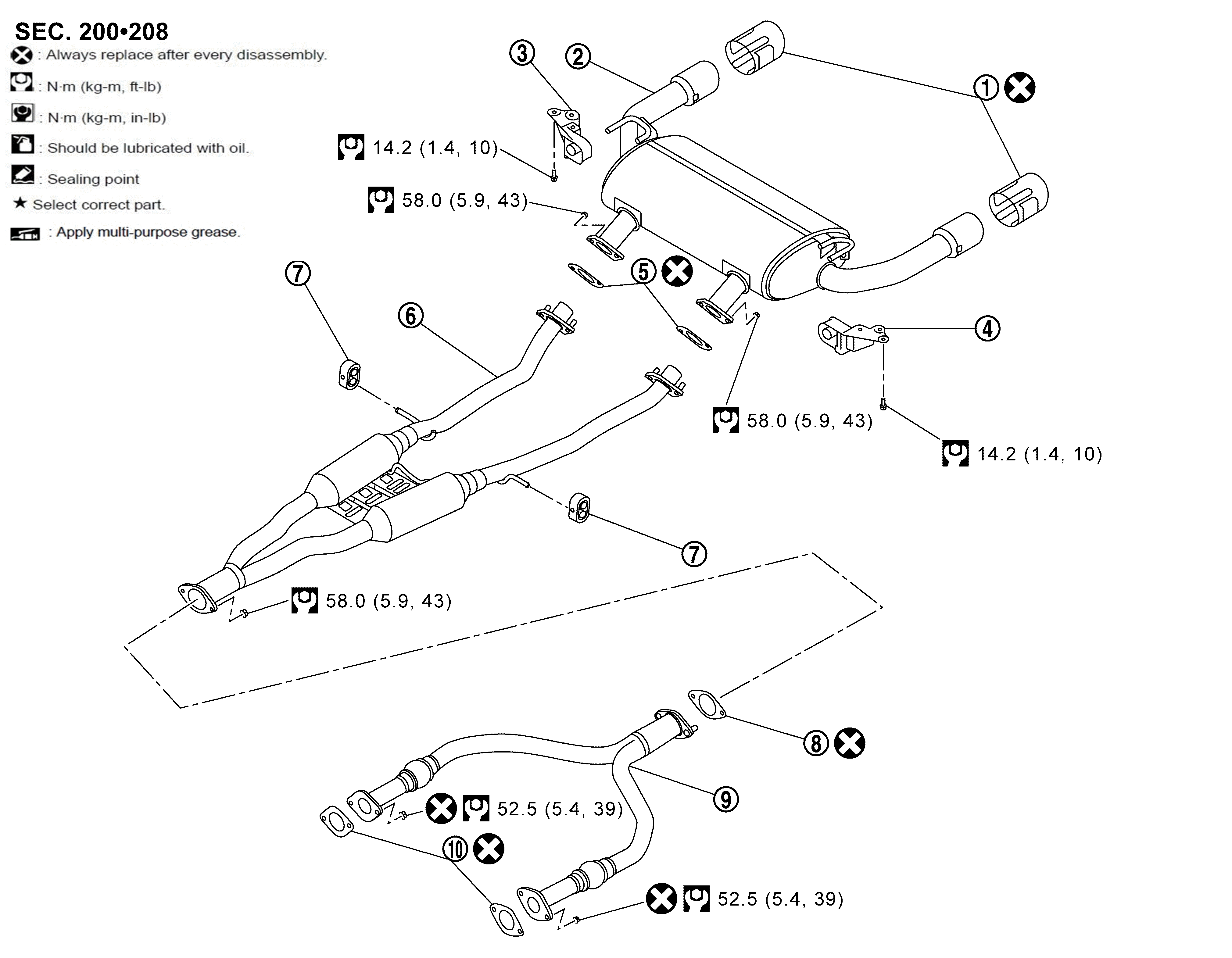

Fig 1: Exhaust System Replacement Components With Torque Specifications (Type 1)

Courtesy of NISSAN NORTH AMERICA, INC.

Main muffler	Mounting rubber (RH)	Mounting rubber (LH)
Gasket	Center muffler	Mounting rubber
Gasket	Exhaust front tube	Gasket
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.

Type 2

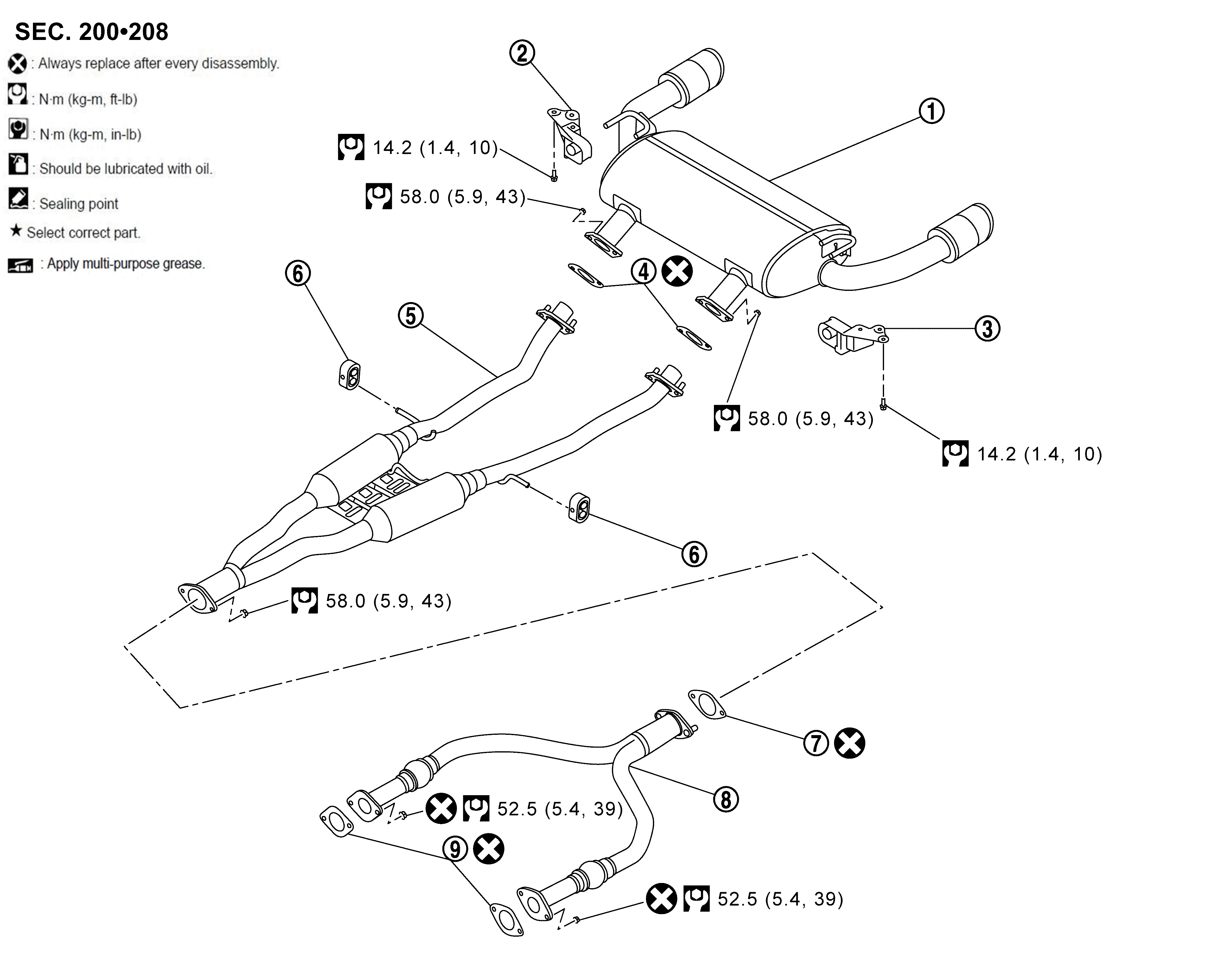

Fig 2: Exhaust System Replacement Components With Torque Specifications (Type 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Exhaust finisher	Main muffler	Mounting rubber (RH)
Mounting rubber (LH)	Gasket	Center muffler
Mounting rubber	Gasket	Exhaust front tube
Gasket
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
