Harness Layout

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

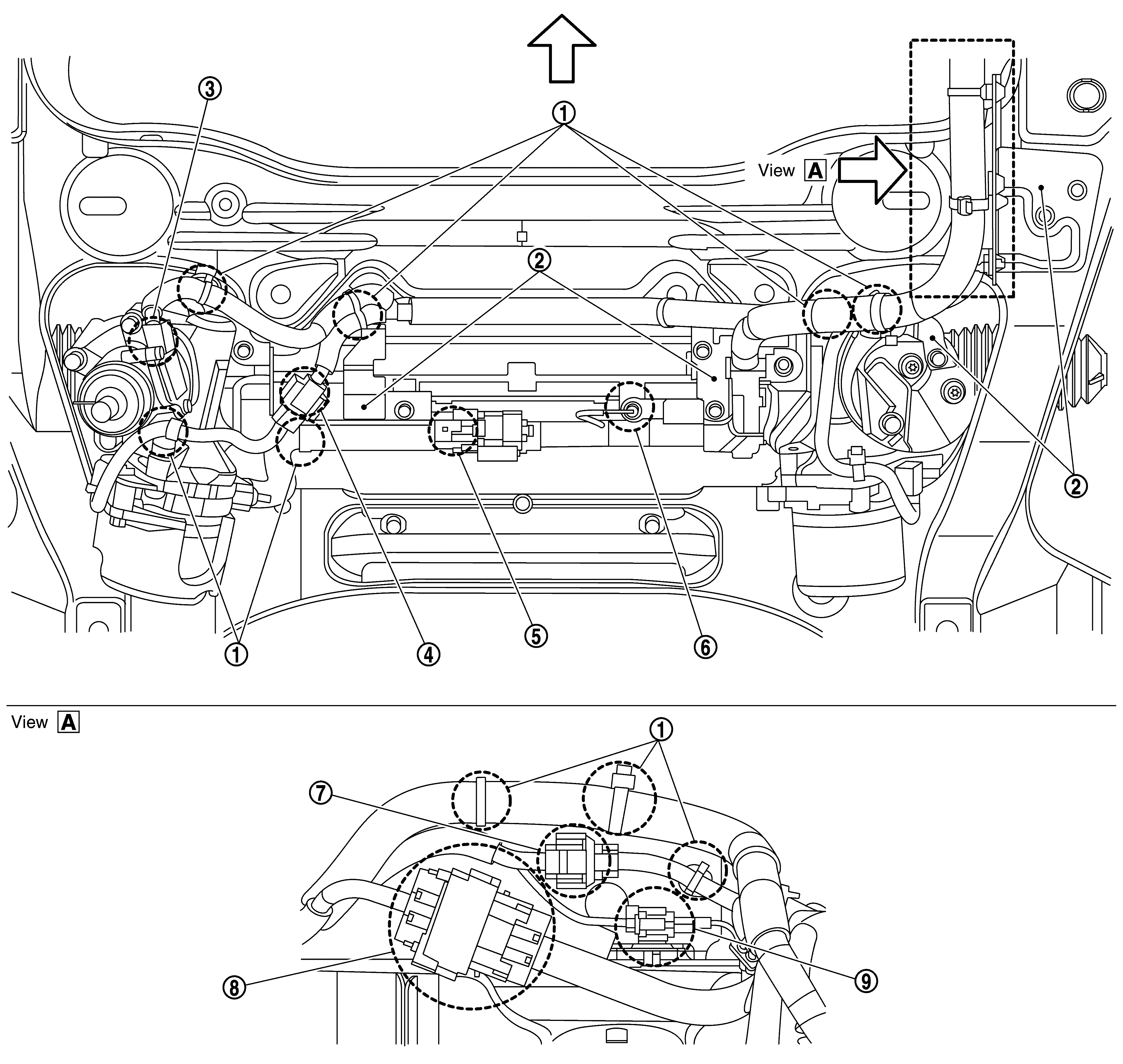

2WD Models

Courtesy of NISSAN NORTH AMERICA, INC.

	Clip	Harness bracket	Steering torque sensor harness connector
	Main motor angle sensor harness connector	Steering angle main motor harness connector	Steering angle main motor ground terminal
	Sub motor angle sensor harness connector	Steering angle sub motor harness connector	Steering angle sub motor harness ground connector
: Vehicle front

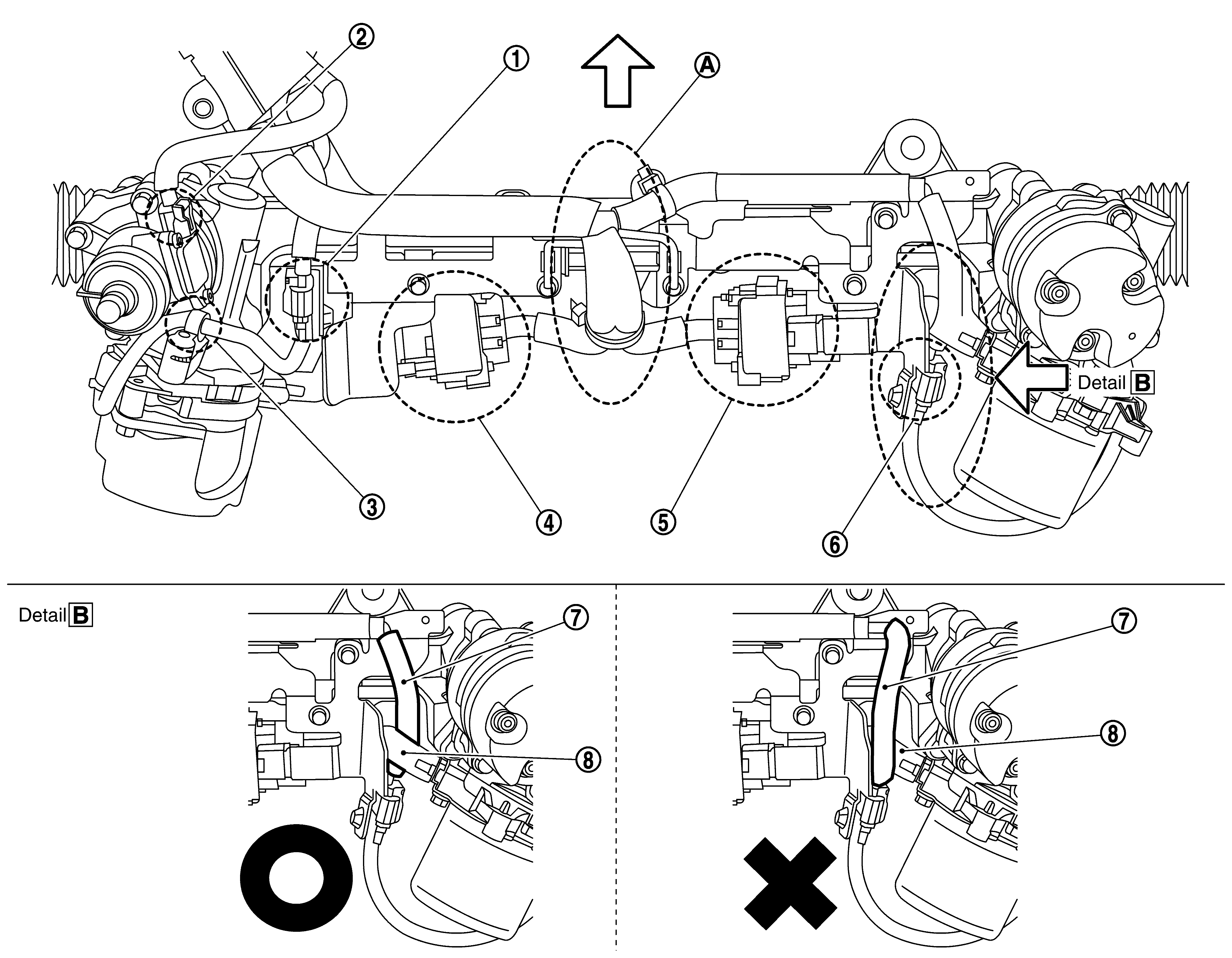

AWD Models

Courtesy of NISSAN NORTH AMERICA, INC.

	Main motor angle sensor harness connector	Steering torque sensor harness connector	Clip
	Steering angle main motor harness connector	Steering angle sub motor harness connector	Sub motor angle sensor harness connector
	Sub motor angle sensor harness	Steering angle sub motor harness
: Vehicle front

CAUTION:

Check that there is the enough clearance in part between steering angle motor harness and oil pan.
When installing the sub motor angle sensor harness , place the sub motor angle sensor harness under the steering angle sub motor harness .
After installation, check that there is the enough clearance between the front propeller shaft flange part and sub motor angle sensor harness.
