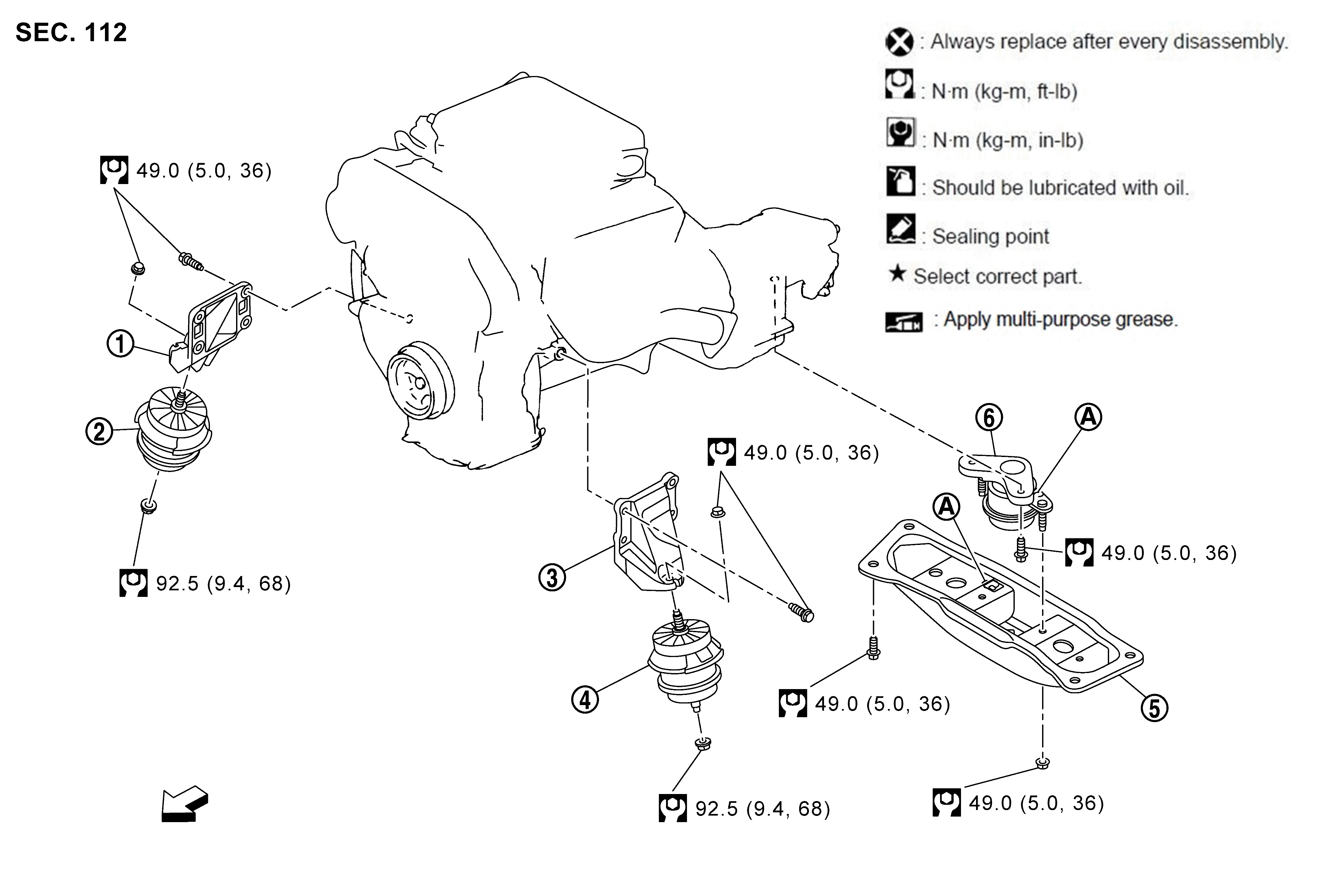

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Engine mounting bracket (RH)
|
|
Engine mounting insulator (RH)
|
|
Engine mounting bracket (LH)
|
|
|
Engine mounting insulator (LH)
|
|
Rear engine mounting member
|
|
Engine mounting insulator (rear)
|
|
|
Front mark
|
|
|
: Vehicle front
|
|
|
: N.m (kg-m, ft-lb)
|
