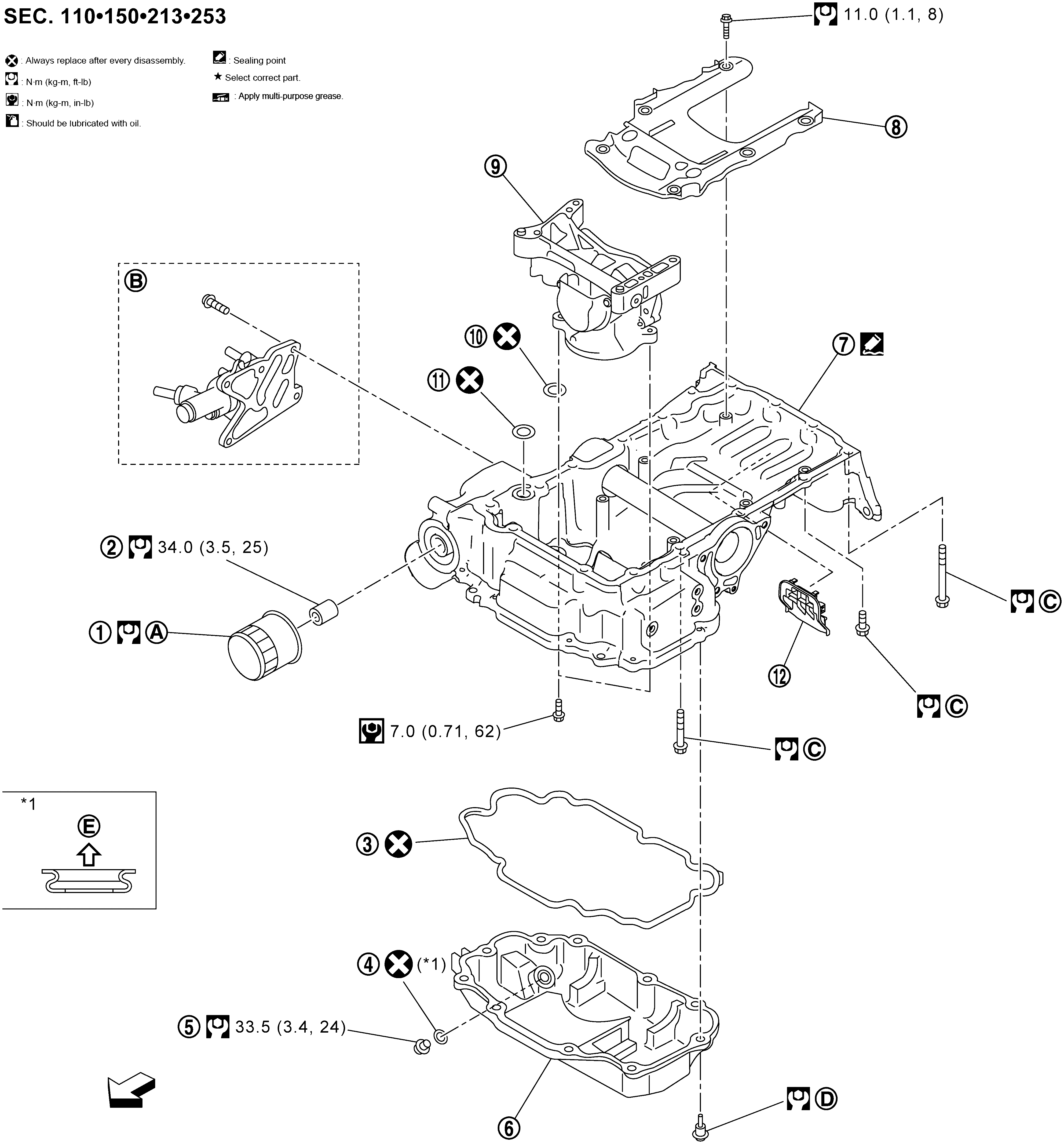

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Oil filter |
|
Connector bolt |
|
Gasket |
|
|
Drain plug washer |
|
Drain plug |
|
Oil pan (lower) |
|
|
Oil pan (upper) |
|
Baffle plate |
|
Oil pump assembly |
|
|
O-ring |
|
O-ring |
|
Rear plate cover |
|
|
Comply with the installation procedure when tightening. Refer to Removal and Installation . |
|
Comply with the installation procedure when tightening.
|
||
|
|
Comply with the installation procedure when tightening. Refer to Disassembly and Assembly . |
|
Comply with the installation procedure when tightening. Refer to Removal and Installation . |
|
Oil pan side |
|
|
: Engine front |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: Sealing point |
||||
