Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

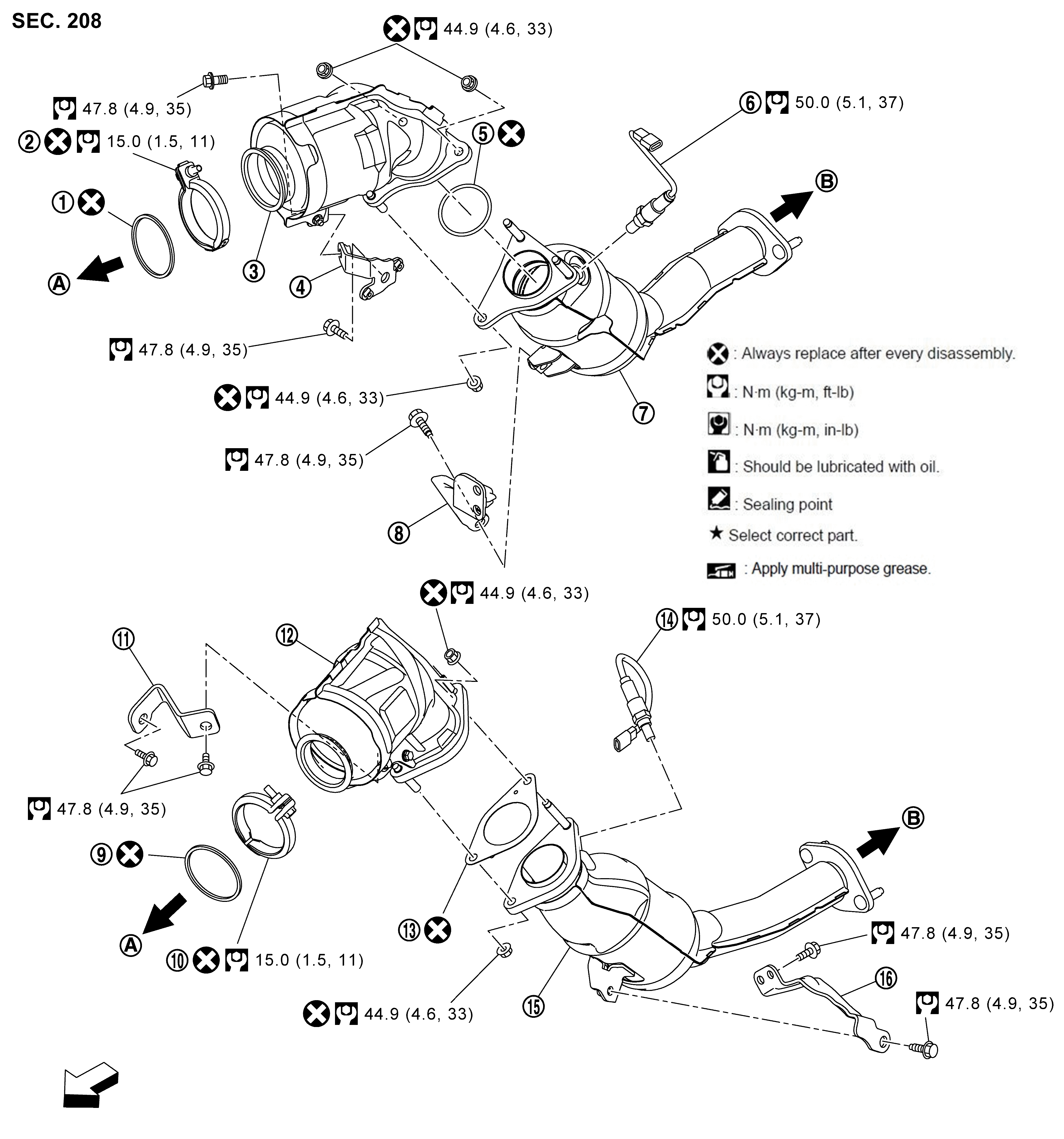

Fig 1: Catalyst Replacement Components With Torque Specifications
GNSJSBIA9879GB-879Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Gasket

SYMBOL

Clamp

SYMBOL

Catalyst converter (bank 1)

SYMBOL

Catalyst converter support bracket (bank 1)

SYMBOL

Gasket

SYMBOL

Heated oxygen sensor 2 (bank 1)

SYMBOL

2nd catalyst converter (bank 1)

SYMBOL

Bracket

SYMBOL

Gasket

SYMBOL

Clamp

SYMBOL

Catalyst converter support bracket (bank2)

SYMBOL

Catalyst converter (bank 2)

SYMBOL

Gasket

SYMBOL

Heated oxygen sensor 2 (bank 2)

SYMBOL

2nd catalyst converter (bank 2)

SYMBOL

Bracket

SYMBOL

To turbocharger assembly

SYMBOL

To exhaust front tube

SYMBOL : Engine front

SYMBOL : Always replace after every disassembly.

SYMBOL : N.m (kg-m, ft-lb)
