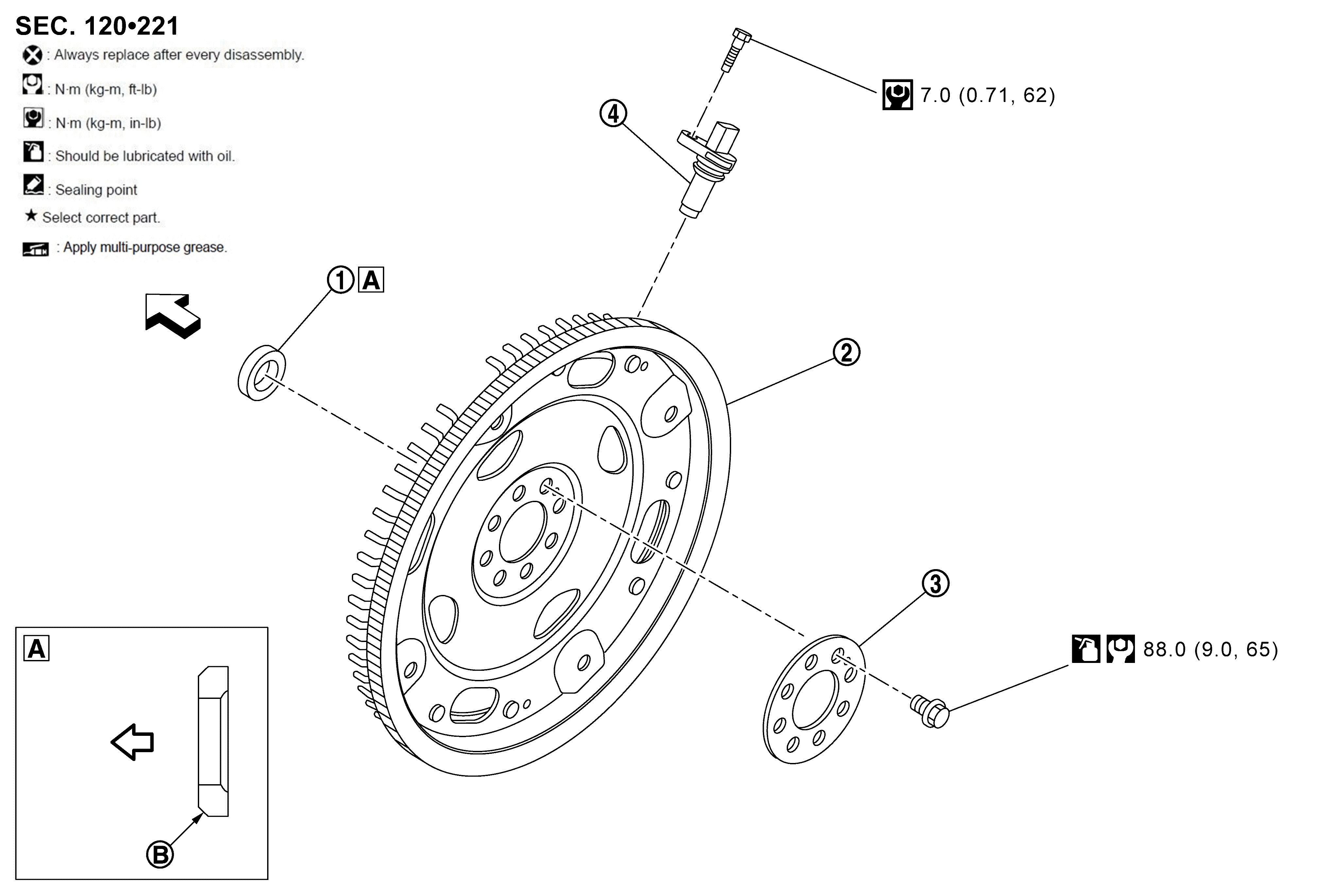

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Pilot converter
|
|
Drive plate
|
|
Reinforcement plate
|
|
|
Crankshaft position sensor
|
|
|
Side view
|
|
Chamfered
|
|
|
: Crankshaft side
|
|
|
: Always replace after every disassembly.
|
|
|
: N.m (kg-m, in-lb)
|
|
|
: N.m (kg-m, ft-lb)
|
