Exploded View: AWD

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

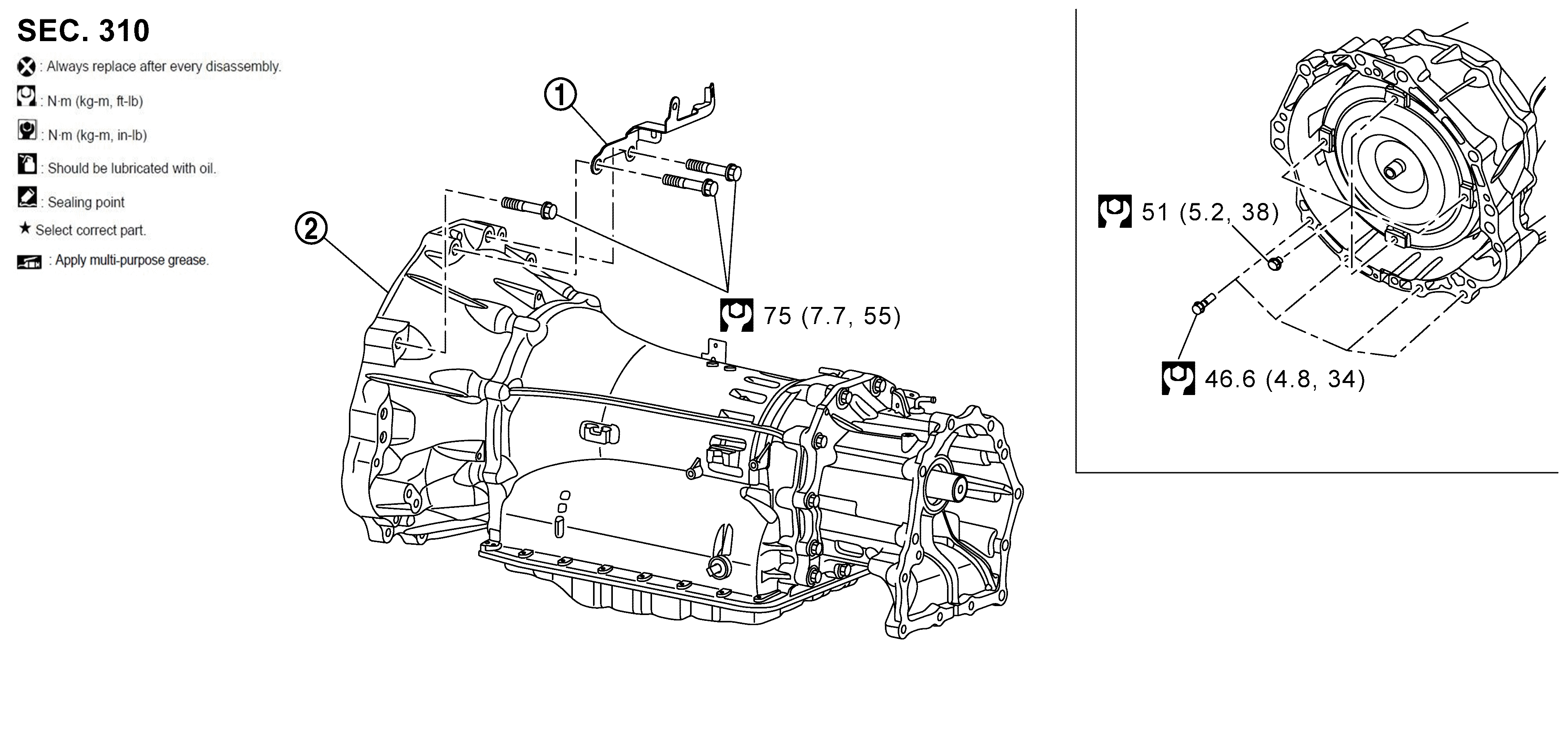

Fig 1: Automatic Transmission Assembly With Torque Specifications - AWD Models

Courtesy of NISSAN NORTH AMERICA, INC.

	Bracket		Transmission assembly
	: N.m (kg-m, ft-lb)
