Exploded View: 2WD

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

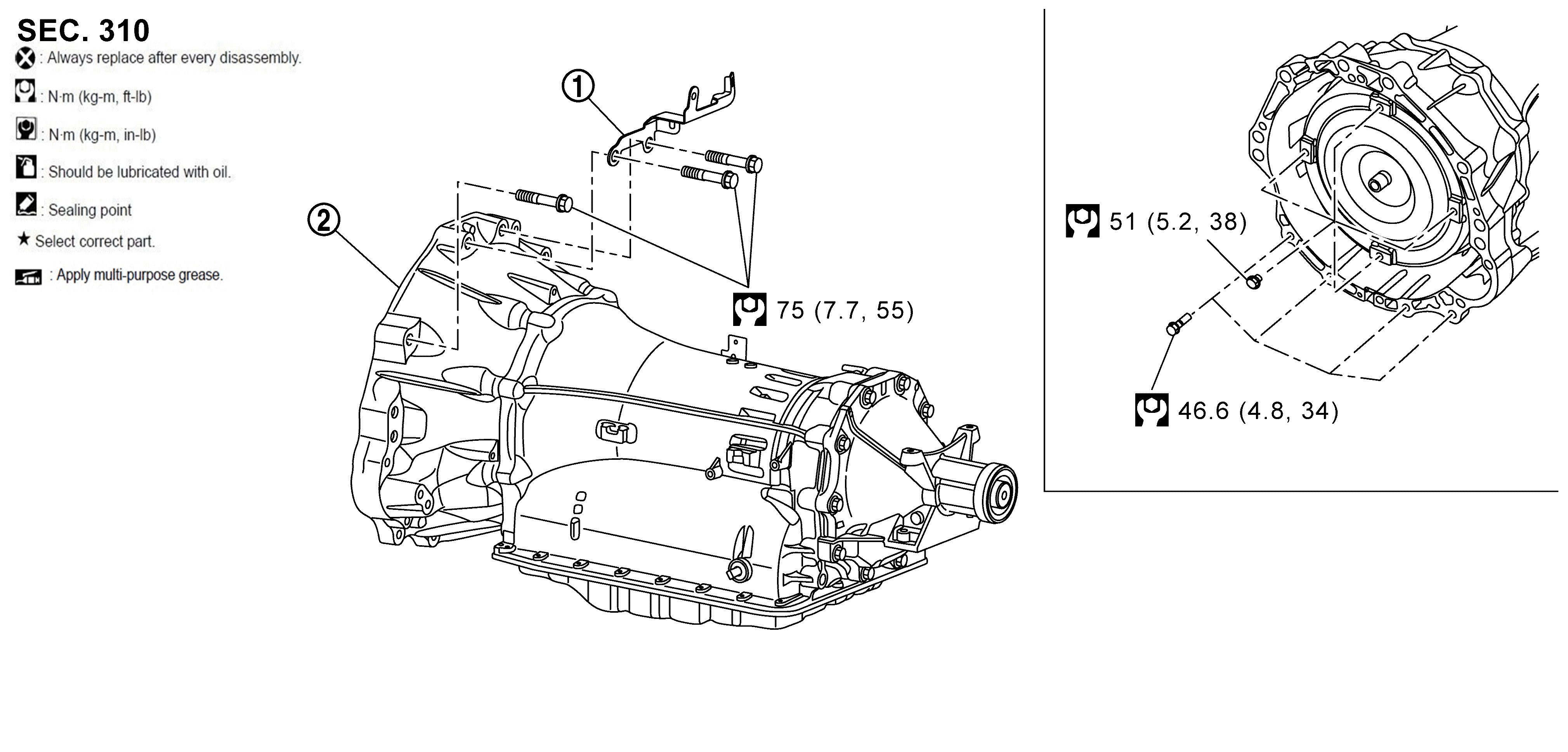

Fig 1: Automatic Transmission Assembly With Torque Specifications - 2WD Models
GNSDB25496Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Bracket

SYMBOL

Transmission assembly

SYMBOL

: N.m (kg-m, ft-lb)
