Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

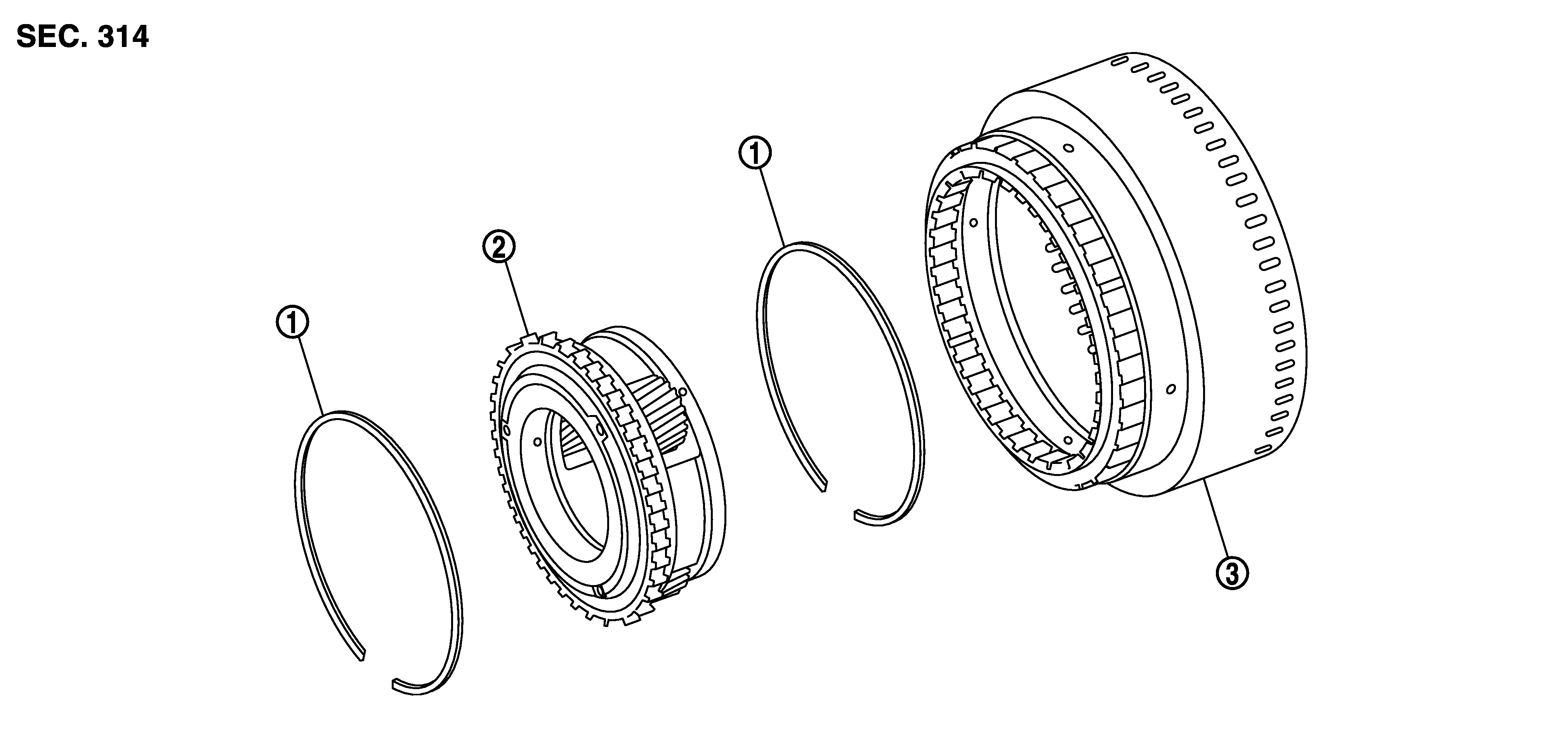

GNSJPDIA1127Z-127Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Snap ring

SYMBOL

Under drive carrier assembly

SYMBOL

Front brake hub
