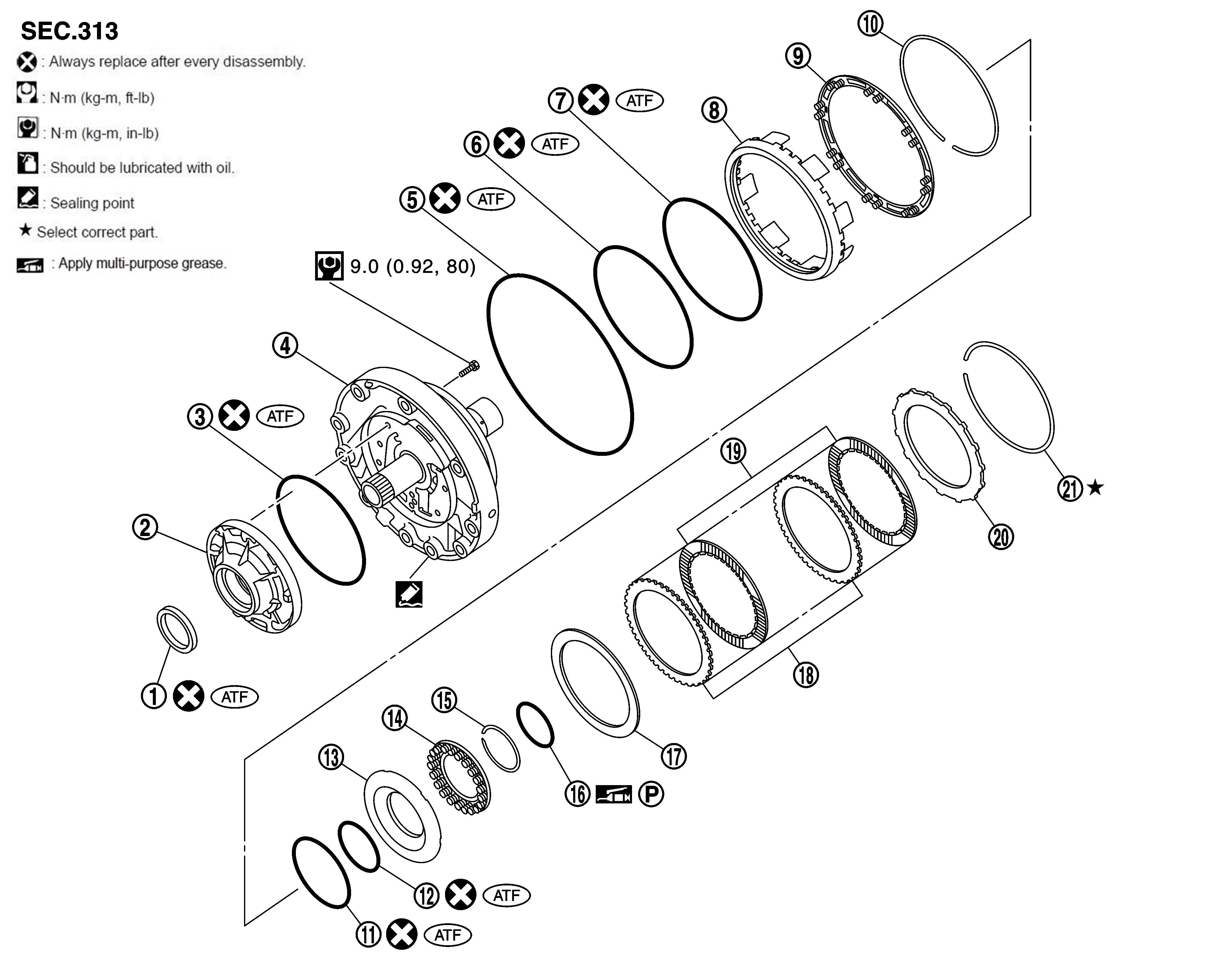

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Oil pump housing oil seal |
|
Oil pump housing |
|
O-ring |
|
|
Oil pump cover |
|
O-ring |
|
D-ring |
|
|
D-ring |
|
Front brake piston |
|
Front brake spring retainer |
|
|
Snap ring |
|
D-ring |
|
D-ring |
|
|
2346 brake piston |
|
2346 brake spring retainer |
|
Snap ring |
|
|
Seal ring |
|
2346 brake dish plate |
|
2346 brake driven plate |
|
|
2346 brake drive plate |
|
2346 brake retaining plate |
|
Snap ring |
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
: Select with proper thickness. |
||||
|
|
: Apply ATF. |
||||
|
|
: Apply petroleum jelly. |
||||
|
|
: Apply Genuine RTV silicone sealant or equivalent. Refer to Recommended Chemical Products and Sealants . |
||||
