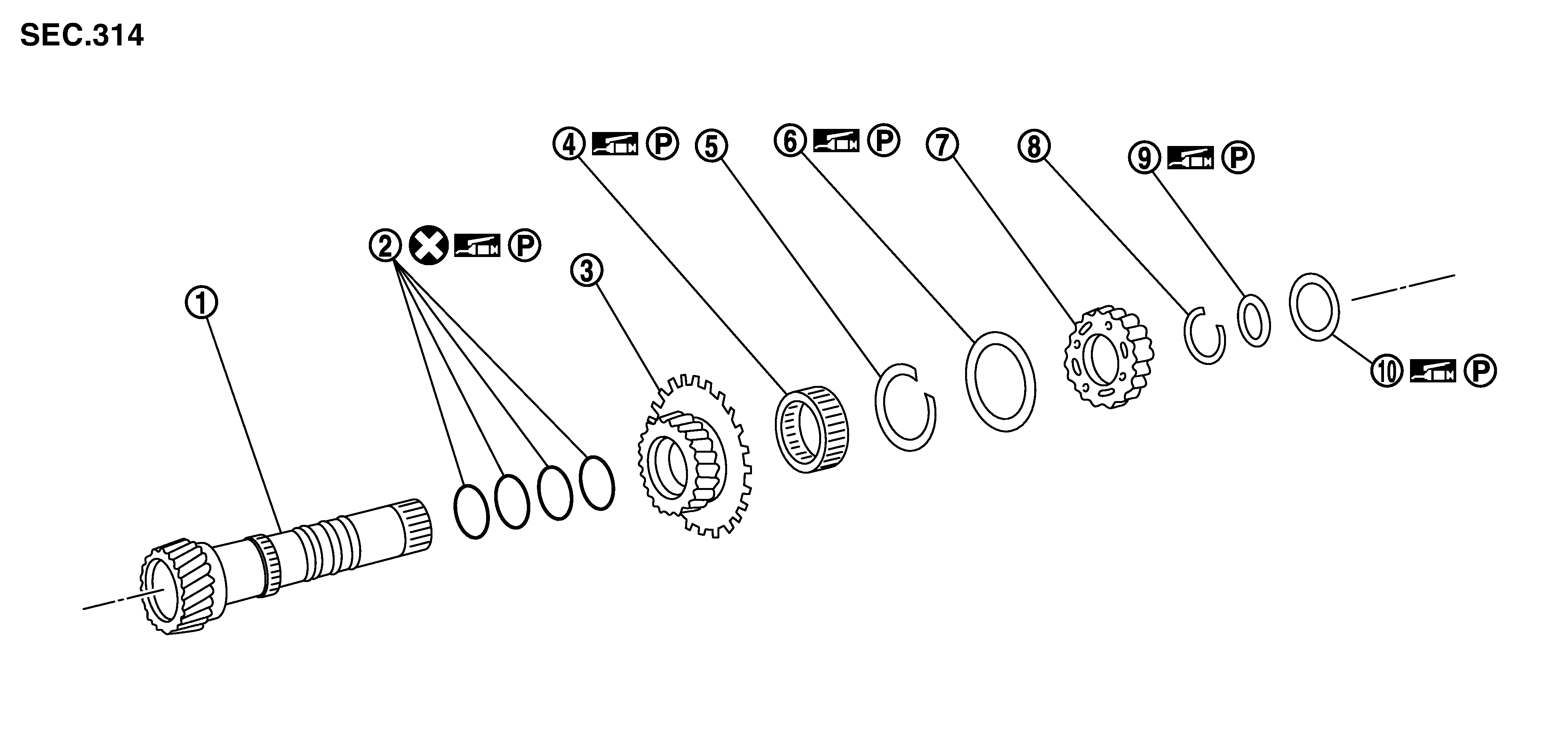

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Mid sun gear
|
|
Seal ring
|
|
Rear sun gear
|
|
|
2nd one-way clutch
|
|
Snap ring
|
|
Needle bearing
|
|
|
High and low reverse clutch hub
|
|
Snap ring
|
|
Bearing race
|
|
|
Needle bearing
|
|
|
: Always replace after every disassembly.
|
|
|
: Apply petroleum jelly.
|
