AWD Models

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

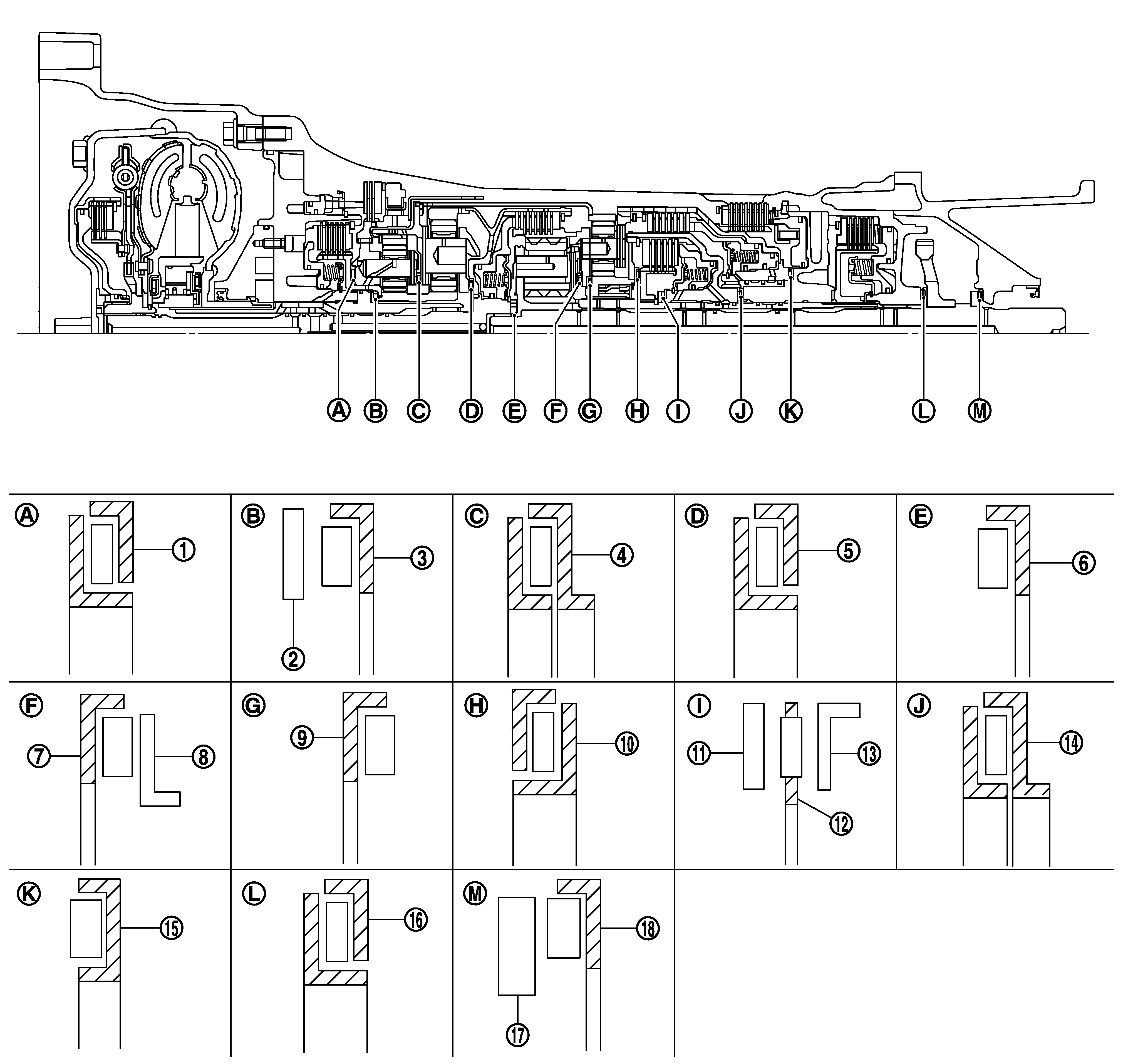

Location	Item	Outer diametermm (in)
	Needle bearing	94 (3.701)
	Bearing race	58.6 (2.307)
	Needle bearing	60 (2.362)
	Needle bearing	84.6 (3.331)
	Needle bearing	77 (3.031)
	Needle bearing	47 (1.850)
	Needle bearing	84 (3.307)
	Bearing race	82 (3.228)
	Needle bearing	80 (3.150)
	Needle bearing	92 (3.622)
	Bearing race	61.1 (2.406)
	Needle bearing	60 (2.362)
	Bearing race	61.9 (2.437)
	Needle bearing	62.8 (2.472)
	Needle bearing	92 (3.622)
	Needle bearing	65 (2.559)
	Bearing race	58 (2.283)
	Needle bearing	60 (2.362)
