High And Low Reverse Clutch: Assembly

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Install high and low reverse clutch component part (dish plate, drive plates, driven plates and retaining plate) to high and low reverse clutch drum.

2.0L turbo gasoline engine models

Courtesy of NISSAN NORTH AMERICA, INC.

1	: Snap ring
2	: Retaining plate
3	: Drive plate (four pieces)
4	: Driven plate (four pieces)
5	: Dish plate

CAUTION: Check the order of plates.

VR30DDTT engine models

Courtesy of NISSAN NORTH AMERICA, INC.

1	: Snap ring
2	: Retaining plate
3	: Drive plate (five pieces)
4	: Driven plate (five pieces)
5	: Dish plate

CAUTION: Check the order of plates.

Install snap ring to high and low reverse clutch drum using a flat-bladed screwdriver.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Be careful not to scratch high and low reverse clutch drum.
- Be careful not to damage snap ring.

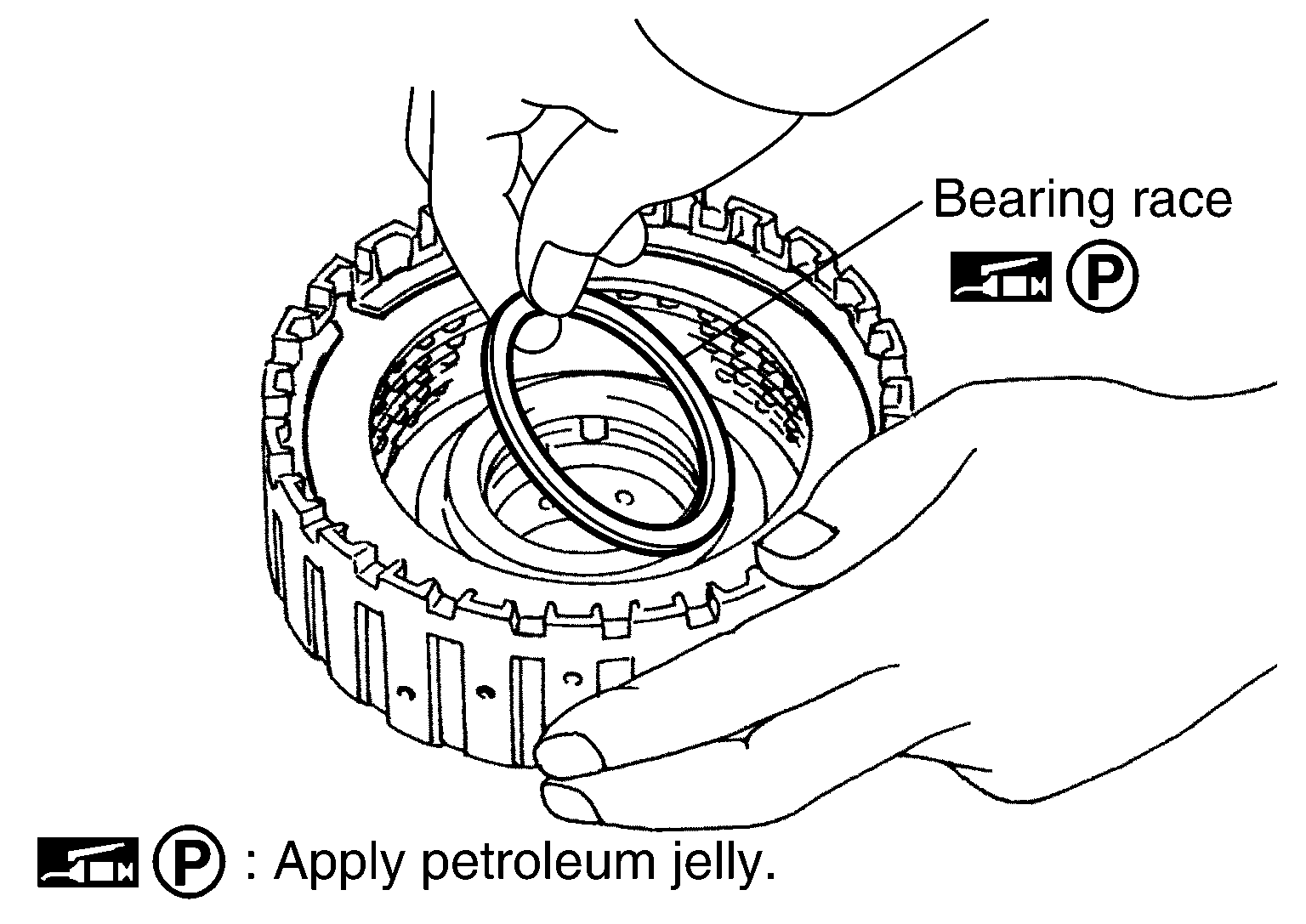

Install bearing race to high and low reverse clutch drum.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .
