Front Carrier, Input Clutch, Rear Internal Gear: Assembly

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Install input clutch component part (dish plate, drive plates, driven plates and retaining plate) to input clutch drum.

2.0L turbo gasoline engine models

Courtesy of NISSAN NORTH AMERICA, INC.

1	: Snap ring
2	: Retaining plate
3	: Drive plate (six pieces)
4	: Driven plate (six pieces)
5	: Dish plate

CAUTION: Check order of plates.

VR30DDTT engine models

Courtesy of NISSAN NORTH AMERICA, INC.

1	: Snap ring
2	: Retaining plate
3	: Drive plate (seven pieces)
4	: Driven plate (seven pieces)
5	: Dish plate

CAUTION: Check order of plates.

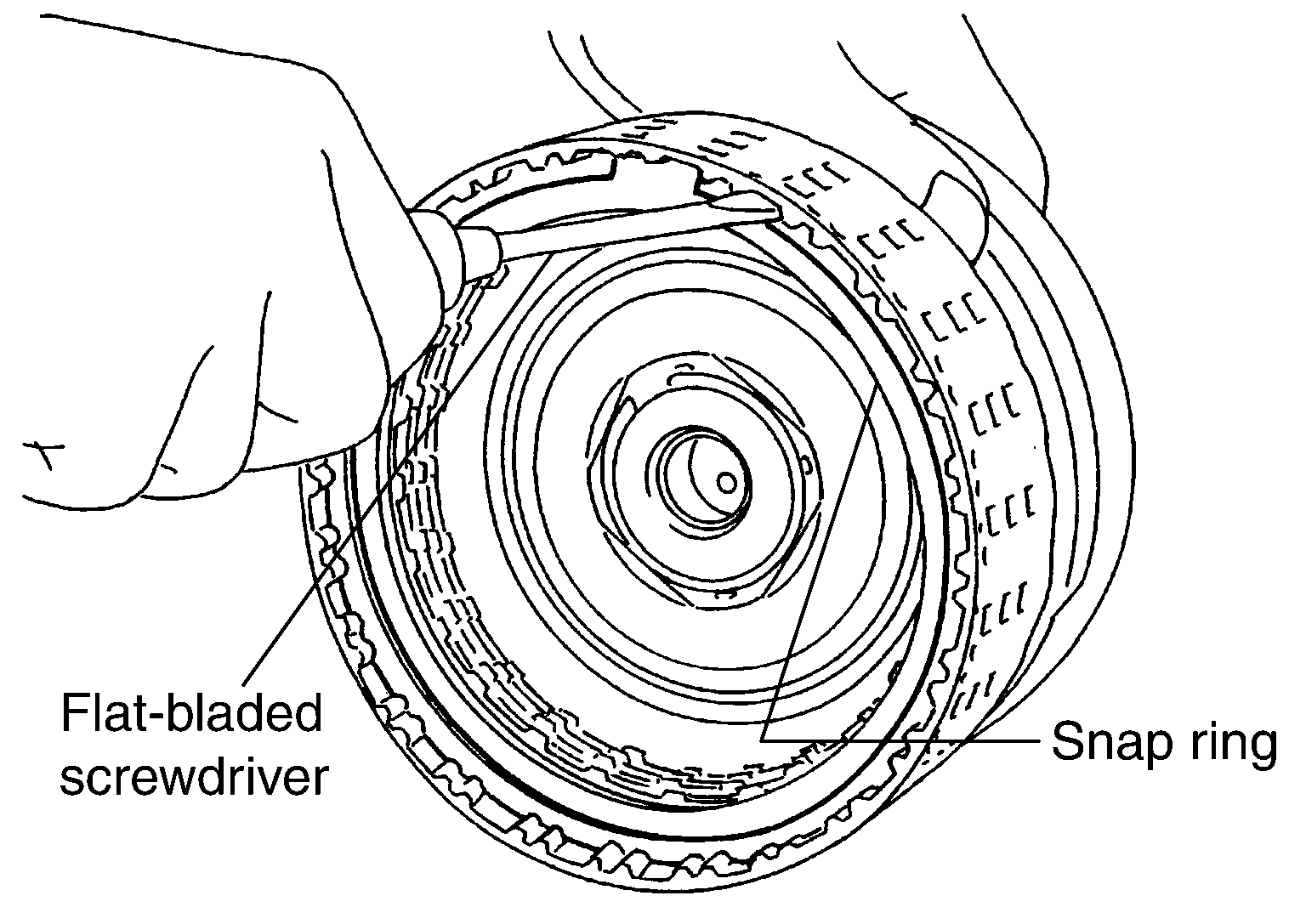

Install snap ring to input clutch drum using a flat-bladed screwdriver.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Be careful not to scratch input clutch drum and input clutch retaining plate.
- Be careful not to damage snap ring.

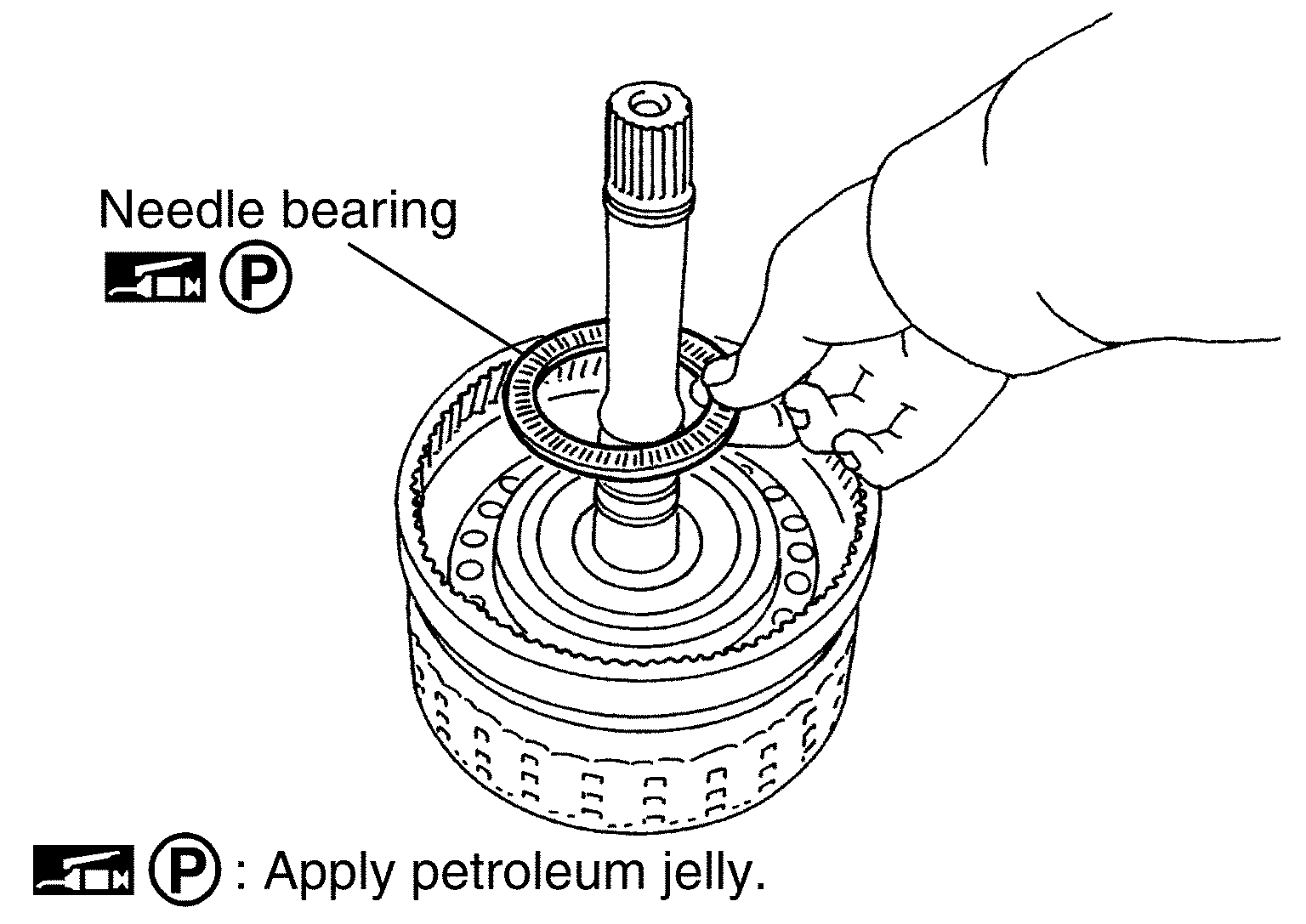

Install needle bearing to input clutch assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .
Install O-ring and seal rings to input clutch assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

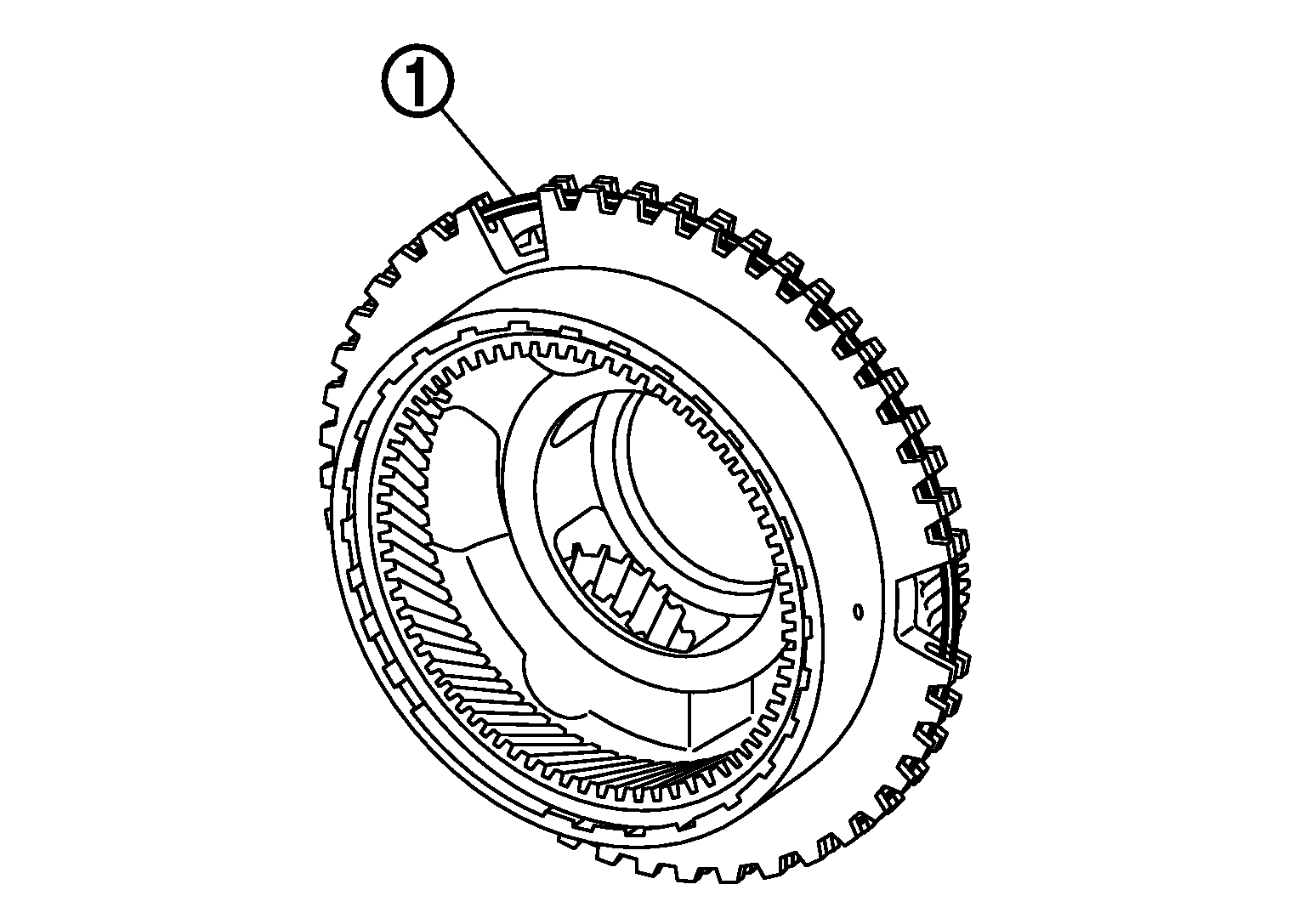

Install snap ring to front carrier assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Be careful not to expand snap ring excessively.

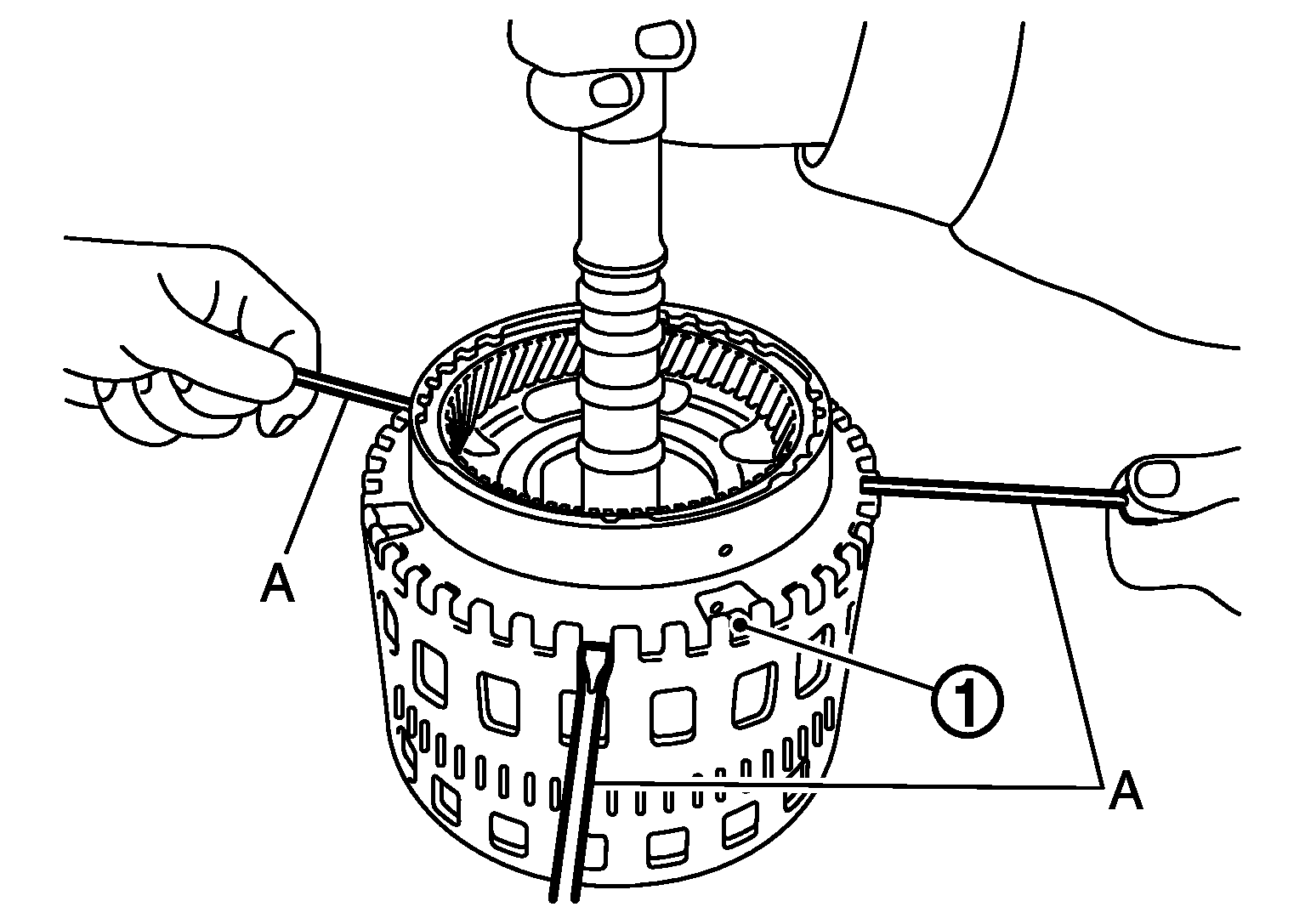

Compress snap ring using flat-bladed screwdrivers (A).

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Be careful not to scratch rear internal gear.
- Be careful not to damage snap ring.
Install front carrier assembly and input clutch assembly to rear internal gear.
Install needle bearing to front carrier assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .
