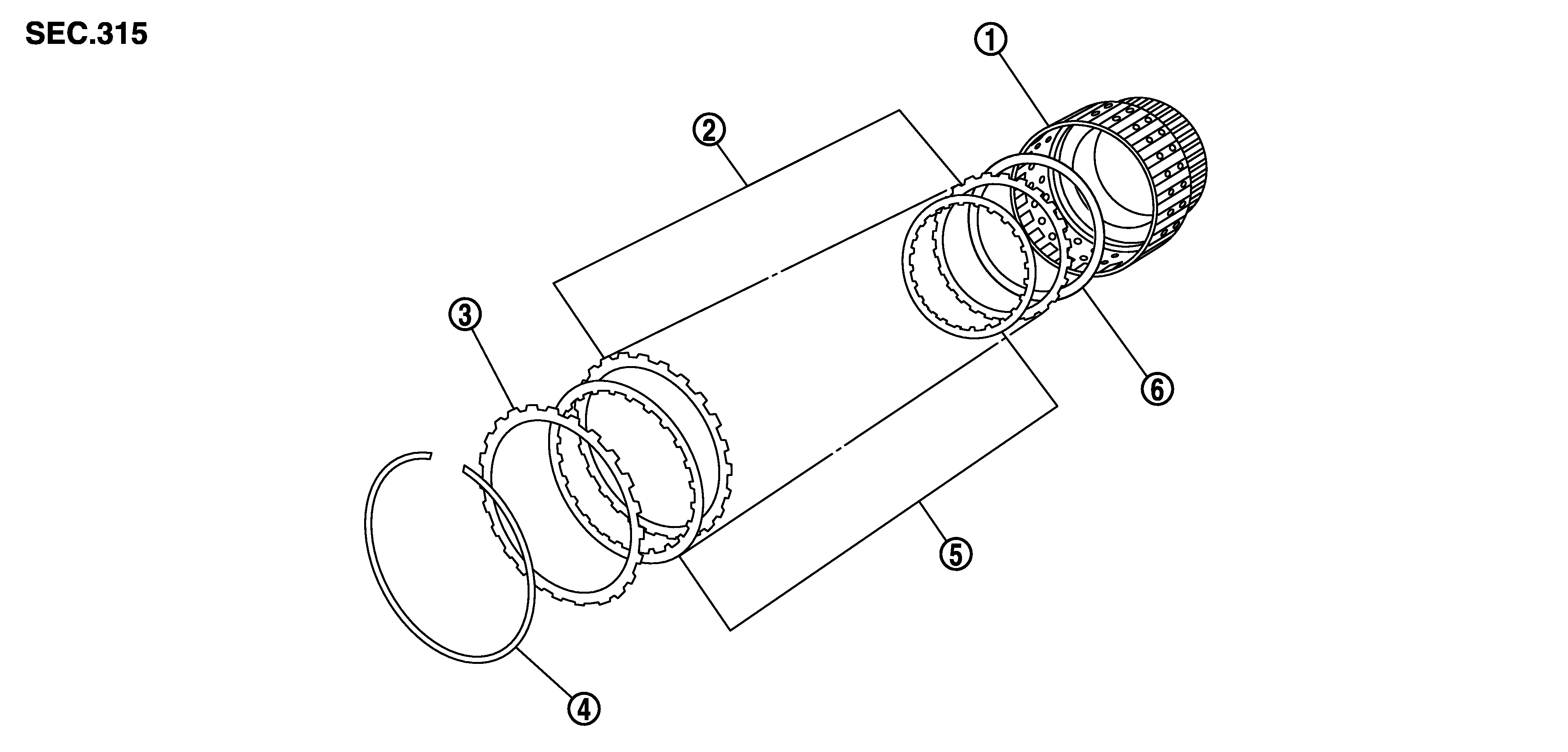

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Direct clutch drum
|
|
Direct clutch driven plate
|
|
Direct clutch retaining plate
|
|
|
Snap ring
|
|
Direct clutch drive plate
|
|
Direct clutch dish plate
|
