Unit Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

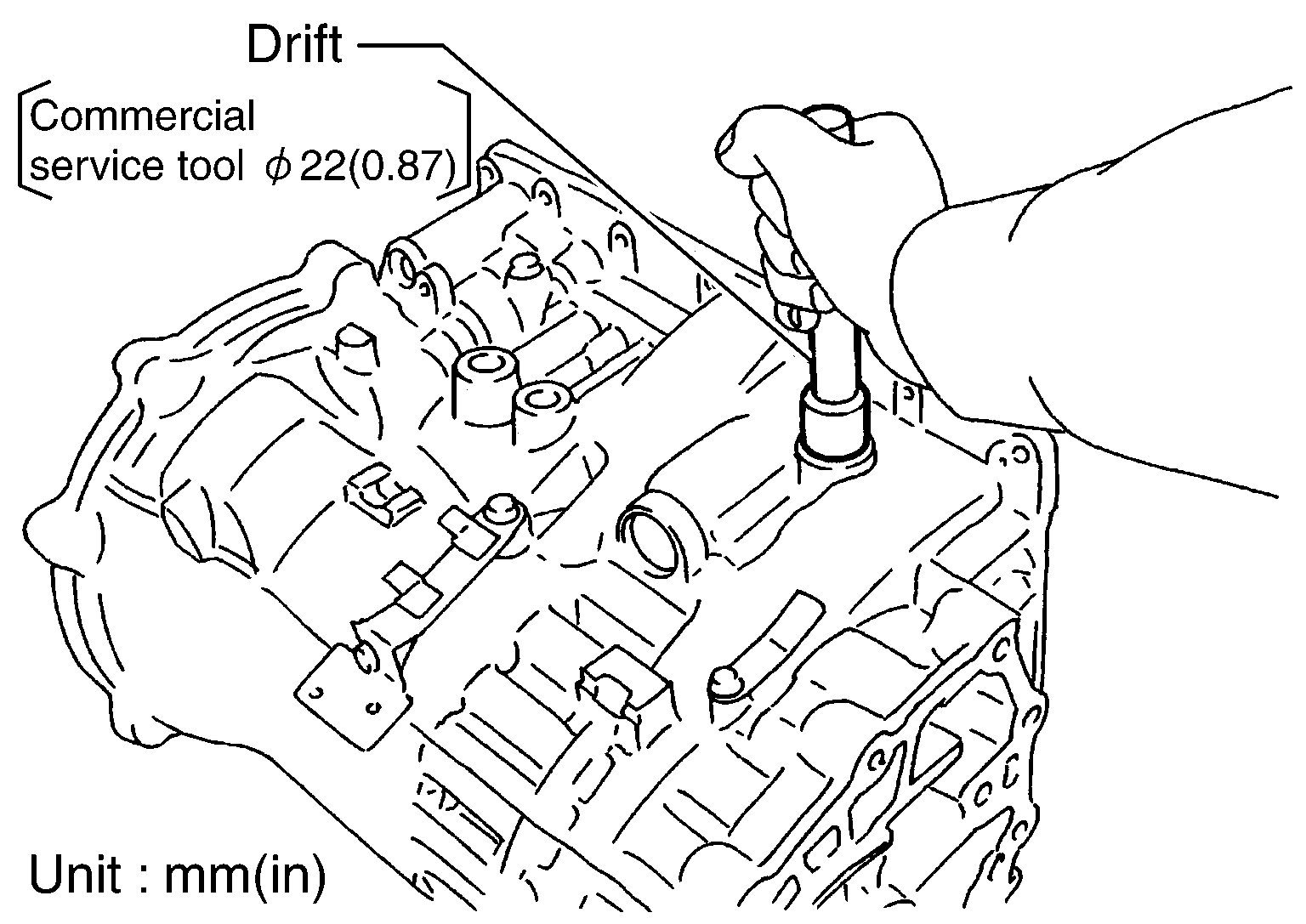

  1. As shown in the figure, use a drift [22 mm (0.87 in) dia. commercial service tool] to drive manual shaft oil seals into the transmission case until it is flush.
    G04075911Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never reuse manual shaft oil seals.
    • Apply ATF to manual shaft oil seals.

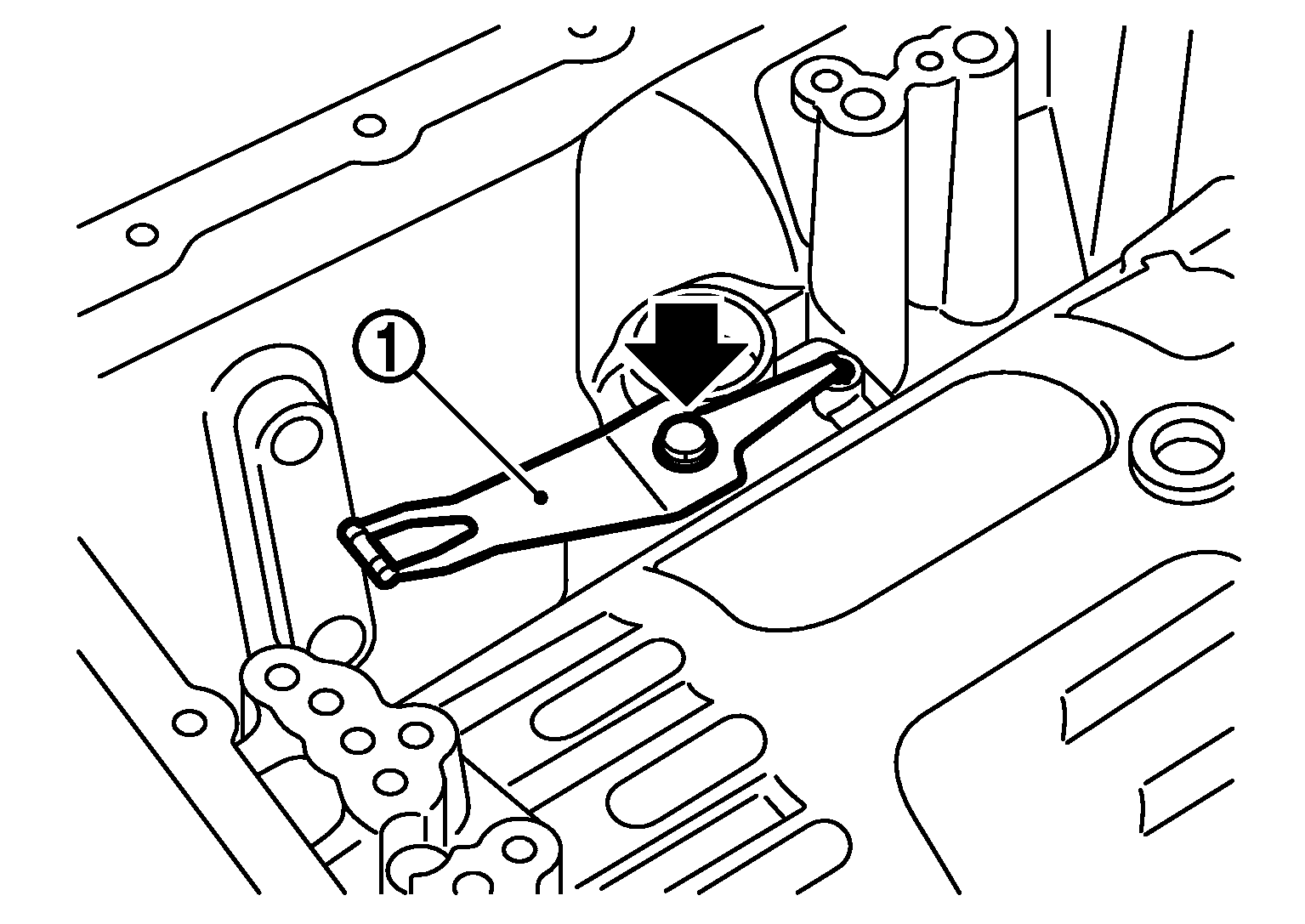

  2. Install detent spring to transmission case. Tighten detent spring bolt to the specified torque.
    GNSJPDIA1134Z-134Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Bolt

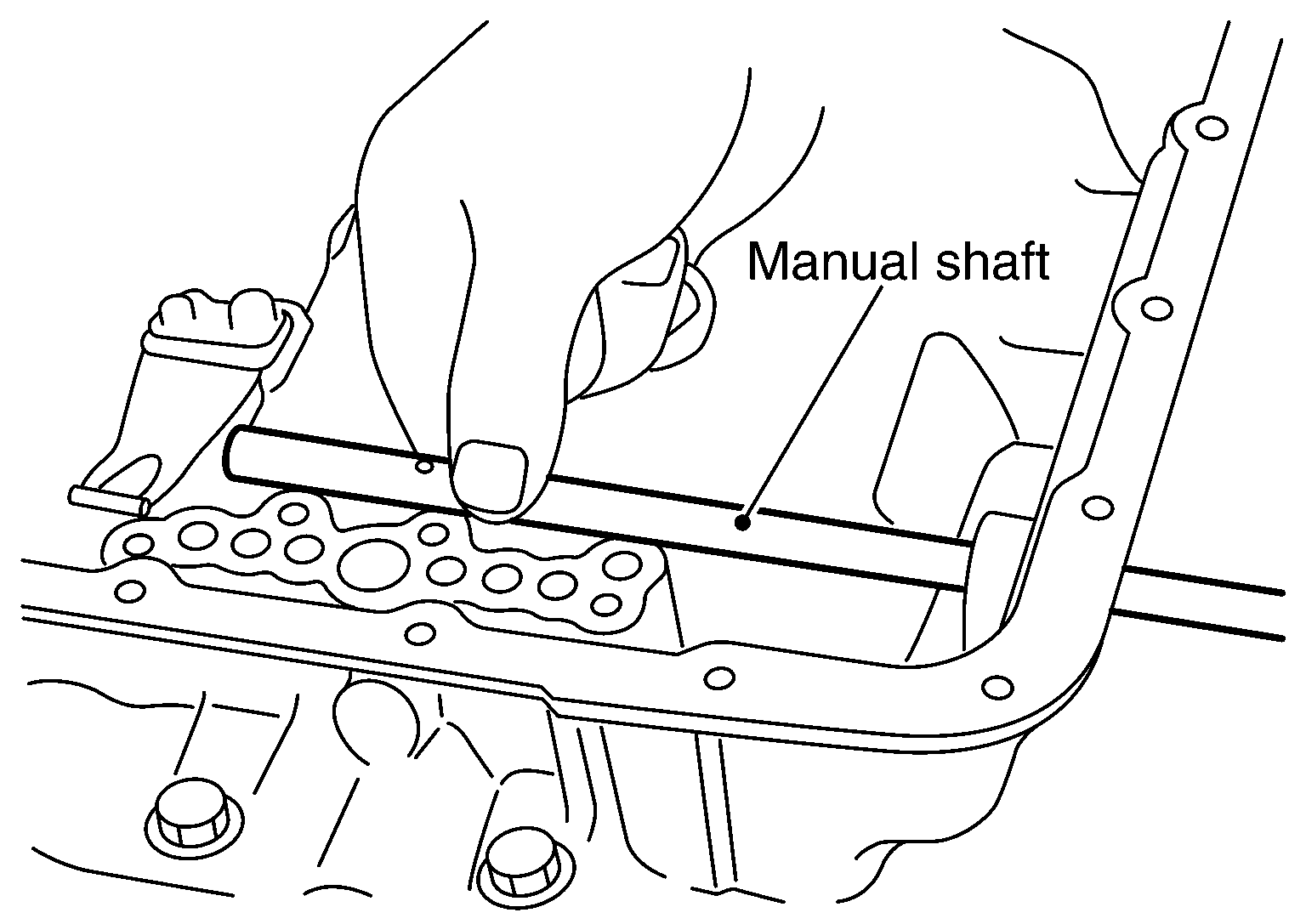

  3. Install manual shaft to transmission case.
    G04075833Courtesy of NISSAN NORTH AMERICA, INC.

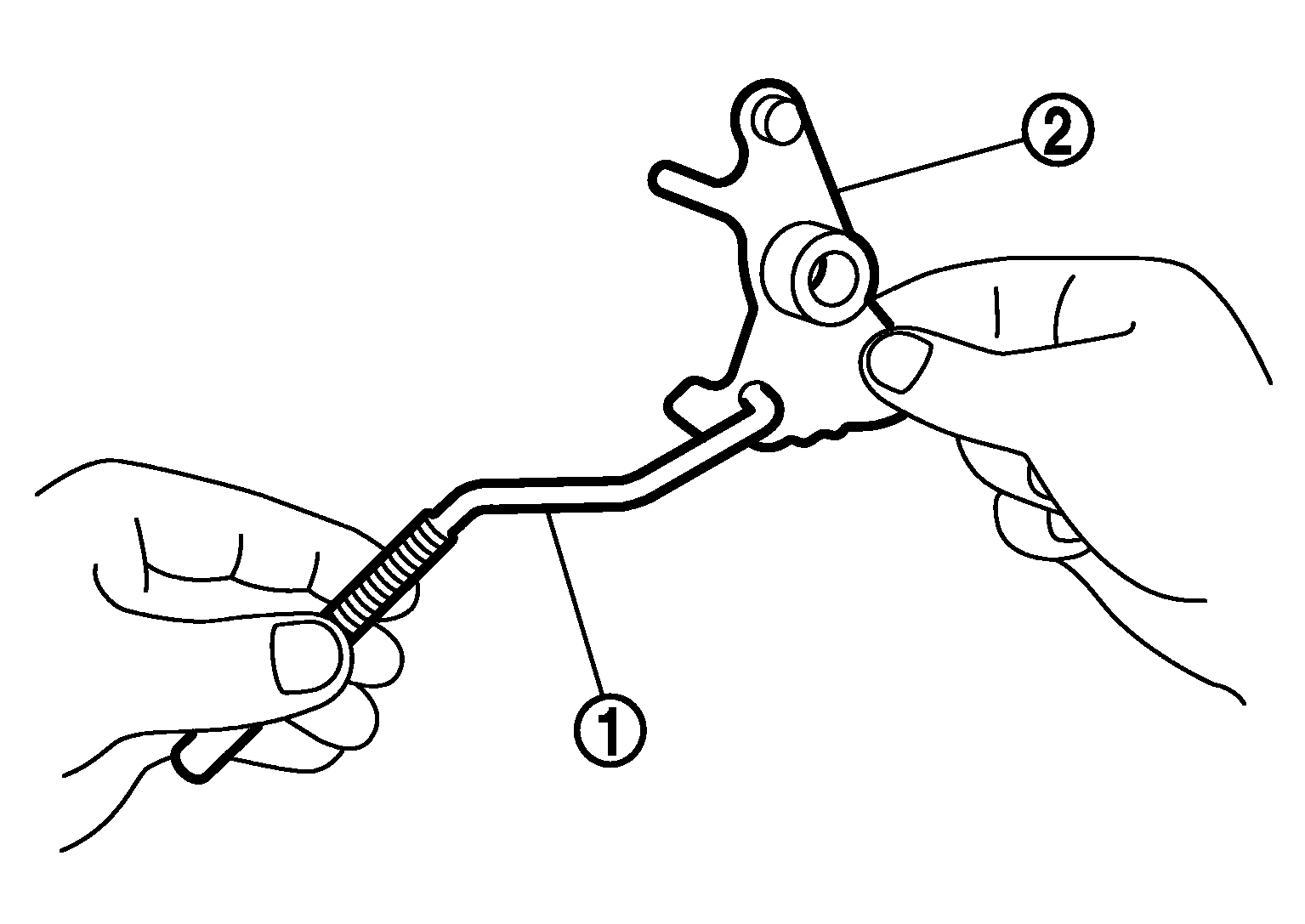

  4. Install parking rod SYMBOL to manual plate SYMBOL .
    GNSJSDIA1820Z-820Courtesy of NISSAN NORTH AMERICA, INC.

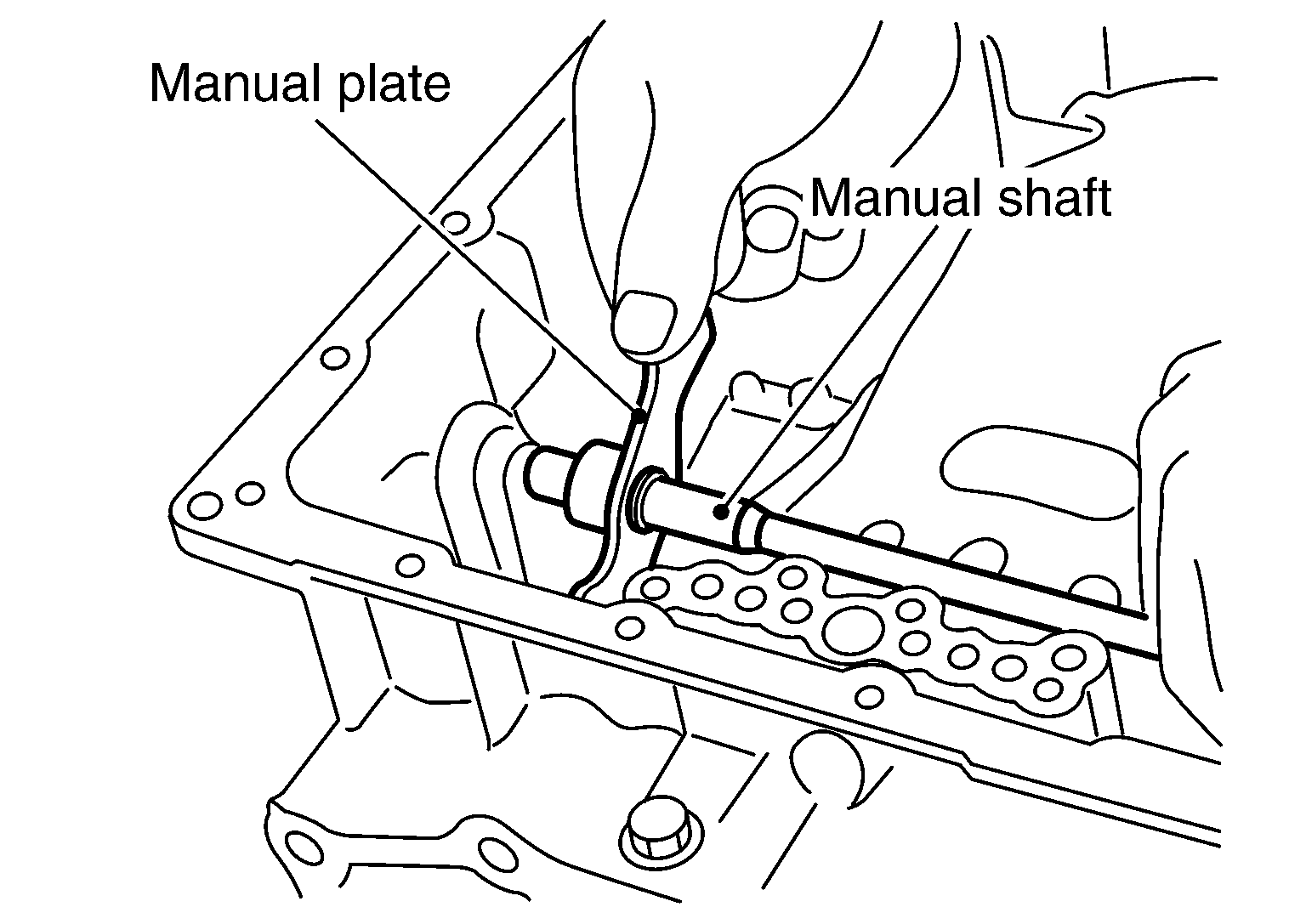

  5. Install manual plate (with parking rod) to manual shaft.
    G04075831Courtesy of NISSAN NORTH AMERICA, INC.

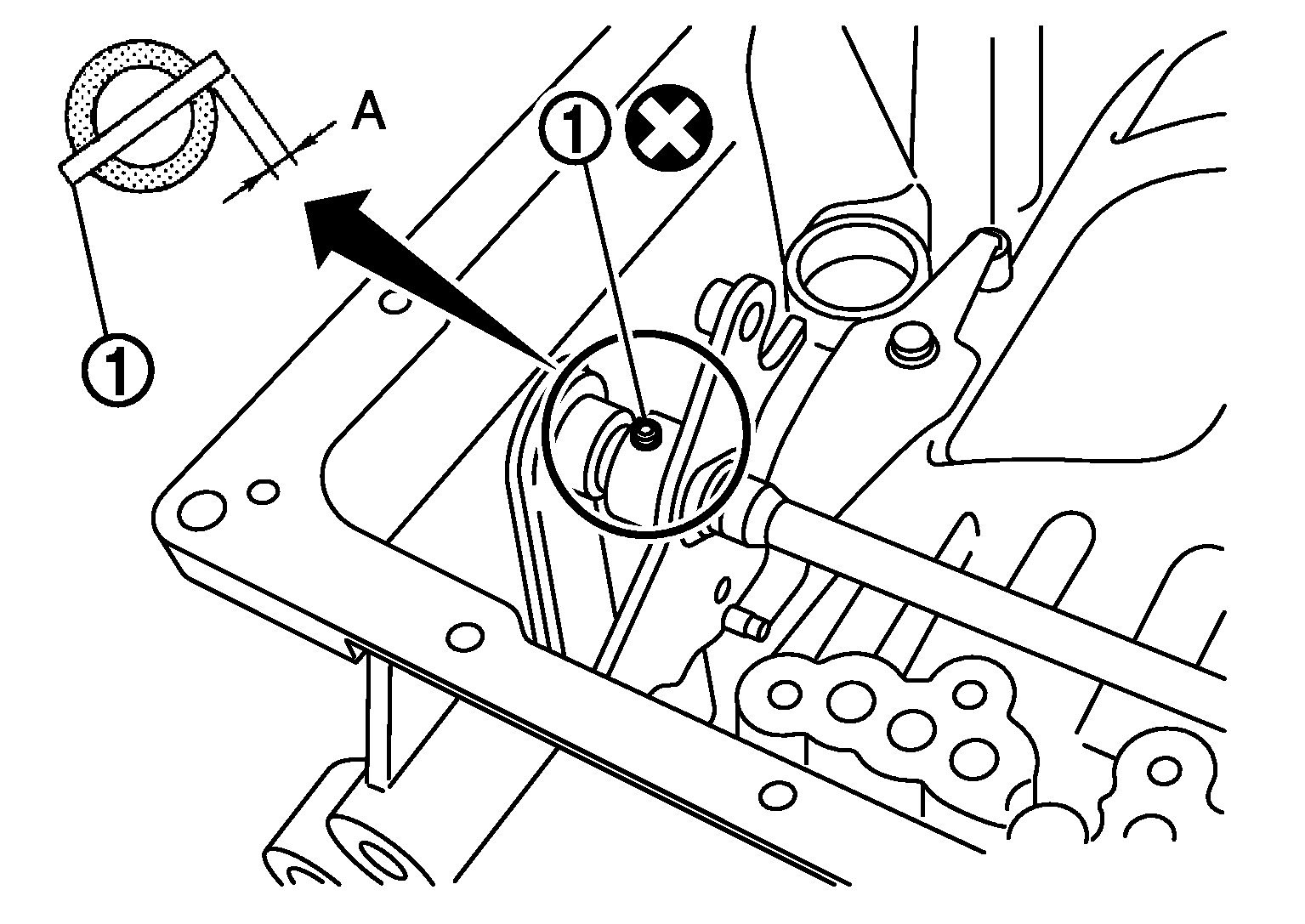

  6. Install retaining pin SYMBOL into the manual plate and manual shaft.
    GNSJPDIA1133Z-133Courtesy of NISSAN NORTH AMERICA, INC.
    1. Fit pinhole of the manual plate to pinhole of the manual shaft with a pin punch.
    2. Use a hammer to tap the retaining pin into the manual plate.

      (A)

      : Approx. 2 mm (0.08in)
      CAUTION: Drive retaining pin to 2+/-0.5 mm (0.08+/-0.020 in) over the manual plate.

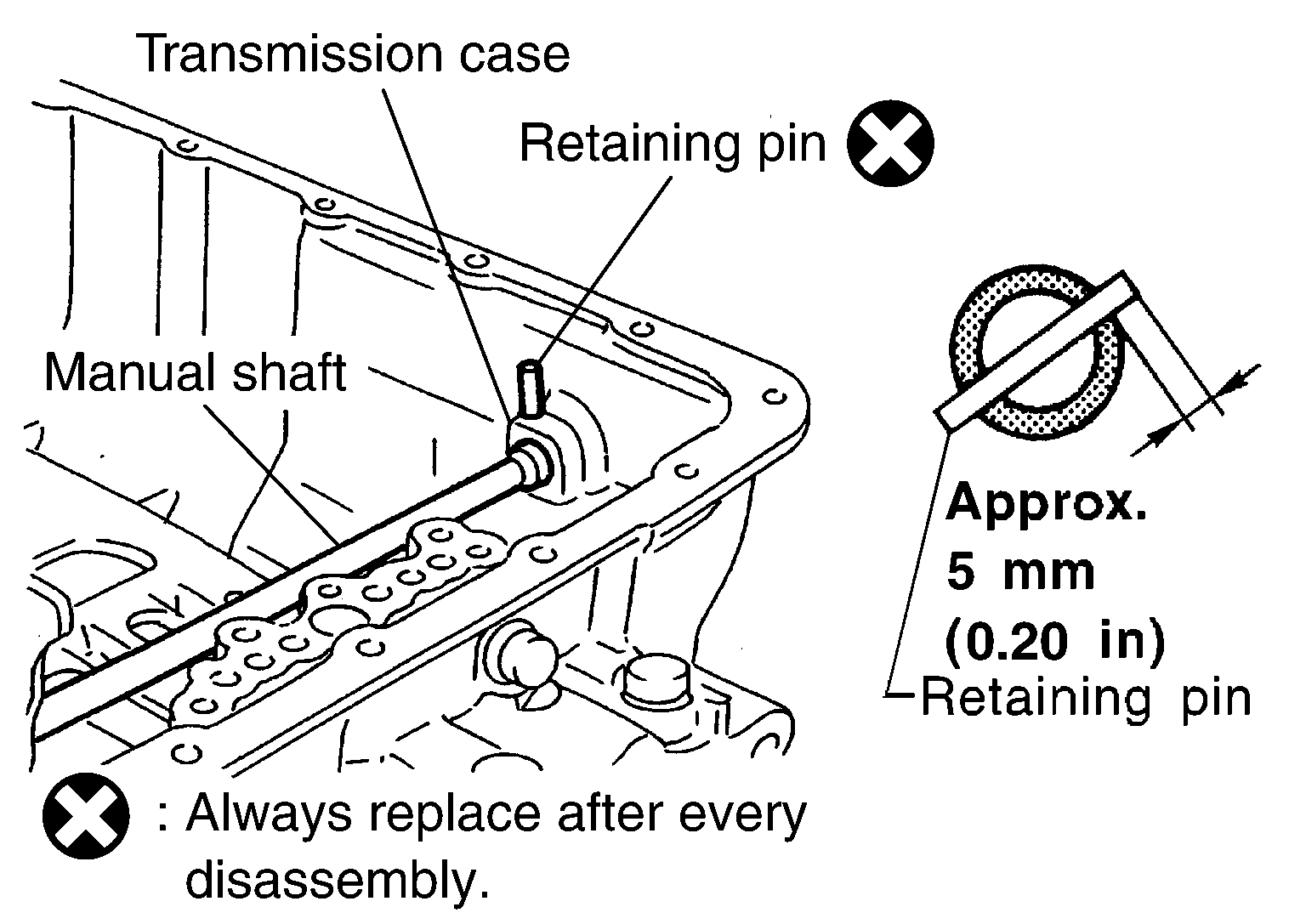

  7. Install retaining pin into the transmission case and manual shaft.
    G04075917Courtesy of NISSAN NORTH AMERICA, INC.
    1. Fit pinhole of the transmission case to pinhole of the manual shaft with a pin punch.
    2. Use a hammer to tap the retaining pin into the transmission case.
      CAUTION: Drive retaining pin to 5+/-1 mm (0.20+/-0.04 in) over the transmission case.

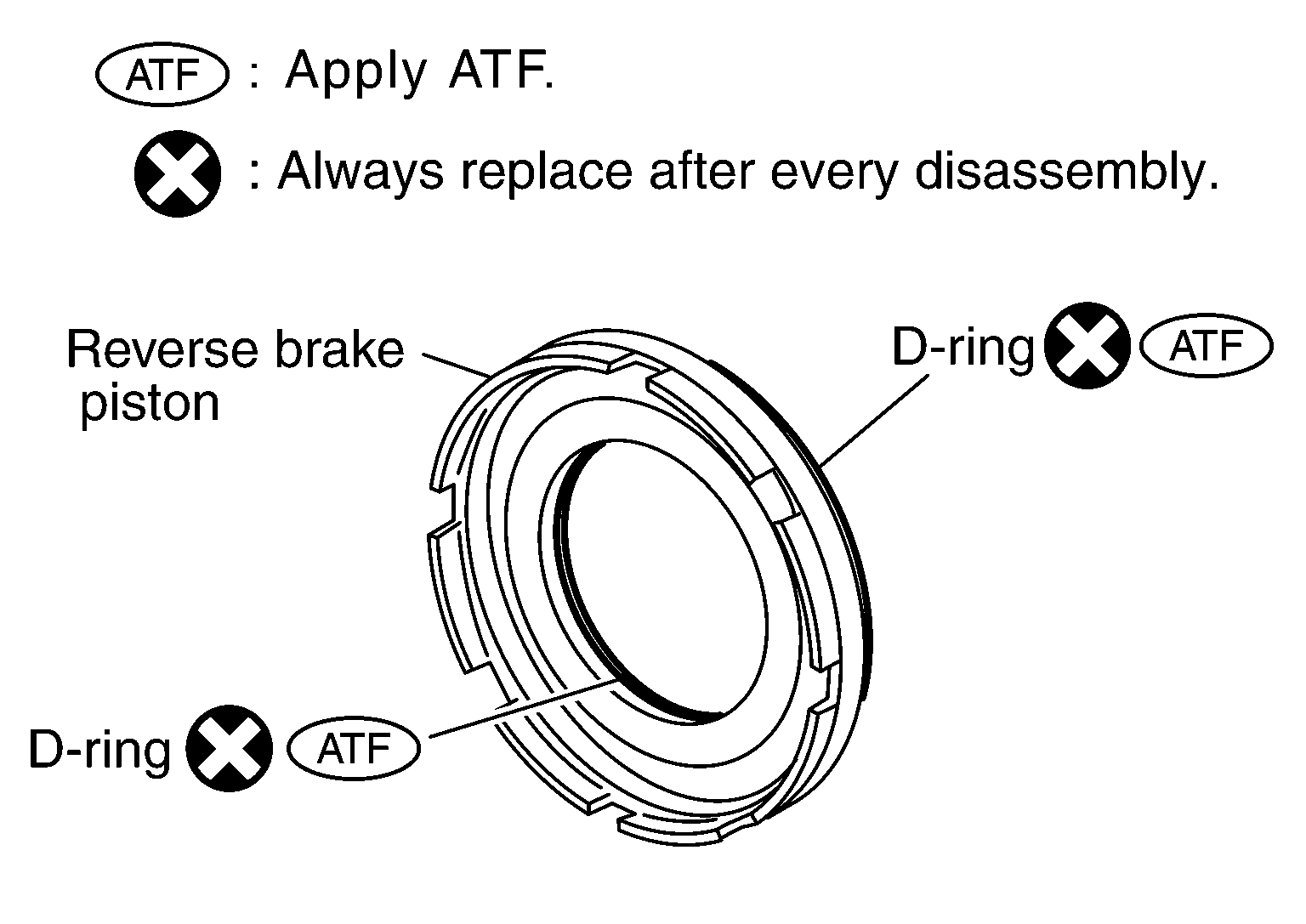

  8. Install D-rings to reverse brake piston.
    G04121002Courtesy of NISSAN NORTH AMERICA, INC.

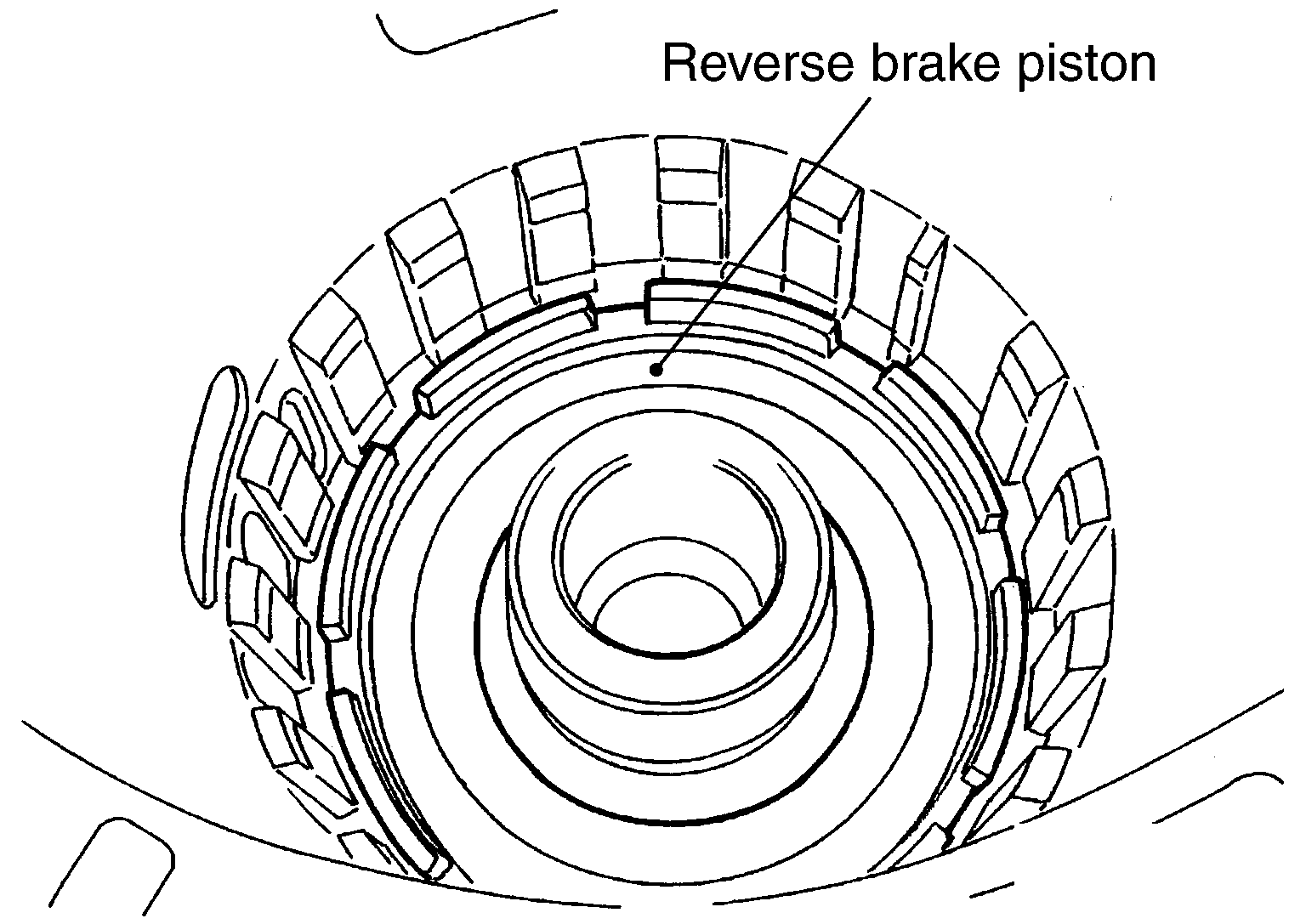

  9. Install reverse brake piston to transmission case.
    G04075923Courtesy of NISSAN NORTH AMERICA, INC.

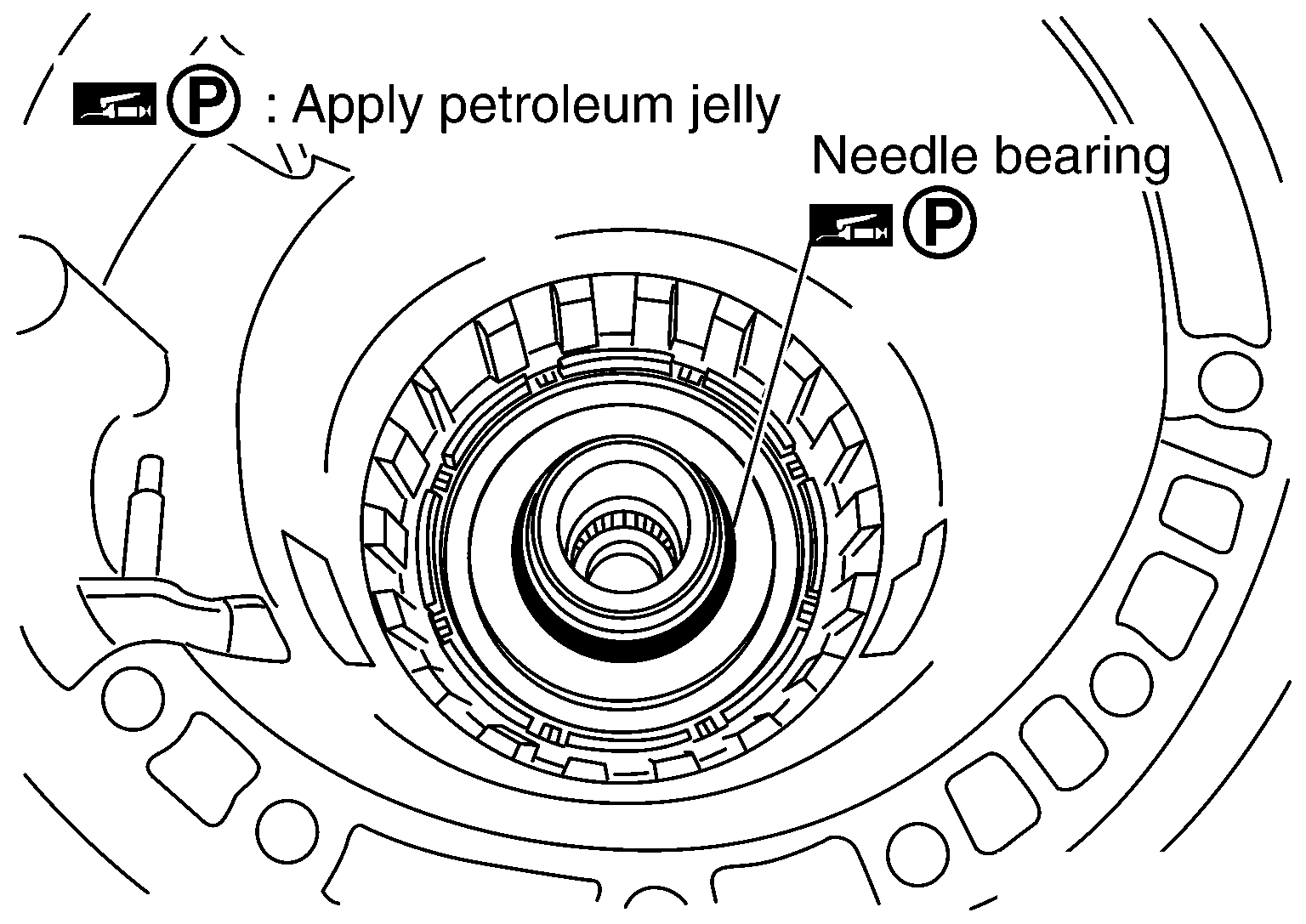

  10. Install needle bearing to drum support edge surface.
    G04075924Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .

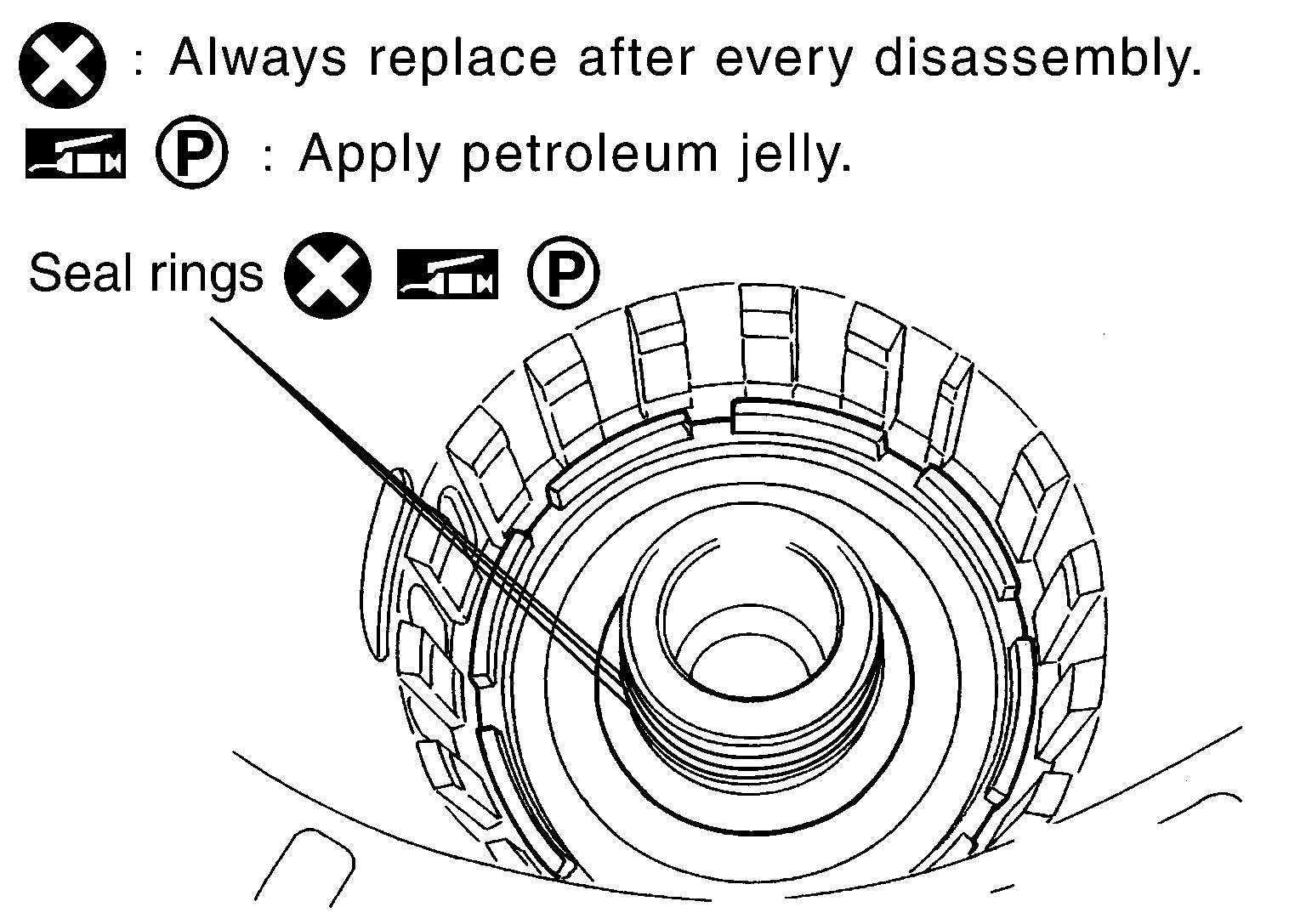

  11. Install seal rings to drum support.
    G04075925Courtesy of NISSAN NORTH AMERICA, INC.

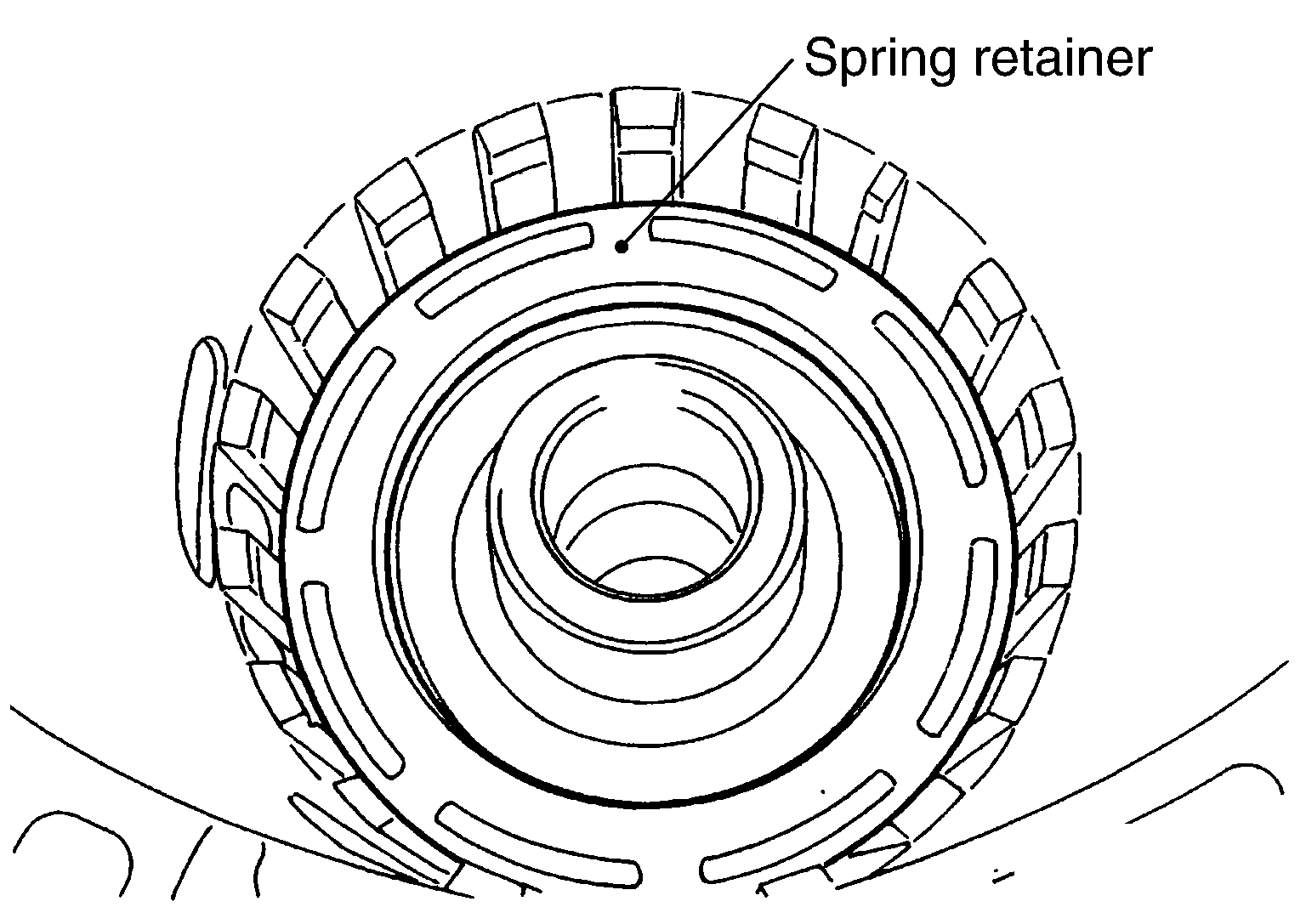

  12. Install reverse brake spring retainer and reverse brake return spring to transmission case.
    G04075824Courtesy of NISSAN NORTH AMERICA, INC.
  13. Set the clutch spring compressor [SST: KV31102400 (J-34285 and J-34285-87)] (A) on reverse brake spring retainer and install snap ring (fixing spring retainer) SYMBOL to transmission case while compressing return spring.

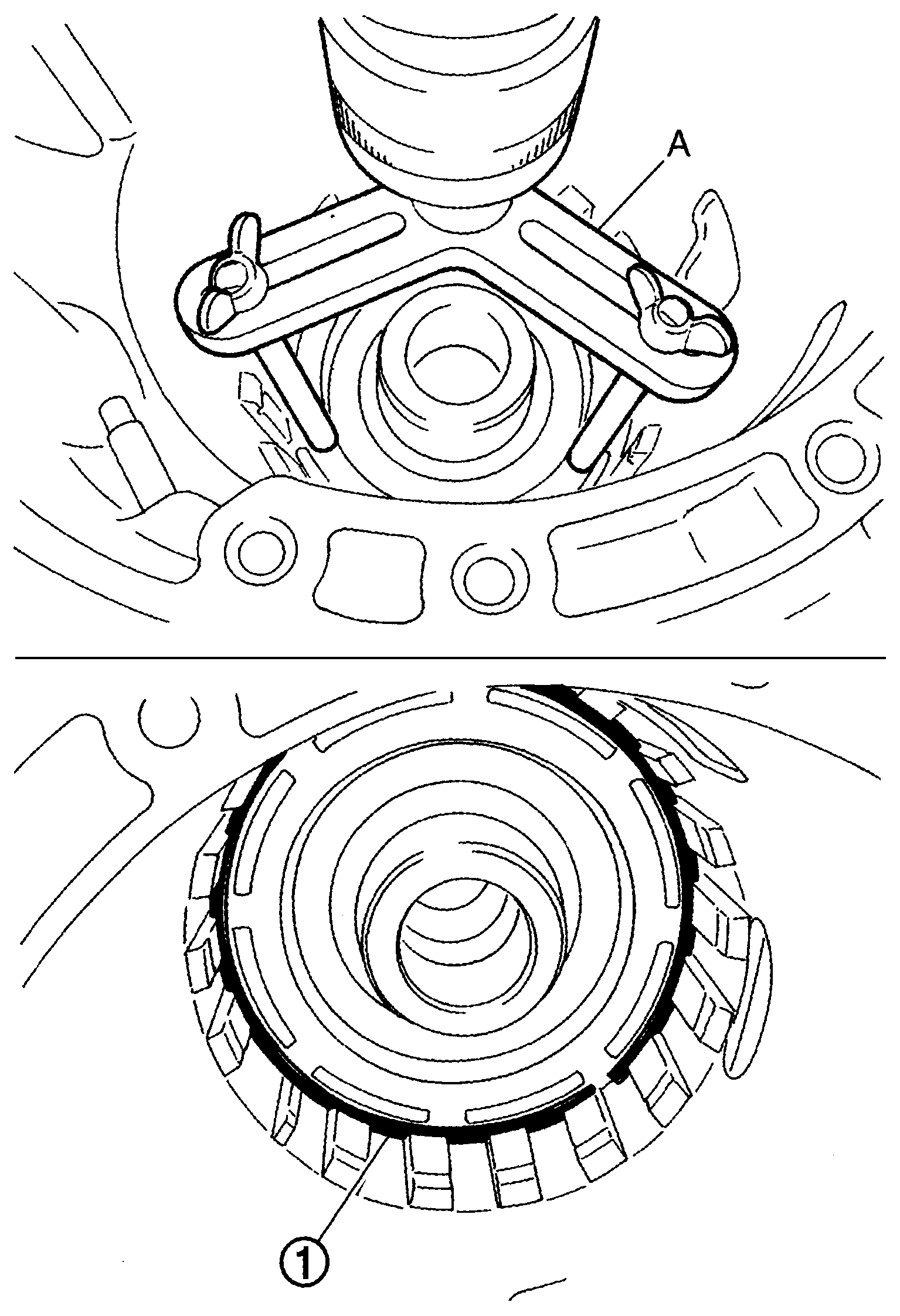

    GNSJPDIA1186Z-186Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Securely assemble them using a flat-bladed screwdriver so that snap ring tension is slightly weak.
    • Be careful not to damage snap ring.
  14. Install reverse brake component part (drive plates, driven plates, and dish plates) to transmission case.
    GNSJPDIA1135Z-135Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Snap ring

    SYMBOL

    : Retaining plate

    SYMBOL

    : Drive plate (six pieces)

    SYMBOL

    : Driven plate (six pieces)

    SYMBOL

    : Dish plate

    SYMBOL

    : Dish plate
    CAUTION: Check order of plates.
  15. Assemble N-spring.

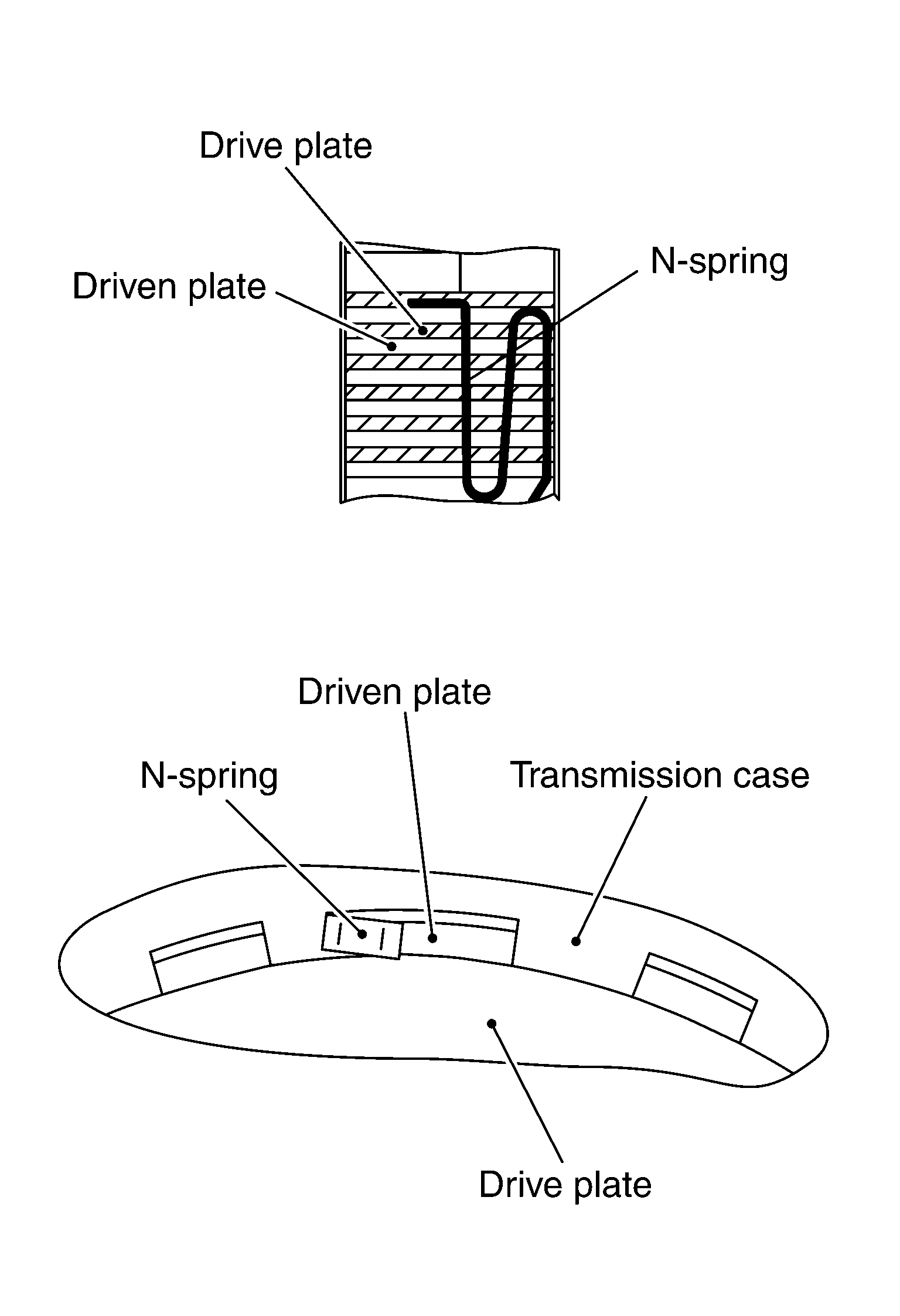

    G04121100Courtesy of NISSAN NORTH AMERICA, INC.
  16. Install reverse brake retaining plate to transmission case.
  17. Install snap ring to transmission case.

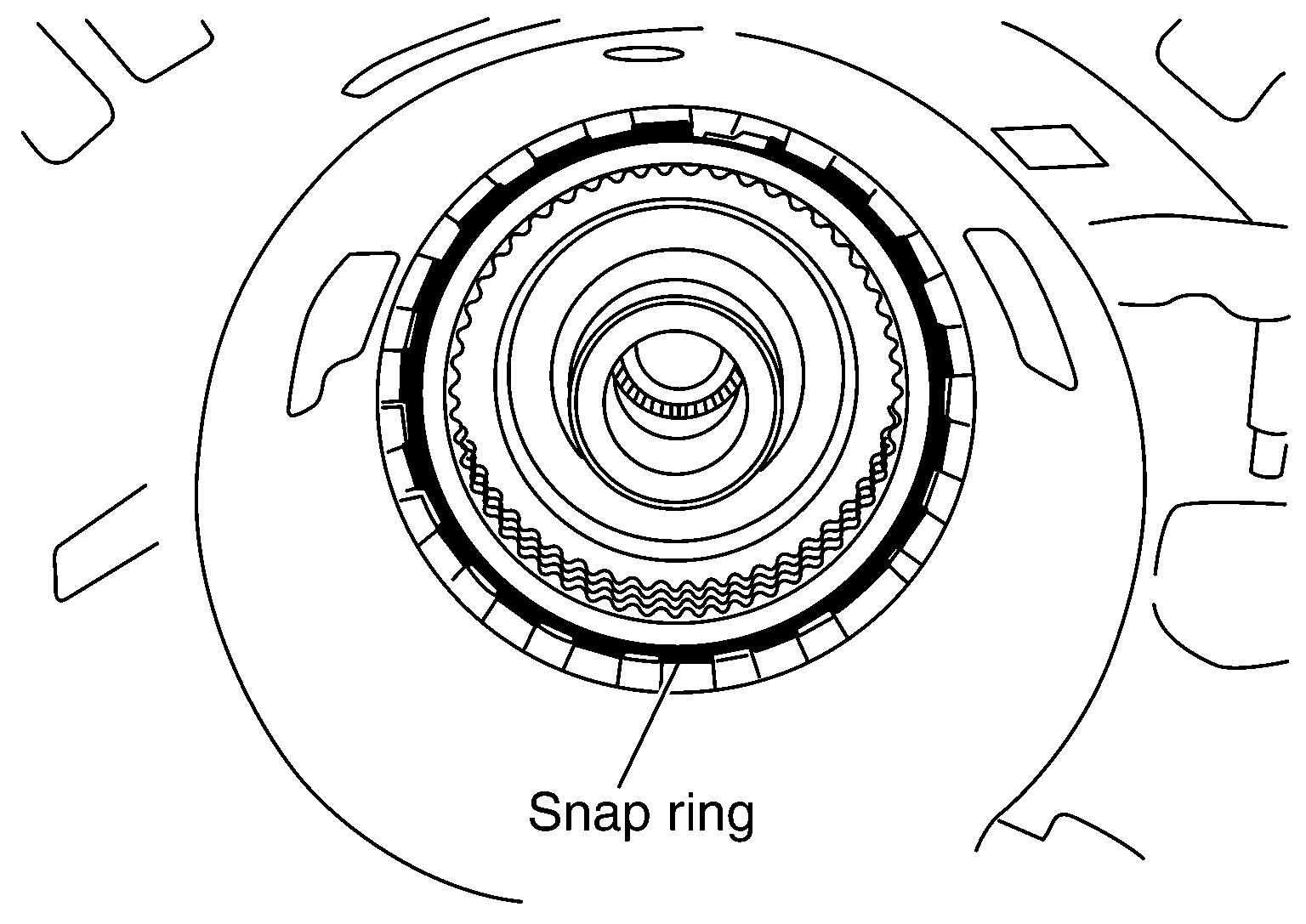

    G04075931Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to damage snap ring.
  18. Measure clearance between retaining plate and snap ring. If not within specified clearance, select proper retaining plate.
    G04075932Courtesy of NISSAN NORTH AMERICA, INC.

    Specified clearance (A)

    Standard: Refer to Reverse Brake Clearance  or Reverse Brake Clearance .

    Retaining plate: Refer to Reverse Brake Clearance  or Reverse Brake Clearance .

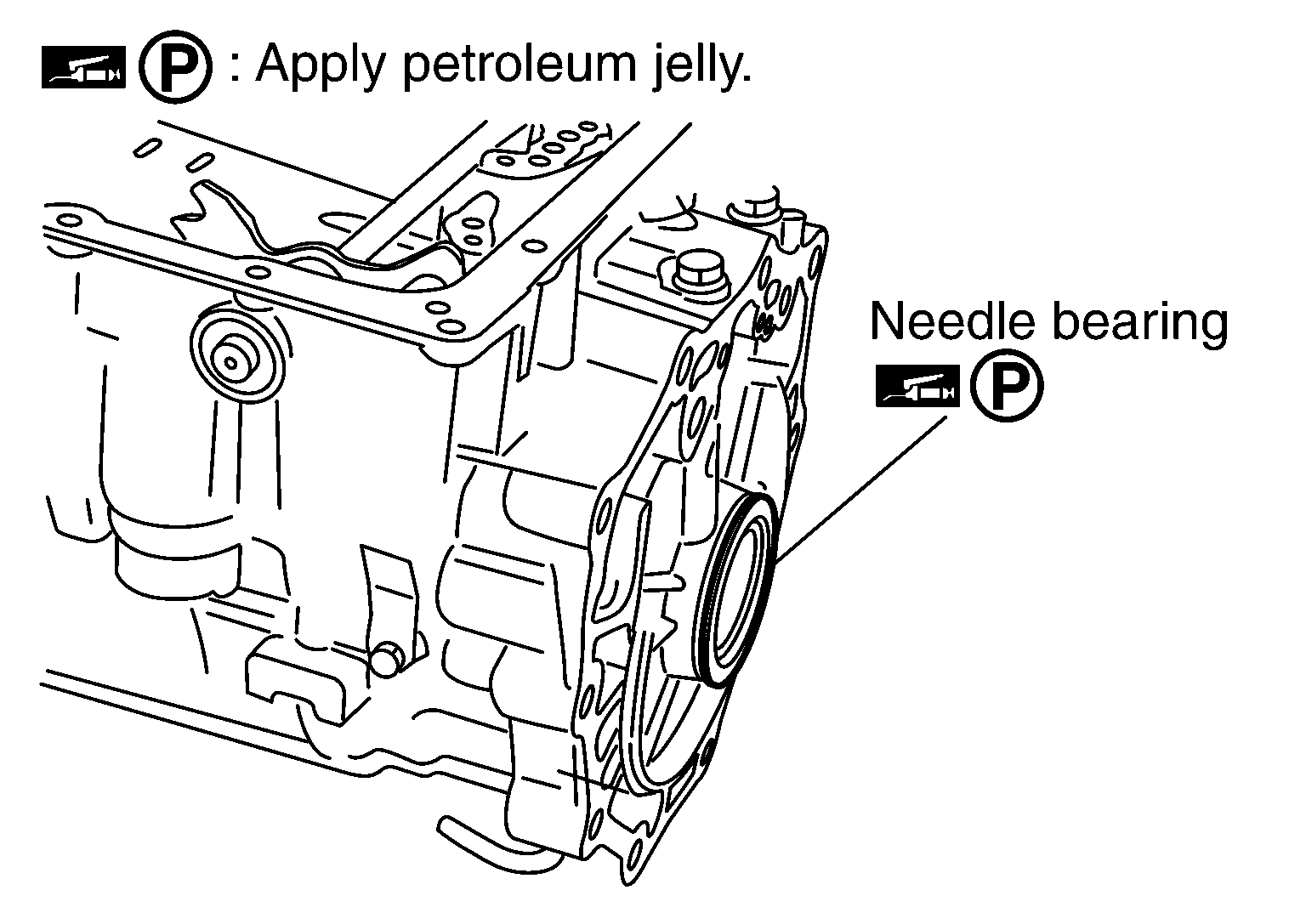

  19. Install needle bearing to transmission case.
    G04075818Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .

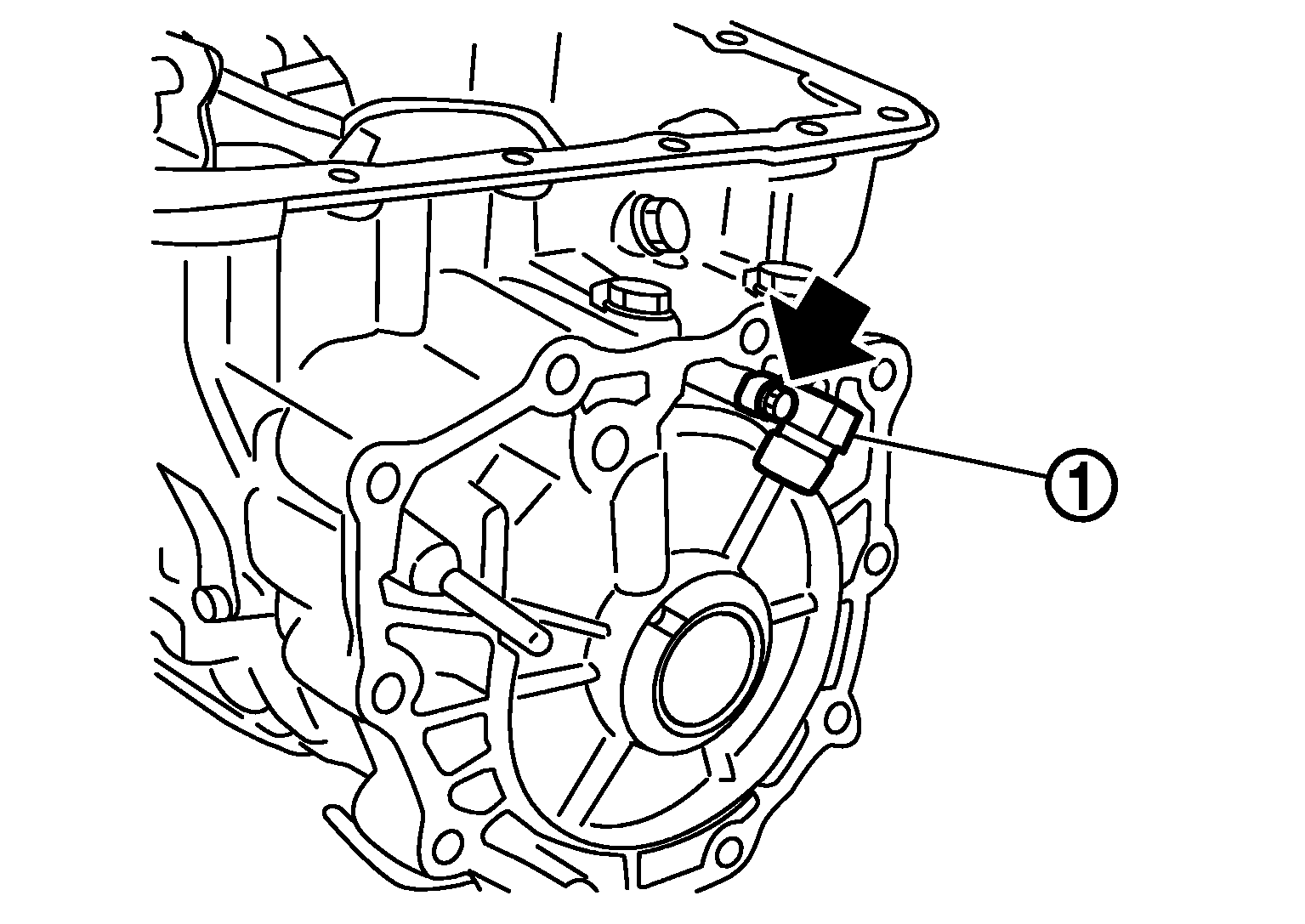

  20. Install output speed sensor SYMBOL to transmission case. Tighten output speed sensor bolt to the specified torque.
    GNSJSDIA1321Z-321Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Bolt
    CAUTION:
    • Never subject it to impact by dropping or hitting it.
    • Never disassemble.
    • Never allow metal filings, etc. to get on the sensor's front edge magnetic area.
    • Never place in an area affected by magnetism.

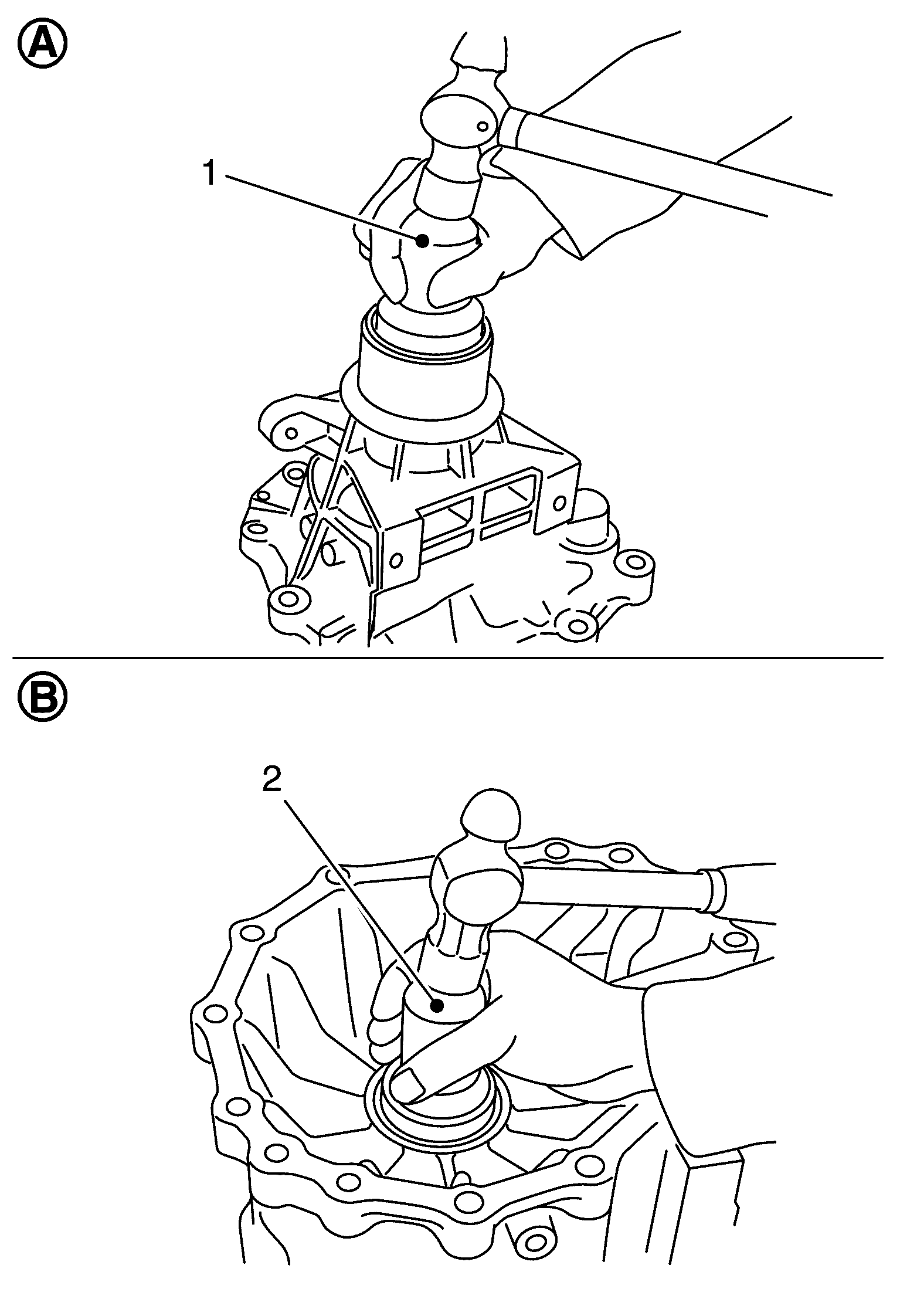

  21. As shown in the figure, use the drift to drive rear oil seal into the rear extension (2WD) SYMBOL or adapter case (AWD) SYMBOL until it is flush.
    GNSJSDIA1914Z-914Courtesy of NISSAN NORTH AMERICA, INC.

    (1)

    : Drift [SST: 33400001 (J-26082)]

    (2)

    : Drift [Commercial service tool ?64 mm (2.52 in)]
    CAUTION:
    • Never reuse rear oil seal.
    • Apply ATF to rear oil seal.
  22. Install return spring SYMBOL to parking pawl SYMBOL .
    G04075844Courtesy of NISSAN NORTH AMERICA, INC.

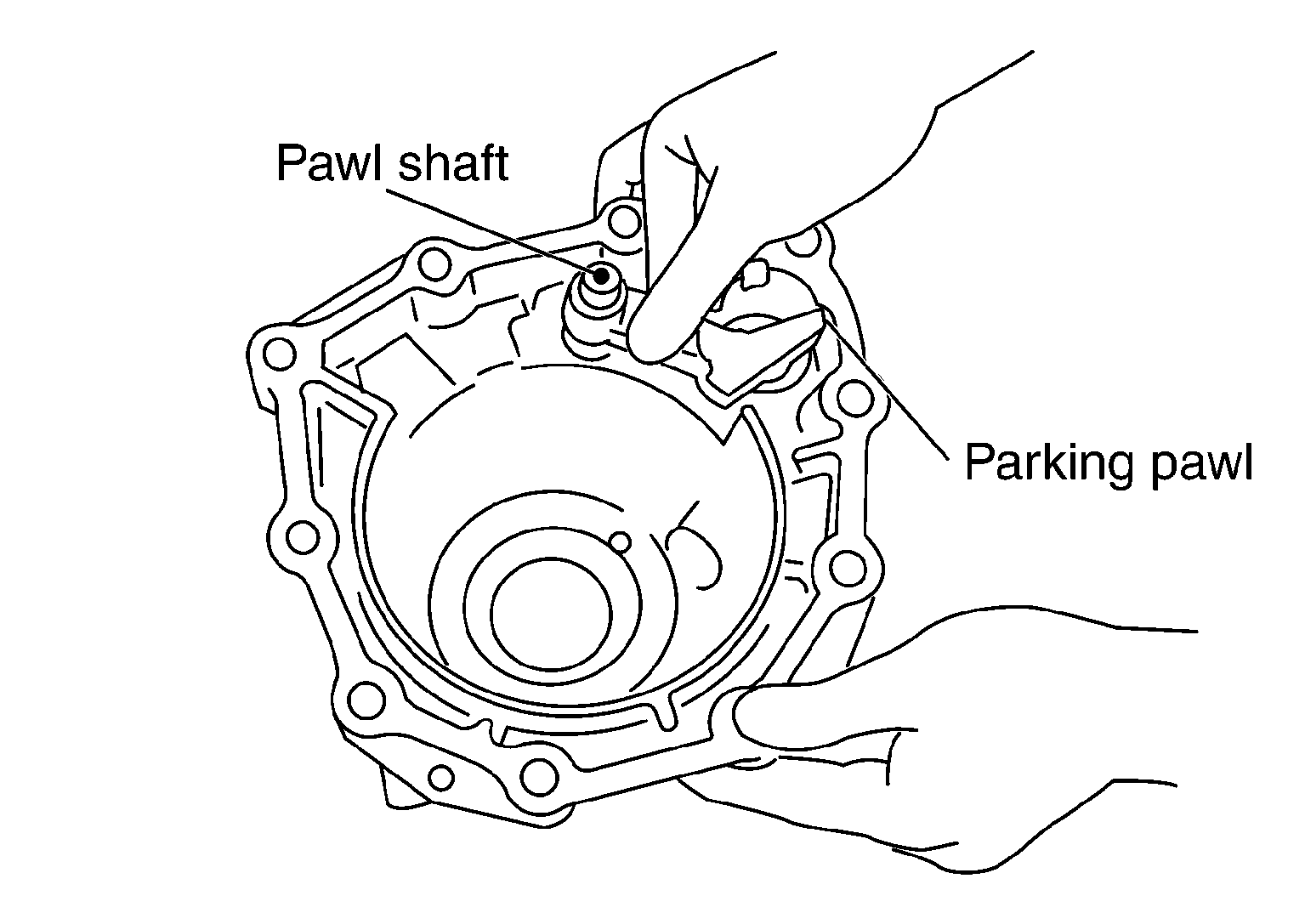

  23. Install parking pawl (with return spring) and pawl shaft to rear extension (2WD) or adapter case (AWD).
    G04075697Courtesy of NISSAN NORTH AMERICA, INC.

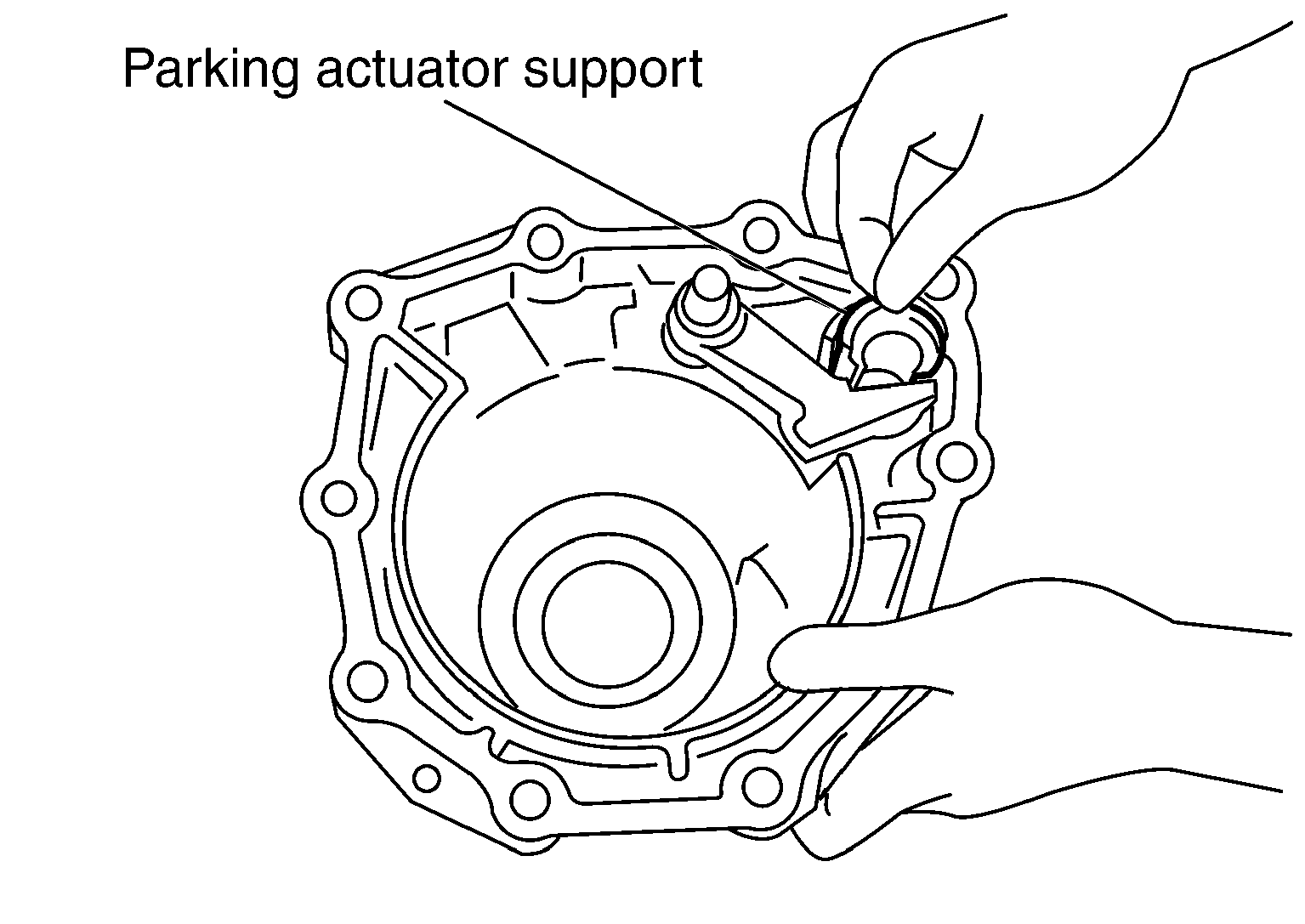

  24. Install parking actuator support to rear extension (2WD) or adapter case (AWD).
    G04075696Courtesy of NISSAN NORTH AMERICA, INC.

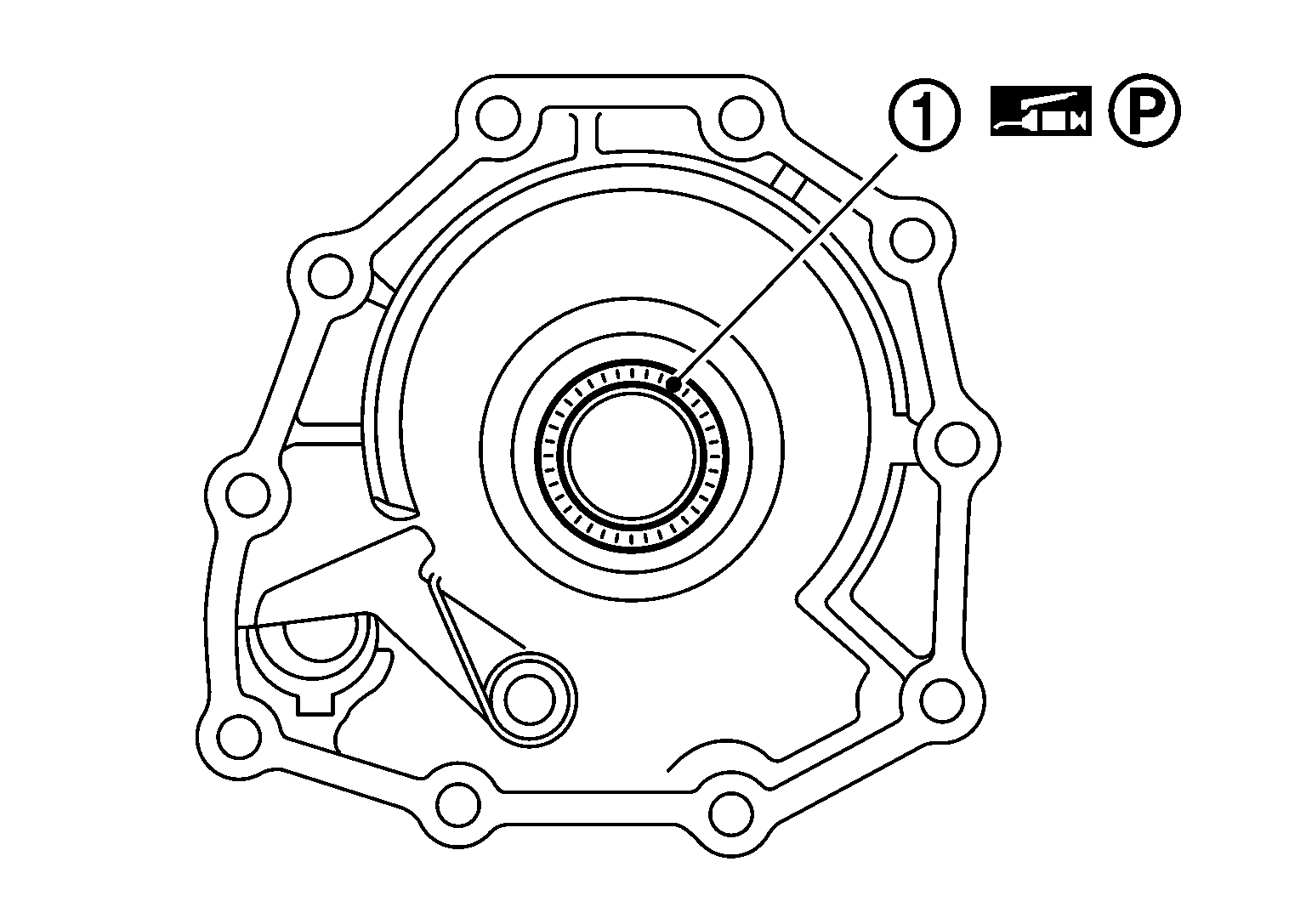

  25. Install needle bearing SYMBOL to rear extension (2WD) or adapter case (AWD).
    G04120872Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .
  26. Install rear extension assembly (2WD) or adapter case assembly (AWD) according to the following procedures.
    1. 2WD

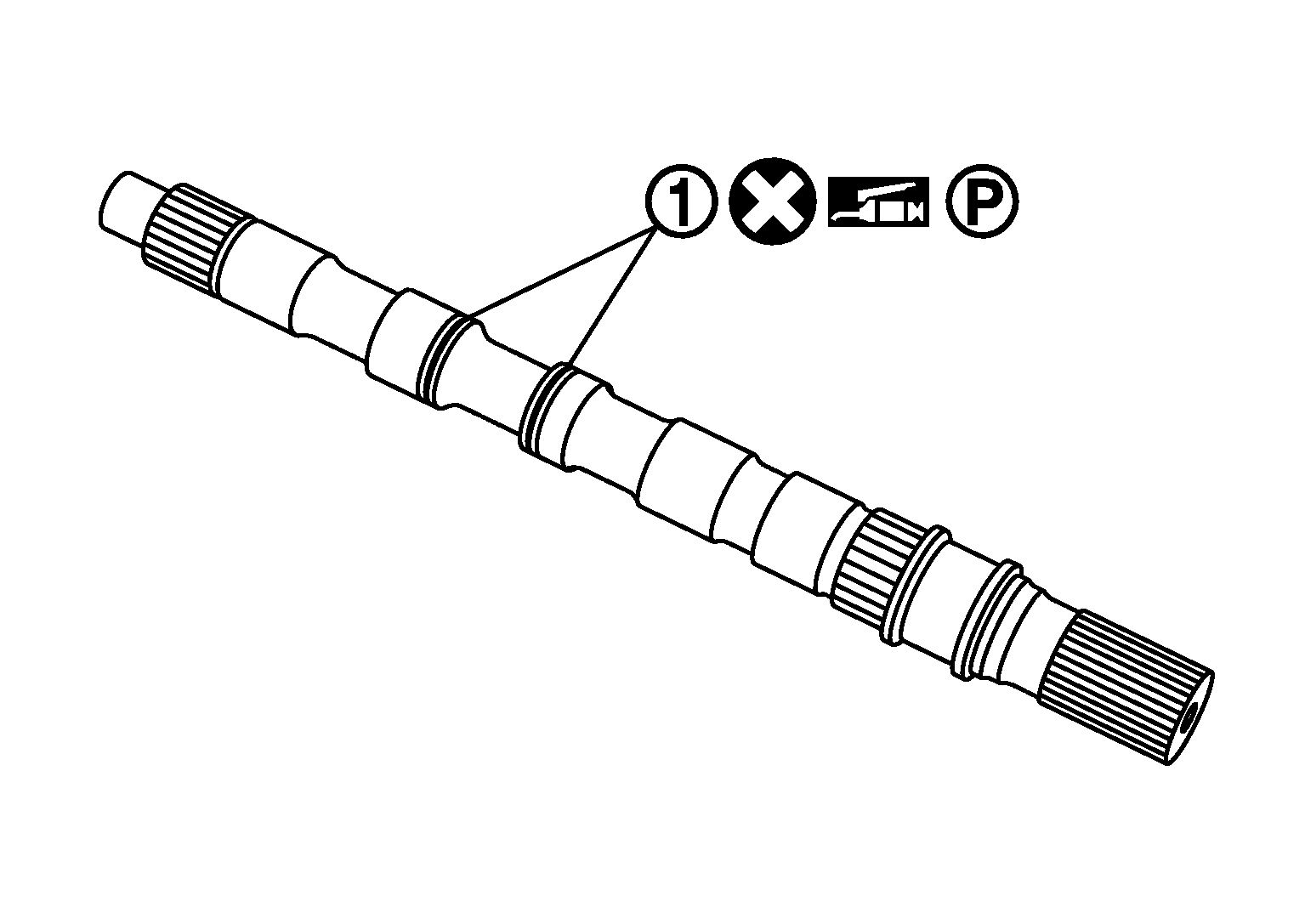

      1. Install seal rings SYMBOL to output shaft.
        GNSJPDIA0030Z-030Courtesy of NISSAN NORTH AMERICA, INC.

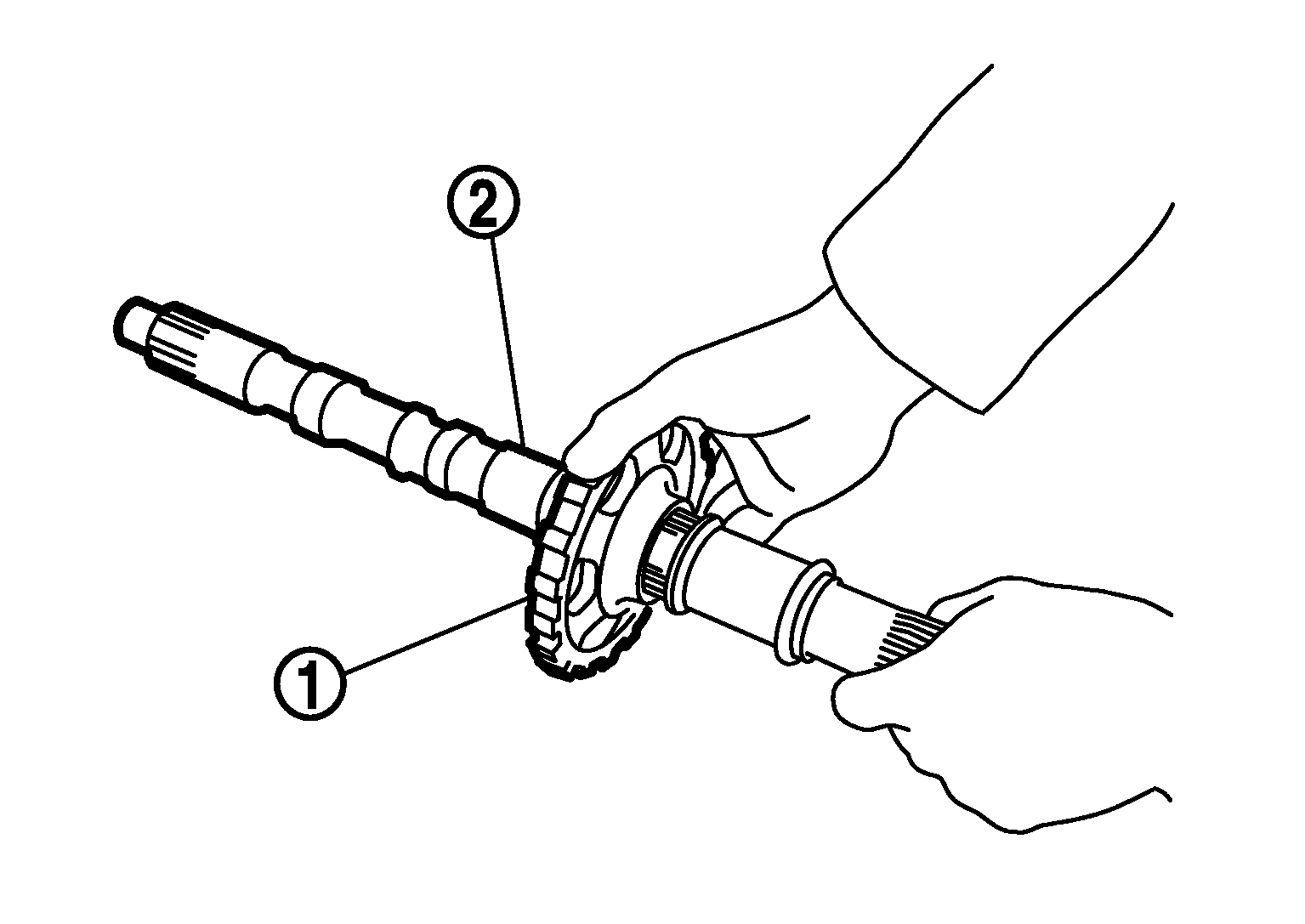

      2. Install parking gear SYMBOL to output shaft SYMBOL .
        GNSJPDIA0029Z-029Courtesy of NISSAN NORTH AMERICA, INC.

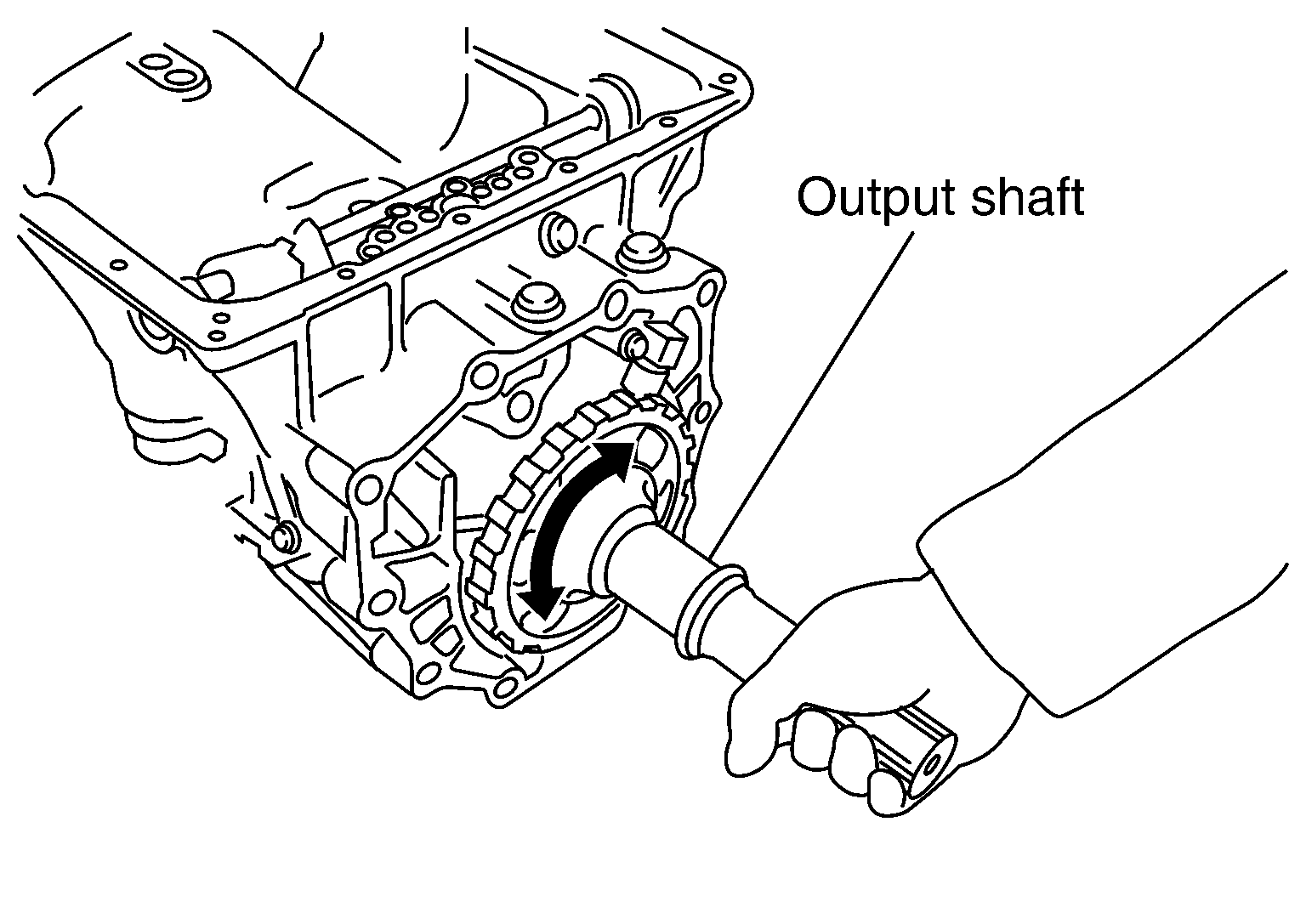

      3. Install output shaft to transmission case.
        G04075815Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION: Be careful not to mistake front for rear because both sides looks similar. (Thinner end is front side.)

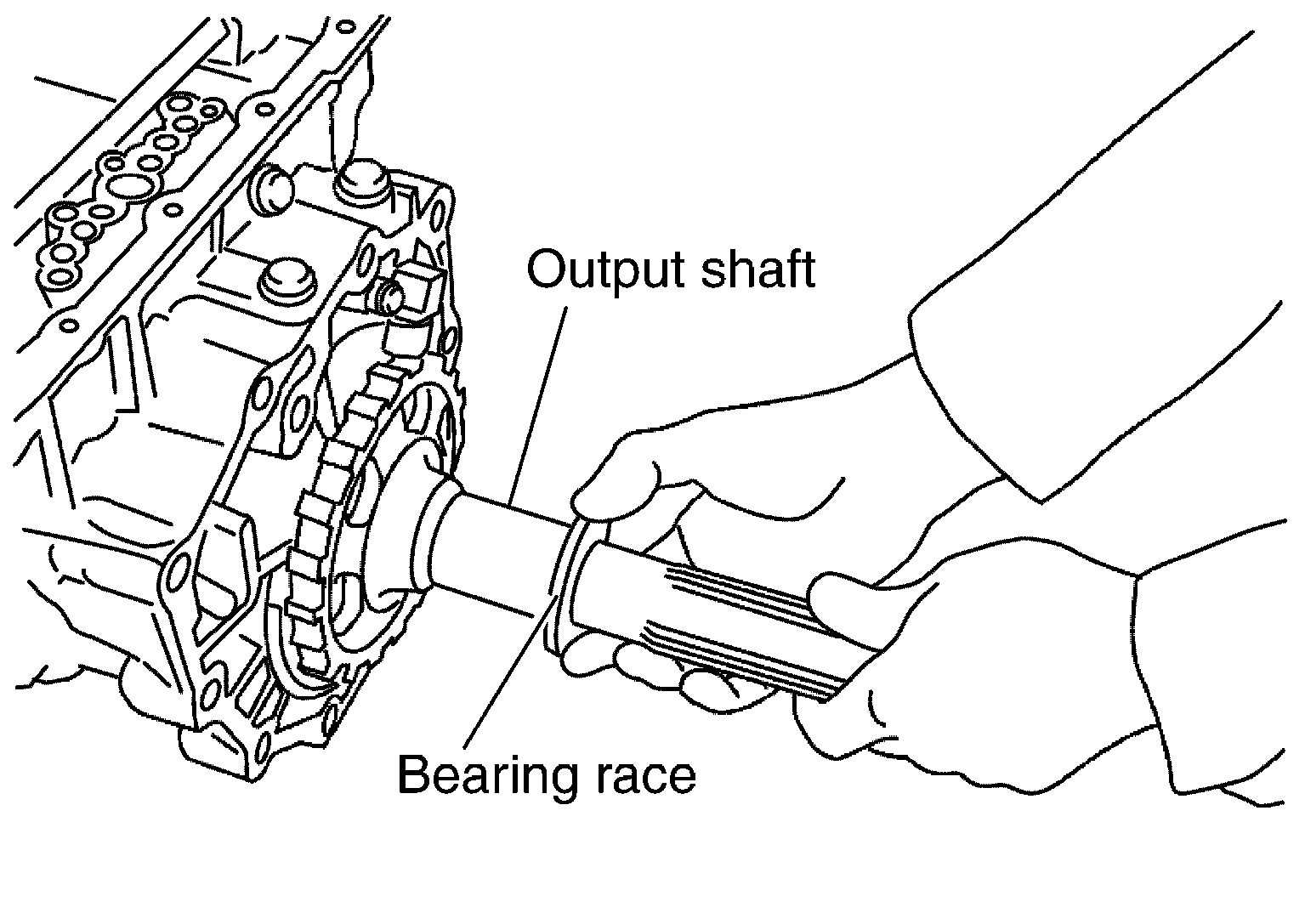

      4. Install bearing race to output shaft.
        G04075692Courtesy of NISSAN NORTH AMERICA, INC.

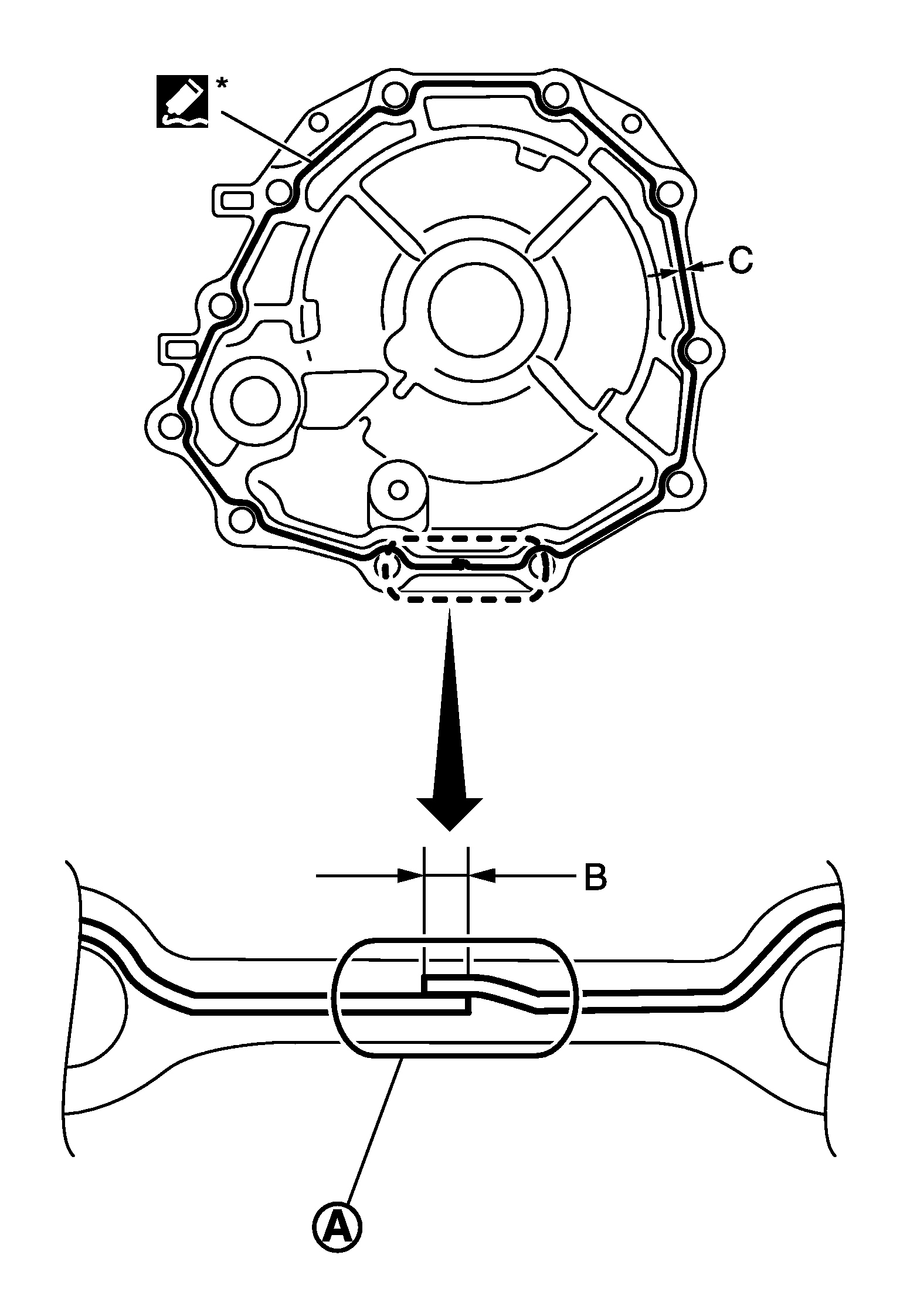

      5. Apply recommended sealant to rear extension assembly as shown in the figure.
        GNSJSDIA1855Z-855Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL *

        : Genuine Anaerobic Liquid Gasket or equivalent. Refer to Recommended Chemical Products and Sealants .

        Sealant starting point and end-point SYMBOL

        : Start and finish point shall be in the center of two bolts.

        Overlap width of sealant starting point and end-point (B)

        : 3 - 5 mm (0.12 - 0.20 in)

        Sealant width (C)

        : 1.0 - 2.0 mm (0.04 - 0.08 in)

        Sealant height (C)

        : 0.4 - 1.0 mm (0.016 - 0.04 in)
        CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and rear extension assembly mounting surfaces.

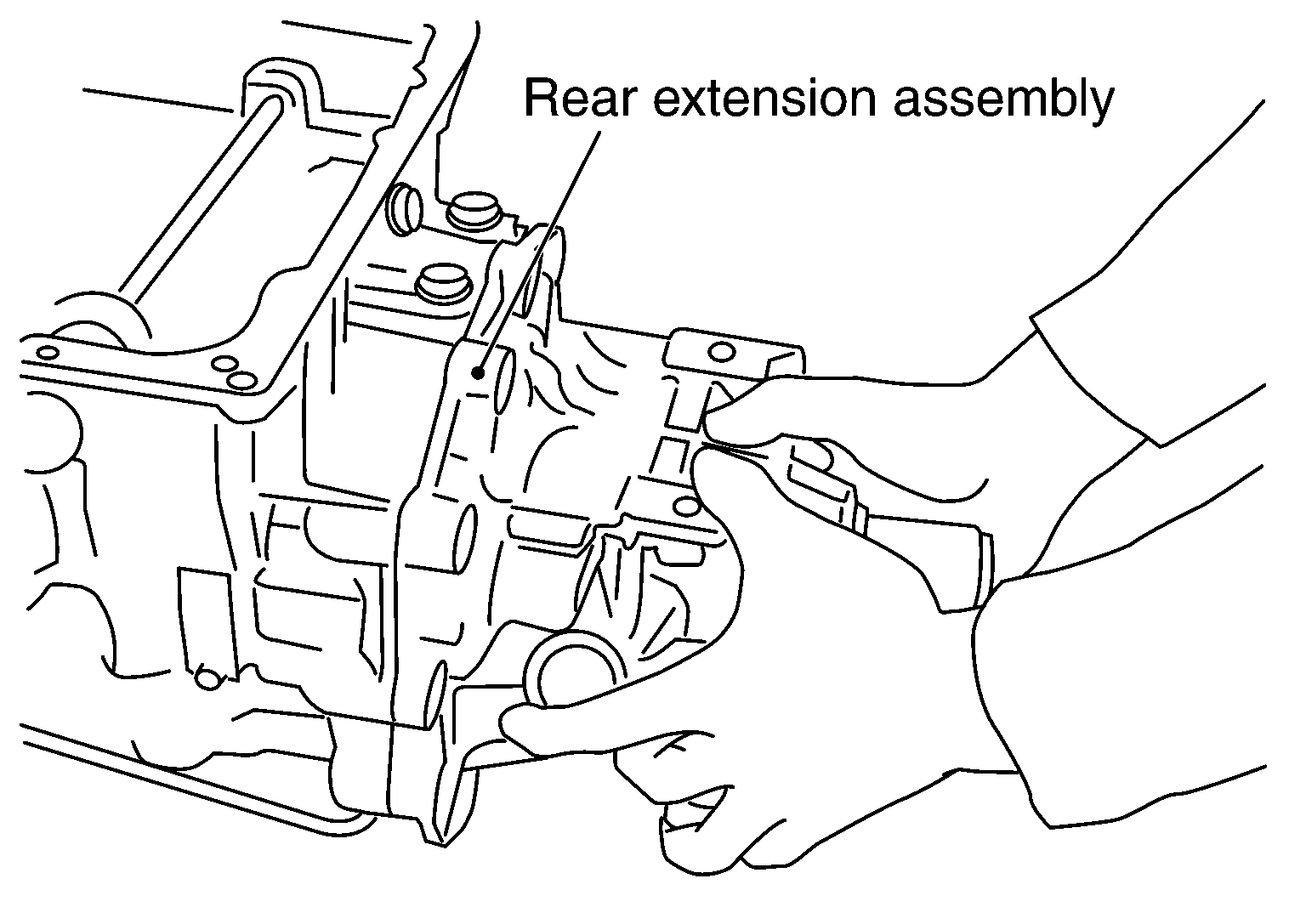

      6. Install rear extension assembly to transmission case.
        G04075809Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.

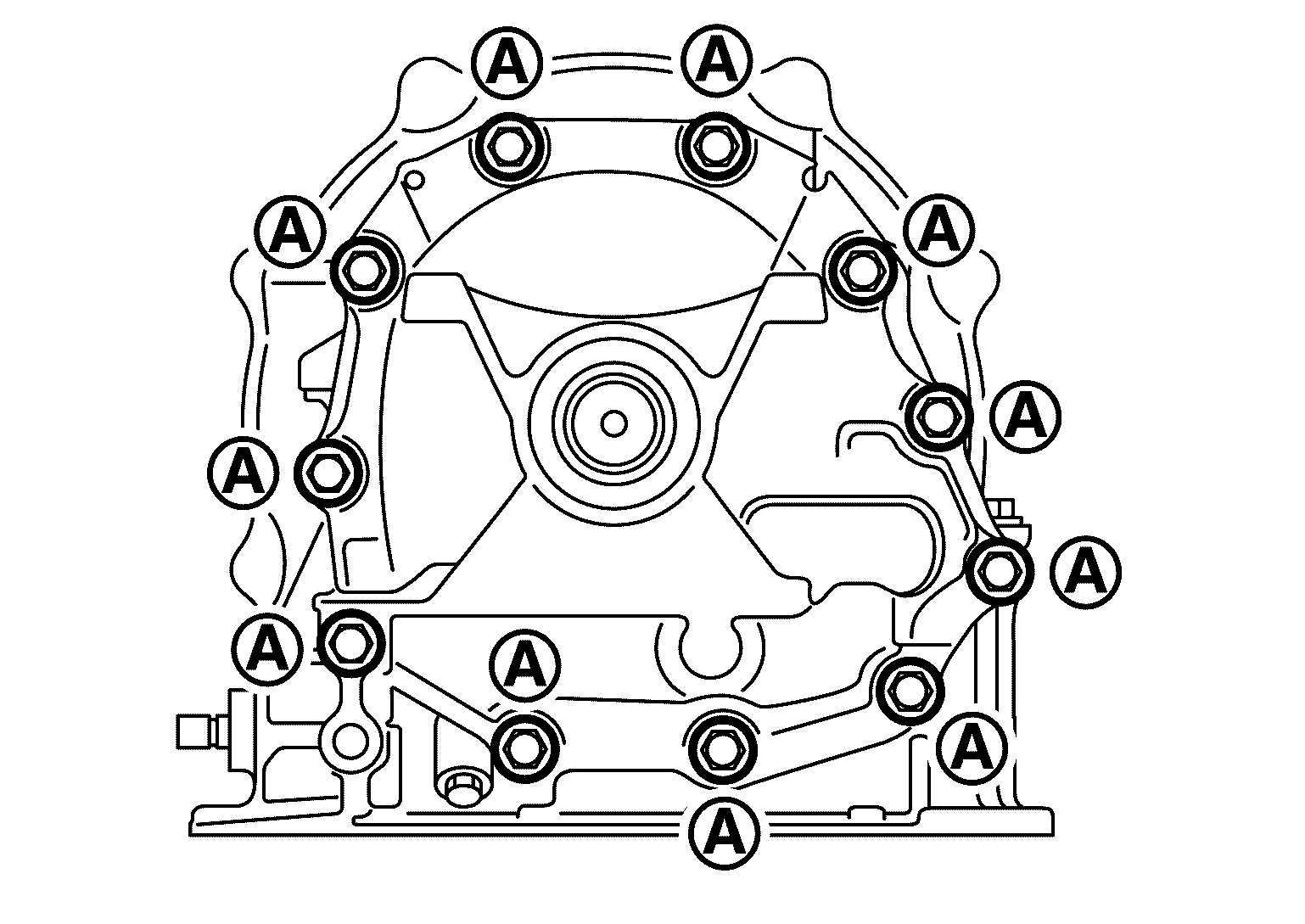

      7. Tighten rear extension assembly bolts to the specified torque.
        GNSJSDIA5919Z-919Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Bolt
    2. AWD
      1. Install seal rings SYMBOL to output shaft.
        GNSJPDIA0030Z-030Courtesy of NISSAN NORTH AMERICA, INC.
      2. Install parking gear SYMBOL to output shaft SYMBOL .
        GNSJPDIA0029Z-029Courtesy of NISSAN NORTH AMERICA, INC.
      3. Install output shaft to transmission case.
        G04075815Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION: Be careful not to mistake front for rear because both sides looks similar. (Thinner end is front side.)
      4. Install bearing race to output shaft.
        G04075692Courtesy of NISSAN NORTH AMERICA, INC.
      5. Install gasket onto transmission case.

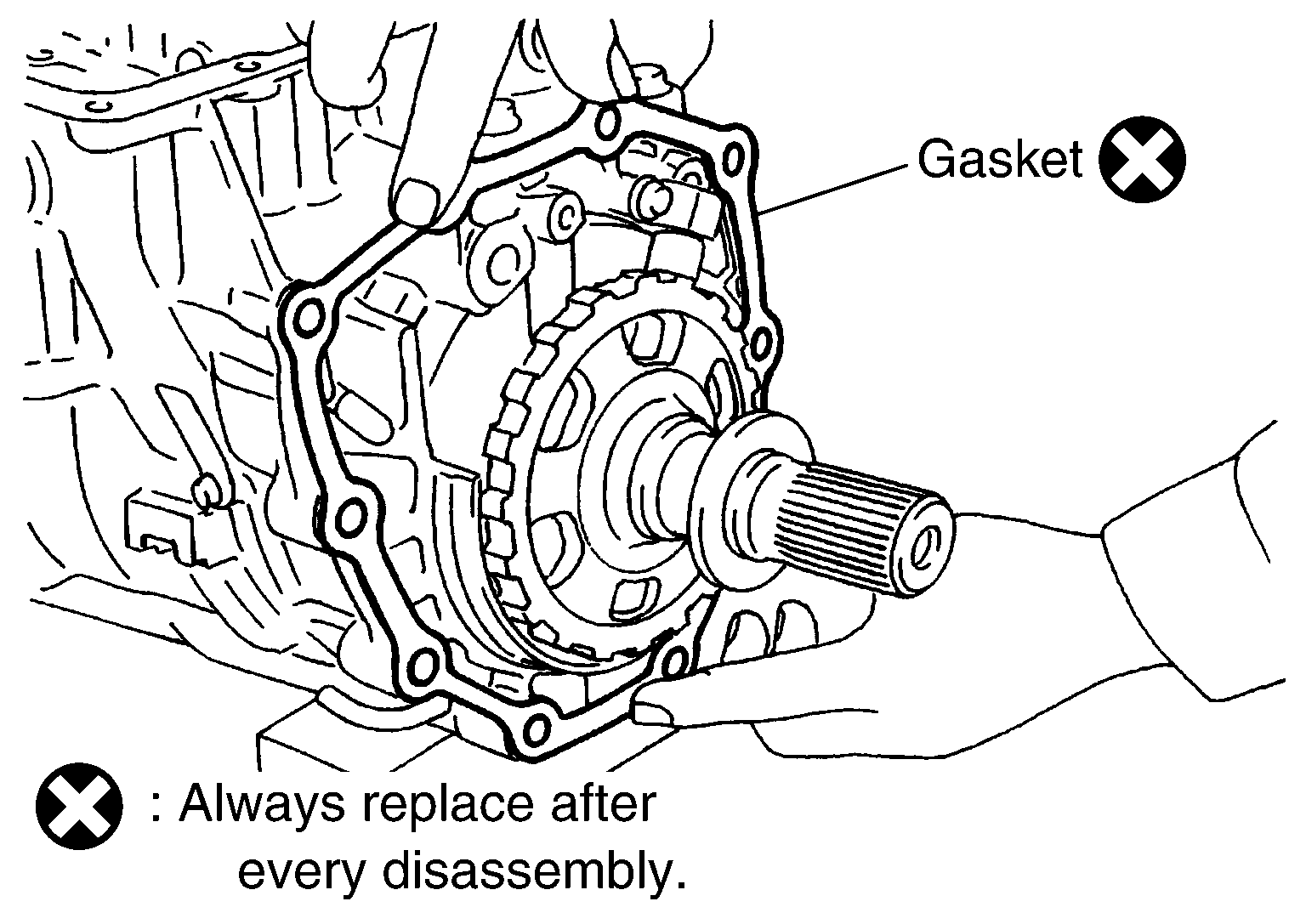

        G04075813Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION:
        • Completely remove all moisture, oil and old gasket, etc. from the transmission case and adapter case assembly mounting surfaces.
        • Never reuse gasket.

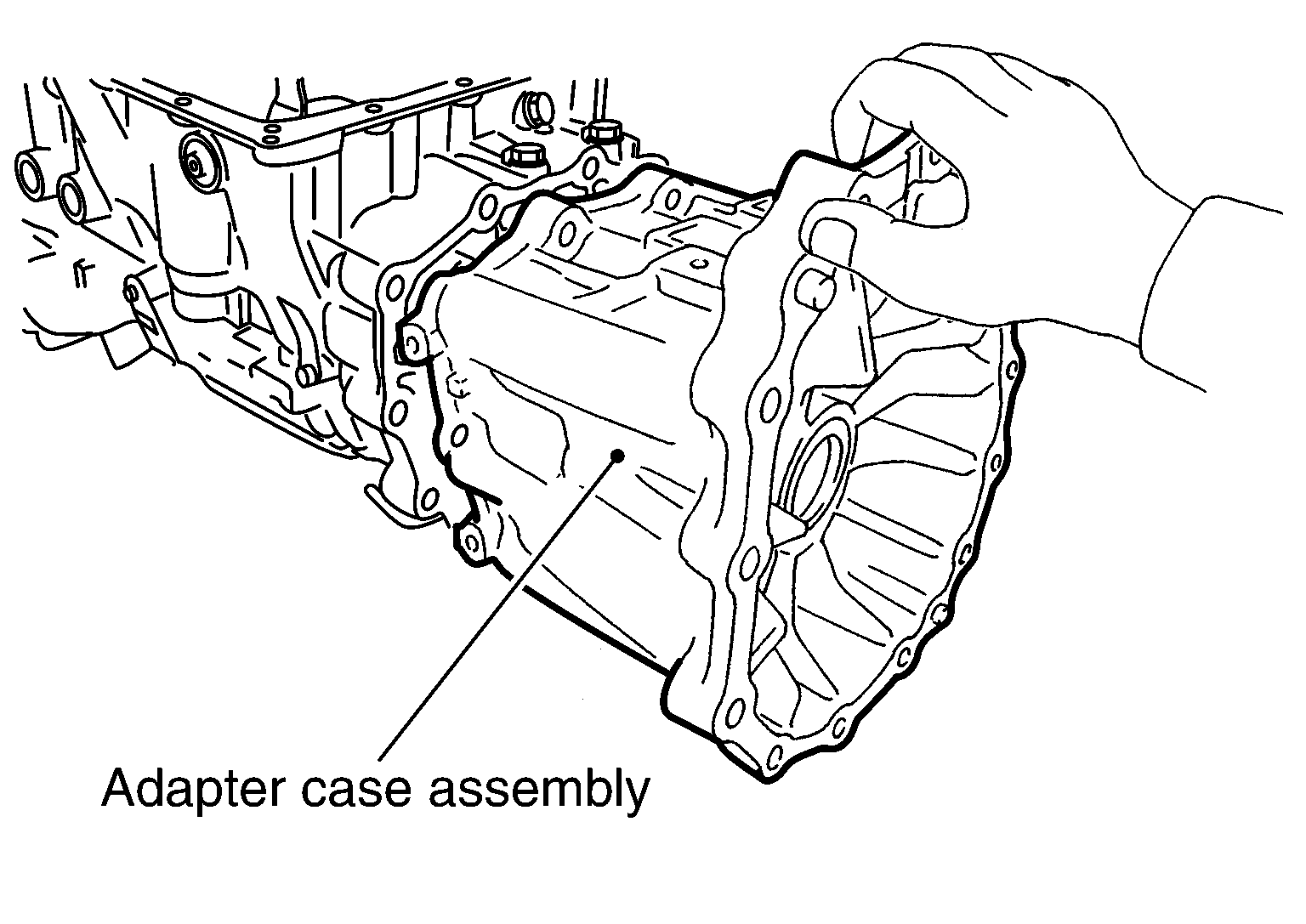

      6. Install adapter case assembly to transmission case.
        G04075812Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the adapter case assembly.
      7. Tighten adapter case assembly bolts to the specified torque.

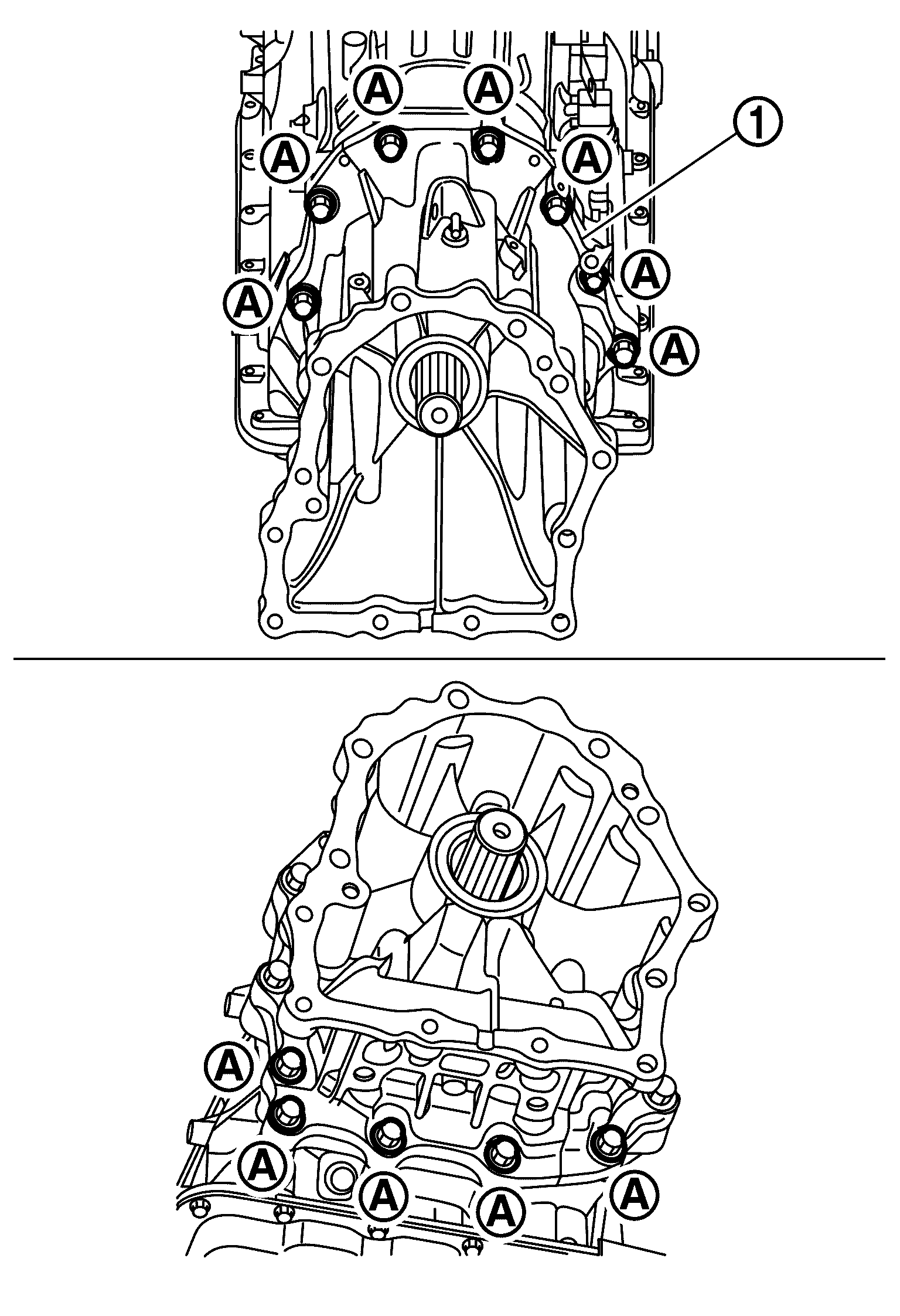

        GNSJSDIA9110Z-110Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Bracket

        SYMBOL

        : Bolt

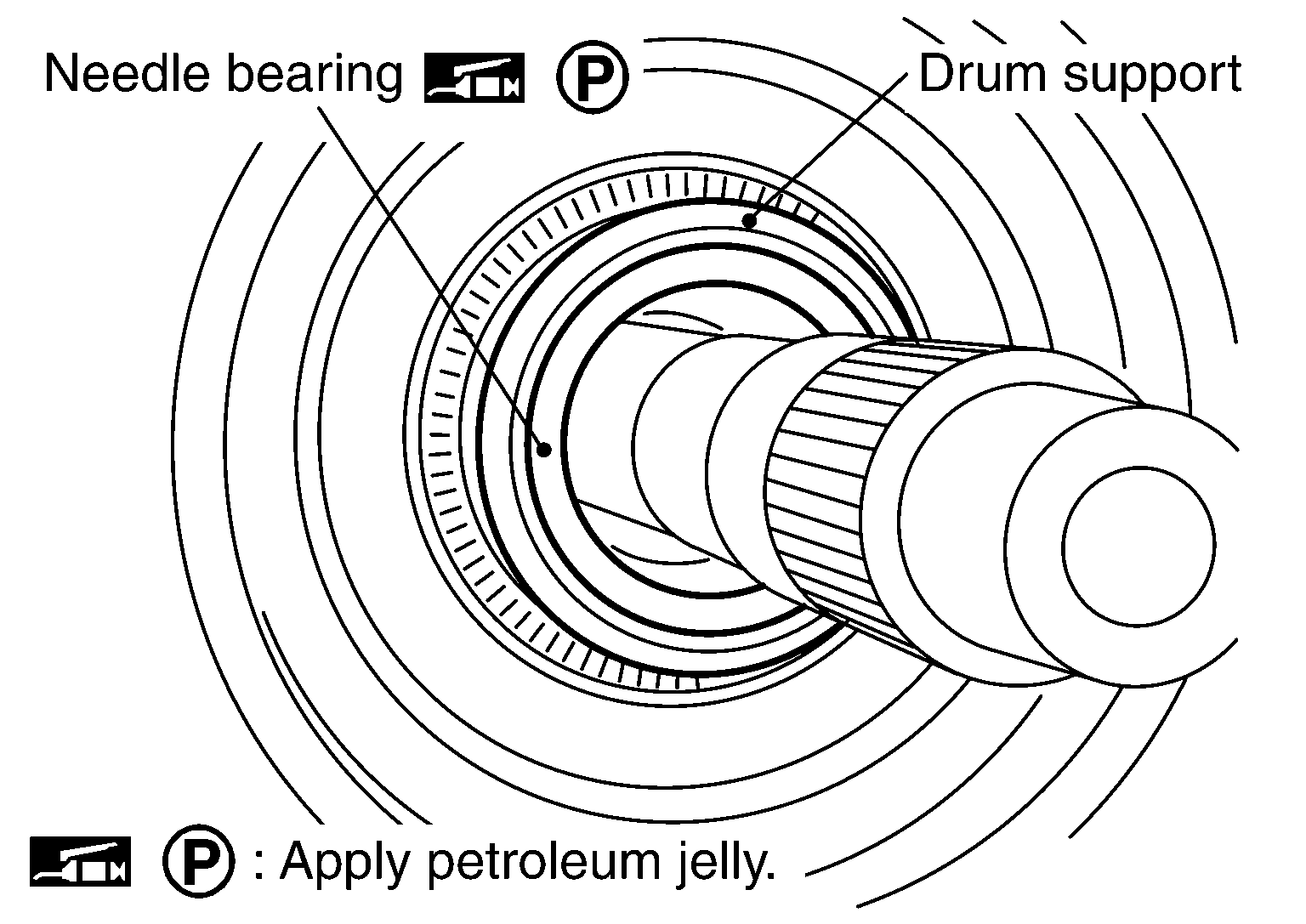

  27. Install needle bearing to drum support.
    G04075789Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .

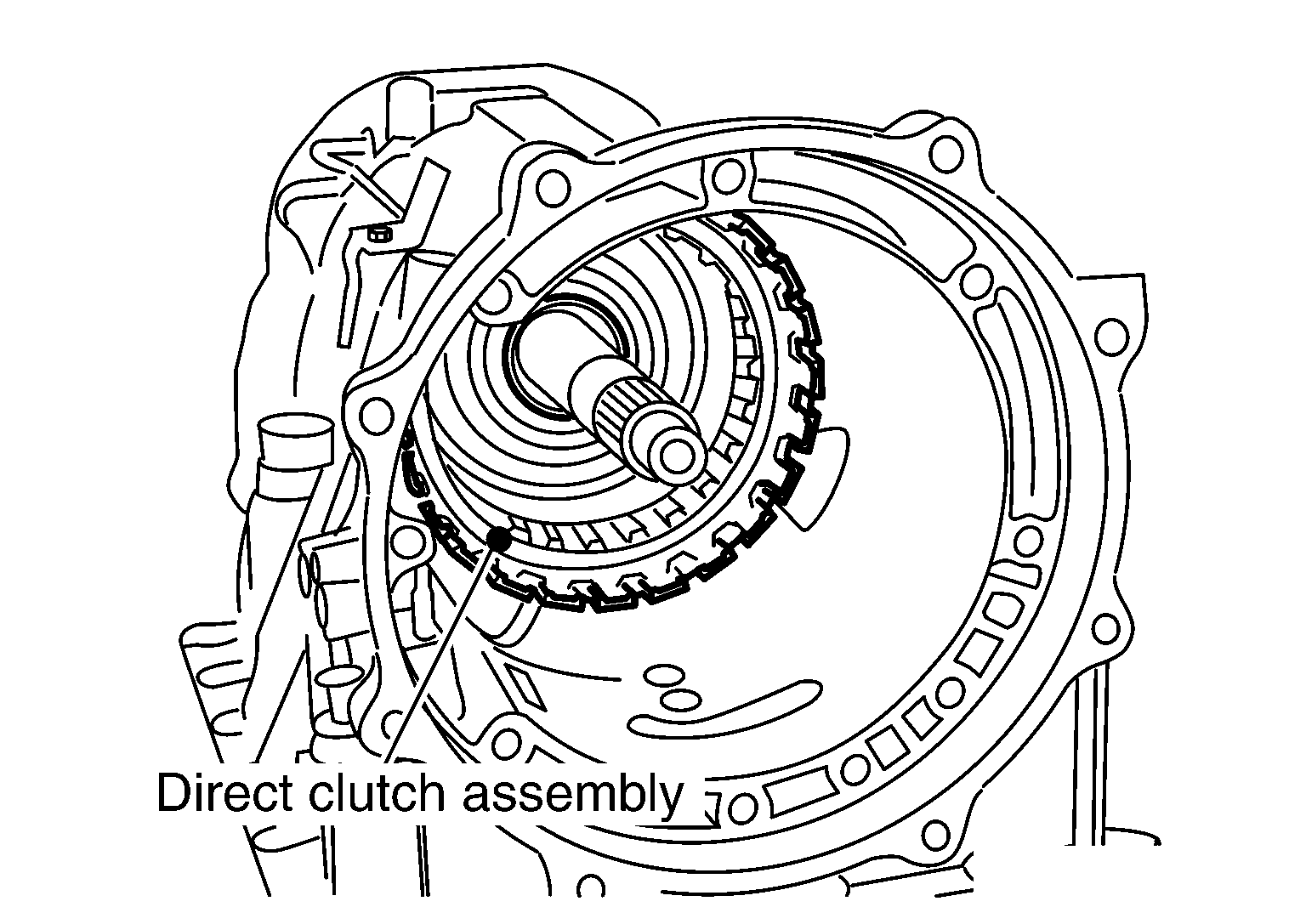

  28. Install direct clutch assembly to reverse brake.
    G04075788Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Make sure that drum support edge surface and direct clutch inner boss edge surface come to almost same place.

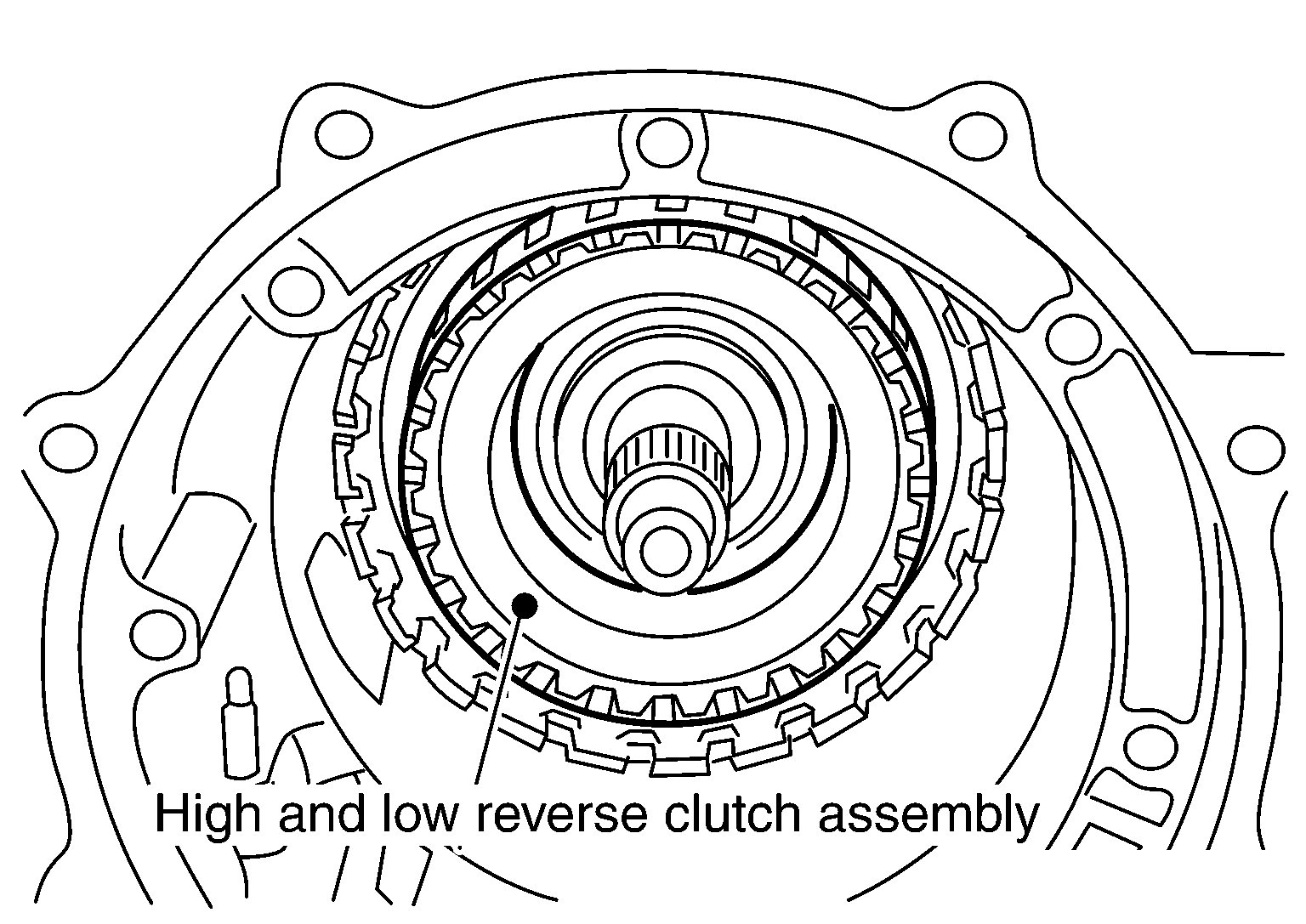

  29. Install high and low reverse clutch assembly to direct clutch.
    G04075787Courtesy of NISSAN NORTH AMERICA, INC.

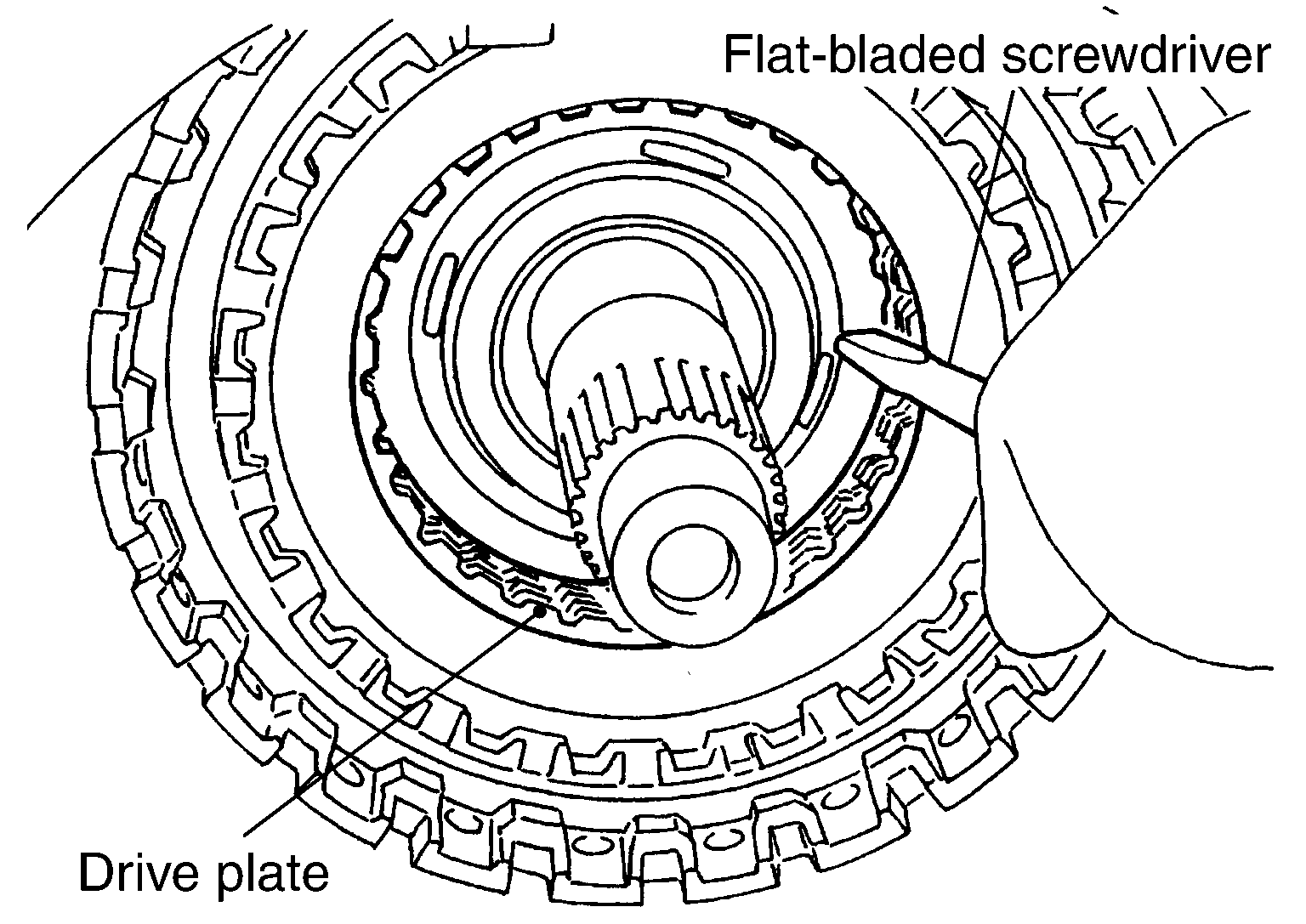

  30. Align the drive plate using a flat-bladed screwdriver.
    G04075954Courtesy of NISSAN NORTH AMERICA, INC.

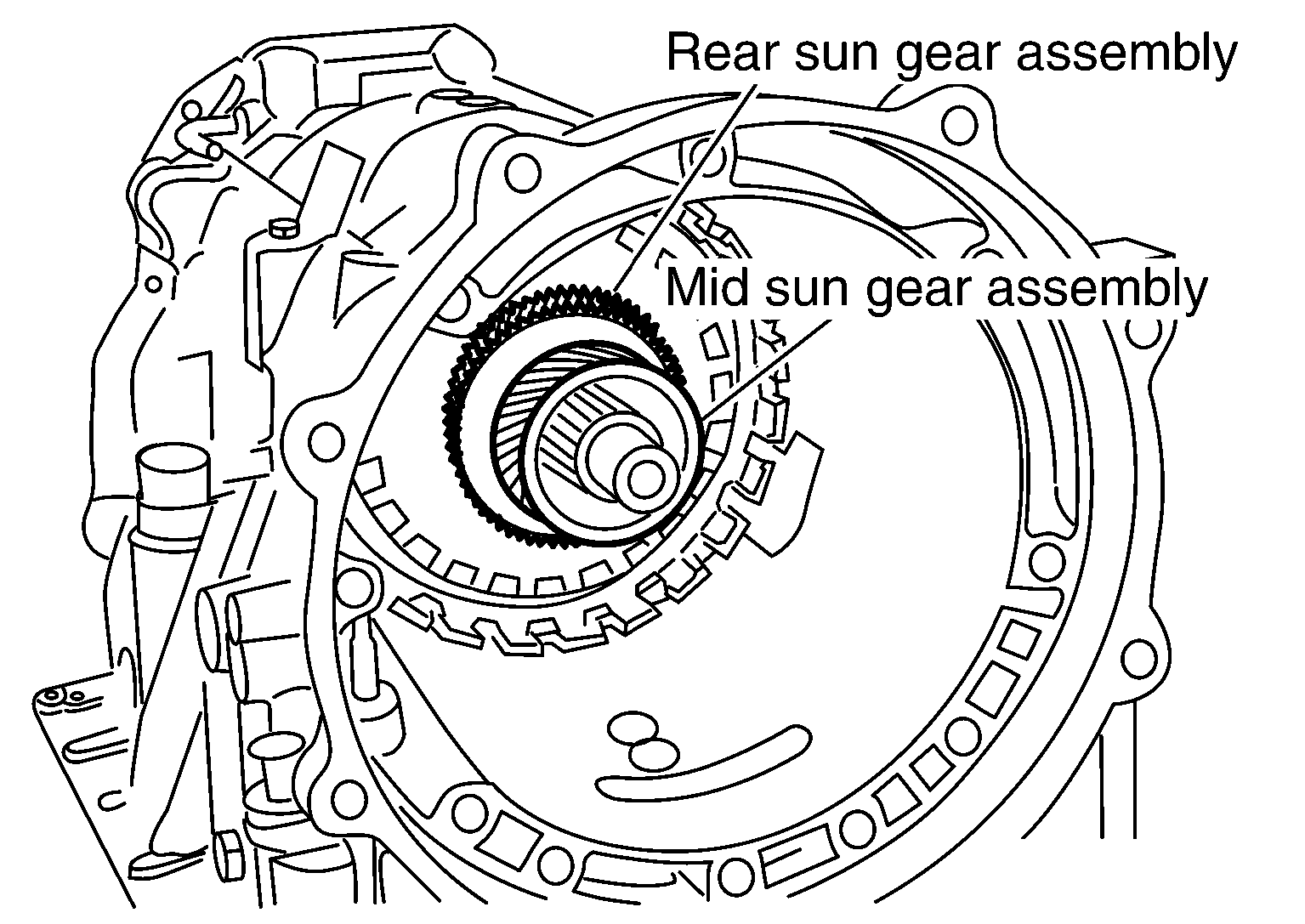

  31. Install high and low reverse clutch hub, mid sun gear assembly, and rear sun gear assembly as a unit.
    G04075786Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Make sure that portion (A) of high and low reverse clutch drum protrudes approximately 2 mm (0.08 in) beyond portion (B) of rear sun gear.
    G04075956Courtesy of NISSAN NORTH AMERICA, INC.

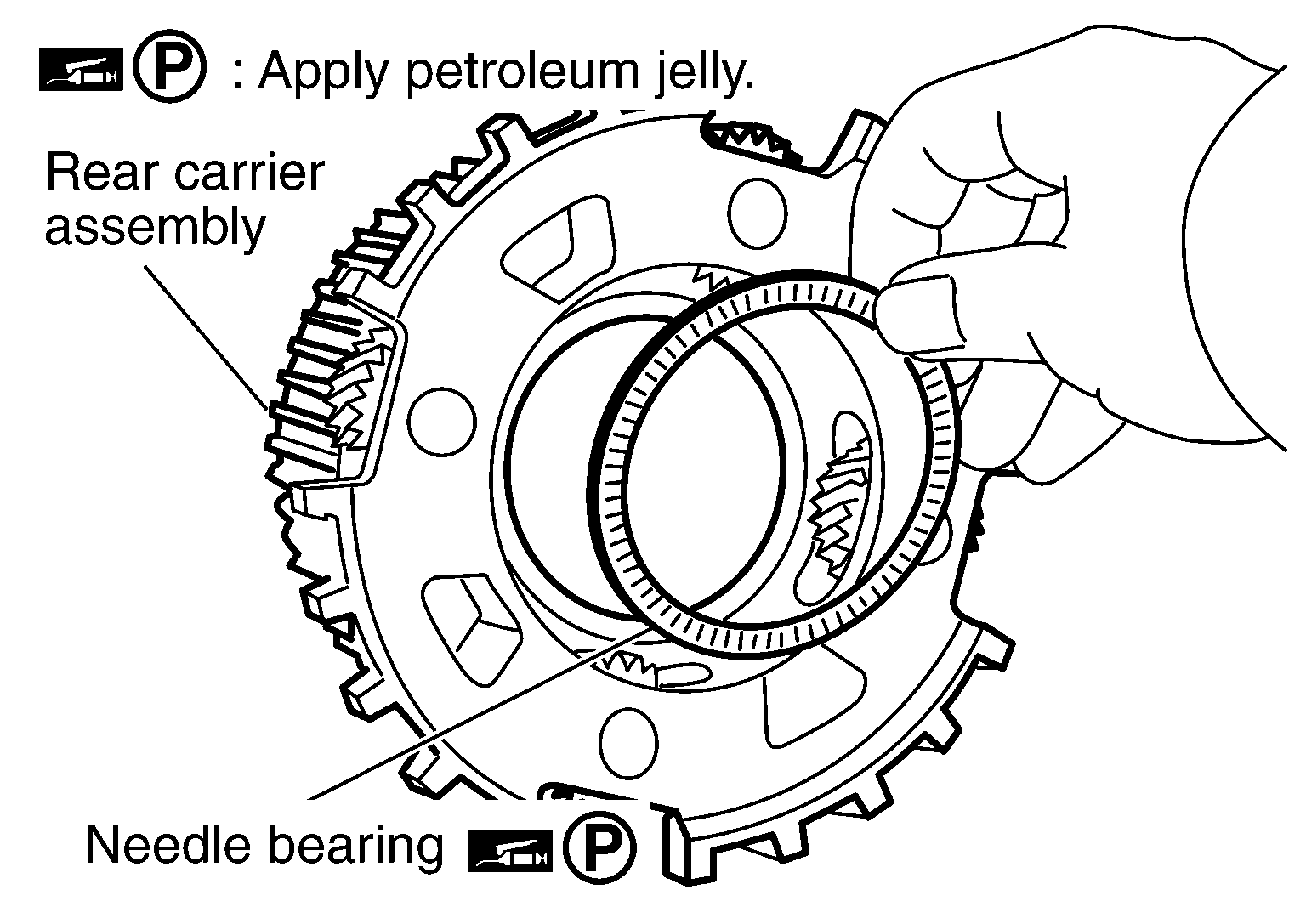

  32. Install needle bearing to rear carrier assembly.
    G04075785Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .
  33. Install bearing race to rear carrier assembly.
    G04075784Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .

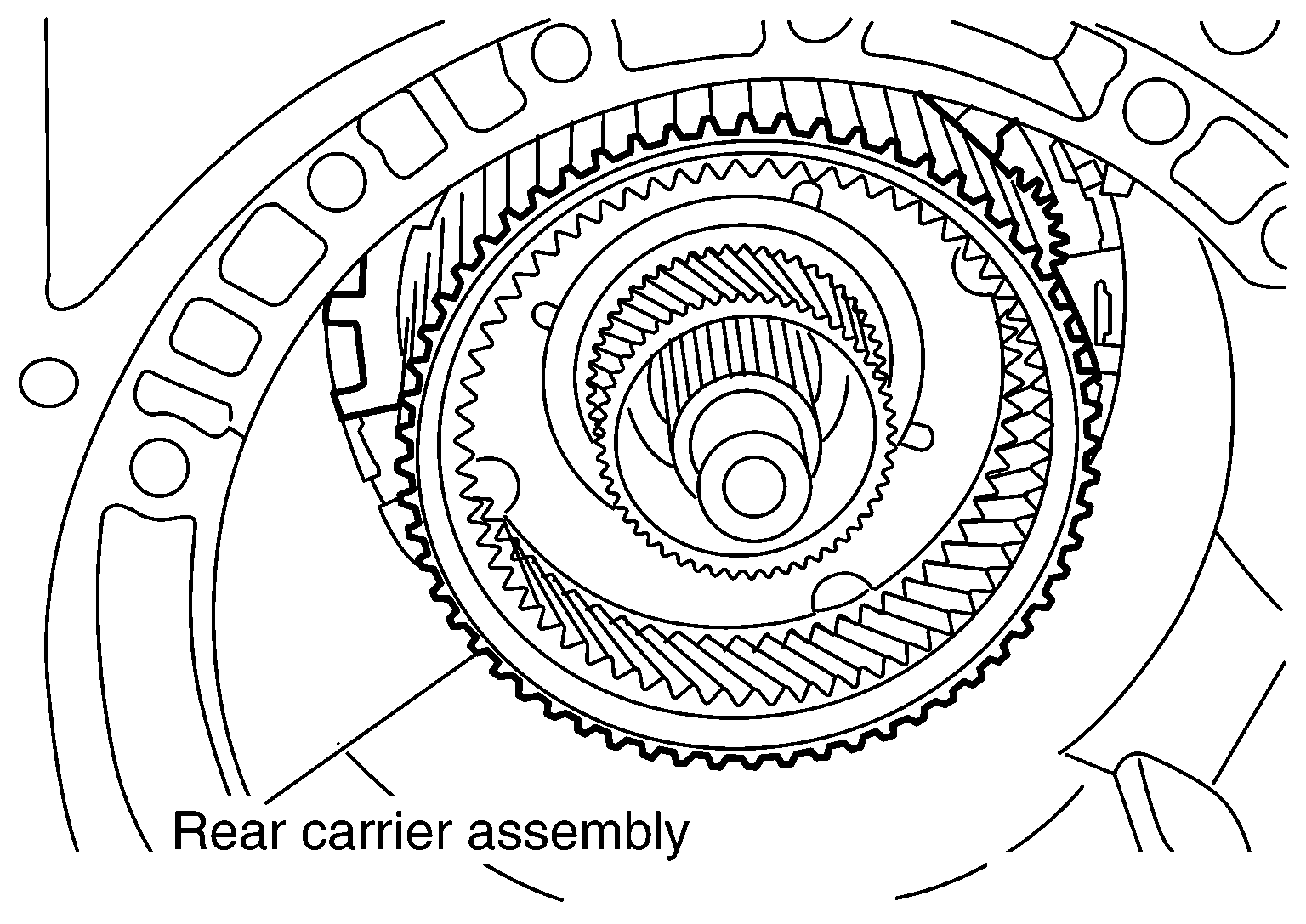

  34. Install rear carrier assembly to direct clutch drum.
    G04075959Courtesy of NISSAN NORTH AMERICA, INC.

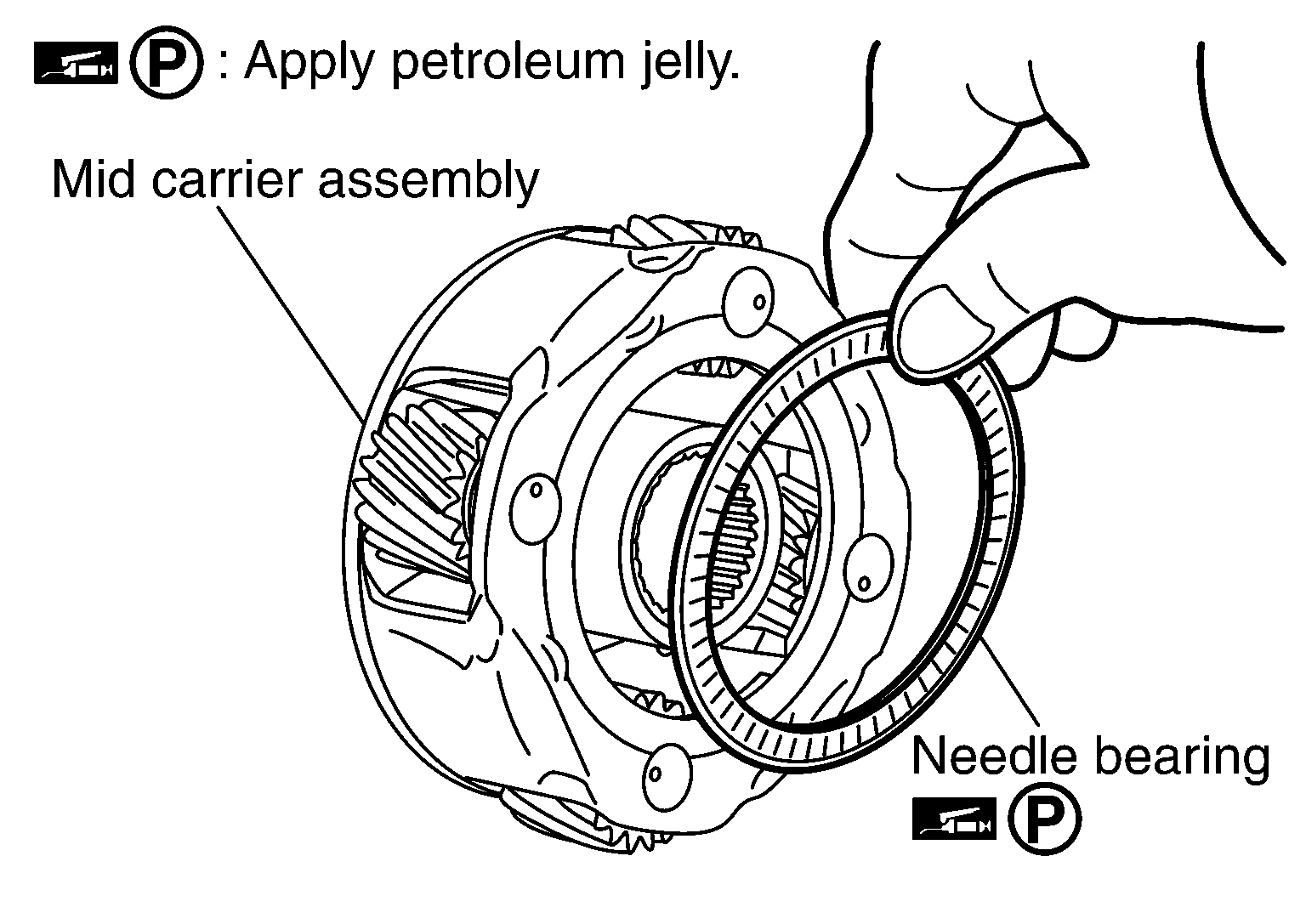

  35. Install needle bearing (rear side) to mid carrier assembly.
    G04075783Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .

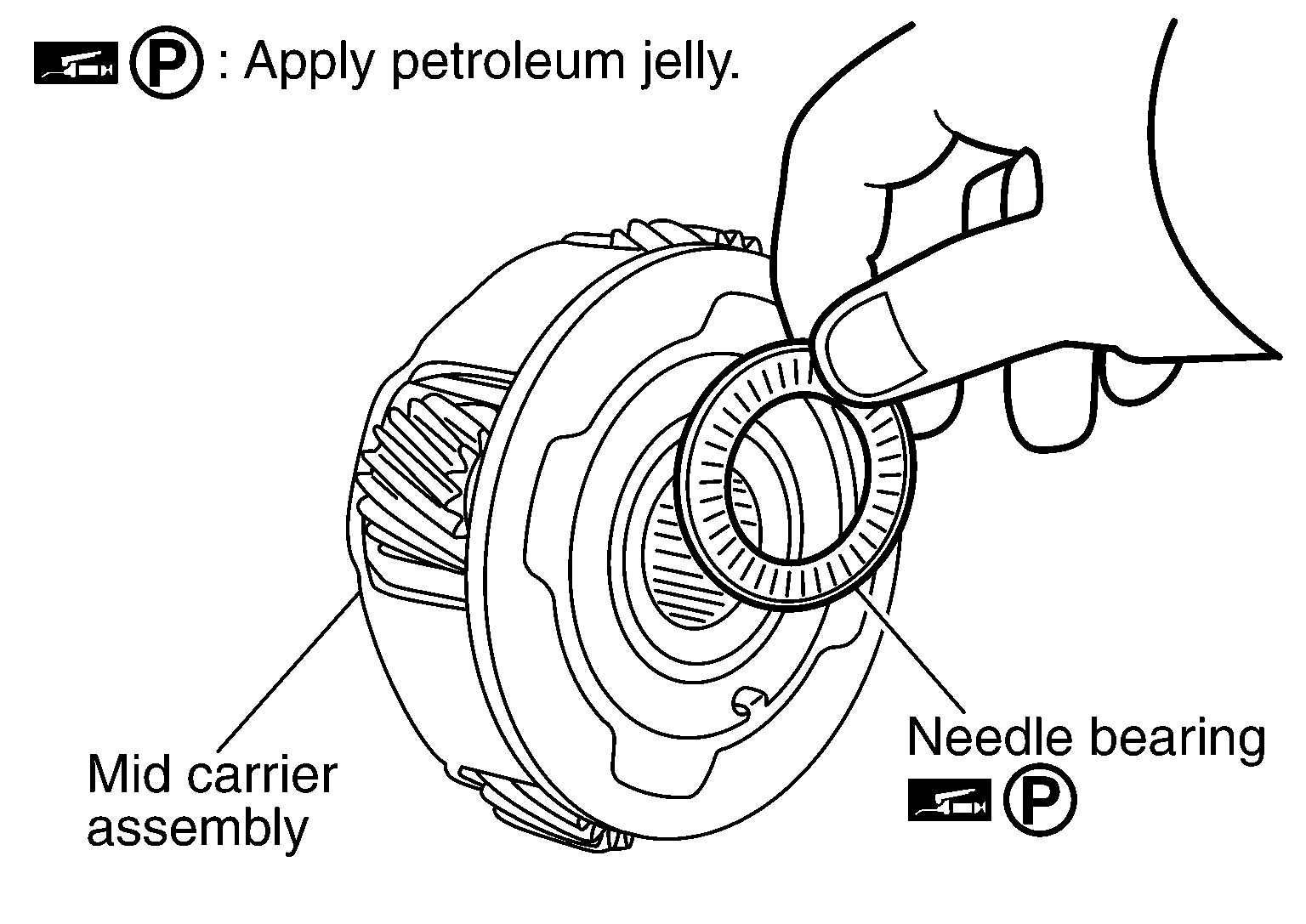

  36. Install needle bearing (front side) to mid carrier assembly.
    G04075782Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .

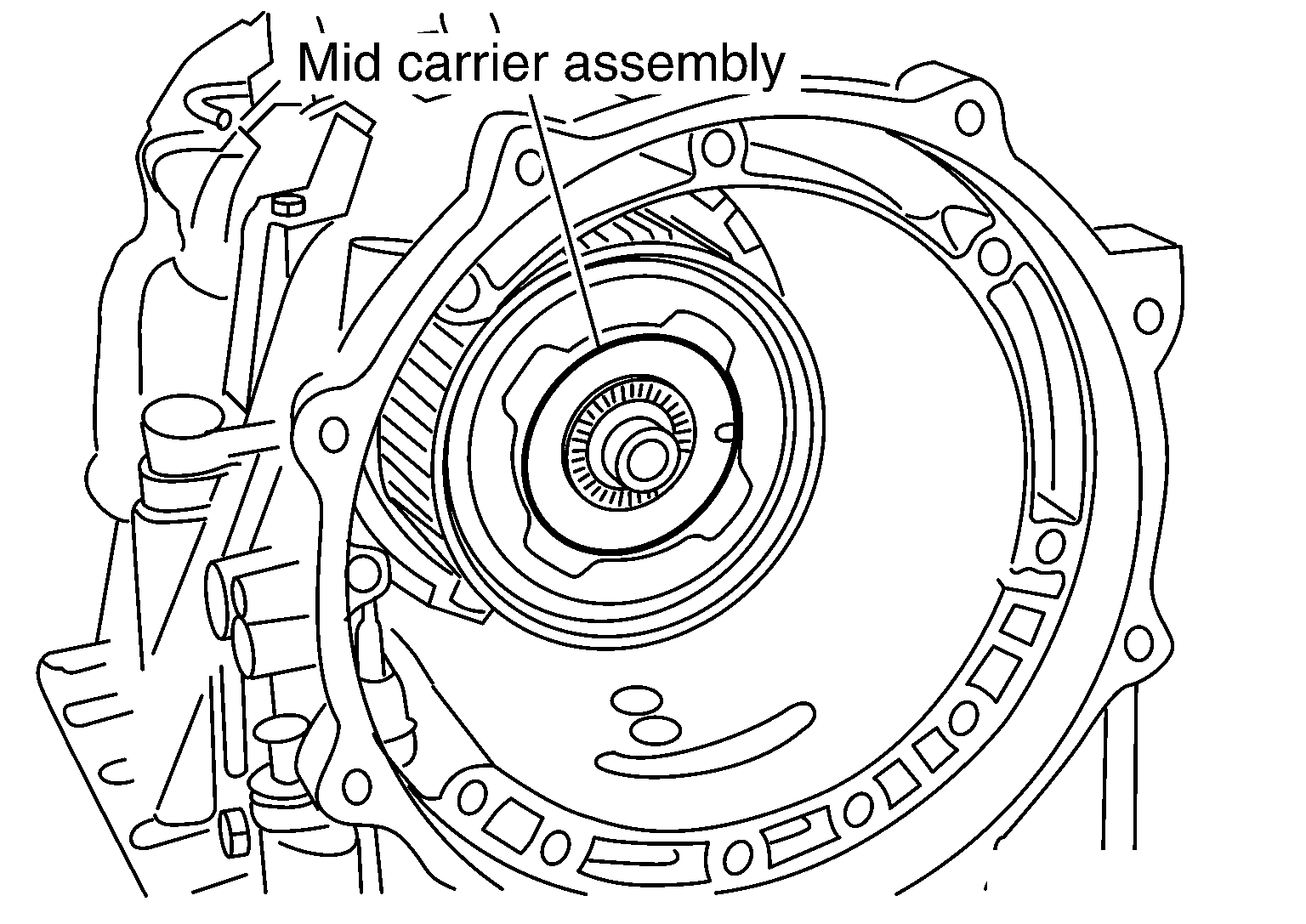

  37. Install mid carrier assembly to rear carrier assembly.
    G04075780Courtesy of NISSAN NORTH AMERICA, INC.

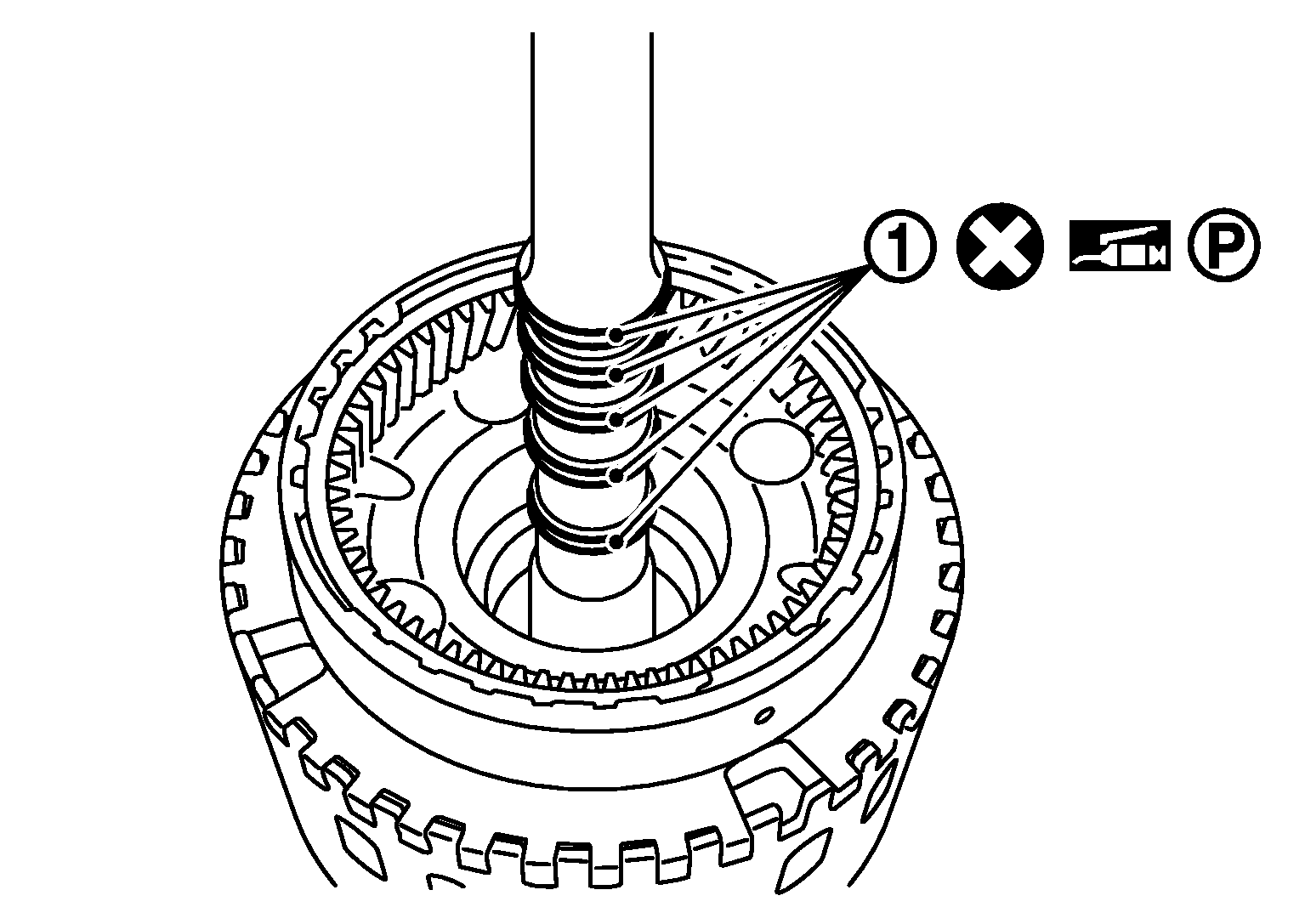

  38. Install seal rings SYMBOL to input clutch assembly.
    GNSJPDIA1121Z-121Courtesy of NISSAN NORTH AMERICA, INC.

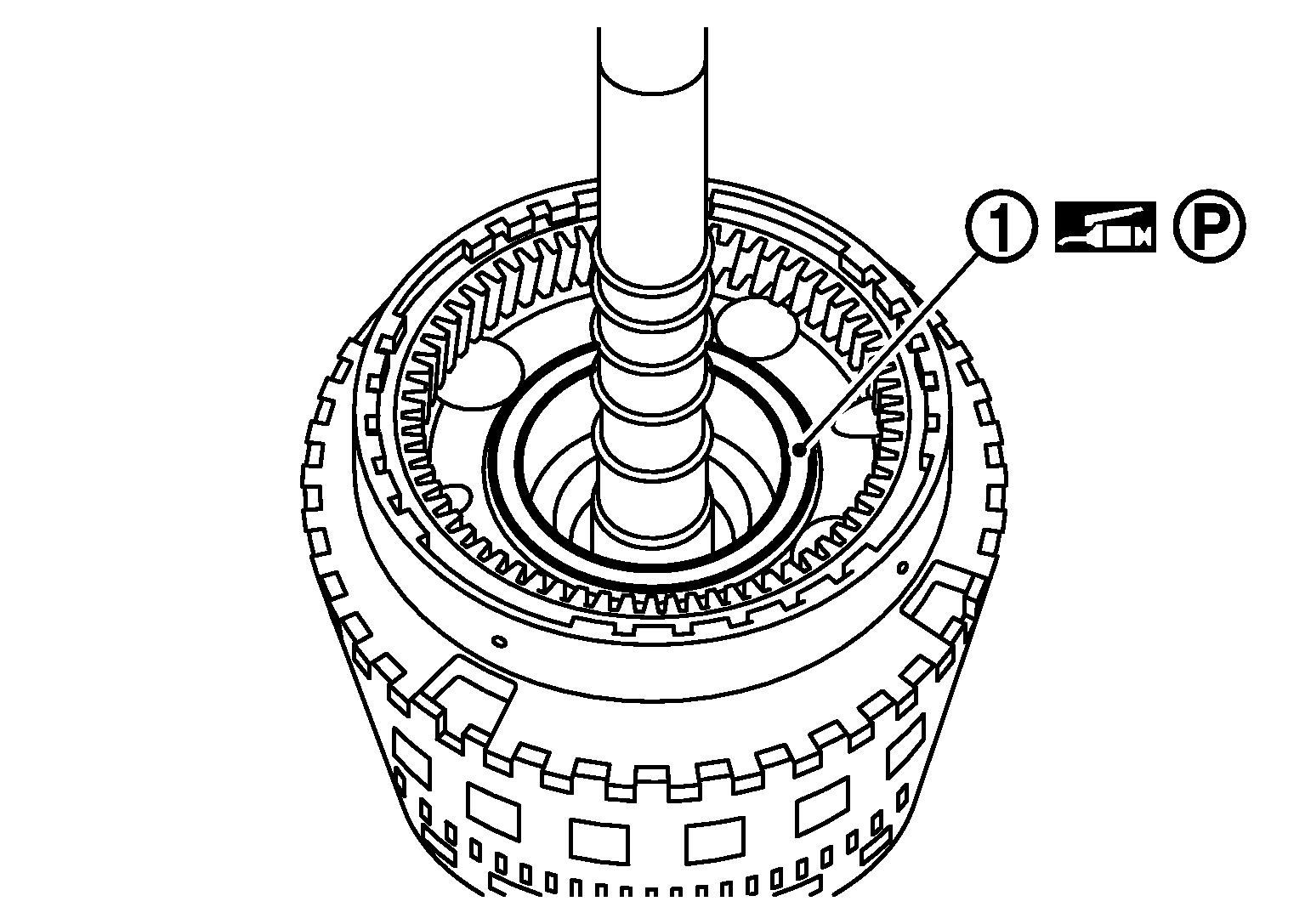

  39. Install needle bearing SYMBOL to front carrier assembly.
    GNSJPDIA1120Z-120Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .
  40. Install input clutch assembly (with front carrier assembly and rear internal gear) SYMBOL to transmission case.
    GNSJSDIA1714Z-714Courtesy of NISSAN NORTH AMERICA, INC.

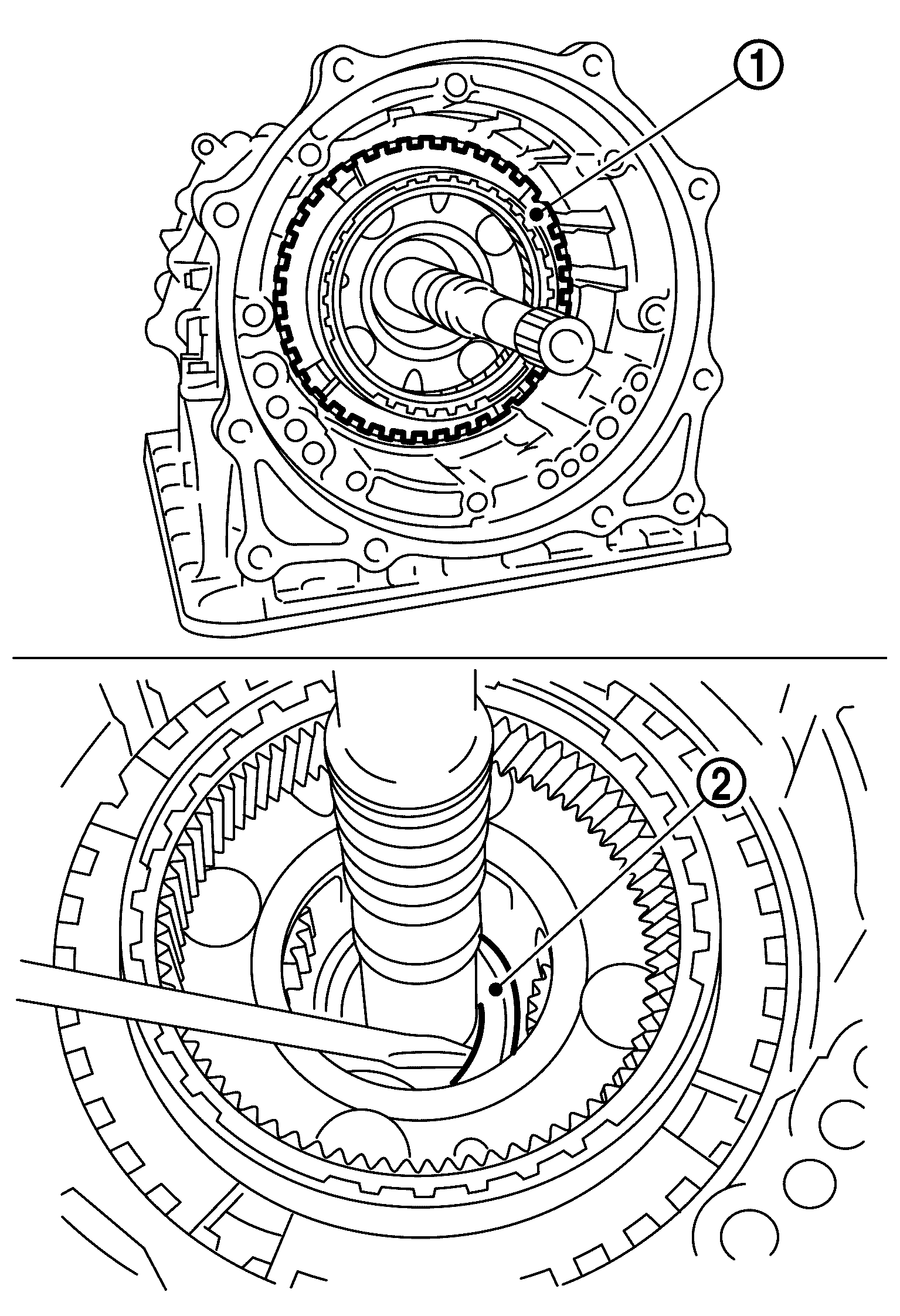

    CAUTION: Check that the needle bearing SYMBOL is securely positioned. If the needle bearing position is misaligned, adjust it to the specified position.

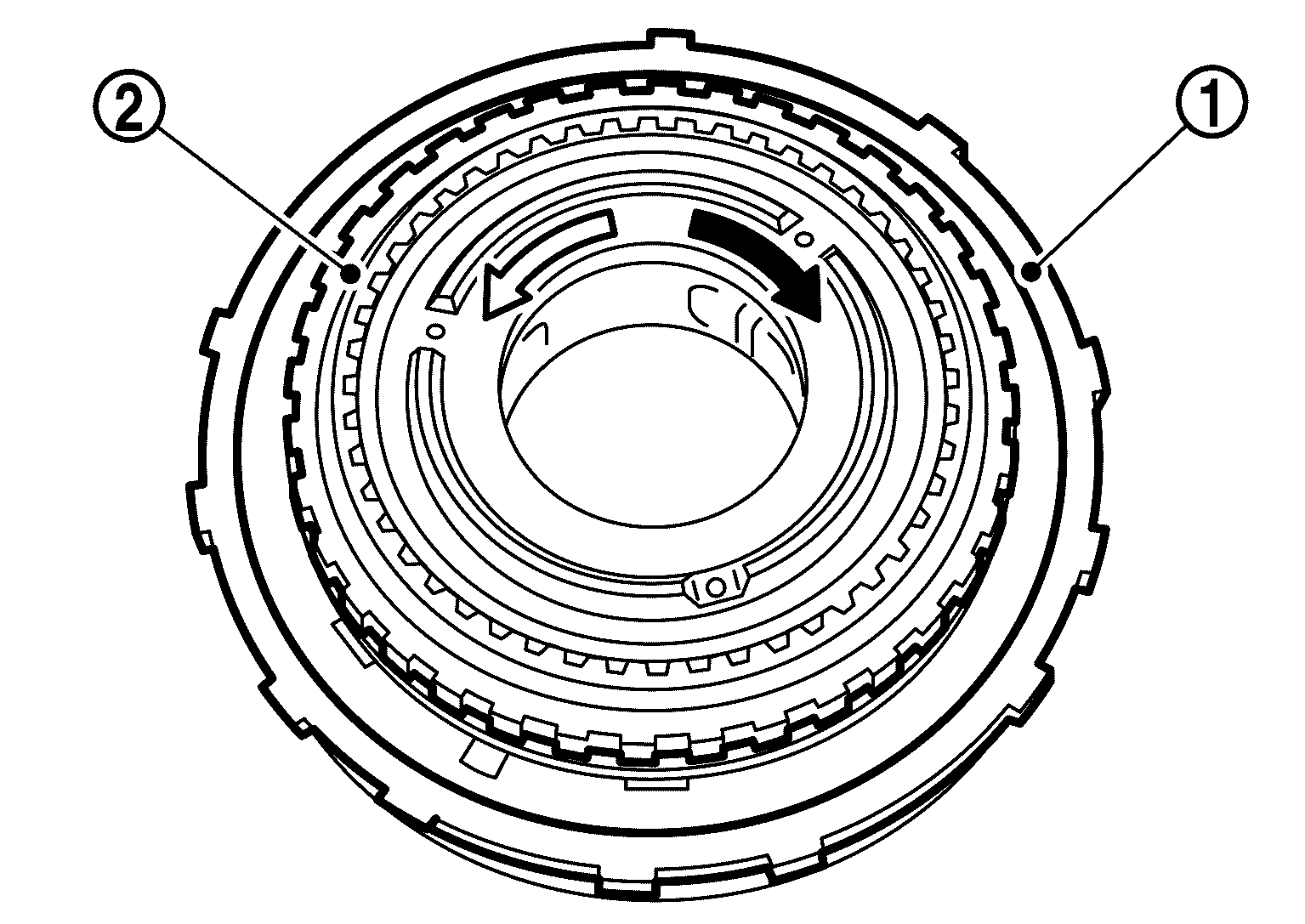

  41. Install 1st one-way clutch SYMBOL to front brake hub (with under drive carrier) SYMBOL .
    GNSJSDIA1713Z-713Courtesy of NISSAN NORTH AMERICA, INC.
  42. Check operation of 1st one-way clutch.
    1. Hold 1st one-way clutch.
    2. Check front brake hub for correct locking and unlocking directions.

      SYMBOL

      : Unlocked

      SYMBOL

      : Locked
      CAUTION: If not shown in figure, check installation direction of 1st one-way clutch.
  43. Install under drive carrier (with 1st one-way clutch) SYMBOL to transmission case.

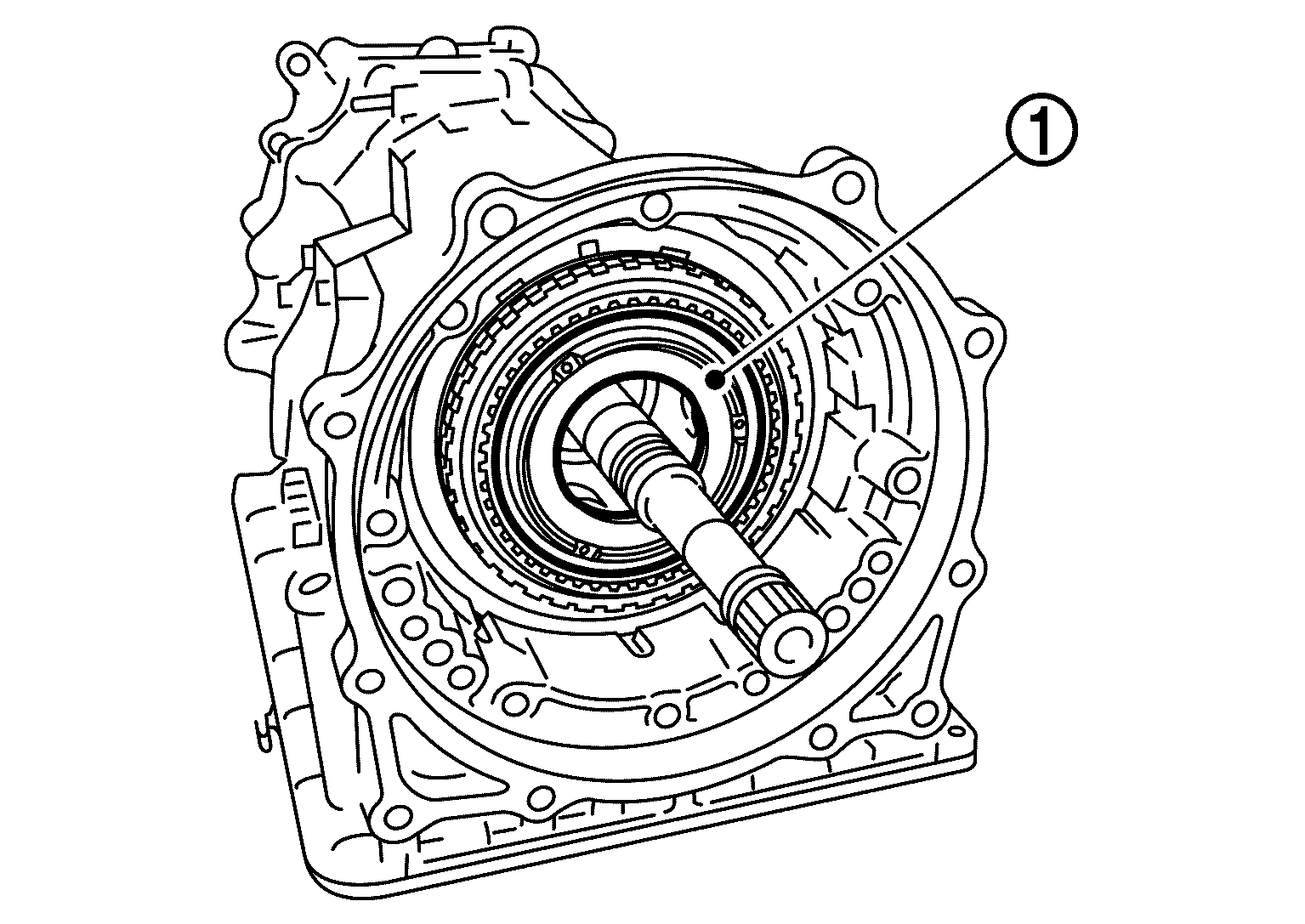

    GNSJSDIA1715Z-715Courtesy of NISSAN NORTH AMERICA, INC.

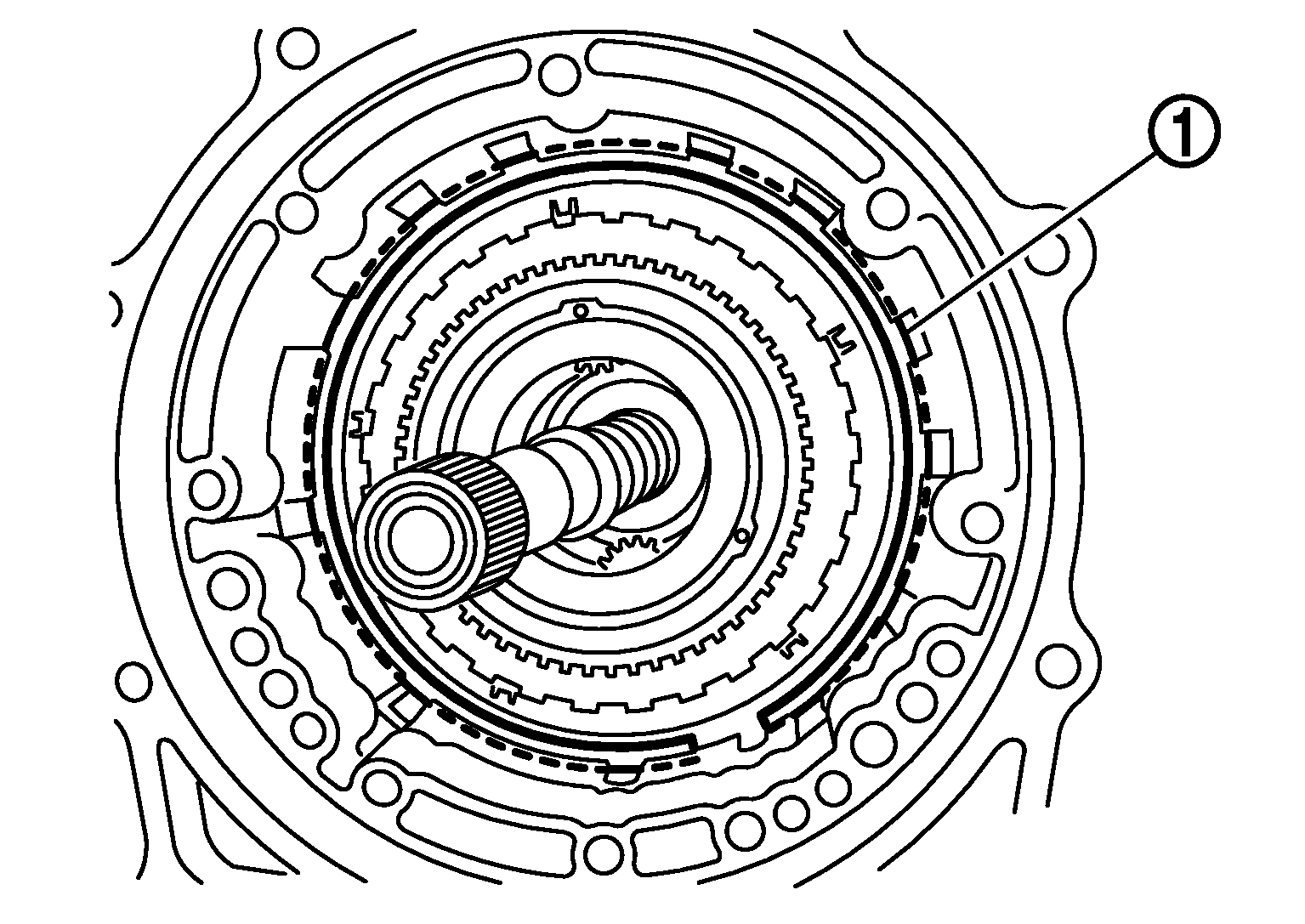

  44. Install snap ring SYMBOL to transmission case.
    GNSJPDIA1116Z-116Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to damage snap ring.
  45. Install front brake component part (retaining plates, drive plates, and driven plate) to transmission case.
    GNSJPDIA1154Z-154Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Retaining plate (thin)

    SYMBOL

    : Drive plate

    SYMBOL

    : Driven plate

    SYMBOL

    : Retaining plate (thick)

    SYMBOL

    : Front
    CAUTION: Check order of plates.

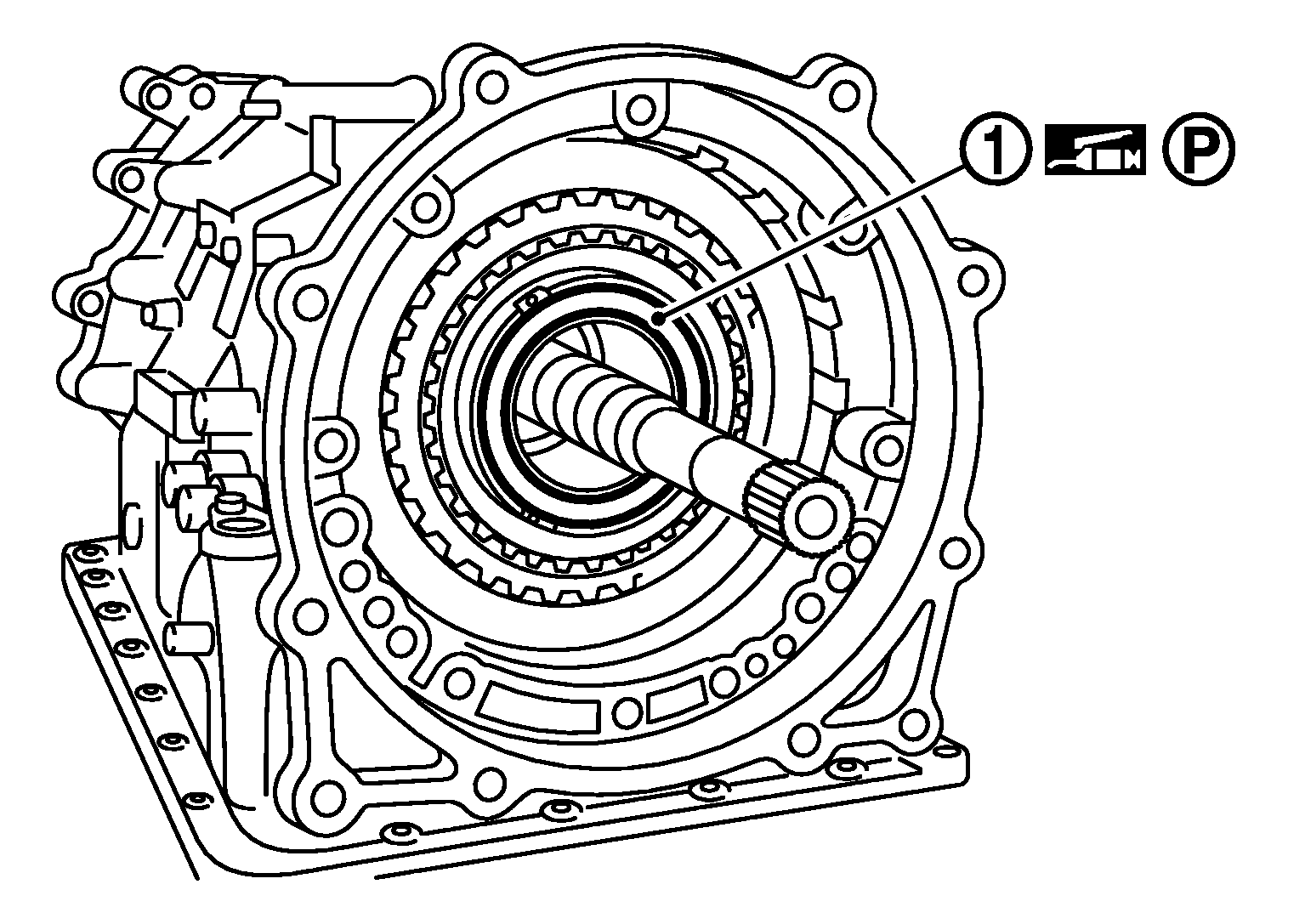

  46. Install needle bearing SYMBOL to under drive carrier assembly.
    GNSJPDIA1114Z-114Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .
  47. Install under drive sun gear SYMBOL to under drive carrier assembly.

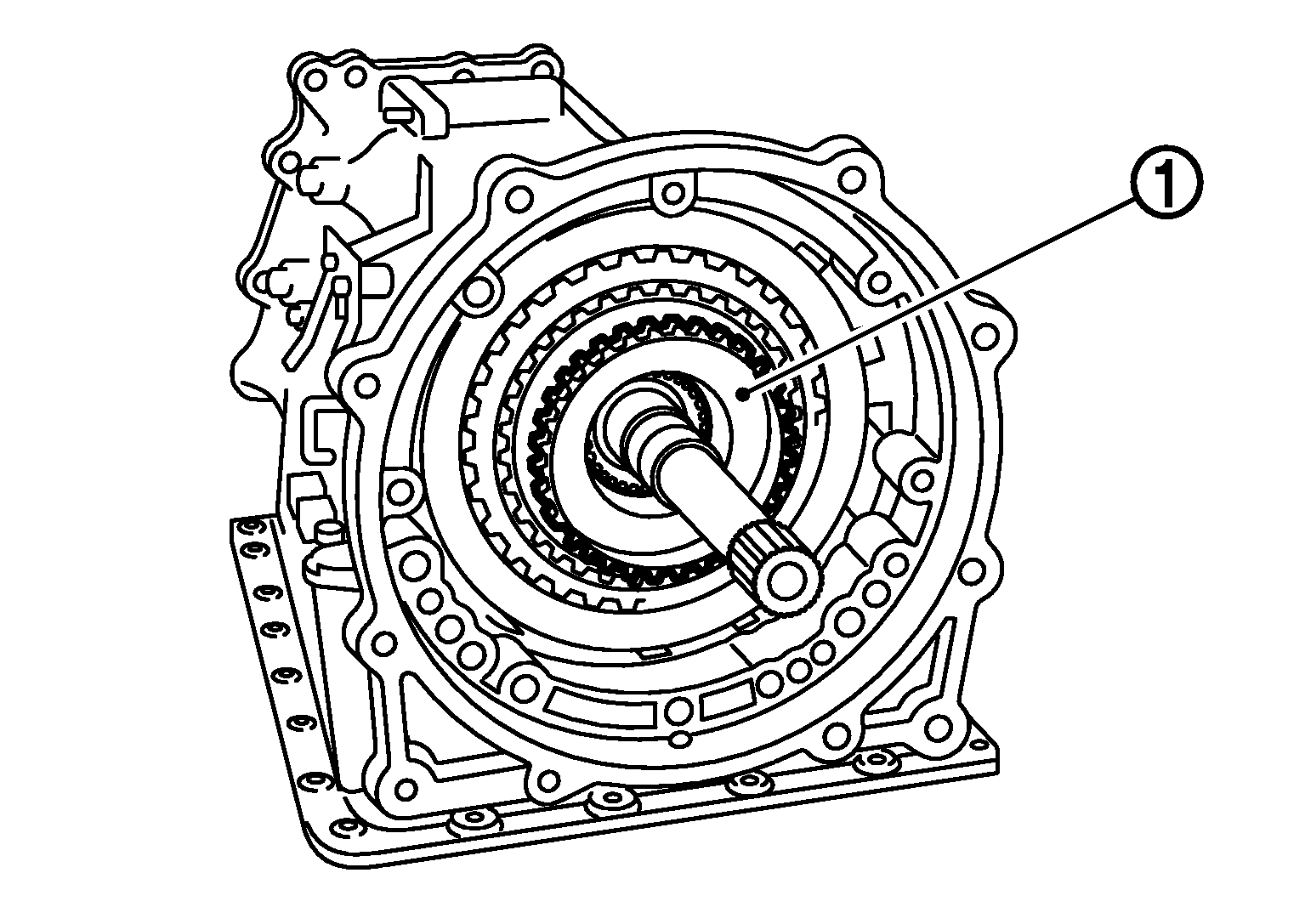

    GNSJPDIA1112Z-112Courtesy of NISSAN NORTH AMERICA, INC.
  48. Adjustment of total end play "T".
    GNSJSDIA1696Z-696Courtesy of NISSAN NORTH AMERICA, INC.
    • Measure clearance between bearing race SYMBOL and oil pump cover SYMBOL .
    • Select proper thickness of bearing race so that end play is within specifications.
    1. Measure dimensions "K" and "L", and calculate dimension "J".
      GNSJSDIA1697Z-697Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Transmission case

      SYMBOL

      : Under drive sun gear

      (A)

      : Straightedge

      "J"

      : Distance between the oil pump fitting surface of transmission case and the needle bearing mating surface of under drive sun gear.

      J = K - L
      1. Measure dimension "K" between the converter housing fitting surface of transmission case and the needle bearing mating surface of under drive sun gear.
        GNSJSDIA1698Z-698Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION:
        • Never change the straightedge (A) installation position before the completion of "L" measurement.
        • Measure dimension "K" in at least three places, and take the average.
      2. Measure dimension "L" between the converter housing fitting surface of transmission case and the oil pump fitting surface of transmission case.
        GNSJSDIA1699Z-699Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Transmission case

        (A)

        : Straightedge
        CAUTION: Measure dimension "L" in at least three places, and take the average.
      3. Measure dimension "K" and "L" in at least three places, and take the average.
      4. Calculate dimension "J".

        J = K - L
    2. Measure dimensions "M 1 " and "M 2 ", and calculate dimension "M".
      GNSJSDIA1700Z-700Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Bearing race

      SYMBOL

      : Needle bearing

      SYMBOL

      : Oil pump assembly

      (A)

      : Straightedge

      "M"

      : Distance between the transmission case fitting surface of oil pump and the needle bearing on oil pump.

      M = M 1 - M 2
      1. Place bearing race SYMBOL and needle bearing SYMBOL on oil pump assembly SYMBOL .
        GNSJSDIA1701Z-701Courtesy of NISSAN NORTH AMERICA, INC.
      2. Measure dimension "M 1 " between the transmission case fitting surface of oil pump and the end of oil pump.
        GNSJSDIA1702Z-702Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Bearing race

        SYMBOL

        : Needle bearing

        SYMBOL

        : Oil pump assembly

        (A)

        : Straightedge
        CAUTION: Measure dimension "M 1 " in at least three places, and take the average.
      3. Measure dimension "M 2 " between the needle bearing on oil pump and the end of oil pump.
        GNSJSDIA1703Z-703Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Bearing race

        SYMBOL

        : Needle bearing

        SYMBOL

        : Oil pump assembly

        (A)

        : Straightedge
        CAUTION: Measure dimension "M 2 " in at least three places, and take the average.
      4. Calculate dimension "M".

        M = M 1 - M 2
    3. Adjust total end play "T ".
      GNSJSDIA1696Z-696Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Bearing race

      SYMBOL

      : Oil pump assembly

      T = J - M

      Total end play "T"

      : Refer to Total End Play  or Total End Play .
      • Select proper thickness of bearing race so that total end play is within specifications.

        Bearing races

        : Refer to Total End Play  or Total End Play .
  49. Adjustment of front brake clearance "C".
    GNSJSDIA1704Z-704Courtesy of NISSAN NORTH AMERICA, INC.
    • Measure clearance between front brake piston SYMBOL and front brake retaining plate SYMBOL .
    • Select proper thickness of front brake retaining plat so that clearance is within specifications.
    1. Measure dimensions "O" and "P", and calculate dimension "N".
      GNSJSDIA1705Z-705Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Transmission case

      SYMBOL

      : Front brake retaining plate

      (A)

      : Straightedge

      "N"

      : Distance between the oil pump fitting surface of transmission case and the front brake retaining plate.

      N = O - P
      1. Measure dimension "O" between the converter housing fitting surface of transmission case SYMBOL and the front brake retaining plate SYMBOL .
        GNSJSDIA1706Z-706Courtesy of NISSAN NORTH AMERICA, INC.
        CAUTION:
        • Never change the straightedge (A) installation position before the completion of "P" measurement.
        • Measure dimension "O" in at least three places, and take the average.
      2. Measure dimension "P" between the converter housing fitting surface of transmission case and the oil pump fitting surface of transmission case.
        GNSJSDIA1707Z-707Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Transmission case

        (A)

        : Straightedge
        CAUTION: Measure dimension "P" in at least three places, and take the average.
      3. Calculate dimension "N".

        N = O - P
    2. Measure dimensions "Q 1 " and "Q 2 ", and calculate dimension "Q".
      GNSJSDIA1708Z-708Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Front brake piston

      SYMBOL

      : Oil pump assembly

      (A)

      : Straightedge

      "Q"

      : Distance between the transmission case fitting surface of oil pump and the front brake piston.

      Q = Q 1 - Q 2
      1. Measure dimension "Q 1 " between the transmission case fitting surface of oil pump and the straightedge on front brake piston.
        GNSJSDIA1709Z-709Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Front brake piston

        SYMBOL

        : Oil pump assembly

        (A)

        : Straightedge
        CAUTION: Measure dimension "Q 1 " in at least three places, and take the average.
      2. Measure dimension "Q 2 " of the straightedge.
        GNSJSDIA1711Z-711Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Front brake piston

        SYMBOL

        : Oil pump assembly

        (A)

        : Straightedge
      3. Calculate dimension "Q".

        Q = Q 1 - Q 2
    3. Adjust front brake clearance "C".
      GNSJSDIA1704Z-704Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Front brake piston

      SYMBOL

      : Front brake retaining plate

      C = N - Q

      Front brake clearance "C"

      : Refer to Front Brake Clearance  or Front Brake Clearance .
  50. Remove under drive sun gear SYMBOL from under drive carrier assembly.
    GNSJPDIA1112Z-112Courtesy of NISSAN NORTH AMERICA, INC.

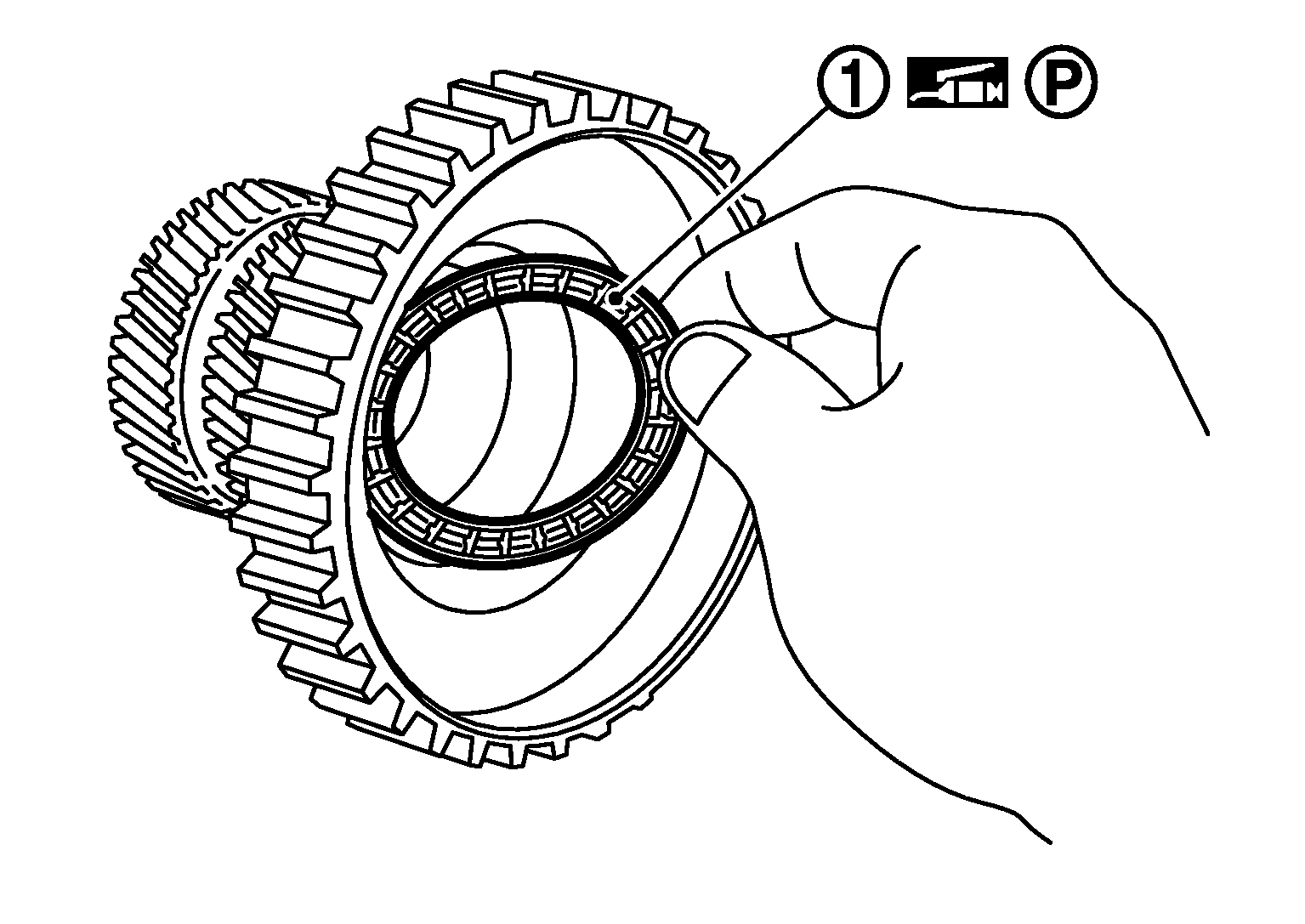

  51. Install needle bearing SYMBOL to under drive sun gear.
    GNSJPDIA1113Z-113Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Needle Bearings and Bearing Races .

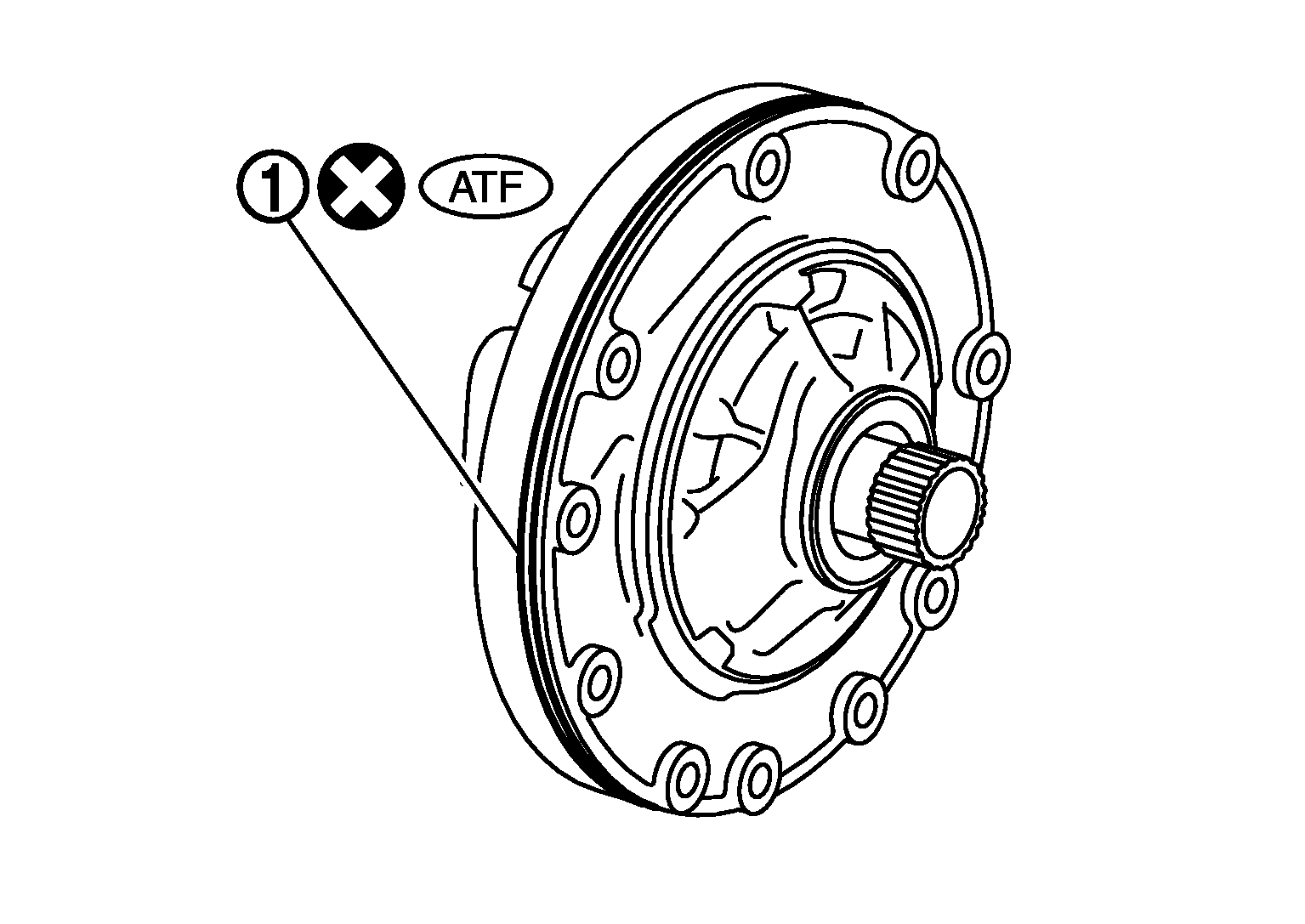

  52. Install O-ring SYMBOL to oil pump assembly.
    GNSJPDIA1110Z-110Courtesy of NISSAN NORTH AMERICA, INC.

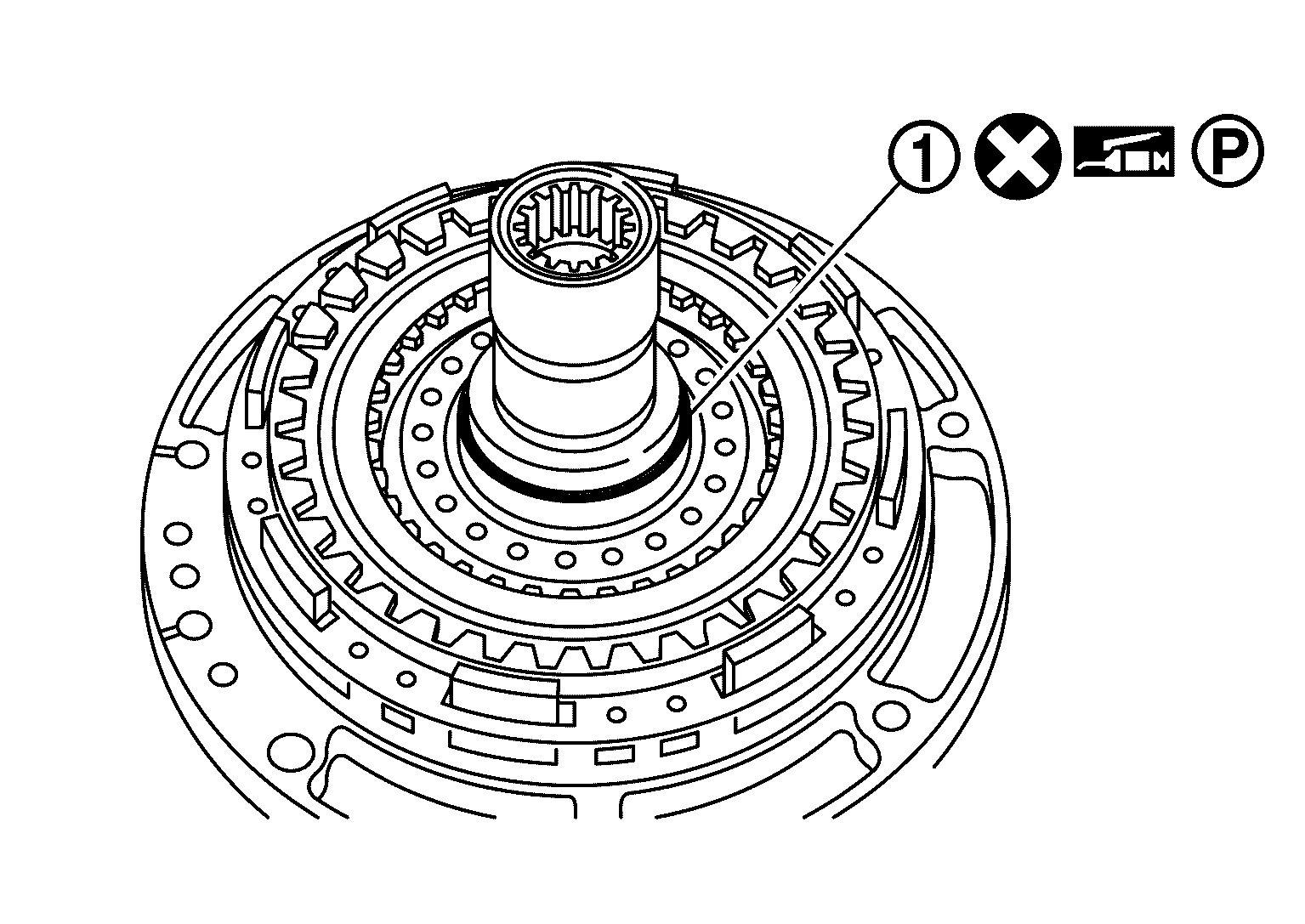

  53. Install seal ring SYMBOL to oil pump assembly.
    GNSJSDIA1721Z-721Courtesy of NISSAN NORTH AMERICA, INC.

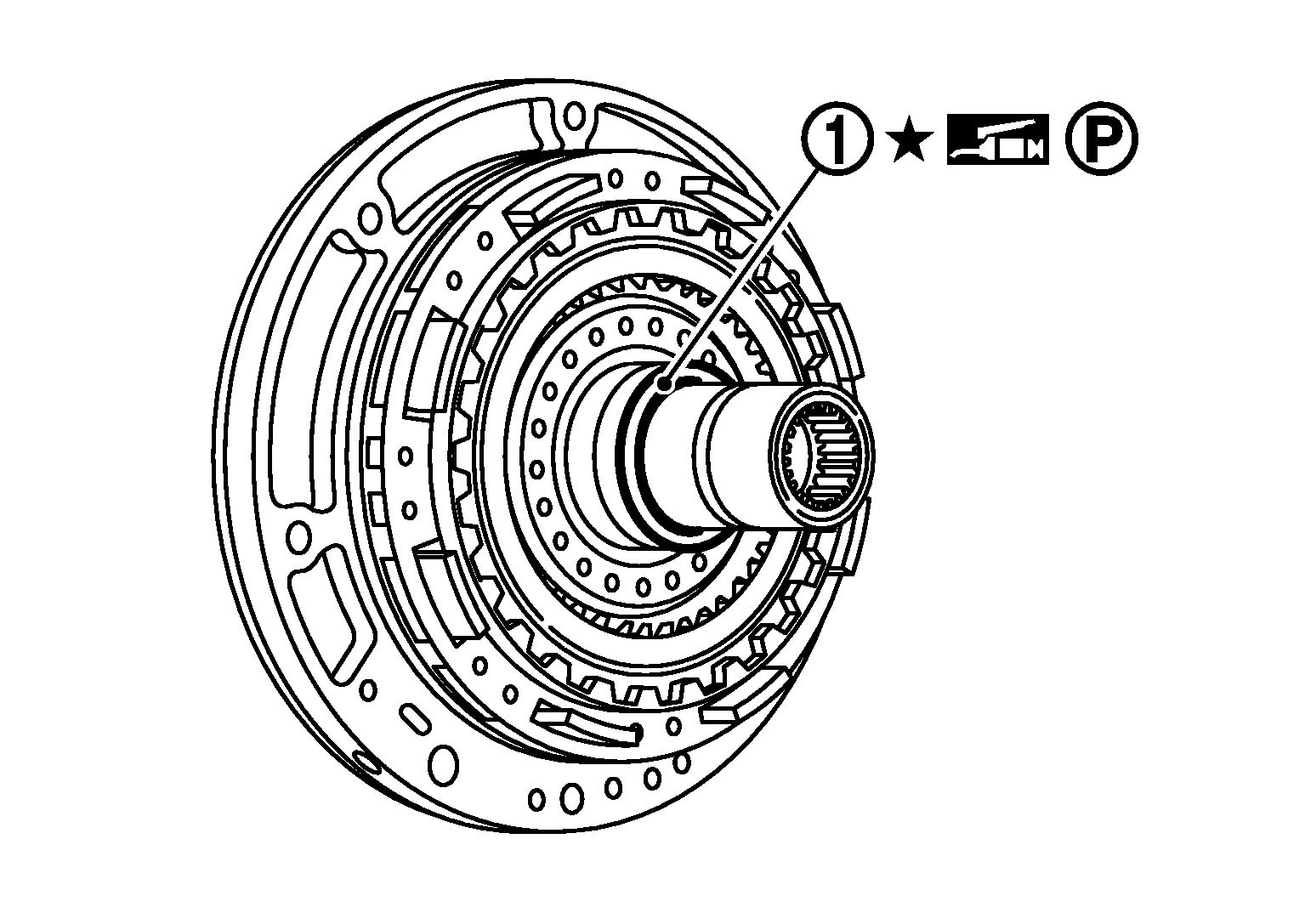

  54. Install bearing race SYMBOL to oil pump assembly.
    GNSJPDIA1111Z-111Courtesy of NISSAN NORTH AMERICA, INC.

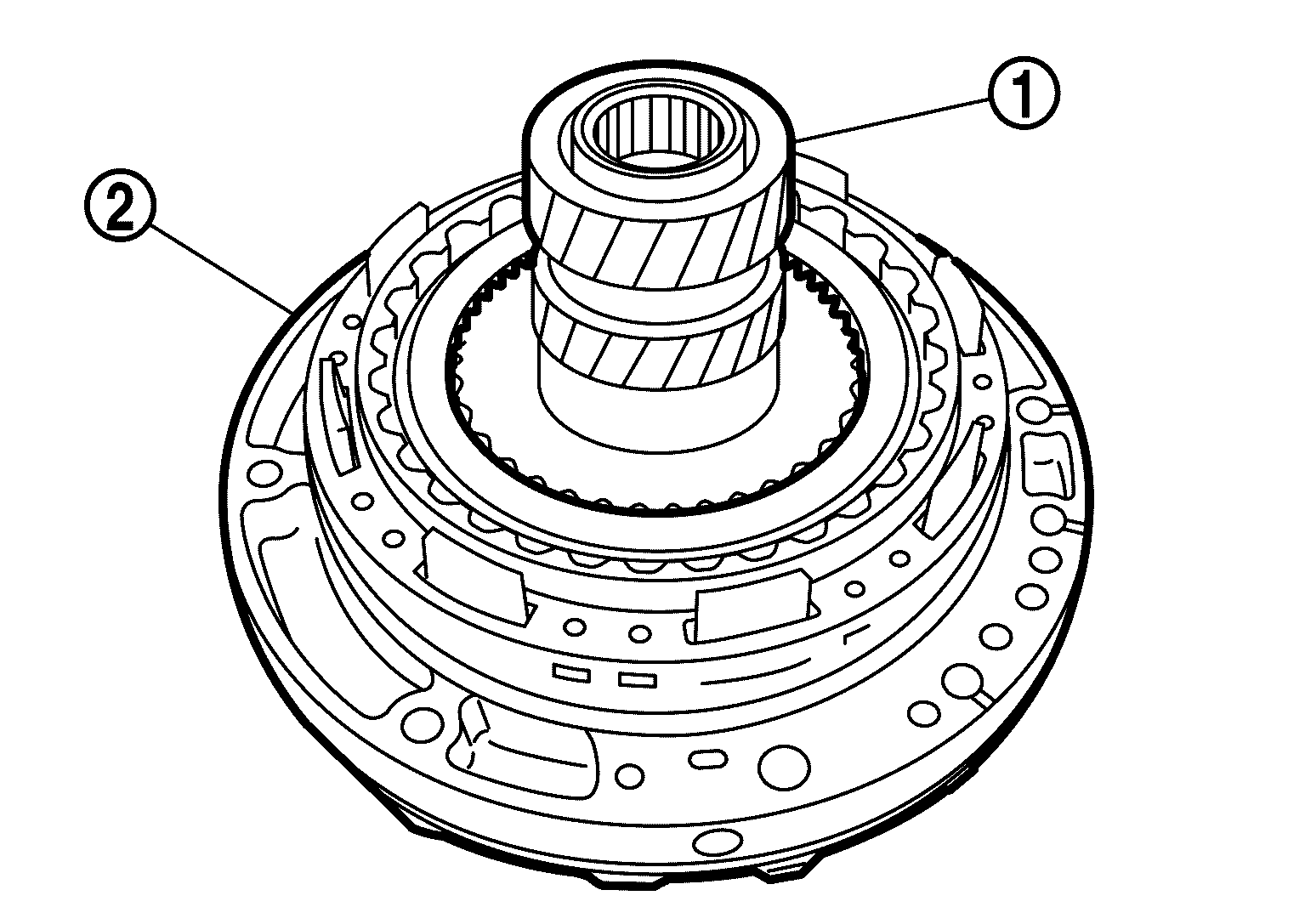

  55. Install under drive sun gear (with needle bearing) SYMBOL to oil pump assembly SYMBOL .
    GNSJSDIA1712Z-712Courtesy of NISSAN NORTH AMERICA, INC.

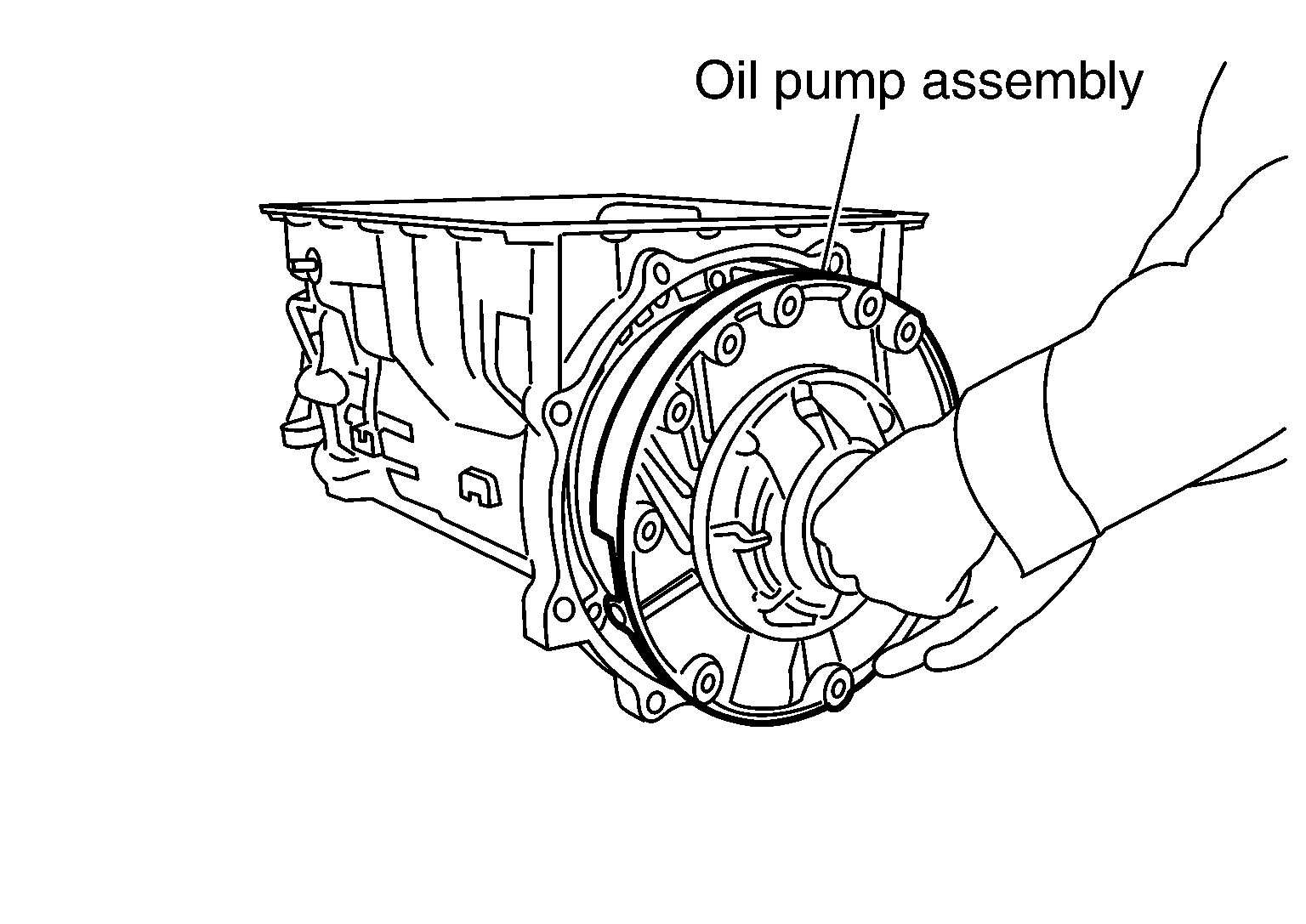

  56. Install oil pump assembly (with under drive sun gear) to transmission case.
    G04075983Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Apply ATF to oil pump bearing.

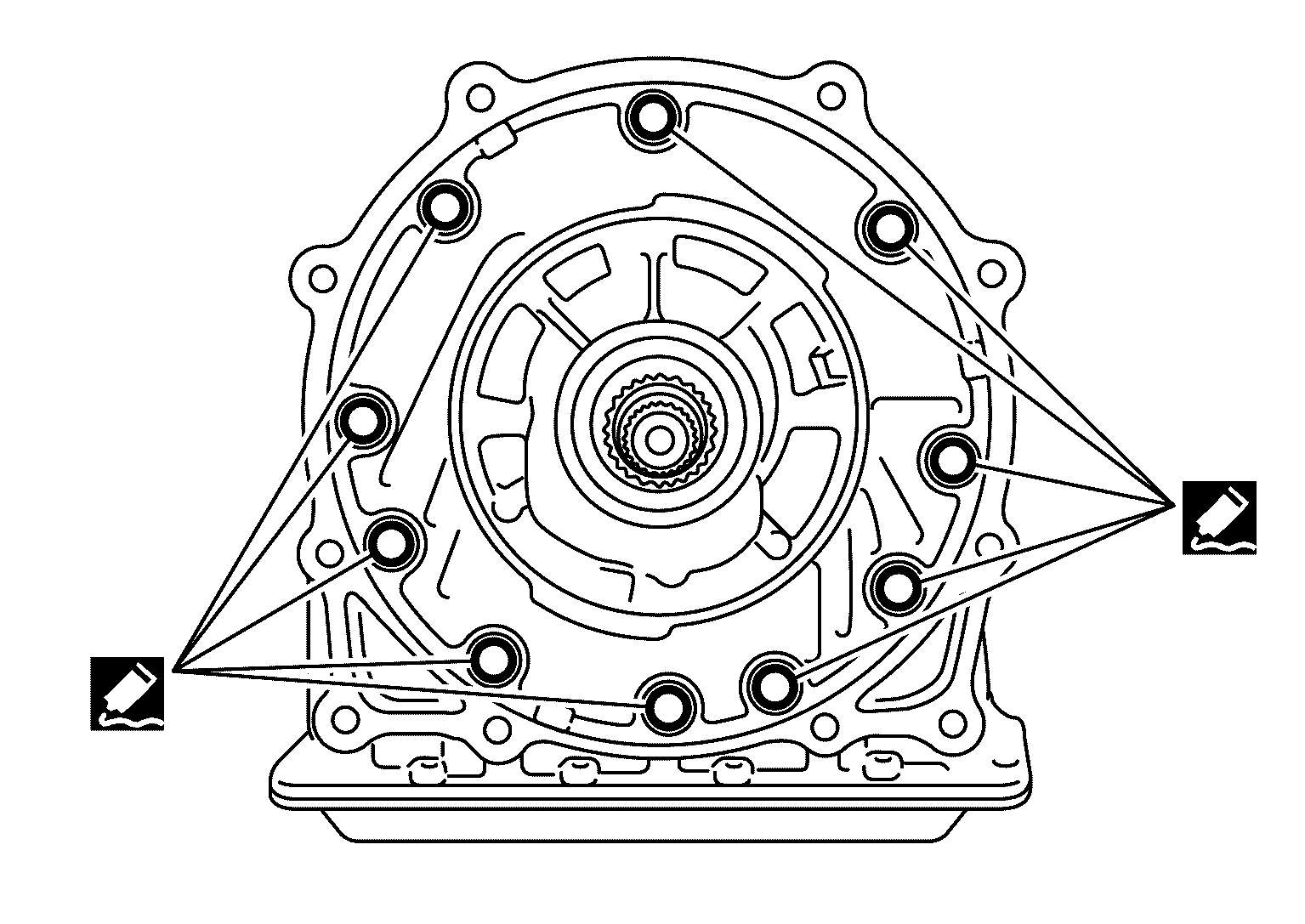

  57. Apply recommended sealant to oil pump assembly as shown in the figure.
    GNSJSDIA1720Z-720Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Genuine RTV silicone sealant or equivalent. Refer to Recommended Chemical Products and Sealants .
    CAUTION: Completely remove all moisture, oil and old sealant, etc. from the oil pump mounting bolts and oil pump mounting bolt mounting surfaces.

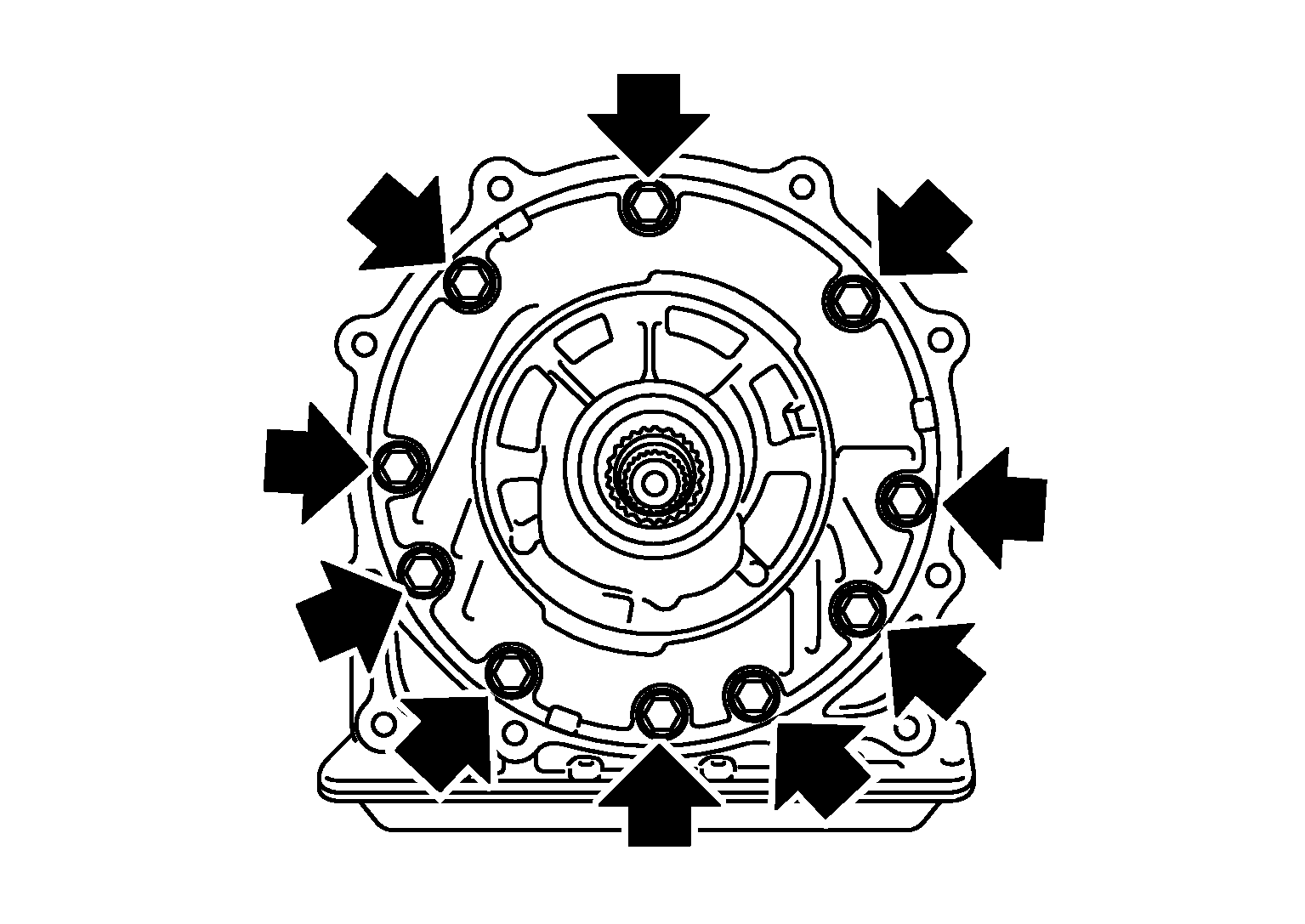

  58. Tighten oil pump bolts (SYMBOL ) to the specified torque.
    GNSJPDIA1108Z-108Courtesy of NISSAN NORTH AMERICA, INC.

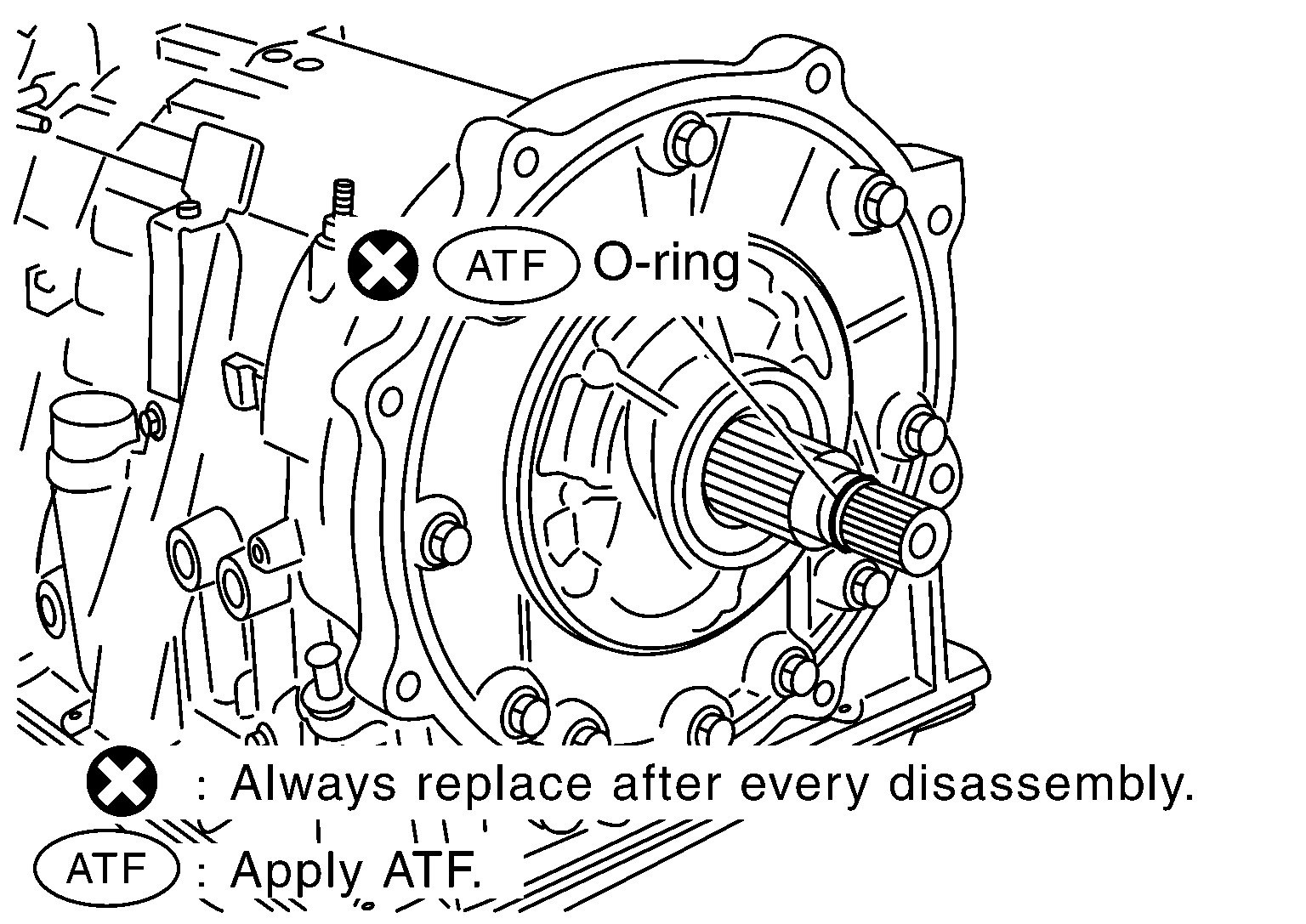

  59. Install O-ring to input clutch assembly.
    G04075768Courtesy of NISSAN NORTH AMERICA, INC.

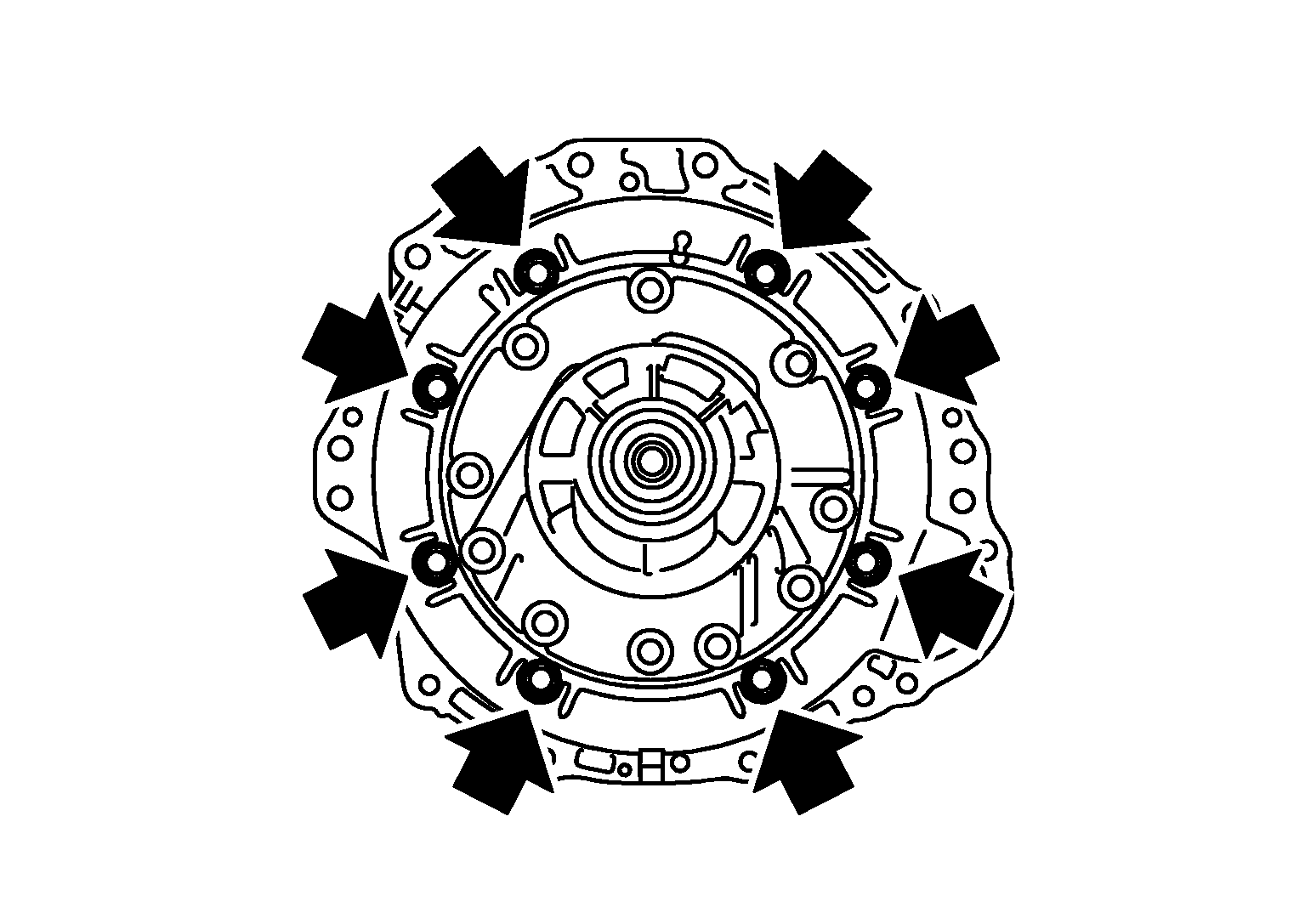

  60. Install converter housing to transmission case, and tighten converter housing bolts (SYMBOL ) to the specified torque.
    GNSJSDIA1913Z-913Courtesy of NISSAN NORTH AMERICA, INC.

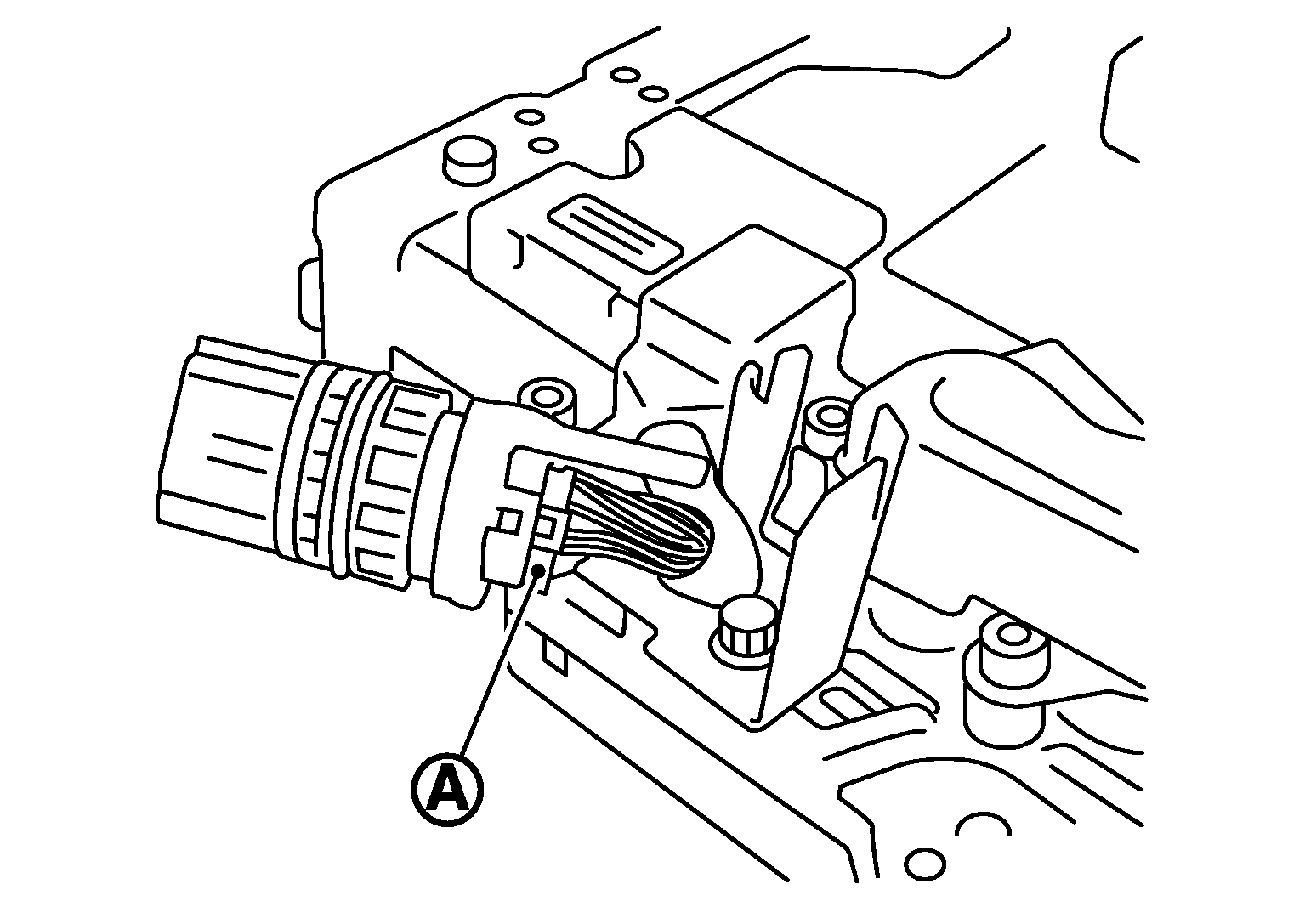

  61. Connect TCM connector SYMBOL to joint connector.
    GNSJSDIA1813Z-813Courtesy of NISSAN NORTH AMERICA, INC.
  62. Install joint connector SYMBOL to the control valve & TCM.
    GNSJSDIA1719Z-719Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Apply ATF to O-ring of joint connector.

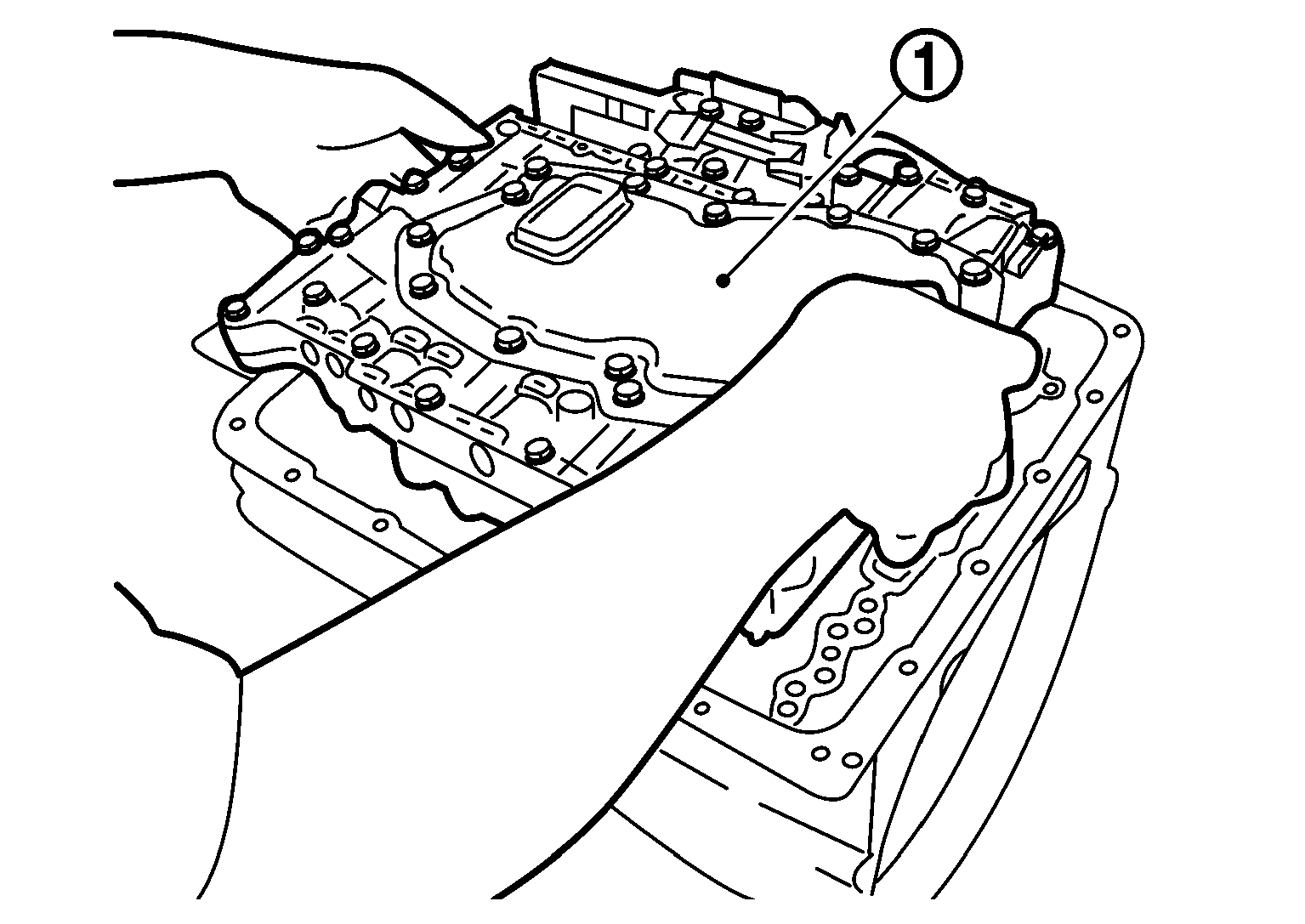

  63. Install the control valve & TCM SYMBOL to transmission case.
    GNSJSDIA1823Z-823Courtesy of NISSAN NORTH AMERICA, INC.

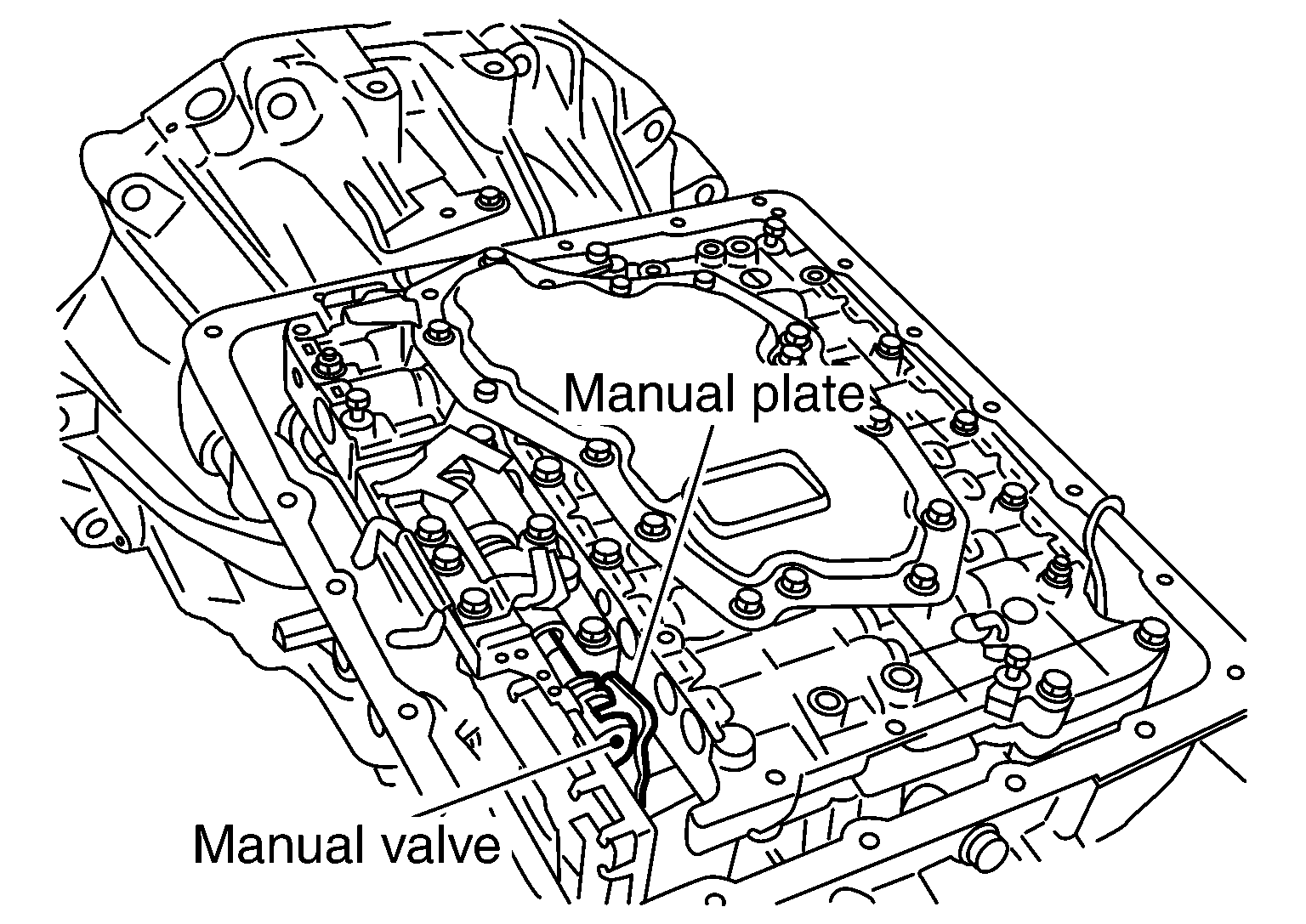

    CAUTION:

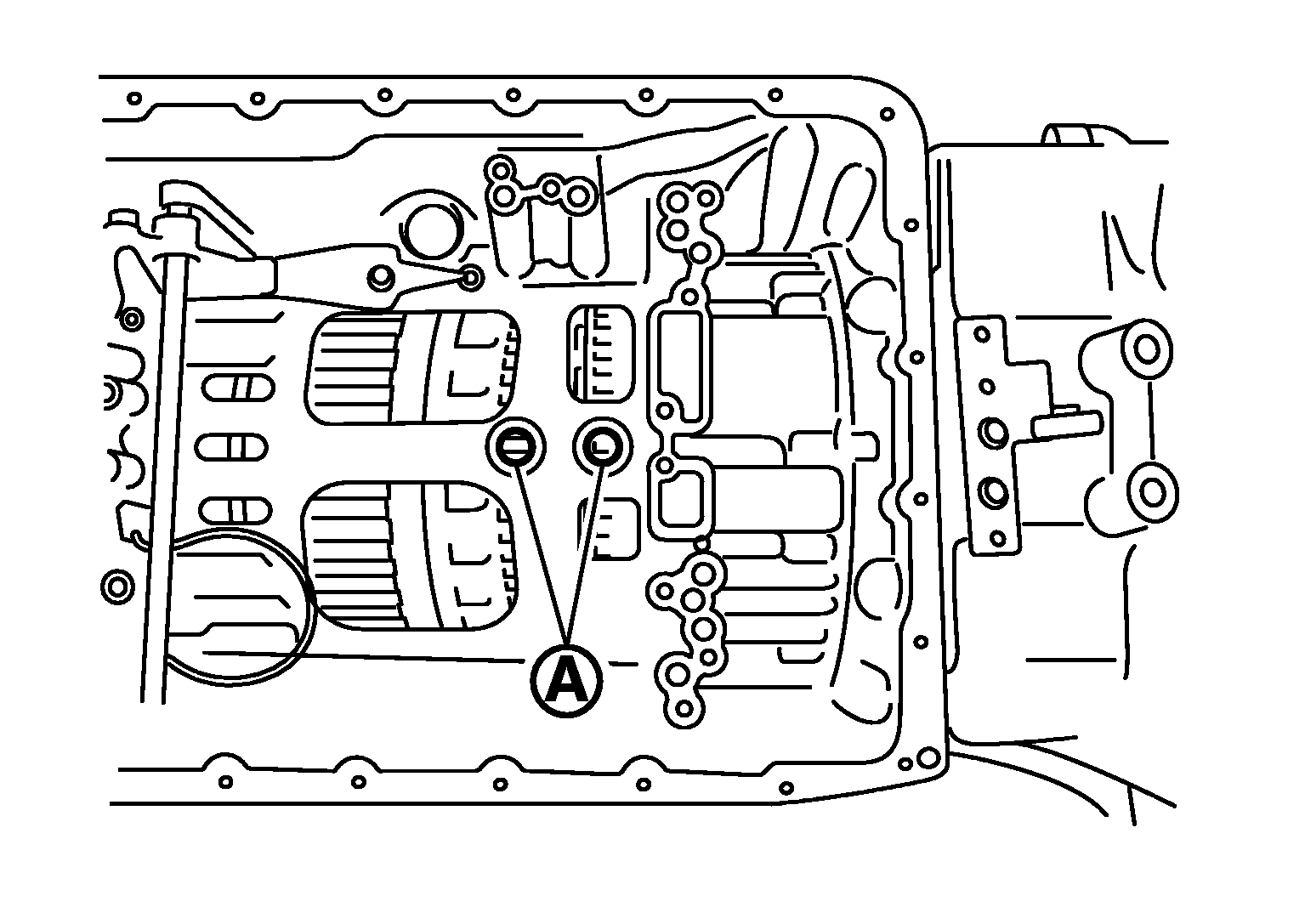

    • Make sure that input speed sensor securely installs input speed sensor holes SYMBOL .
      GNSJPDIA1106Z-106Courtesy of NISSAN NORTH AMERICA, INC.
    • Hang down output speed sensor harness toward outside so as not to disturb installation of the control valve & TCM.
    • Adjust joint connector of the control valve & TCM to terminal hole of transmission case.
    • Assemble it so that manual valve cutout is engaged with manual plate projection.
      G04075996Courtesy of NISSAN NORTH AMERICA, INC.

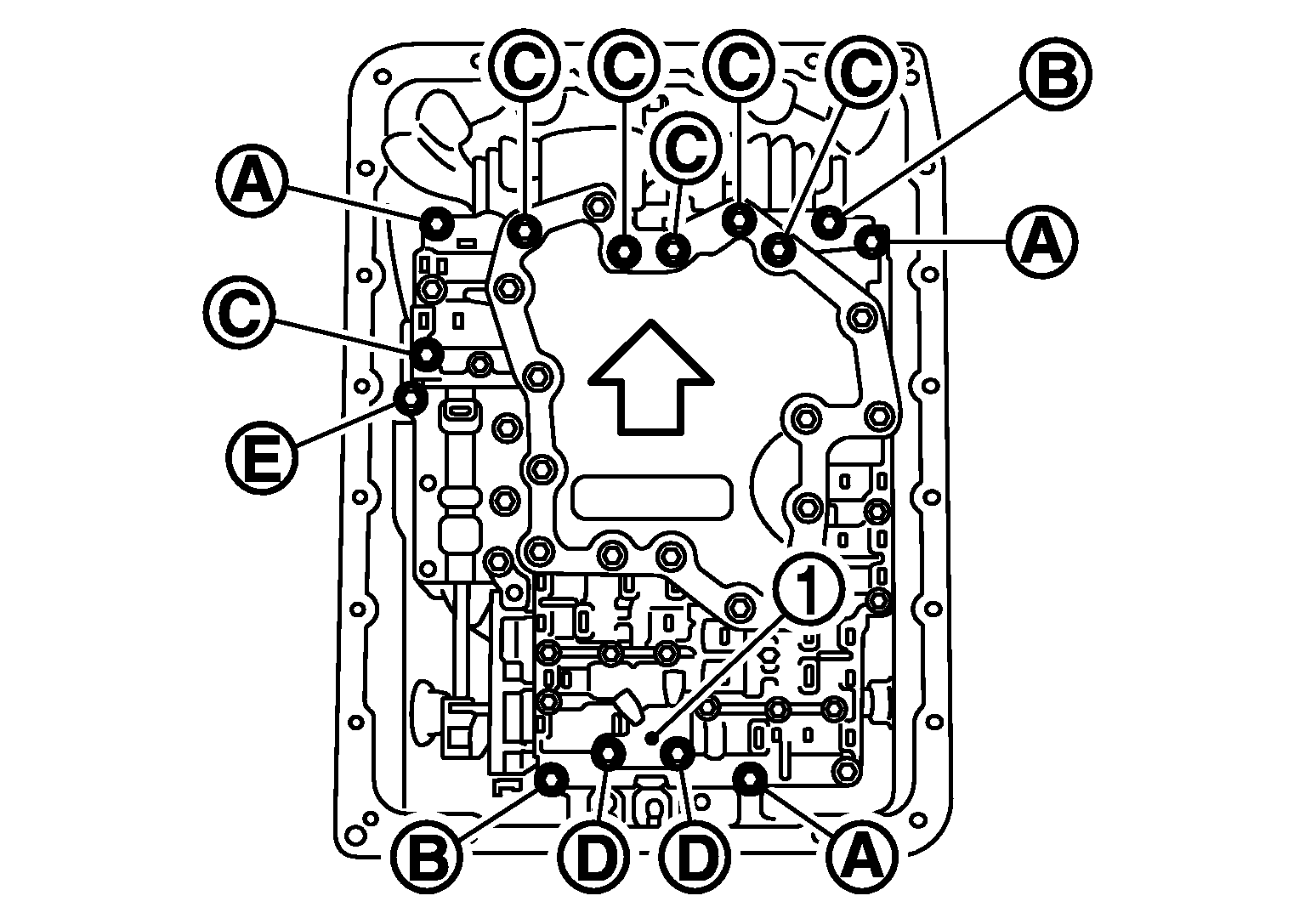

  64. Install bolts and clip SYMBOL to the control valve & TCM. Tighten bolt SYMBOL to the specified torque before tightening the other than bolts.
    GNSJPDIA1105Z-105Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

    Bolt symbol

    Length mm (in)

    Number of bolts

    SYMBOL

    43 (1.69)

    3

    SYMBOL

    40 (1.57)

    2

    SYMBOL

    54 (2.13)

    6

    SYMBOL

    50 (1.97)

    2

    SYMBOL *

    50 (1.97)

    1

    *: Reamer bolt

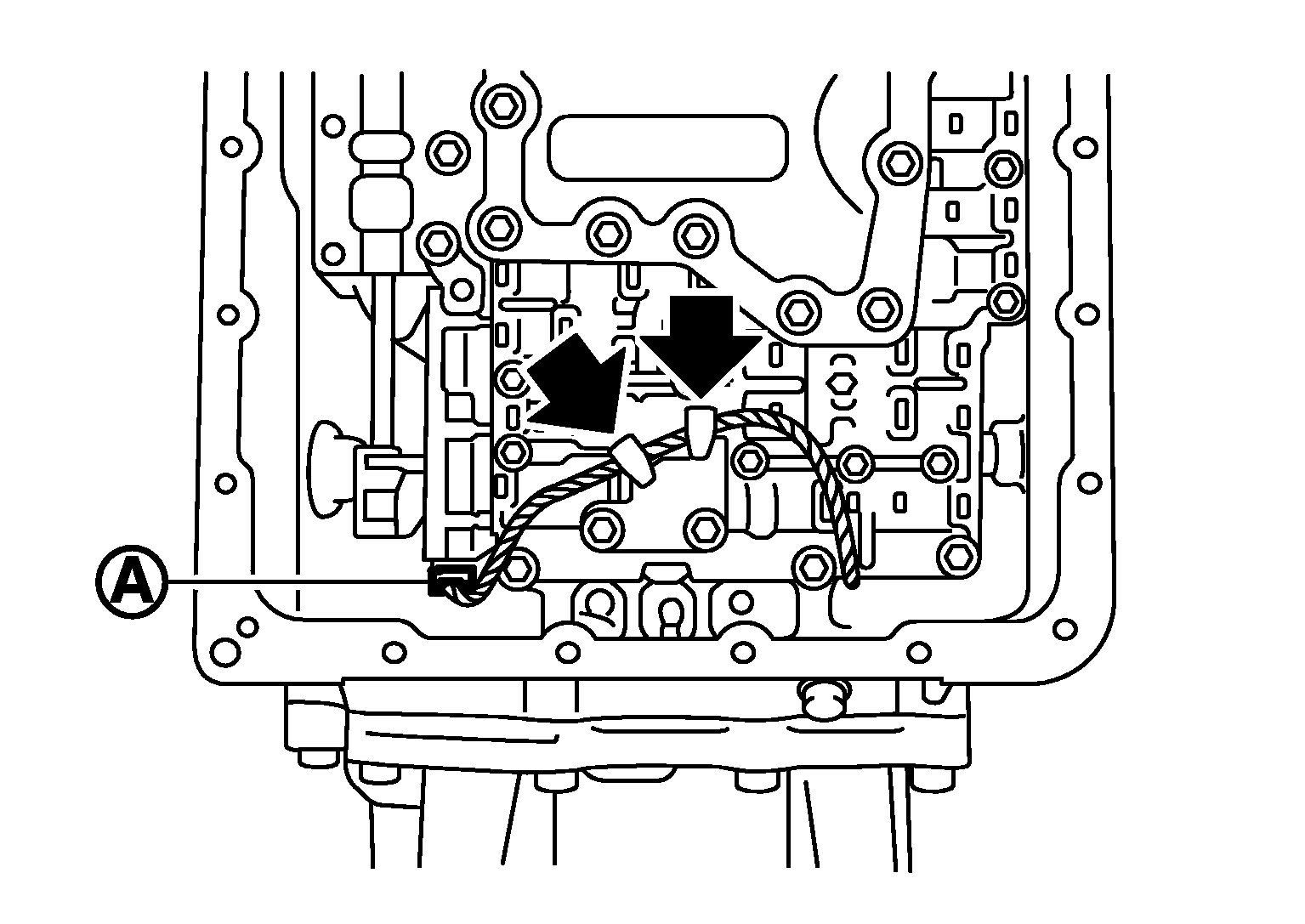

  65. Connect output speed sensor connector (A).
    GNSJPDIA1104Z-104Courtesy of NISSAN NORTH AMERICA, INC.
  66. Engage output speed sensor harness with terminal clips (SYMBOL ).

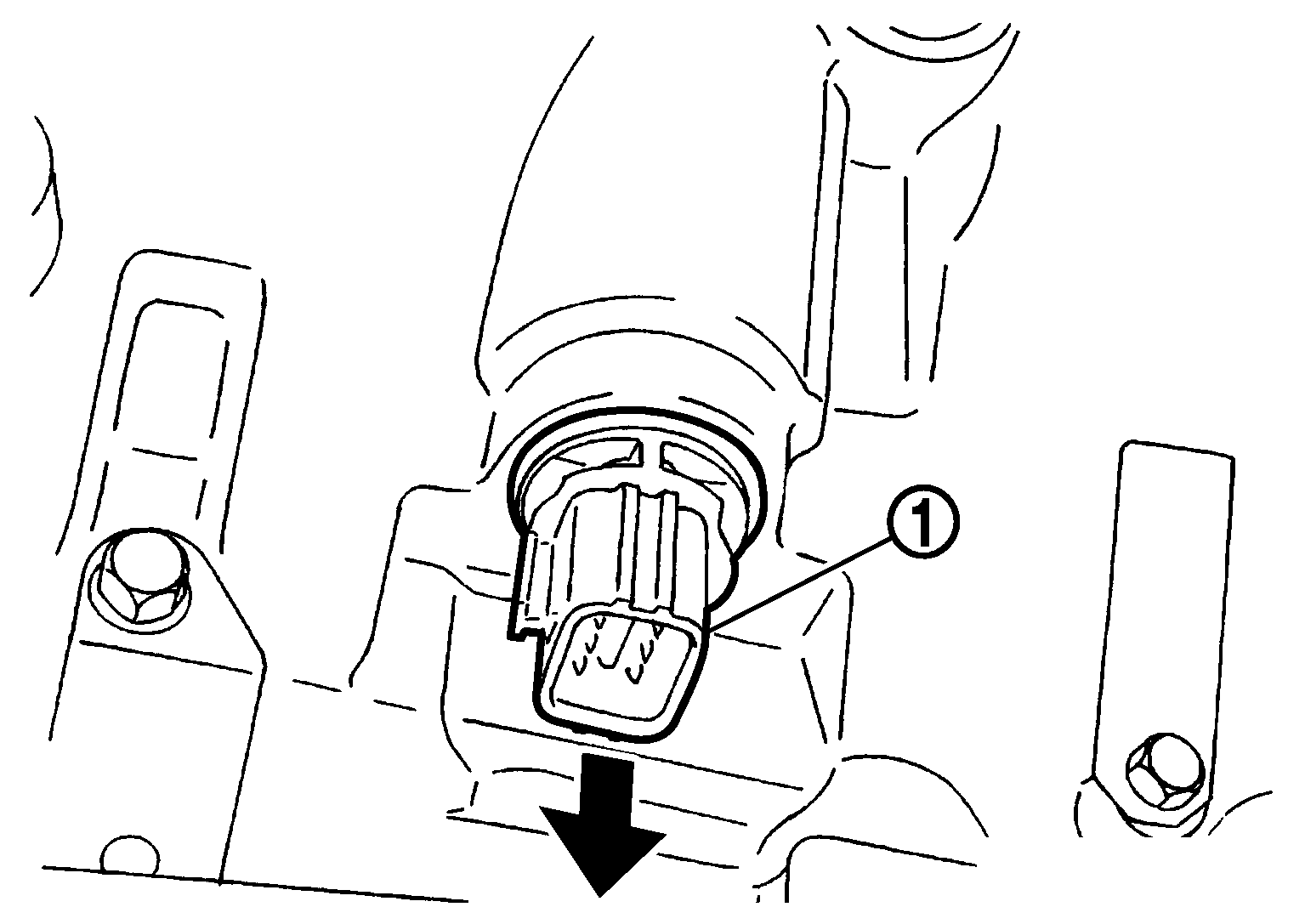

  67. Pull down joint connector SYMBOL .
    GNSJSDIA1764Z-764Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to damage connector.

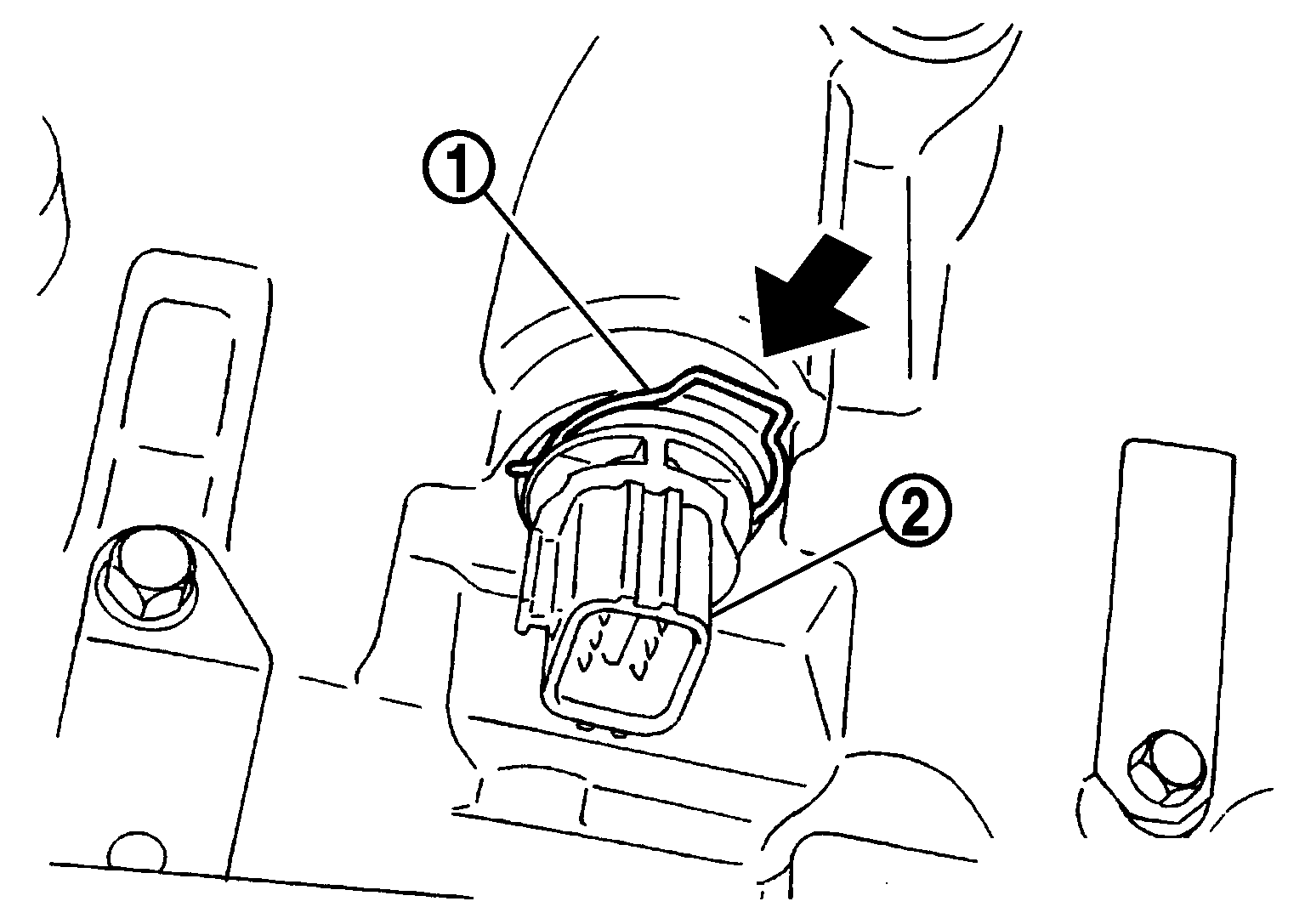

  68. Install snap ring SYMBOL to joint connector SYMBOL .
    GNSJSDIA1765Z-765Courtesy of NISSAN NORTH AMERICA, INC.

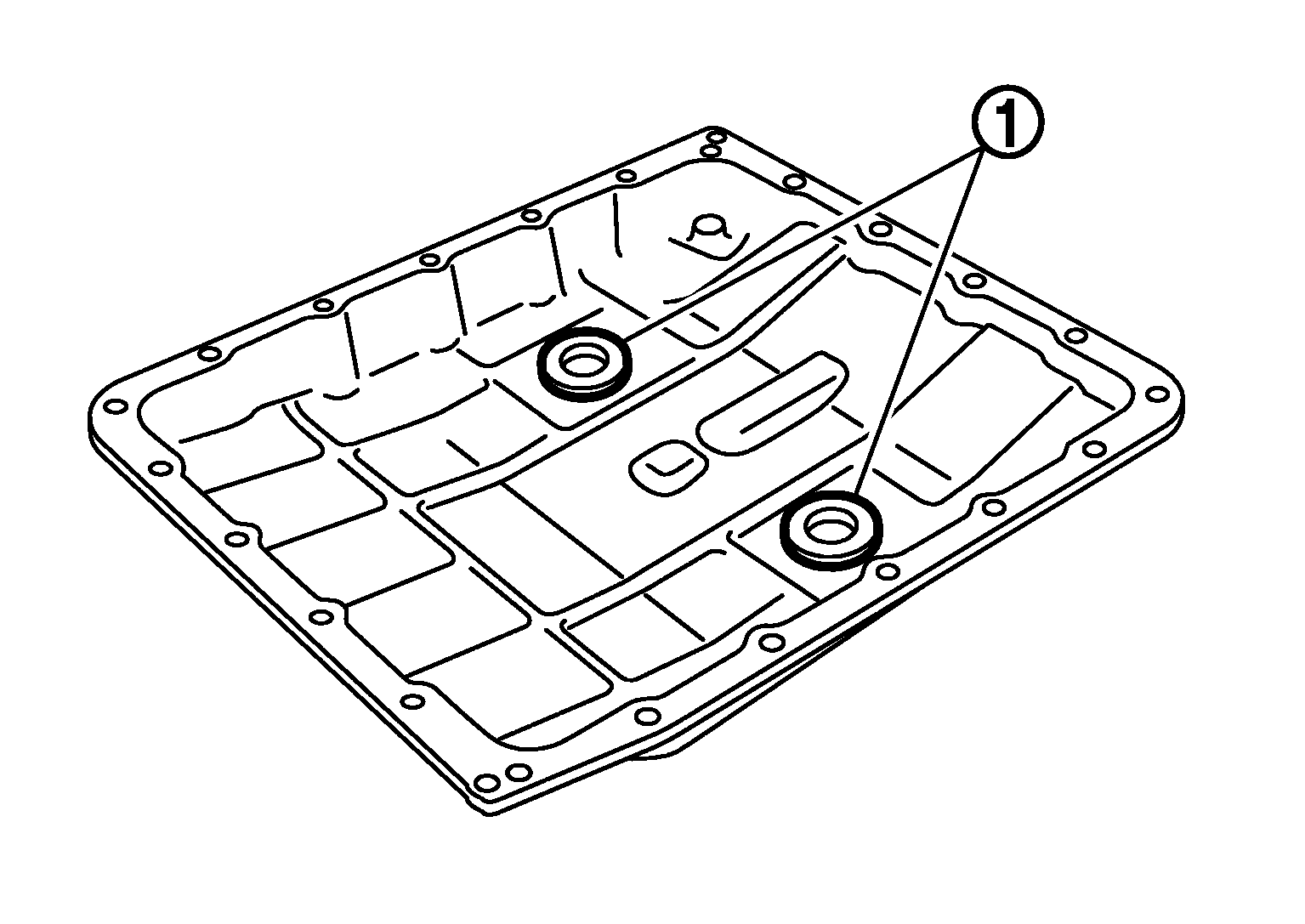

  69. Install magnets SYMBOL to oil pan.
    GNSJPDIA09Z-009Courtesy of NISSAN NORTH AMERICA, INC.
  70. Install oil pan gasket to transmission case.
    CAUTION:
    • Never reuse oil pan gasket.
    • Install it in the direction to align hole positions.
    • Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.

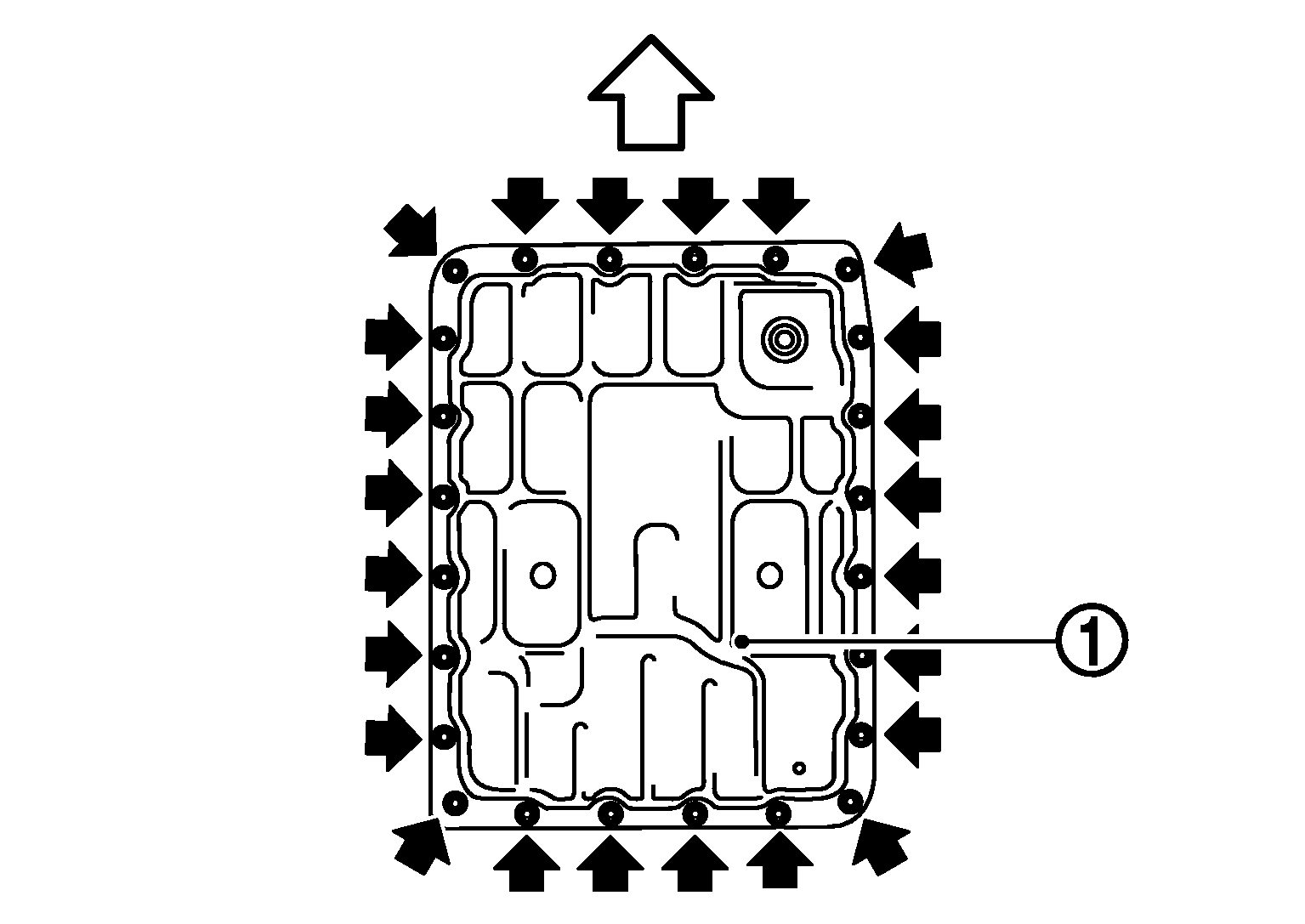

  71. Install oil pan SYMBOL to transmission case.
    GNSJPDIA1073Z-073Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

    SYMBOL

    : Oil pan mounting bolt
    CAUTION:
    • Be careful not to pinch harnesses.
    • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.

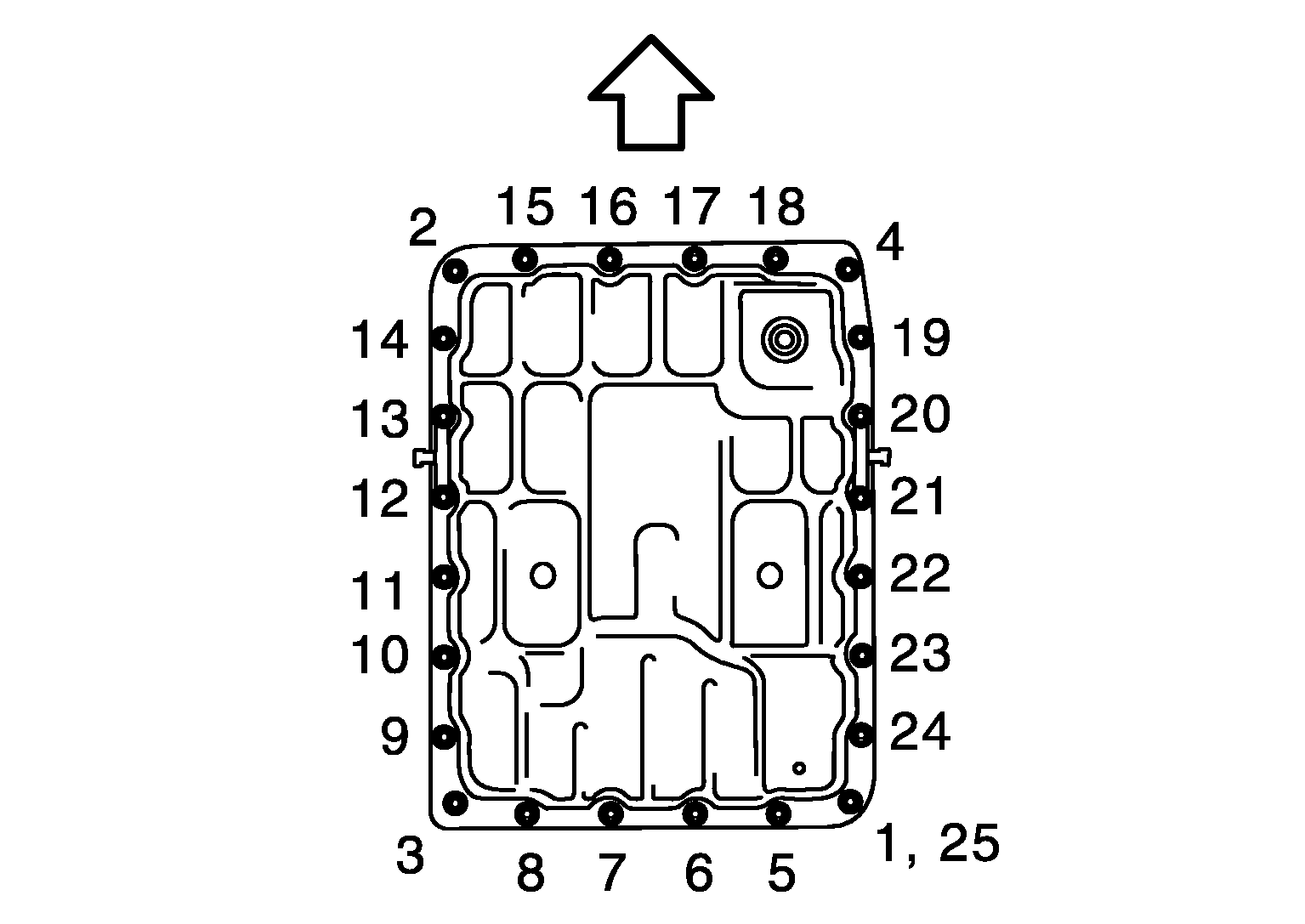

  72. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten oil pan mounting bolts to the specified torque.
    GNSJSDIA0794Z-794Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
    CAUTION: Never reuse oil pan mounting bolts.
  73. Install drain plug to oil pan. Tighten drain plug to the specified torque.
    CAUTION: Never reuse drain plug gasket.

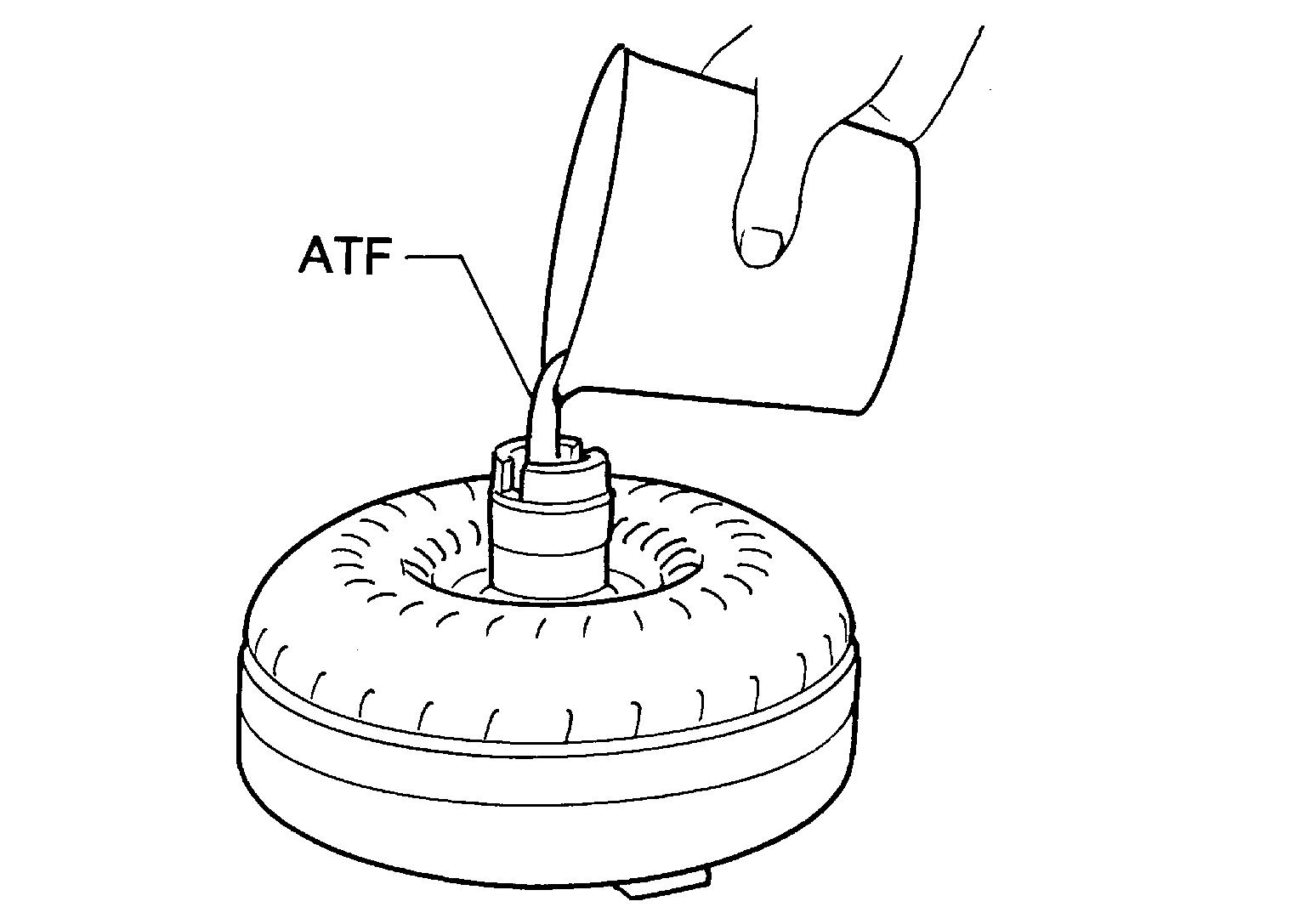

  74. Pour ATF into torque converter.
    G04076008Courtesy of NISSAN NORTH AMERICA, INC.
    • Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of ATF is required for a new torque converter.
    • When reusing old torque converter, add the same amount of ATF as was drained.
  75. Install torque converter while aligning notches of torque converter with notches of oil pump.
    G04075765Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Install torque converter while rotating it.

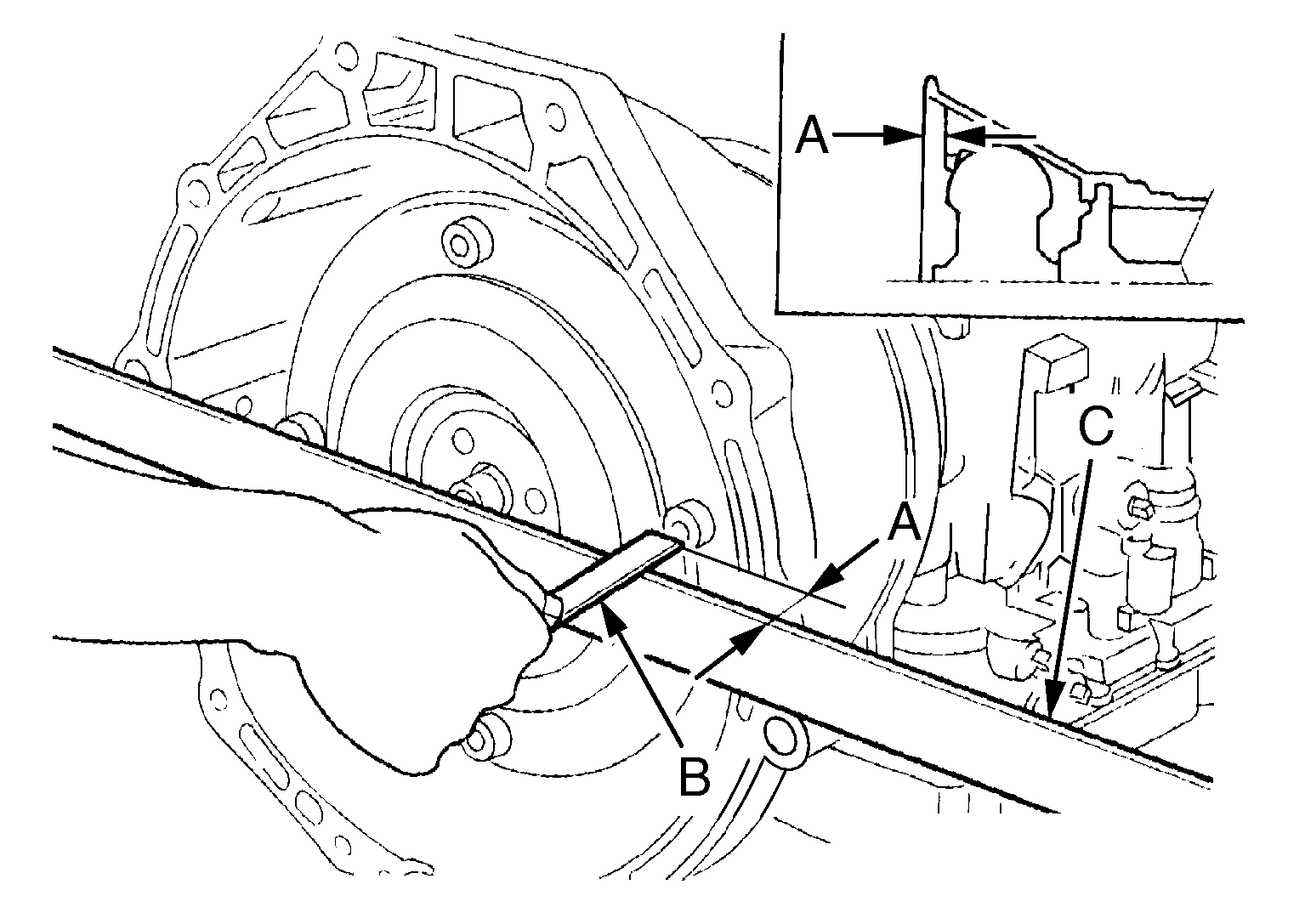

  76. Measure dimension "A" to make sure that torque converter is in proper position.
    GNSJPDIA0042Z-042Courtesy of NISSAN NORTH AMERICA, INC.

    (B)

    : Scale

    (C)

    : Straightedge

    Dimension (A)

    : Refer to Torque Converter  or Torque Converter .
scientia non olet · About LEMON Manuals
