Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trunk side finisher LH. Refer to Removal and Installation .

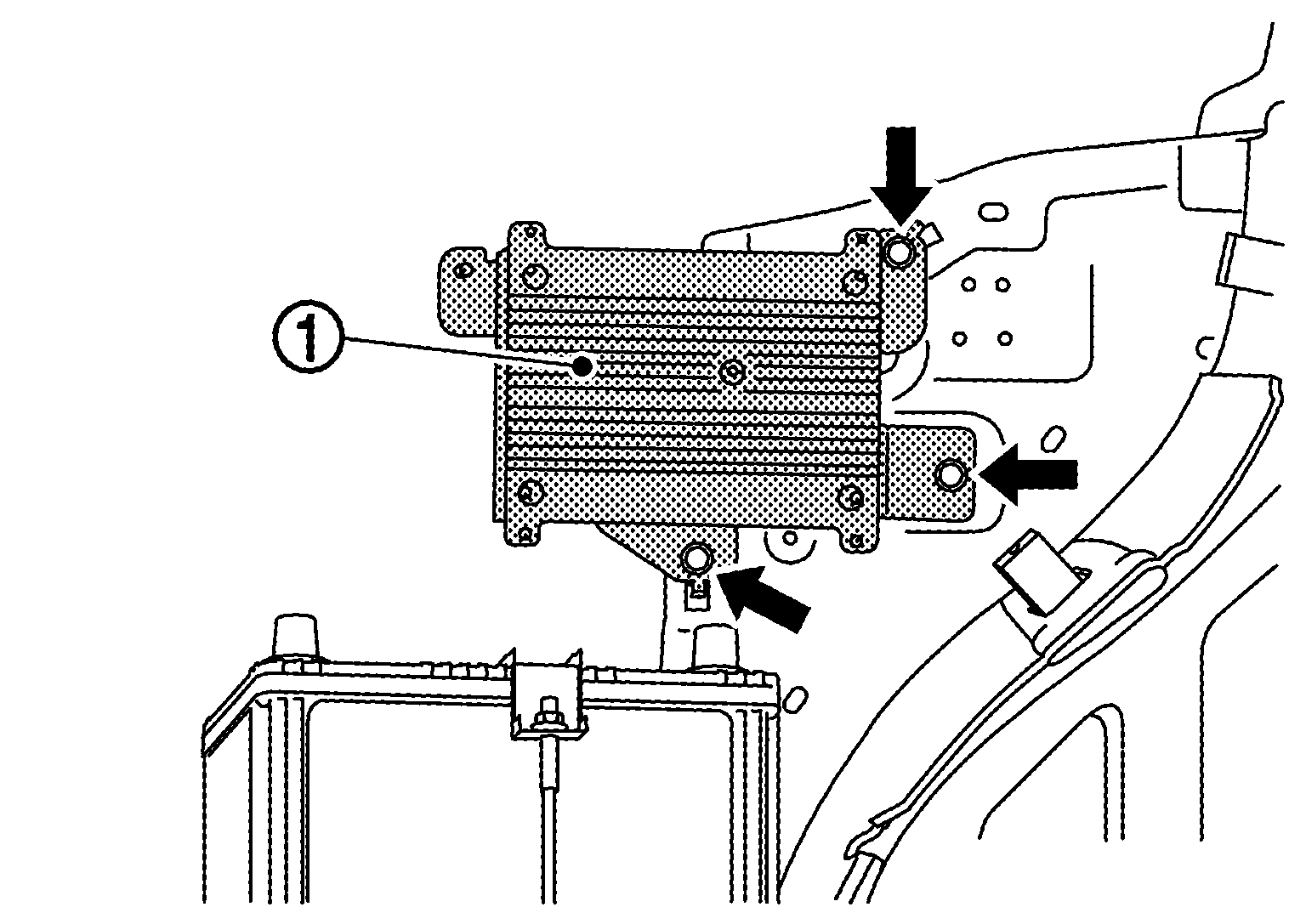

  2. Remove bolts (SYMBOL ) and remove sub electric oil pump inverter SYMBOL from the vehicle.
    GNSJSDIB0205Z-205Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never drop the sub electric oil pump inverter.
  3. Remove sub electric oil pump inverter connector.
