Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

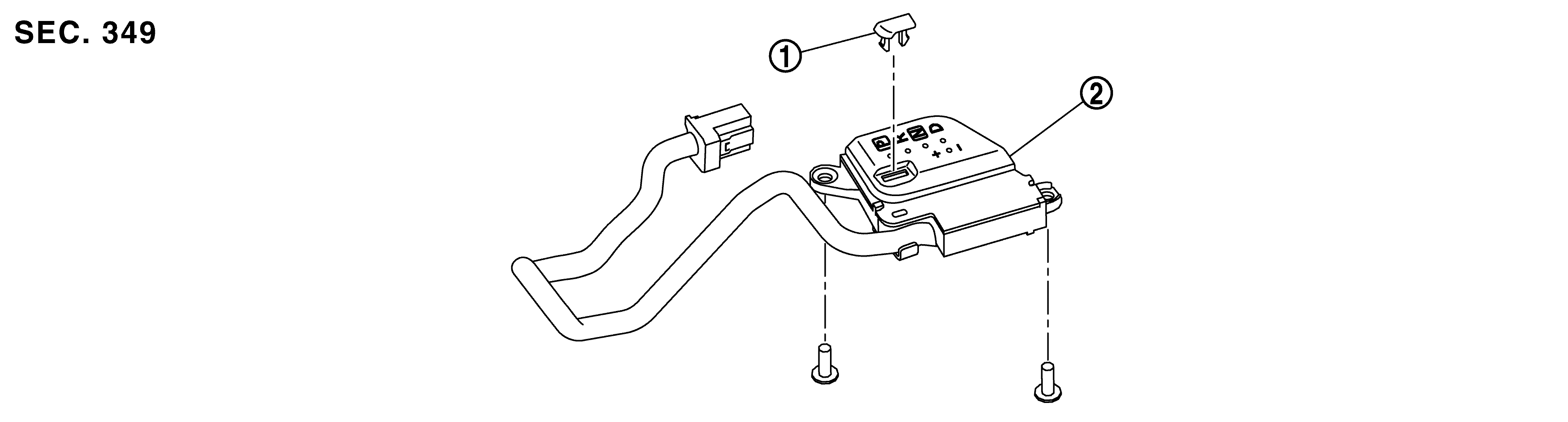

GNSJSDIA4501Z-501Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Shift lock cover

SYMBOL

Selector lever position indicator
