Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transfer assembly from transmission assembly. Refer to Removal and Installation .

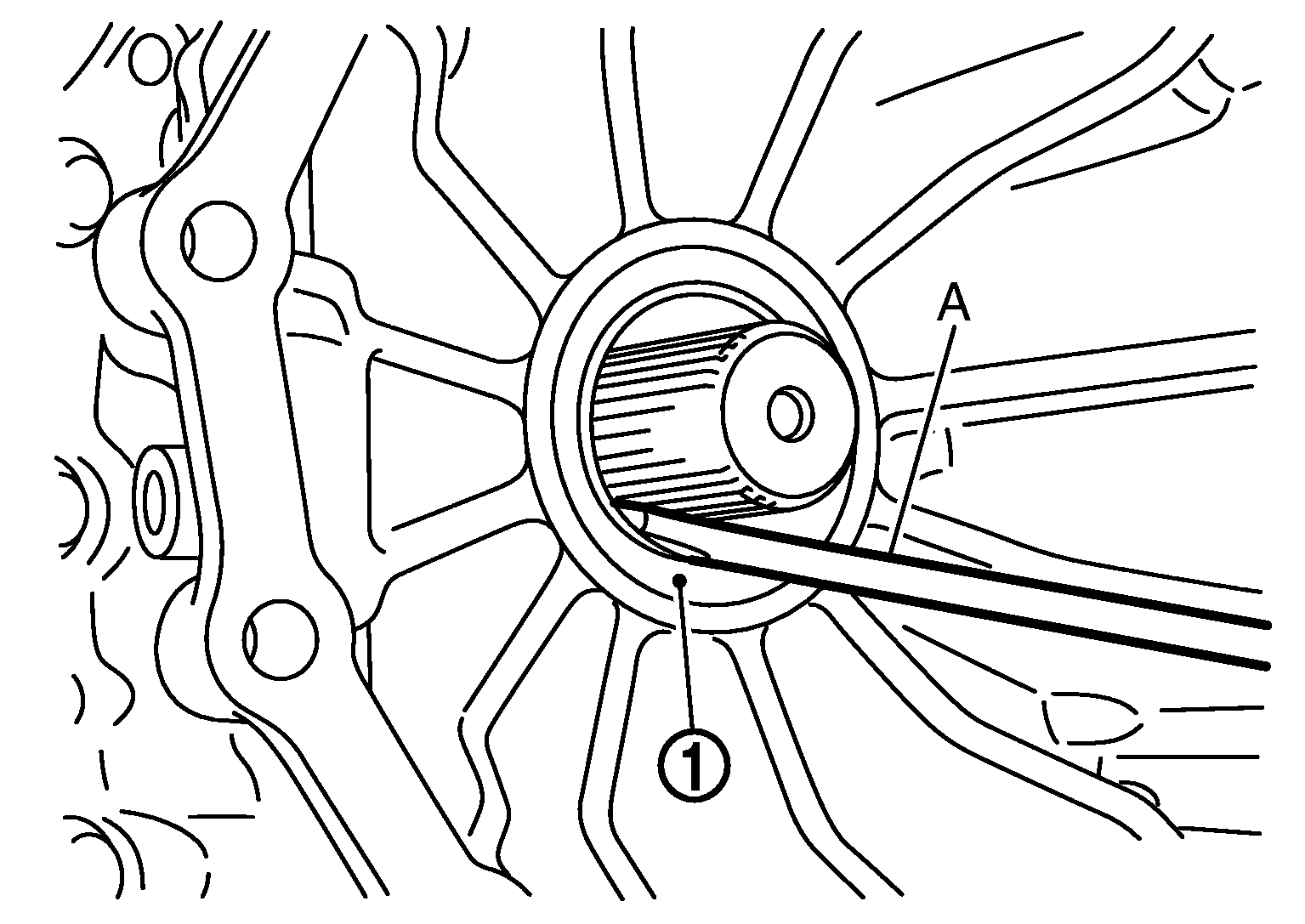

  2. Remove rear oil seal SYMBOL using a flat-bladed screwdriver (A).
    GNSJPDIA0038Z-038Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to scratch adapter case assembly.
