Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and install in the reverse order of removal.

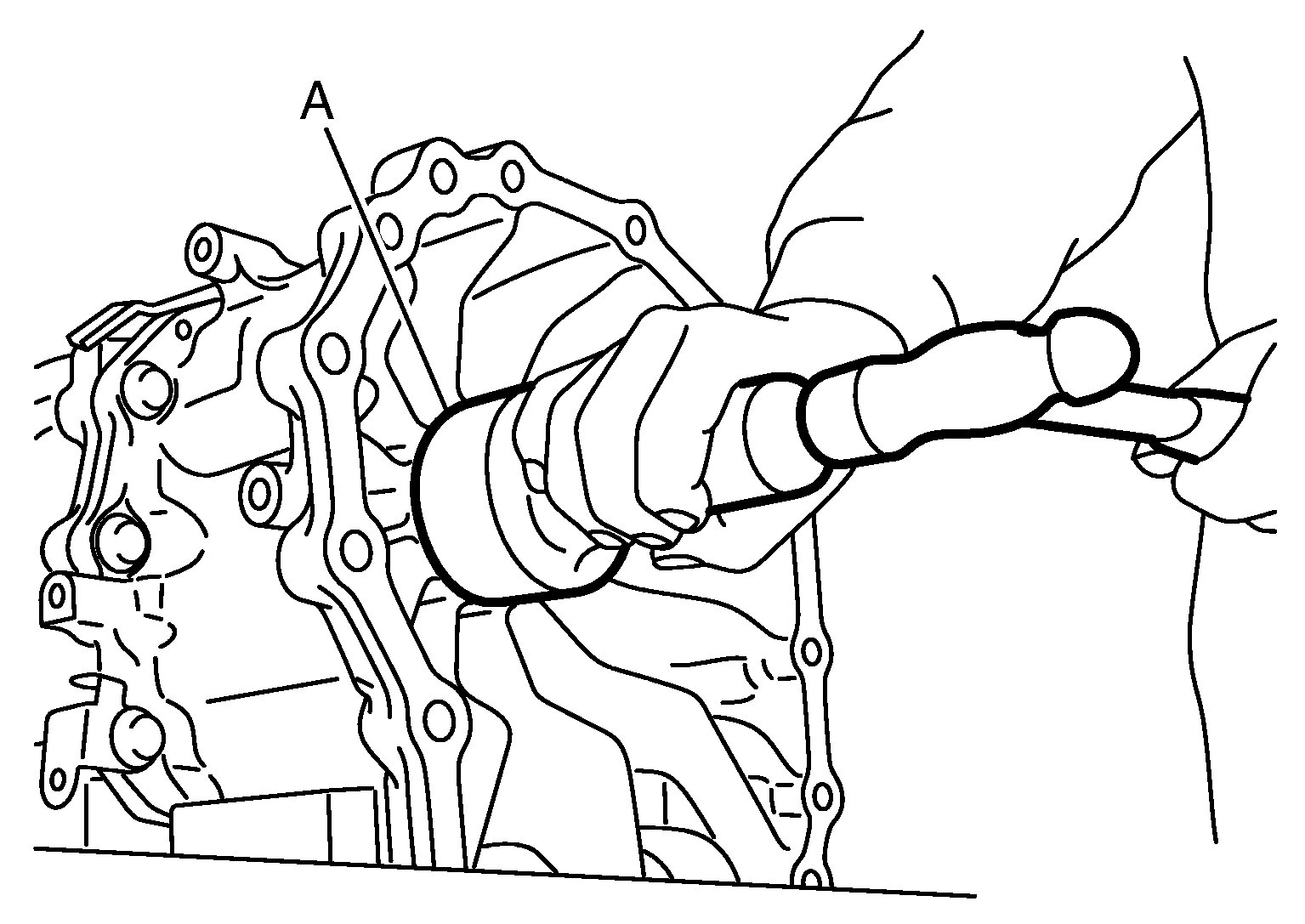

As shown in the figure, use the drift [64 mm (2.52 in) dia. commercial service tool] (A) to drive rear oil seal into adapter case assembly until it is flush.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Never reuse rear oil seal.
- Apply ATF to rear oil seal.
