Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

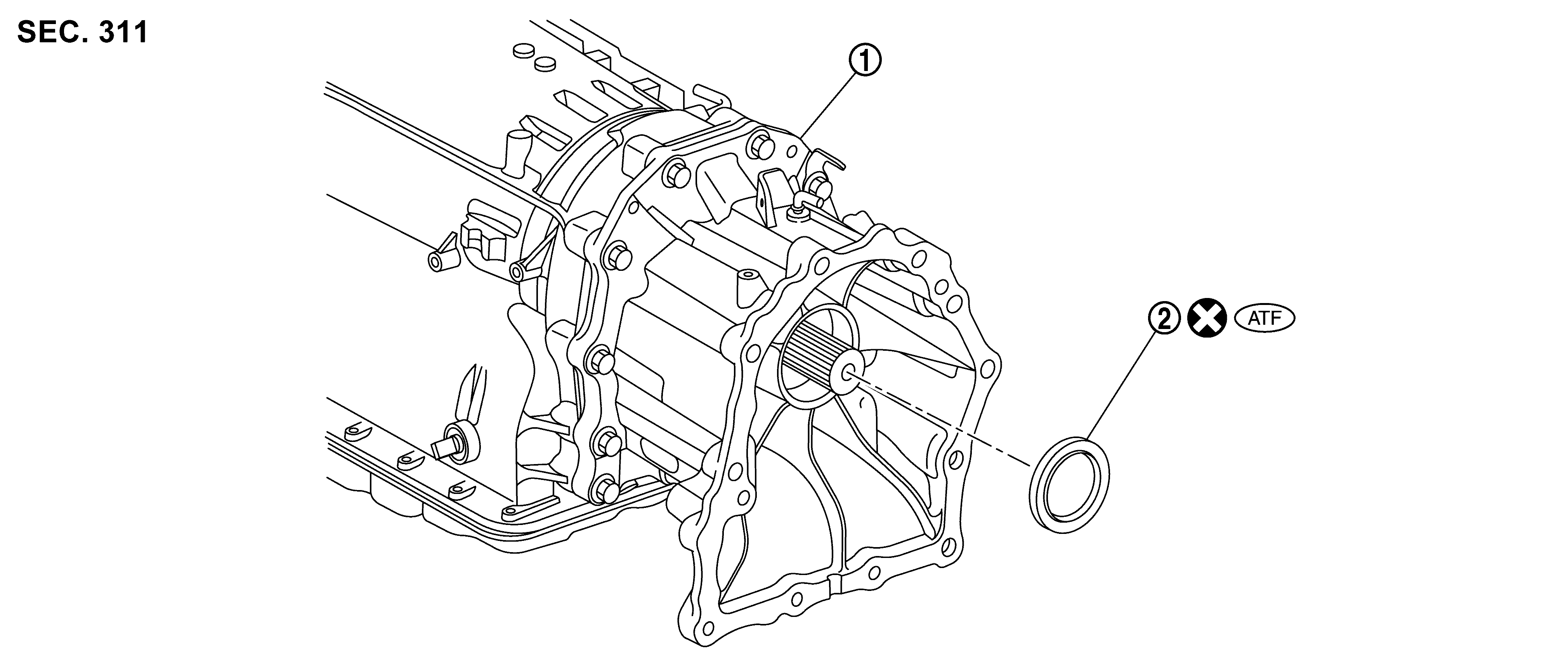

GNSJSDIA9096Z-096Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Transmission assembly

SYMBOL

Rear oil seal

SYMBOL

: Always replace after every disassembly.

SYMBOL

: Apply ATF
