Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

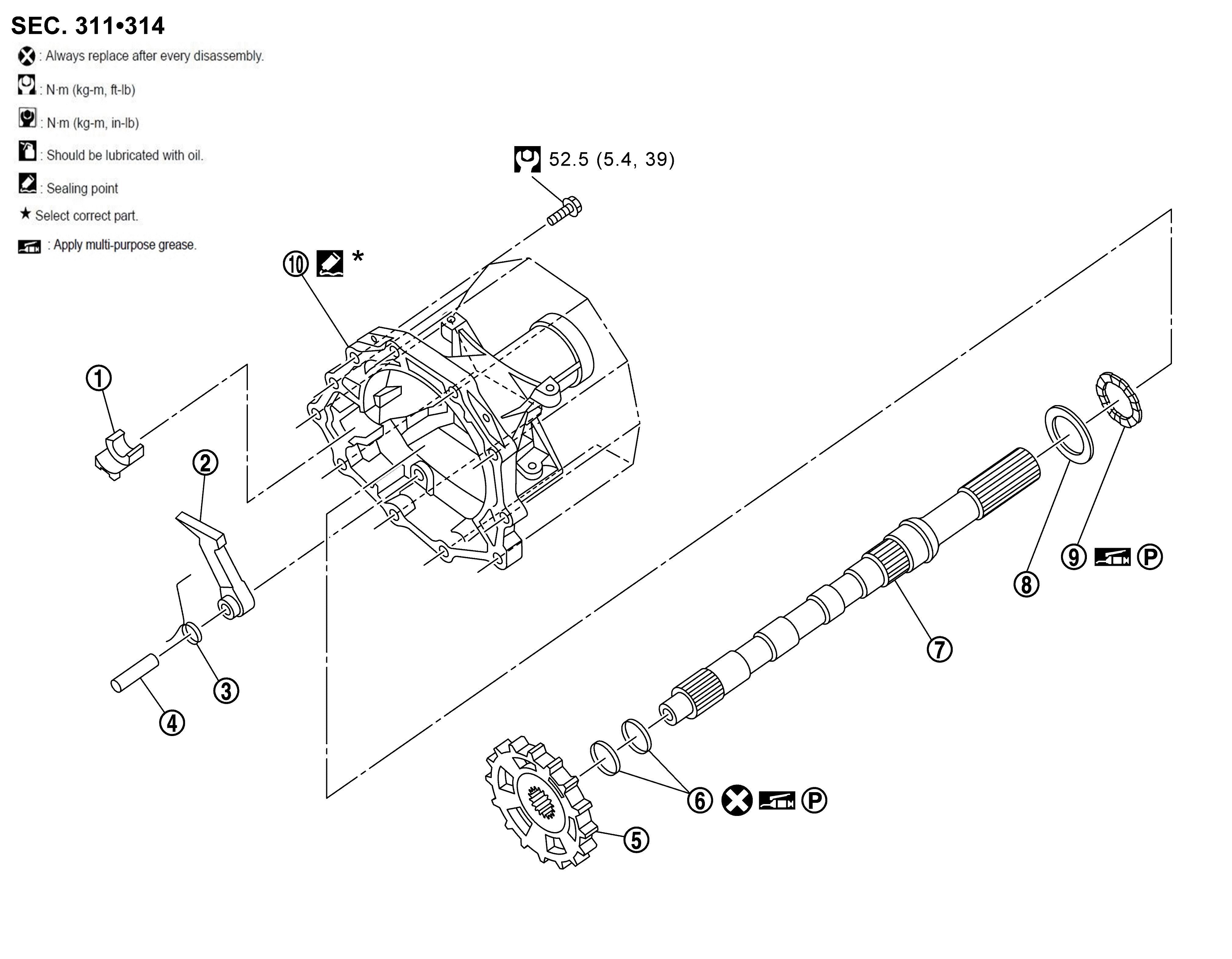

Fig 1: Parking Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Parking actuator support	Parking pawl	Return spring
	Pawl shaft	Parking gear	Seal ring
	Output shaft	Bearing race	Needle bearing
	Rear extension
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)
: Apply petroleum jelly
*: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to Recommended Chemical Products and Sealants .
