Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

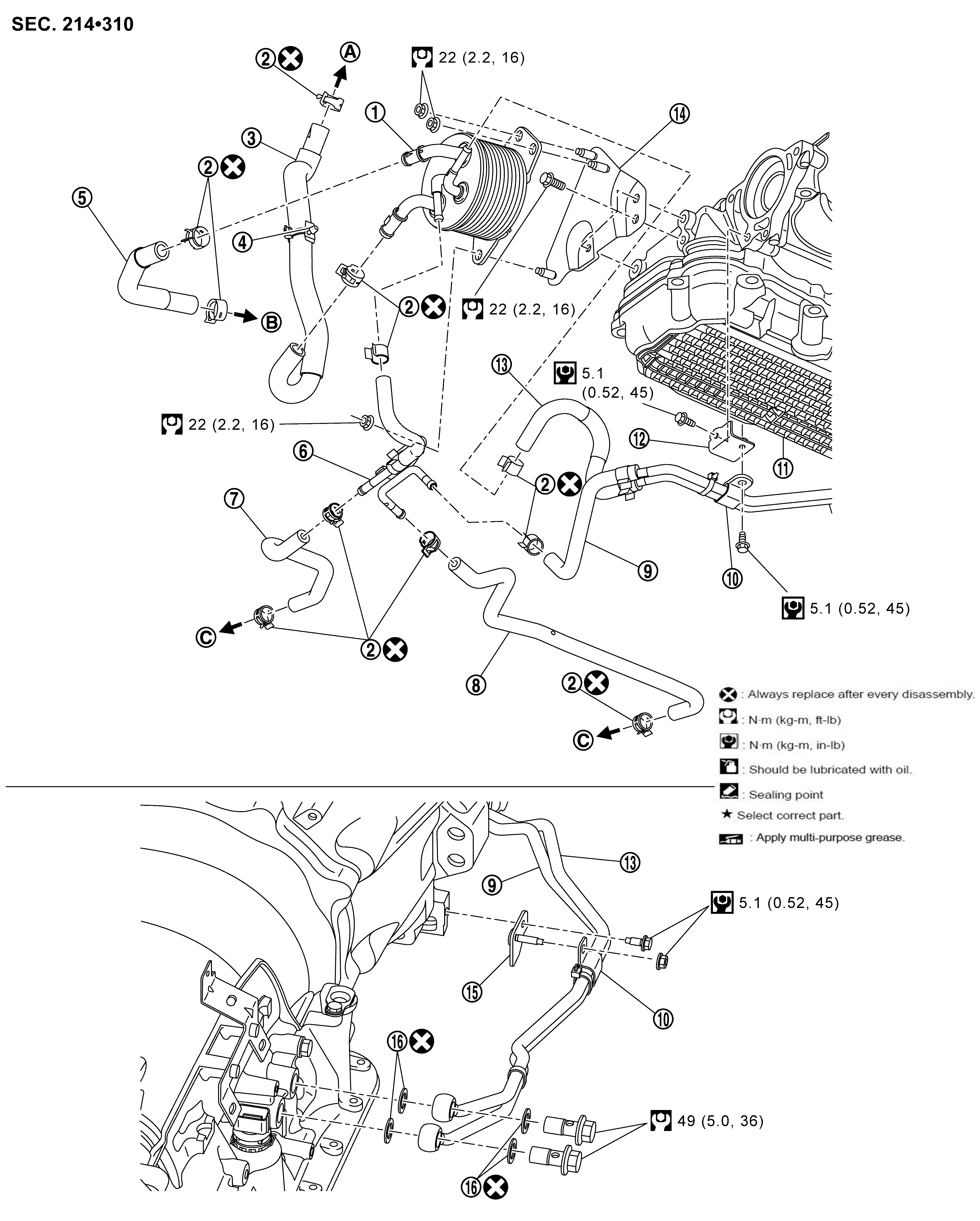

Fig 1: A/T Fluid Warmer Replacement Components With Torque Specifications (2WD Models - Engine Oil Cooler Air Cooling Type)*)

Courtesy of NISSAN NORTH AMERICA, INC.

AT fluid warmer	Hose clamp	Water hose A
Clip	Water hose B	Fluid cooler hose A
Fluid cooler tube A	Fluid cooler hose B	Oil pan lower
Transmission assembly	Clip	Fluid cooler tube B assembly
Fluid cooler tube C assembly	Bracket	Bracket
Copper washer
To Heater tube	To water pipe 2	To Radiator
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)

* : To identify vehicle type, refer to Engine Lubrication System .

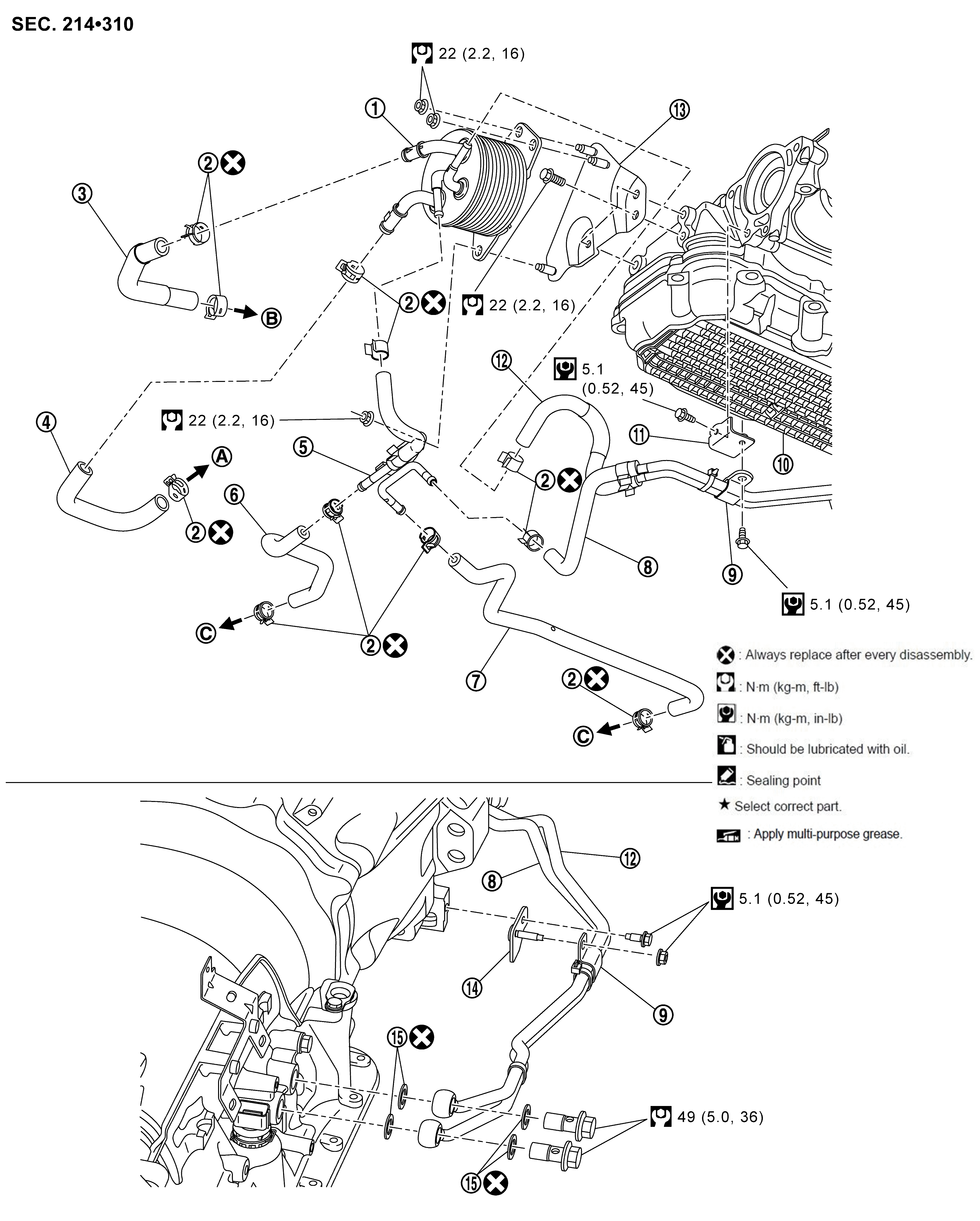

Fig 2: A/T Fluid Warmer Replacement Components With Torque Specifications (2WD Models - Engine Oil Cooler Water Cooling Type)*)

Courtesy of NISSAN NORTH AMERICA, INC.

AT fluid warmer	Hose clamp	Water hose A
Water hose B	Fluid cooler hose A	Fluid cooler tube A
Fluid cooler hose B	Oil pan lower	Transmission assembly
Clip	Fluid cooler tube B assembly	Fluid cooler tube C assembly
Bracket	Bracket	Copper washer
To Heater tube	To water pipe 2	To Radiator
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)

* : To identify vehicle type, refer to Engine Lubrication System .

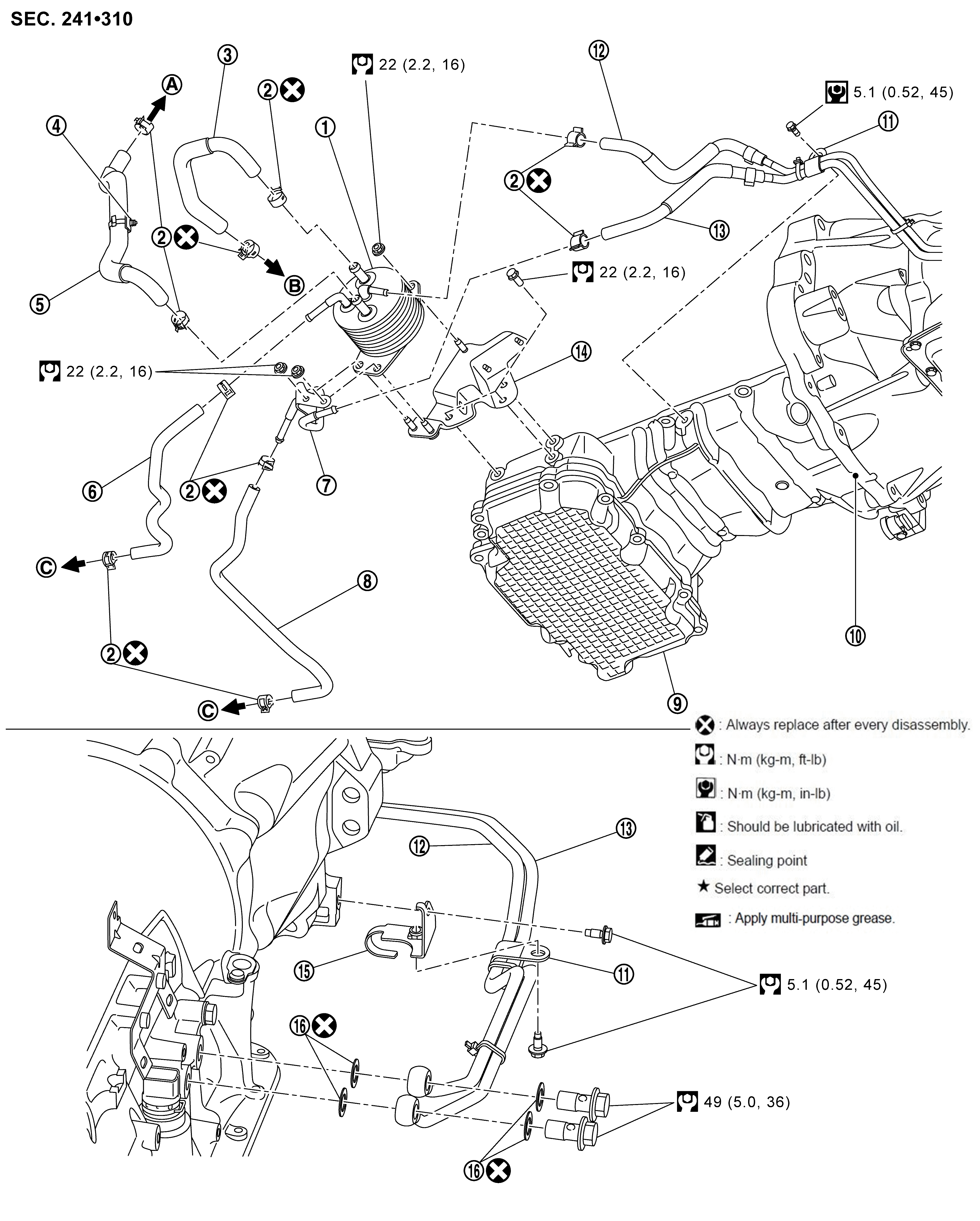

Fig 3: A/T Fluid Warmer Replacement Components With Torque Specifications (AWD Models - Engine Oil Cooler Air Cooling Type)*)

Courtesy of NISSAN NORTH AMERICA, INC.

AT fluid warmer	Hose clamp	Water hose A
Clip	Water hose B	Fluid cooler tube A assembly
Fluid cooler hose A	Fluid cooler hose B	Fluid cooler tube B assembly
Clip	Oil pan lower	Bracket
Fluid cooler tube C assembly	Bracket	Bracket
Copper washer
To Heater tube	To water pipe 2	To Radiator
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)

* : To identify vehicle type, refer to Engine Lubrication System .

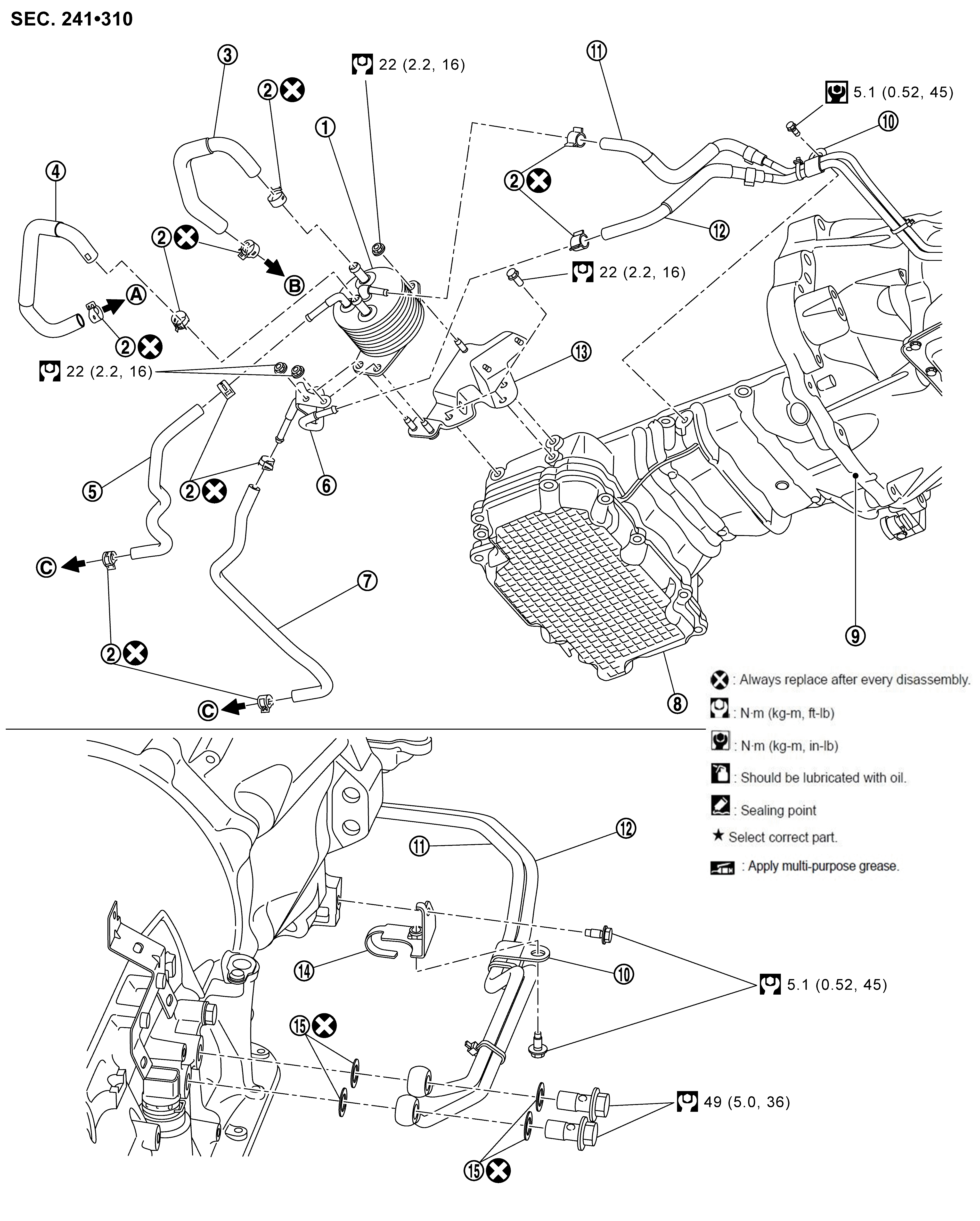

Fig 4: A/T Fluid Warmer Replacement Components With Torque Specifications (AWD Models - Engine Oil Cooler Water Cooling Type)*)

Courtesy of NISSAN NORTH AMERICA, INC.

AT fluid warmer	Hose clamp	Water hose A
Water hose B	Fluid cooler tube A assembly	Fluid cooler hose A
Fluid cooler hose B	Fluid cooler tube B assembly	Clip
Oil pan lower	Bracket	Fluid cooler tube C assembly
Bracket	Bracket	Copper washer
To Heater tube	To water pipe 2	To Radiator
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)

* : To identify vehicle type, refer to Engine Lubrication System .
