Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

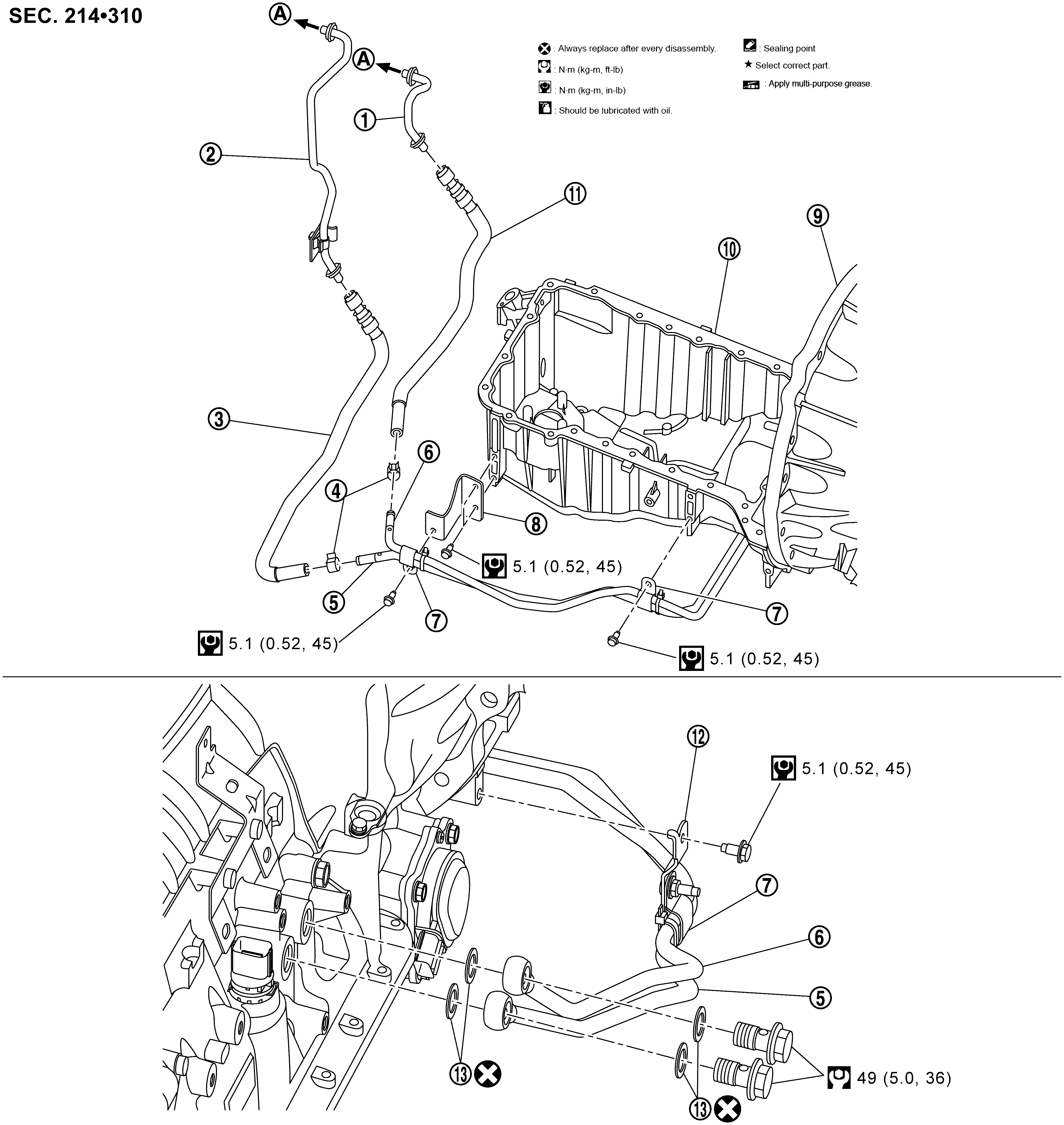

Fig 1: Fluid Cooler System Replacement Components With Torque Specifications (2WD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Fluid cooler tube A	Fluid cooler tube B	A/T fluid cooler hose B
Hose clamp	Fluid cooler tube D	Fluid cooler tube C
Clip	Bracket	Transmission assembly
Oil pan upper	A/T fluid cooler hose A	Bracket
Copper washer
To radiator
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)

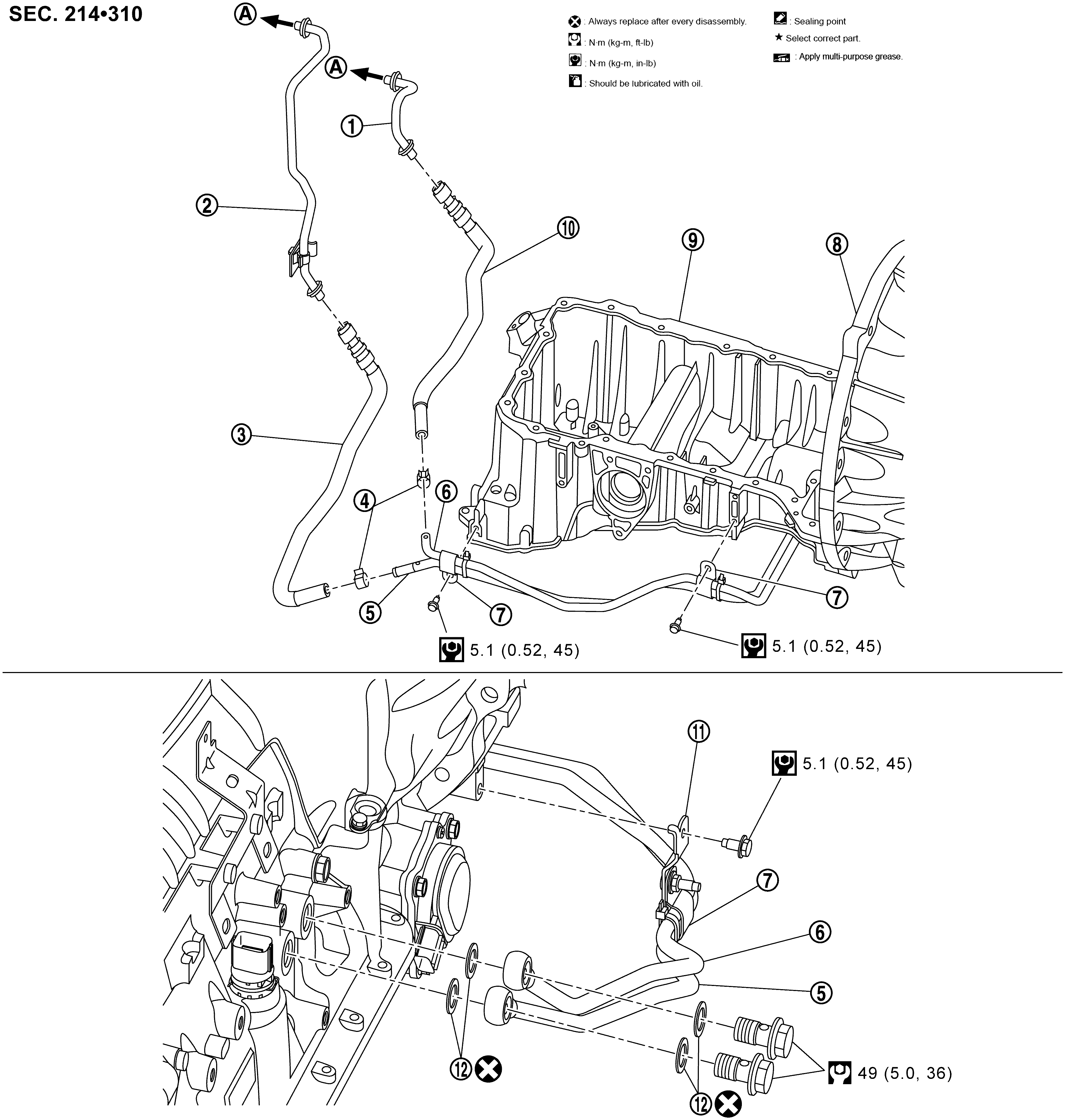

Fig 2: Fluid Cooler System Replacement Components With Torque Specifications (AWD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Fluid cooler tube A	Fluid cooler tube B	A/T fluid cooler hose B
Hose clamp	Fluid cooler tube D	Fluid cooler tube C
Clip	Transmission assembly	Oil pan upper
A/T fluid cooler hose A	Bracket	Copper washer
To radiator
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
