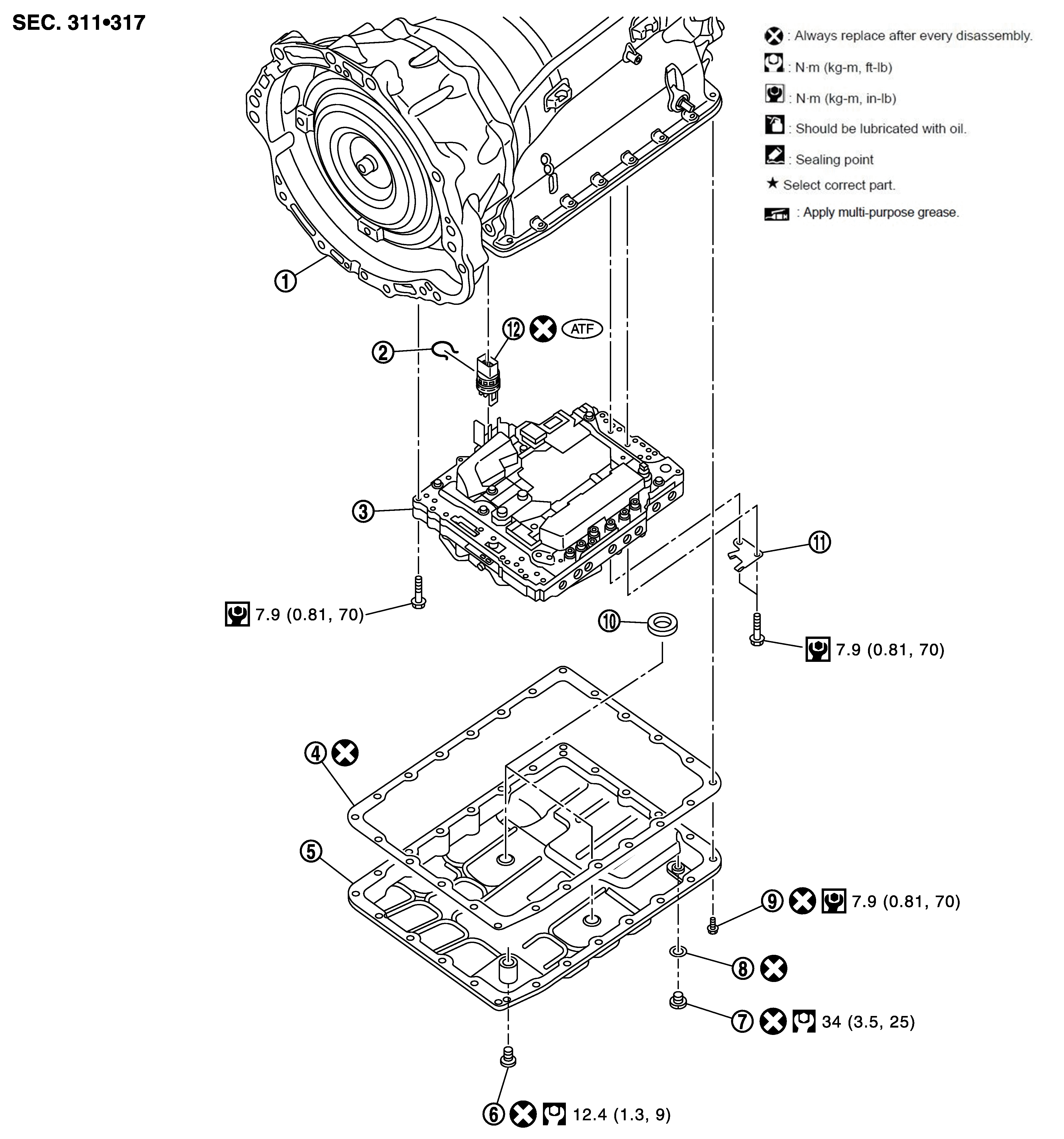

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Transmission assembly |
|
Snap ring |
|
Control valve & TCM |
|
|
Oil pan gasket |
|
Oil pan |
|
Overflow plug |
|
|
Drain plug |
|
Drain plug gasket |
|
Oil pan mounting bolt |
|
|
Magnet |
|
Clip |
|
Joint connector |
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
: Apply ATF |
||||
