Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

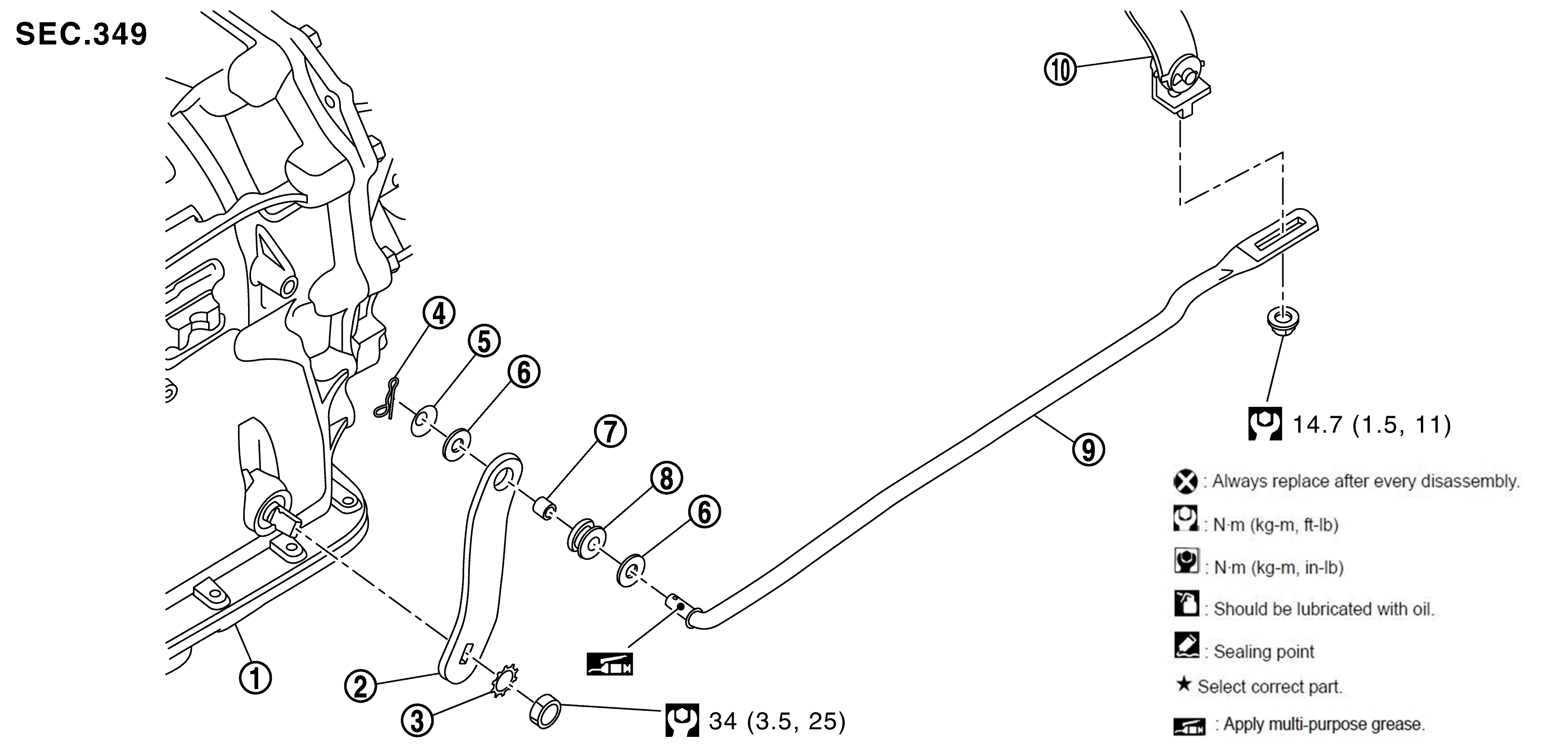

Fig 1: Control Rod Replacement Components With Torque Specifications (2WD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Transmission assembly	Manual lever	Lock washer
Snap pin	Conical washer	Plain washer
Collar	Insulator	Control rod
A/T shift selector assembly
: N.m (kg-m, ft-lb)
: Apply multi-purpose grease

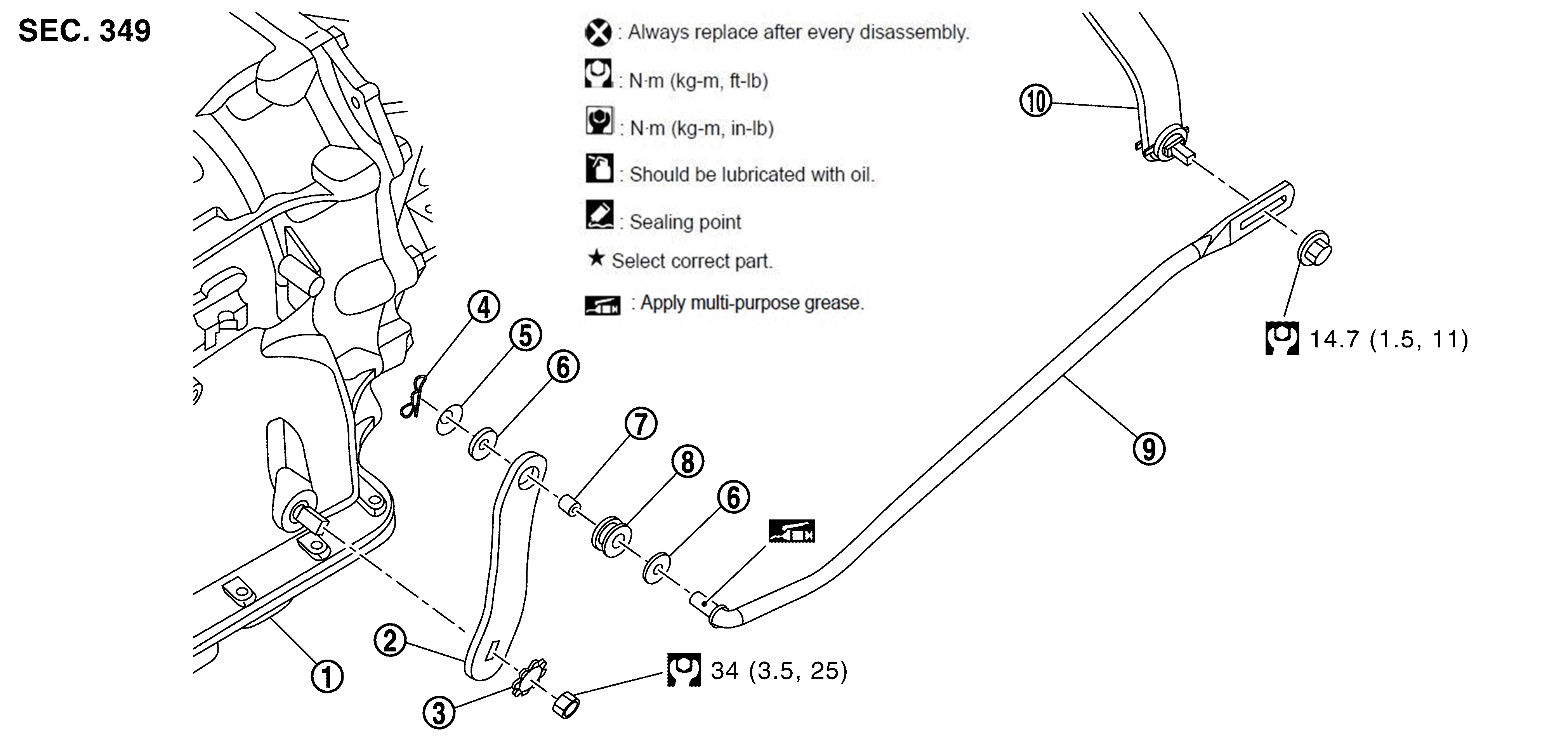

Fig 2: Control Rod Replacement Components With Torque Specifications (AWD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Transmission assembly	Manual lever	Lock washer
Snap pin	Conical washer	Plain washer
Collar	Insulator	Control rod
A/T shift selector assembly
: N.m (kg-m, ft-lb)
: Apply multi-purpose grease
