Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

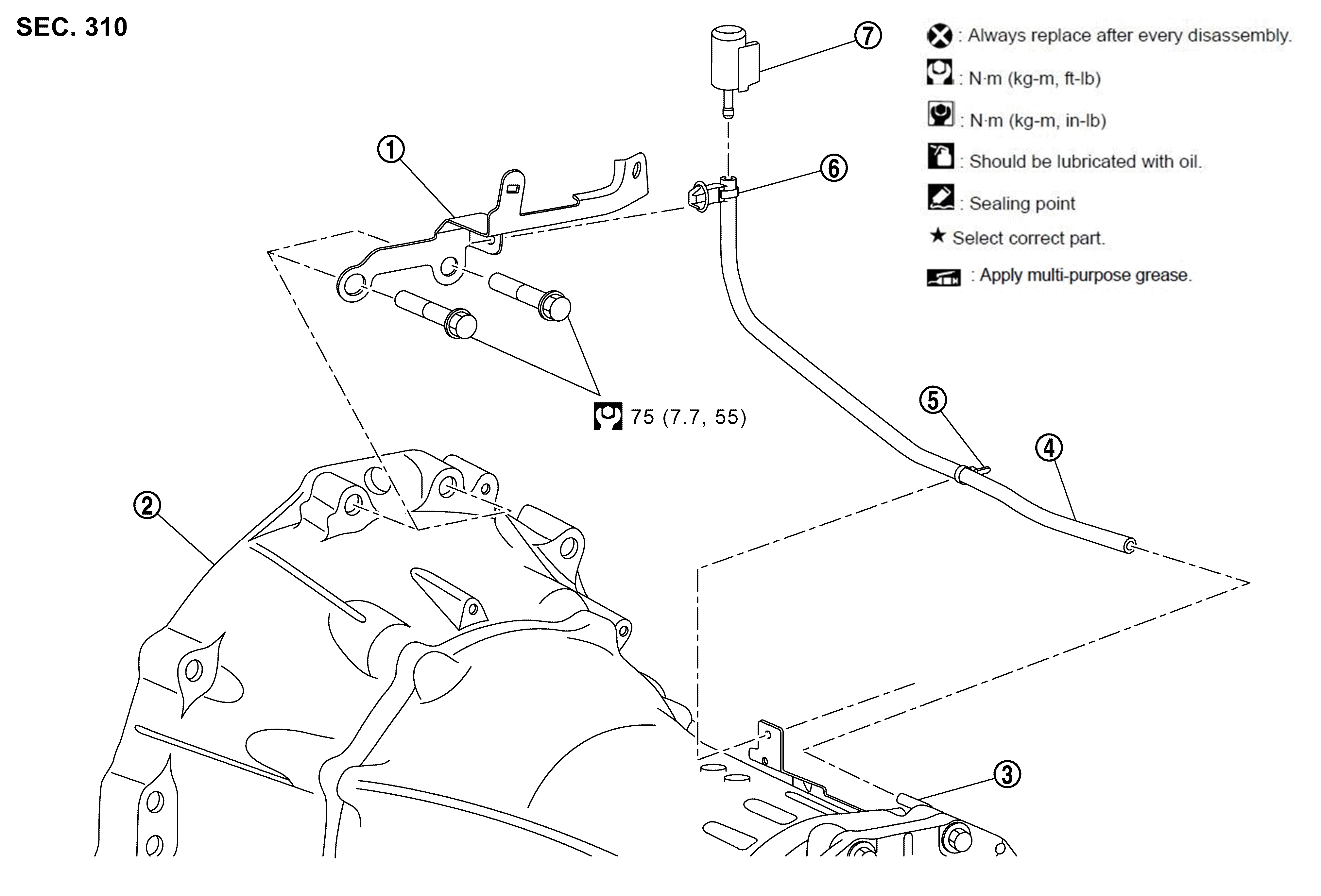

Fig 1: Air Breather With Torque Specifications (3.0L Models)
GNSJSDIB0042GB-042Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Bracket

SYMBOL

Transmission assembly

SYMBOL

Air breather tube

SYMBOL

Air breather hose

SYMBOL

Clip

SYMBOL

Clip

SYMBOL

Air breather box

SYMBOL

: N.m (kg-m, ft-lb)
