Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove catalytic converter. Refer to Exploded View .
  2. Remove propeller shaft assembly (front). Refer to Removal and Installation . (AWD models)
  3. Remove clip SYMBOL from brackets.
    GNSJSDIB0015Z-015Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Vehicle front

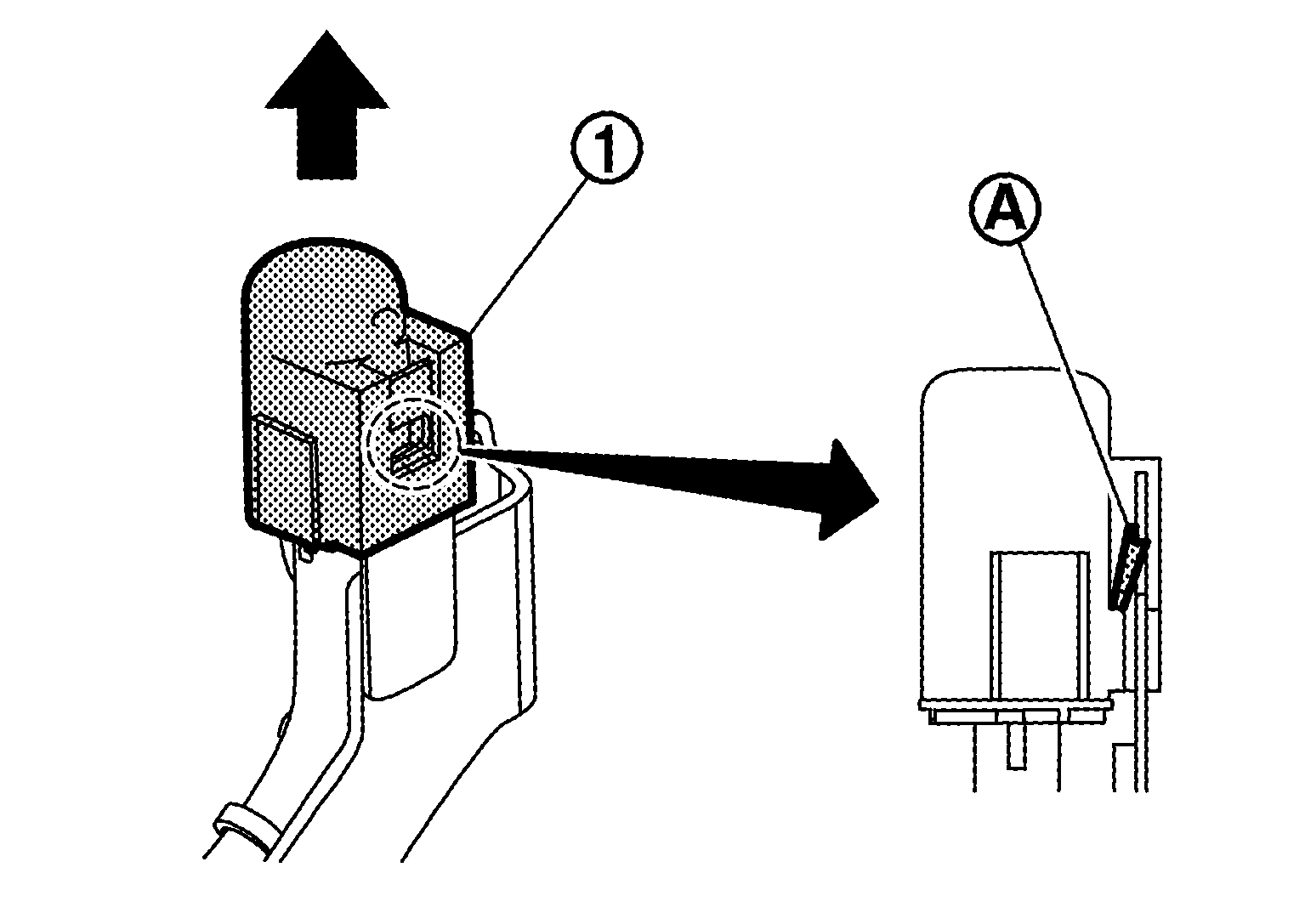

  4. Remove air breather box SYMBOL from bracket with suitable tool.
    GNSJSDIA4262Z-262Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

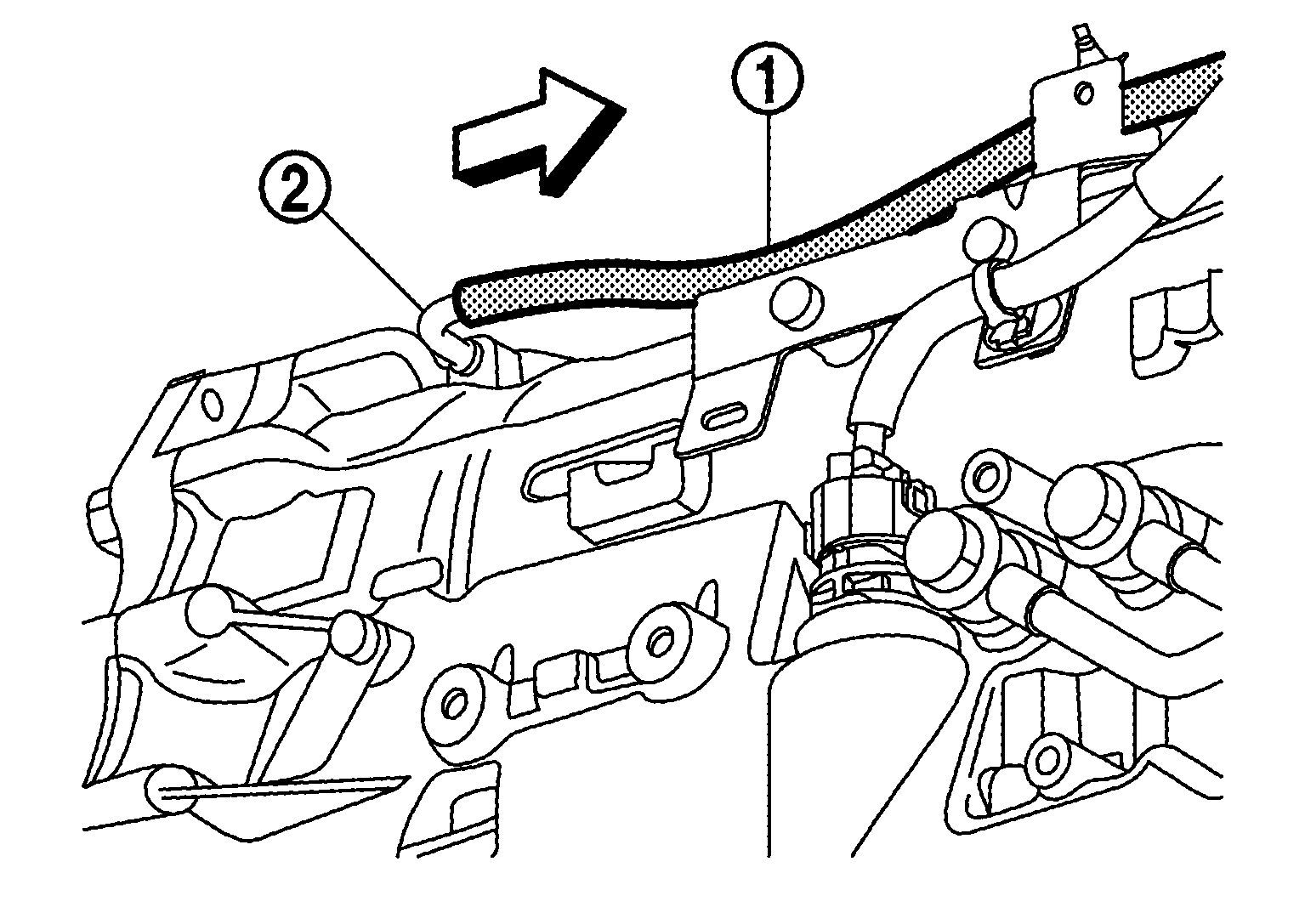

  5. Remove air breather hose SYMBOL from air breather tube SYMBOL .

    SYMBOL

    : Vehicle front
    GNSJSDIA4263Z-263Courtesy of NISSAN NORTH AMERICA, INC.
