Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Note the followings and install in the reverse order of removal.

CAUTION:

Never bend the air breather hose to prevent damage to the hose.

Insert air breather hose to air breather tube all the way to the curve of the tube.

Courtesy of NISSAN NORTH AMERICA, INC.
Install air breather hose to air breather box so that the paint mark is facing backward.

Courtesy of NISSAN NORTH AMERICA, INC.

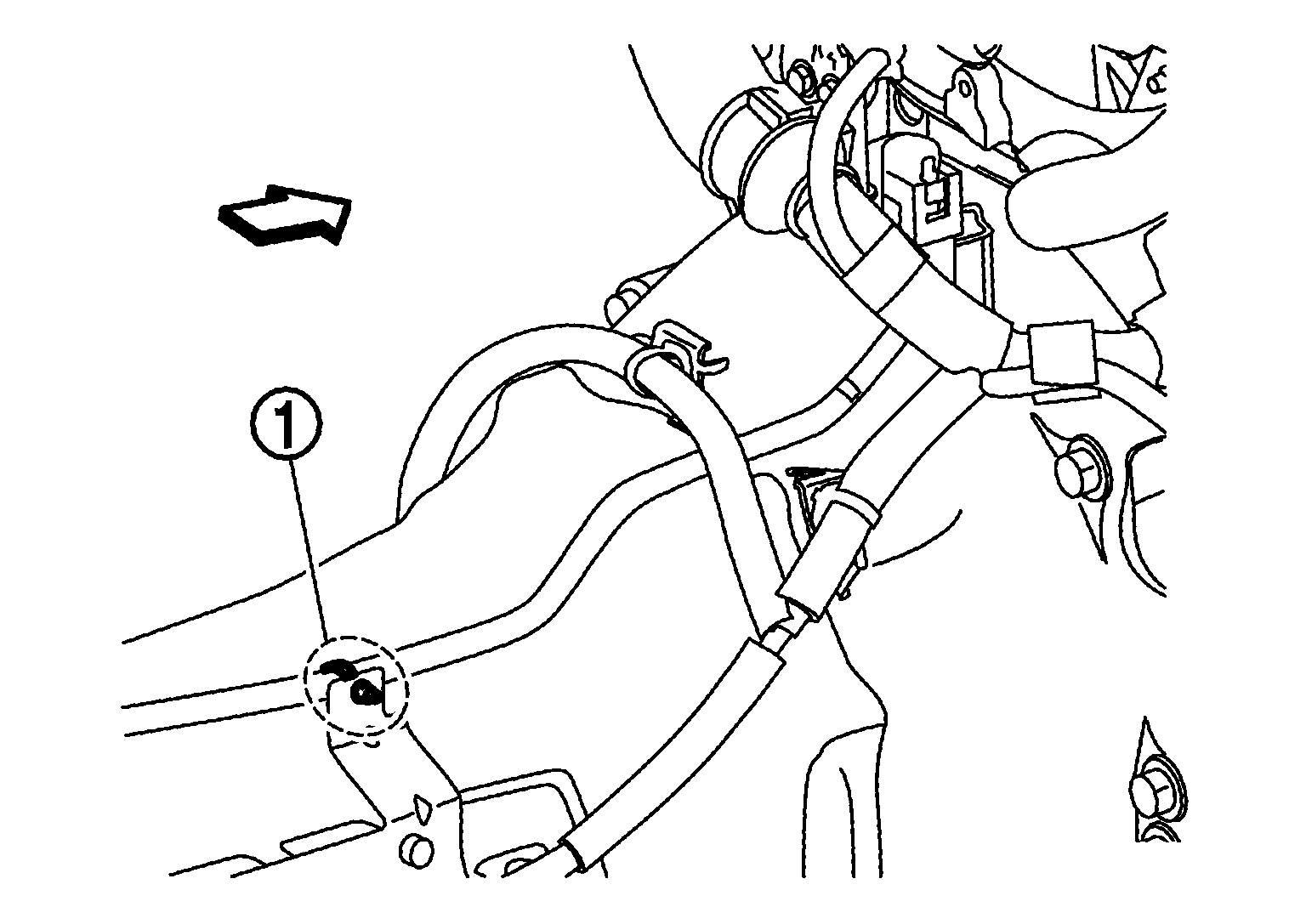

Securely install the clip to the brackets.

Courtesy of NISSAN NORTH AMERICA, INC.

: Vehicle front
