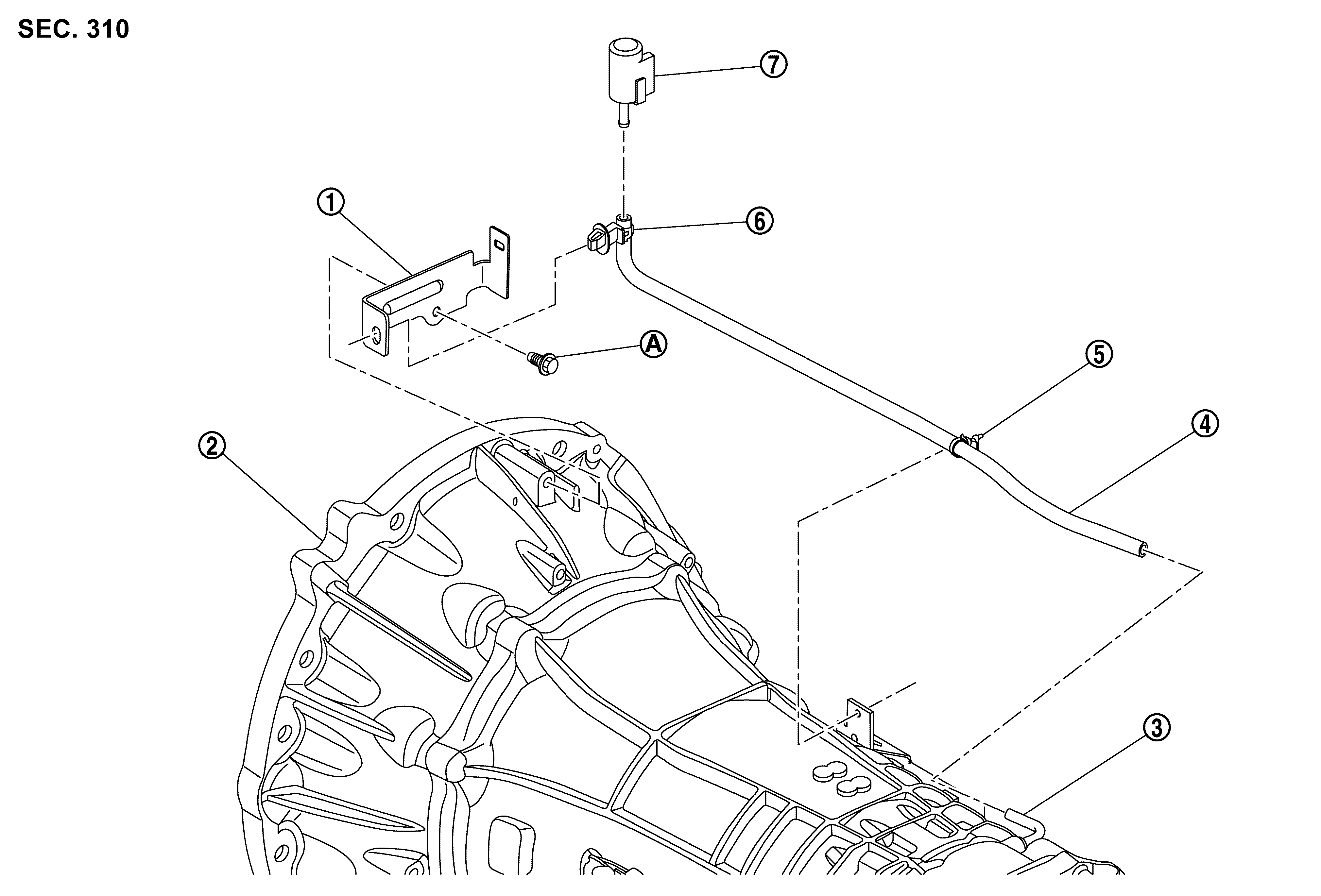

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Bracket |
|
Transmission assembly |
|
Air breather tube |
|
|
Air breather hose |
|
Clip |
|
Clip |
|
|
Air breather box |
||||
|
|
Tightening must be done following the installation procedure. Refer to Removal and Installation . |
||||
