Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shift the selector lever to "P" position.
  2. Remove nut (SYMBOL ) and remove the control rod SYMBOL from the lower lever of A/T shift selector assembly.
    GNSJSDIA4254Z-254Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : 2WD models (Not applicable)

    SYMBOL

    : AWD models

    SYMBOL

    : Vehicle front
  3. Shift the selector lever to "N" position.

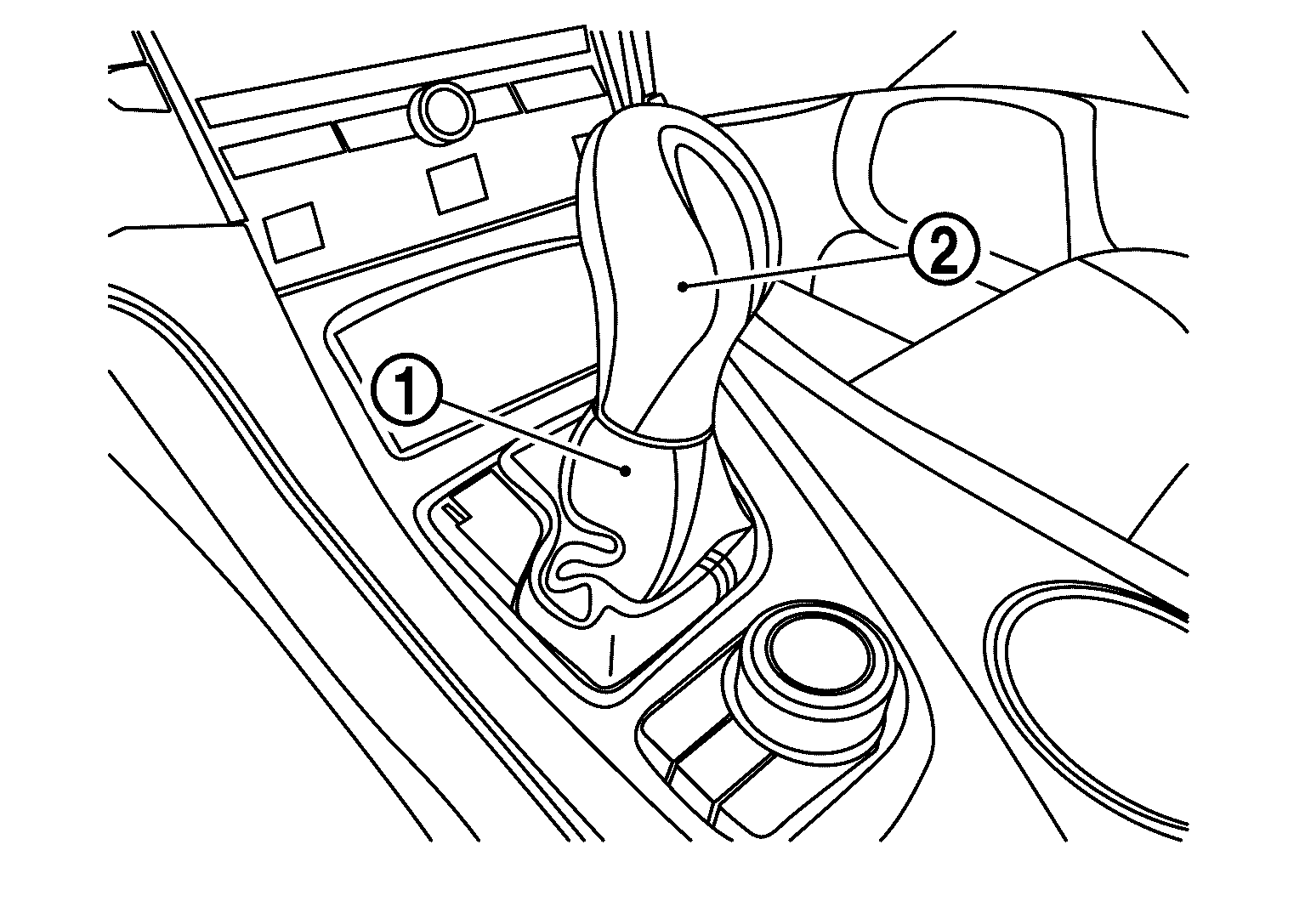

  4. Remove the top of shift boot SYMBOL from the selector lever knob SYMBOL and slide the shift boot down.
    GNSJSDIA4248Z-248Courtesy of NISSAN NORTH AMERICA, INC.

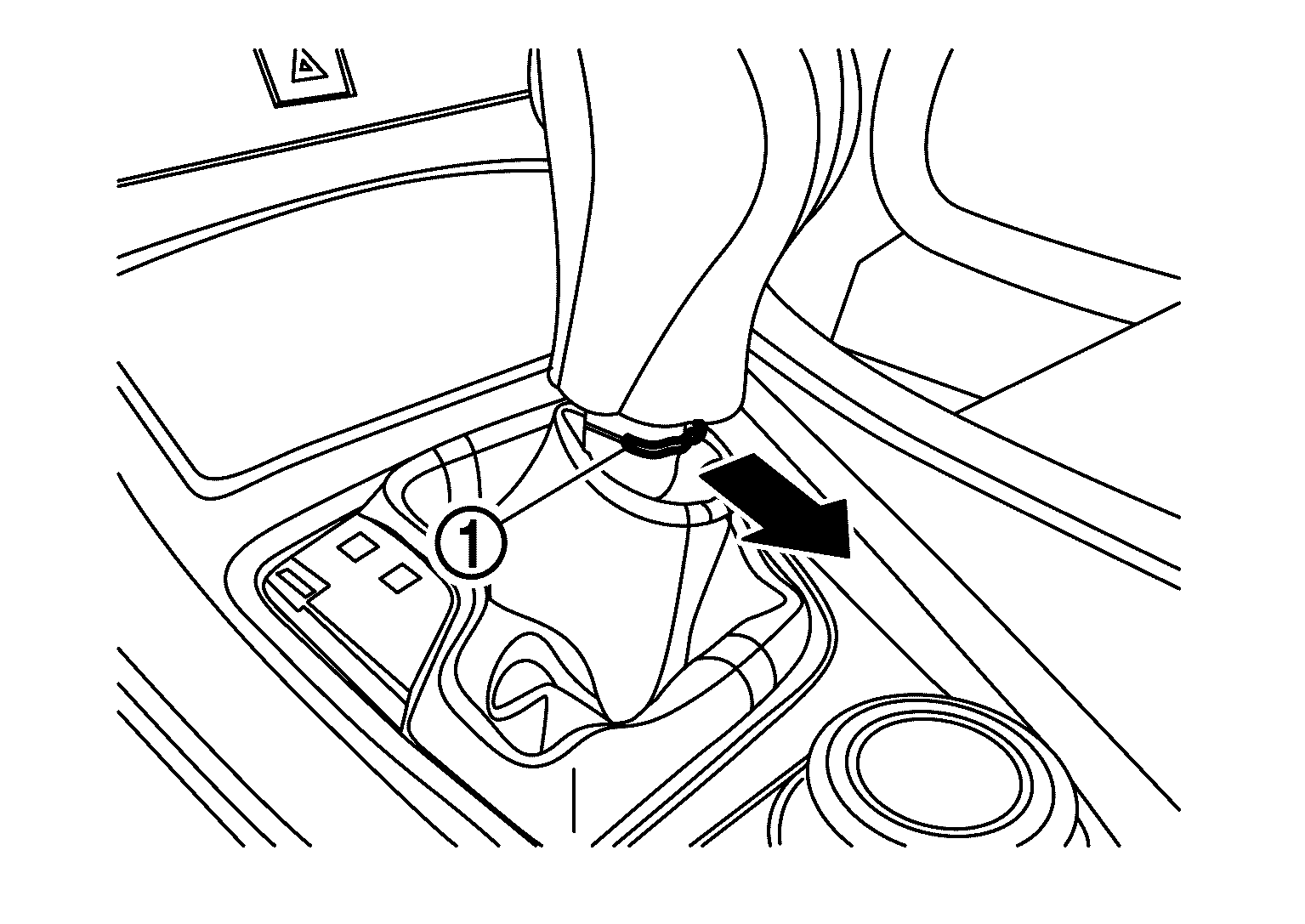

  5. Pull out the lock pin SYMBOL and remove shift selector knob from the selector lever.
    GNSJSDIA4249Z-249Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove center console assembly. Refer to Removal and Installation .
  7. Shift the selector lever to "P" position.
    CAUTION: Be sure to move selector lever with the selector lever knob installed.

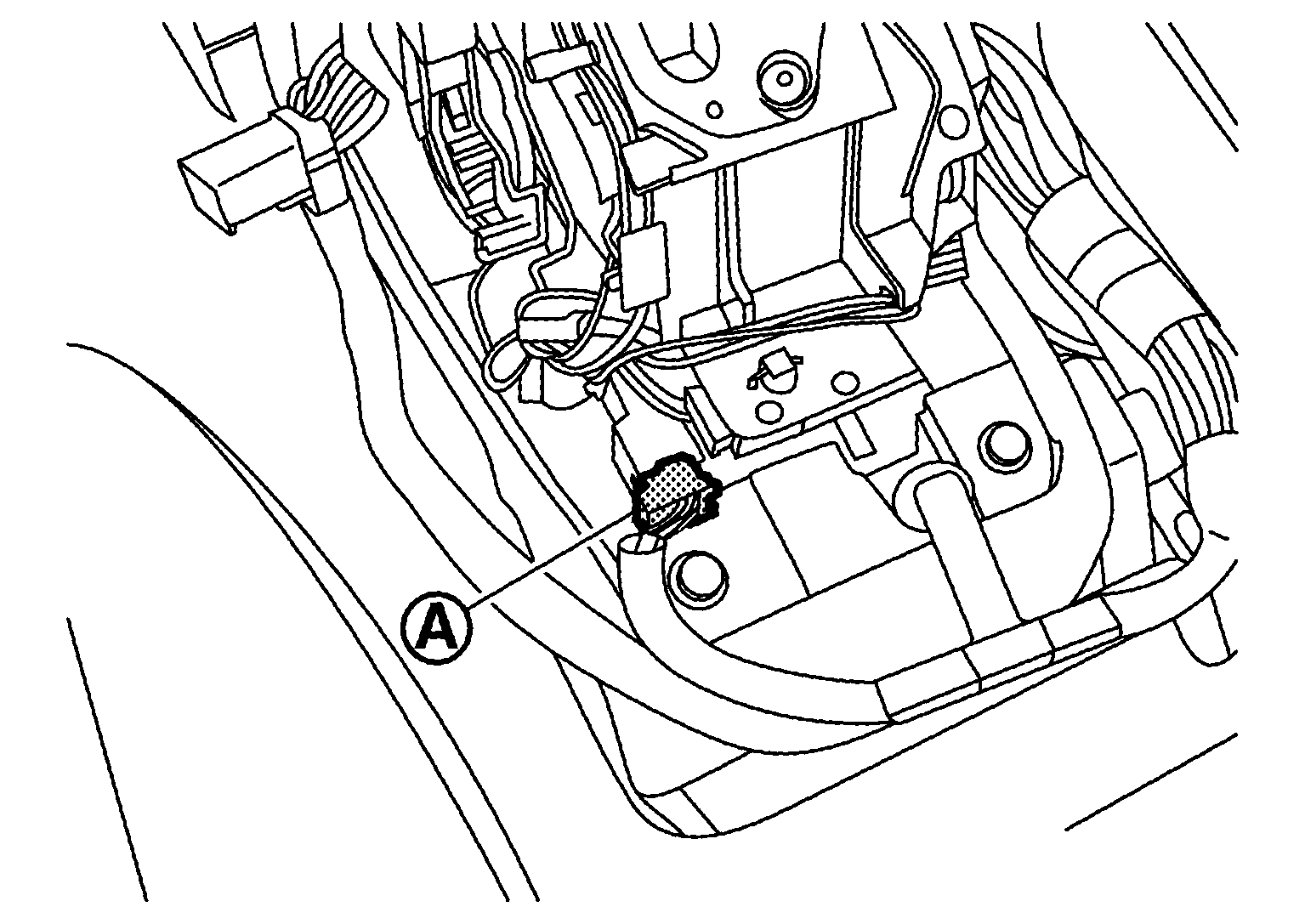

  8. Disconnect A/T shift selector connector SYMBOL .
    GNSJSDIA4250Z-250Courtesy of NISSAN NORTH AMERICA, INC.

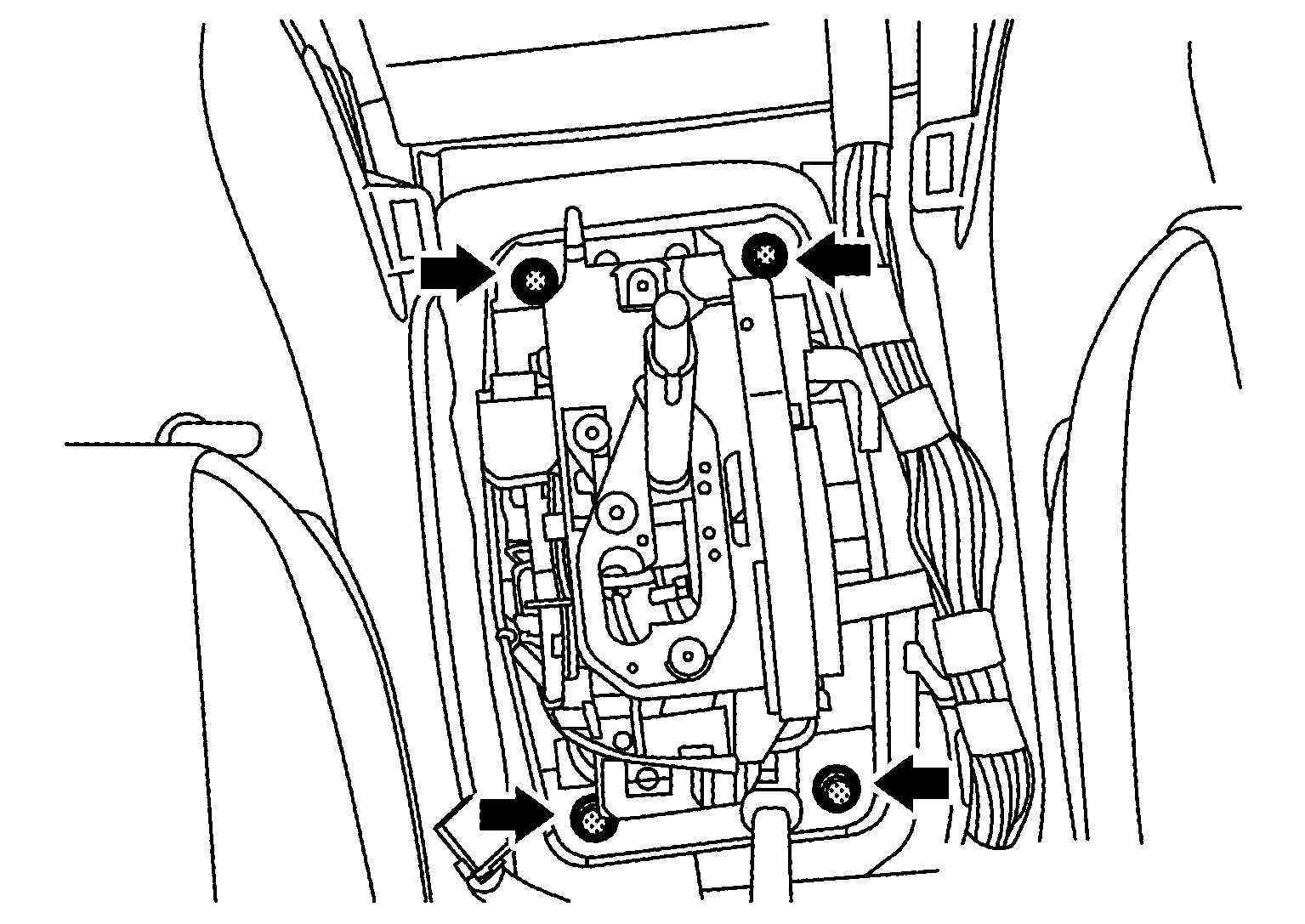

  9. Remove A/T shift selector assembly mounting bolts (SYMBOL ).
    GNSJSDIA4251Z-251Courtesy of NISSAN NORTH AMERICA, INC.

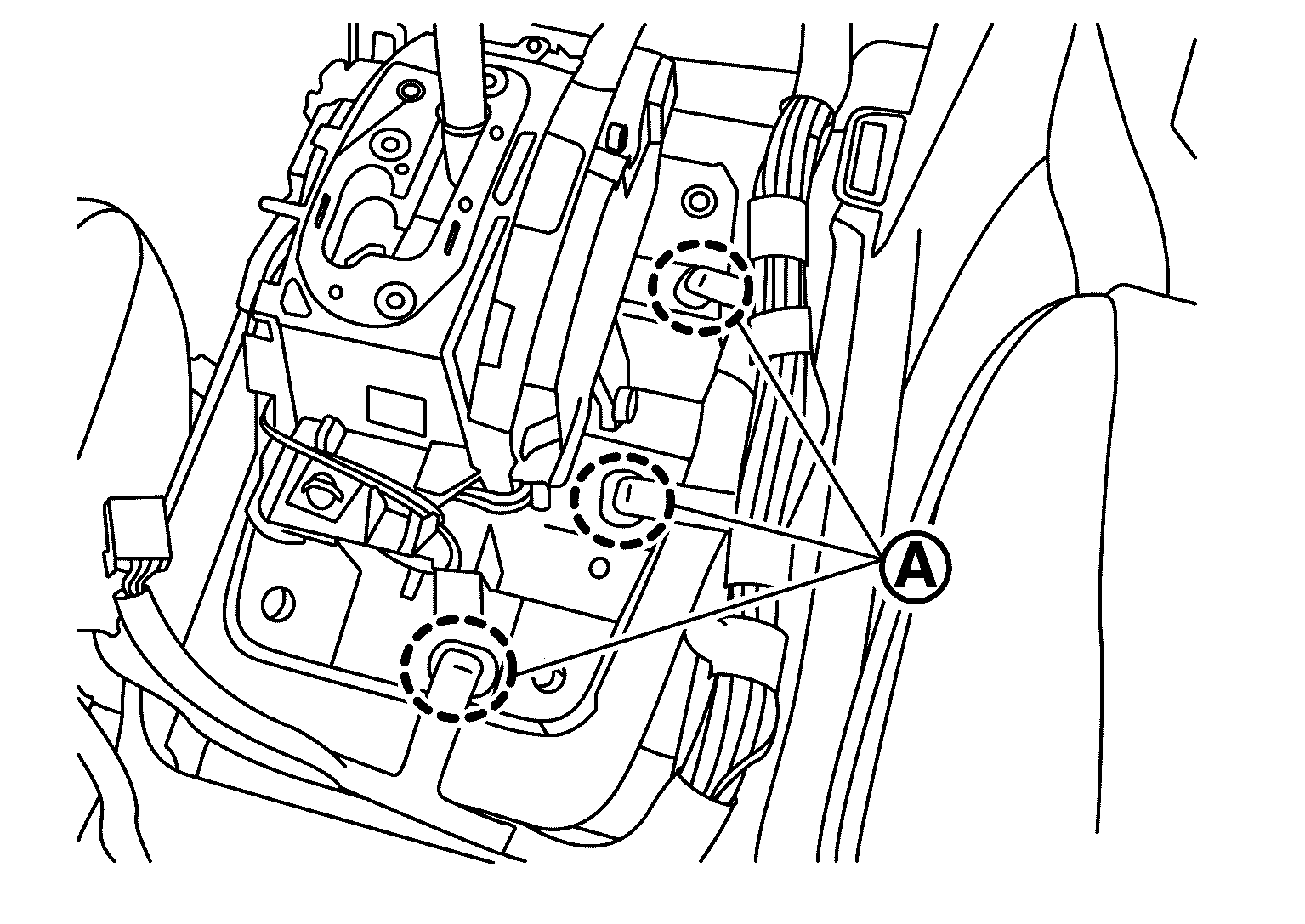

  10. Remove harness clips SYMBOL from A/T shift selector assembly.
    GNSJSDIA4253Z-253Courtesy of NISSAN NORTH AMERICA, INC.
  11. Remove A/T shift selector assembly from the vehicle.
  12. Remove snap pin, washers, insulator, collar and pivot pin from A/T shift selector assembly.
  13. Remove dust cover and dust cover plate from A/T shift selector assembly.
  14. Remove adapter from A/T shift selector assembly.
