Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

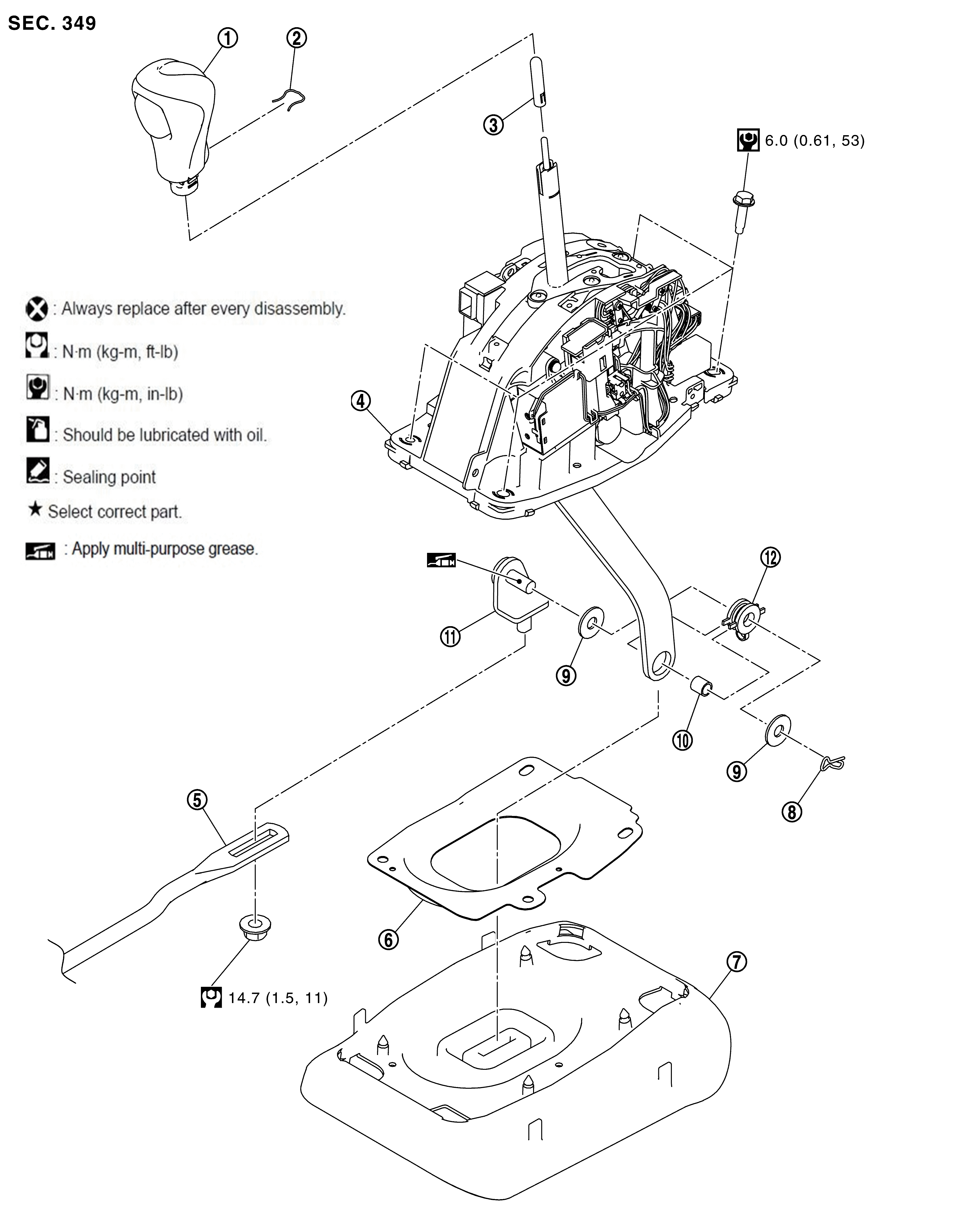

Fig 1: A/T Shift Selector Replacement Components With Torque Specifications (2WD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Selector lever knob	Lock pin	Adapter
A/T shift selector assembly	Dust cover plate	Dust cover
Control rod	Pivot pin	Washer
Collar	Snap pin	Insulator
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
: Apply multi-purpose grease

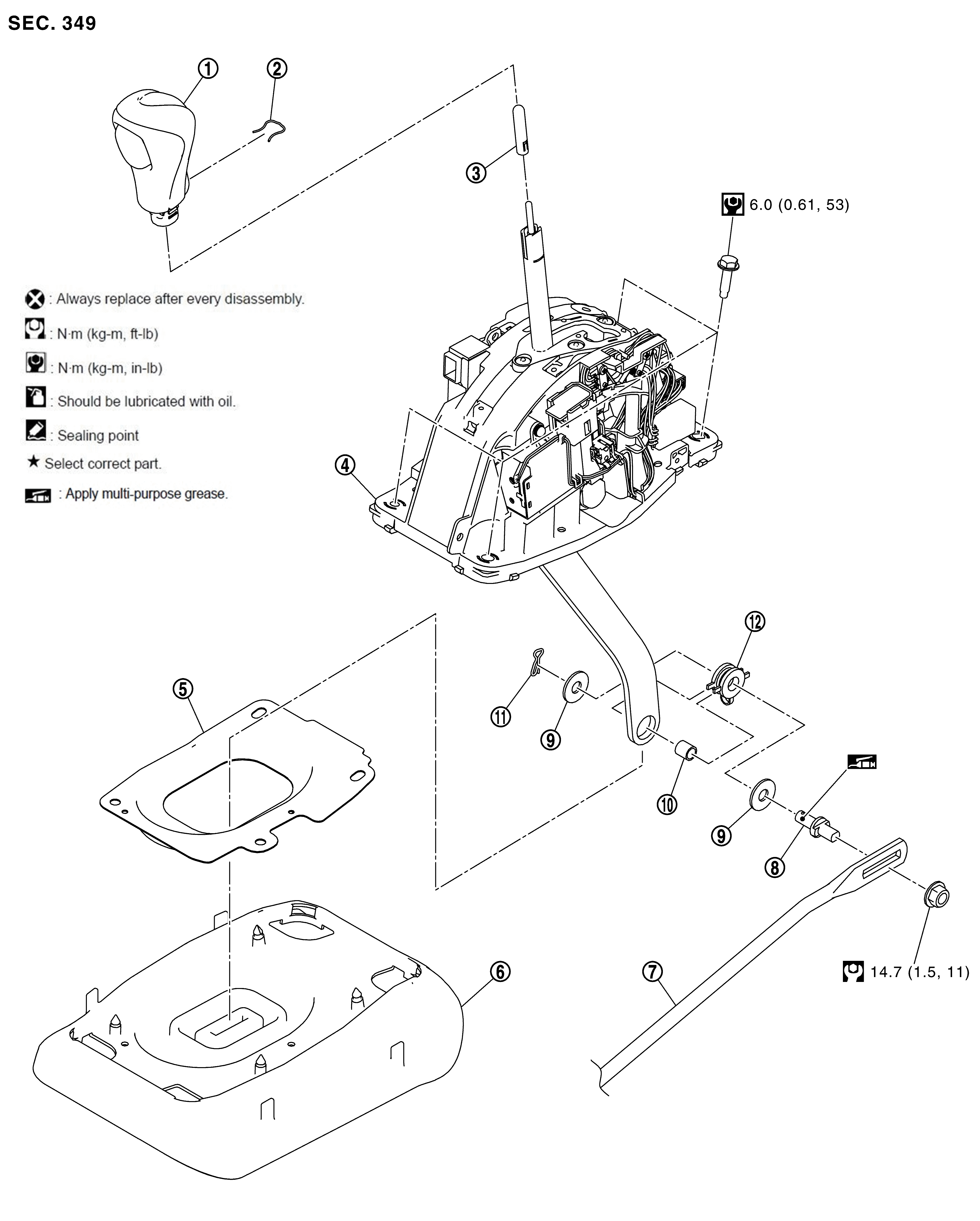

Fig 2: A/T Shift Selector Replacement Components With Torque Specifications (AWD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Selector lever knob	Lock pin	Adapter
A/T shift selector assembly	Control rod	Dust cover plate
Dust cover	Snap pin	Washer
Collar	Pivot pin	Insulator
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
: Apply multi-purpose grease
