Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2017 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

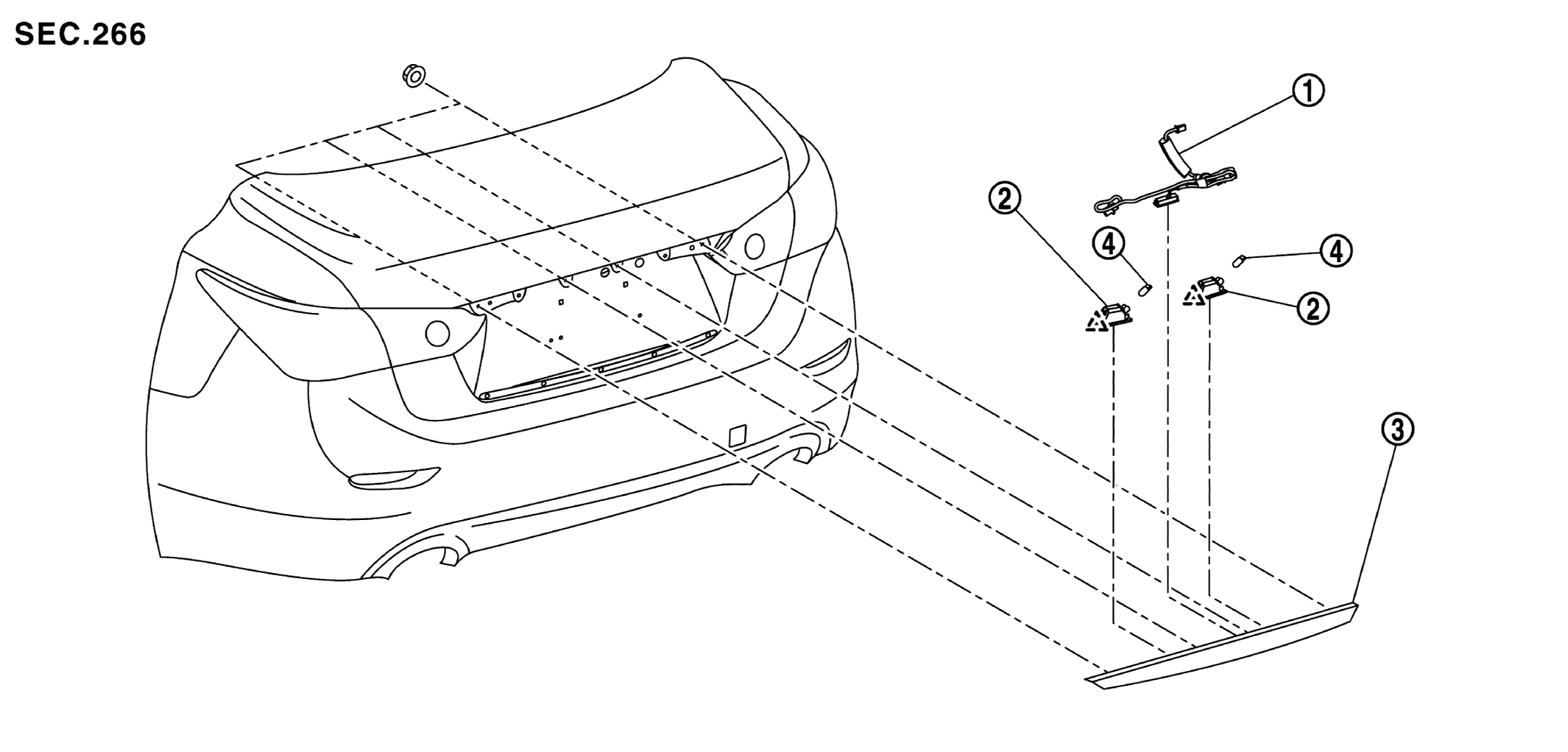

GNSJMLIA4136ZZ-136Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Harness connector assembly WHITE-2 License plate lamp housing WHITE-3 Trunk lid finisher
WHITE-4 License plate lamp bulb
SANKAKU-H : Pawl
