Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2017 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

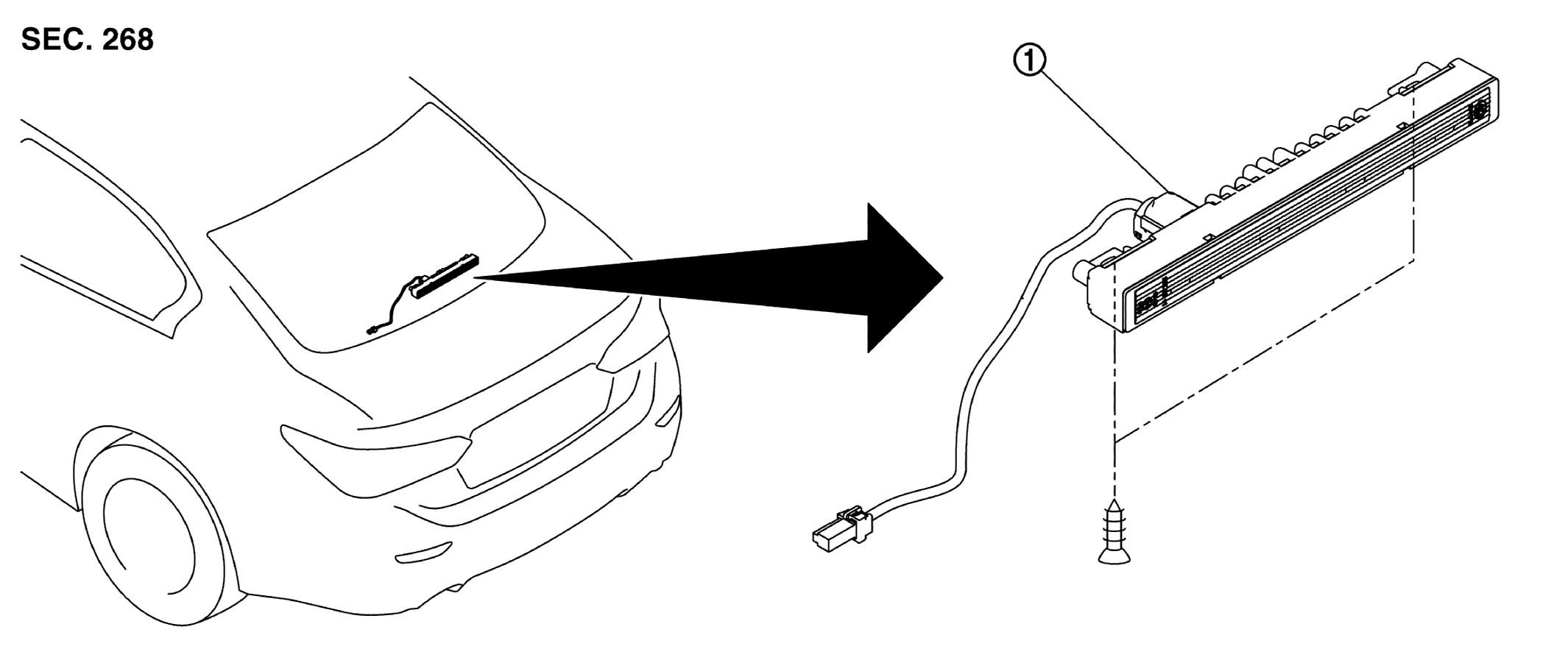

GNSJMLIA4132ZZ-132Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 High-mounted stop lamp unit
